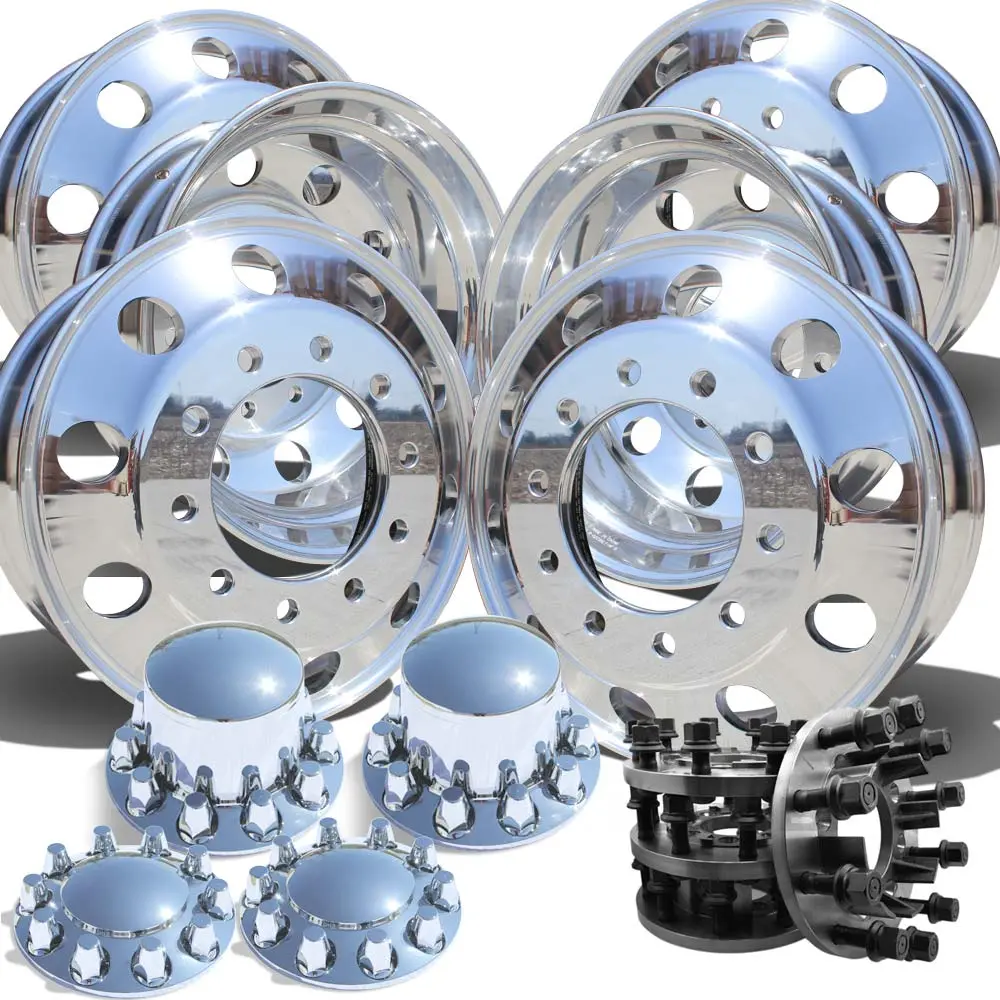

22.5-Inch Northstar Wheels with 8- to 10-Lug Adapter Kit for Chevrolet/GM 3500 DRW Trucks (2001–2010)

Description

Heavy duty adapter kit fits2001 – 2010Chevy/GM 3500 DRW. Takes standard 8 on 6.5″ Bolt pattern to larger 10 on 285mm to fit larger 19.5 or 22.5 Semi wheels.

Kit Information

Includes 6 Northstar Mirror Finish

Includes also choice of Hub/Nut Cover Set:

• Pointed Hub Cover Spiked Nut Covers
• Rounded Hub Cover Regular Nut Covers

Wheel Specs

Size: 22.5 x 8.25 Finish:Mirror Finish Both Sides Position: All Position Wheel (front, rear, or trailer) Pre Installed Valve Stem : TR554D 10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore Outset: 6.60″ Inset: 5.79 Backspacing:10.675″ Disc Thickness: 0.81″ Weight:53 Lbs Max Load: 7400 Lbs @ 130 PSI Bolt Hole Diameter: 26mm Decorative Outer Vent Hole Size (Hand Hole):2.5″

Recommended Tire Size:

• 255/70R22.5 (36.6″ Approx. Height)

Other available tire sizes that may require appropriate lift:

• 275/70R22.5 (37.7″ Approx. Height)
• 295/75R22.5 (40.2″ Approx. Height)
• 11R22.5 (41.5″ Approx. Height)

Fits the following:

2001 Chevrolet 3500 DRW 2001 Chevrolet 3500 DRW 2002 Chevrolet 3500 DRW 2003 Chevrolet 3500 DRW 2004 Chevrolet 3500 DRW 2005 Chevrolet 3500 DRW 2006 Chevrolet 3500 DRW 2007 Chevrolet 3500 DRW 2008 Chevrolet 3500 DRW 2009 Chevrolet 3500 DRW 2010 Chevrolet 3500 DRW 2001 GMC 3500 DRW 2001 GMC 3500 DRW 2002 GMC 3500 DRW 2003 GMC 3500 DRW 2004 GMC 3500 DRW 2005 GMC 3500 DRW 2006 GMC 3500 DRW 2007 GMC 3500 DRW 2008 GMC 3500 DRW 2009 GMC 3500 DRW 2010 GMC 3500 DRW
