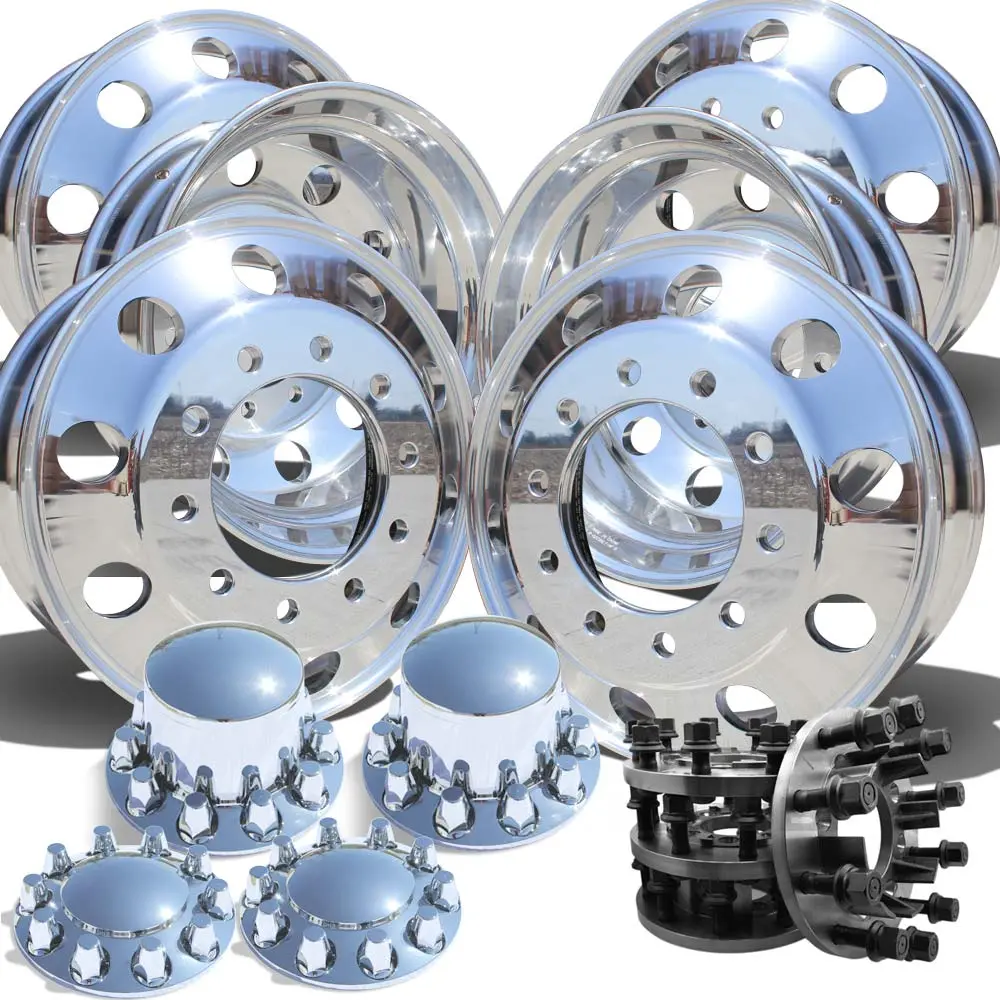

22.5″ Northstar Alloy Wheels + Custom 8–10 Lug Conversion Kit for Chevrolet and GM 3500 Dual Rear Wheel Trucks (1977–2000)

Description

Heavy duty adapter kit fits 1977 – 2000 Chevy/GM 3500 DRW. Takes standard 8 on 6.5″ Bolt pattern to larger 10 on 285mm to fit larger 19.5 or 22.5 Semi wheels.

Kit Information

Includes 6 Northstar Mirror Finish

Includes also choice of Hub/Nut Cover Set:

• Pointed Hub Cover Spiked Nut Covers
• Rounded Hub Cover Regular Nut Covers

Wheel Specs

Size: 22.5 x 8.25 Finish: Mirror Finish Both Sides Position: All Position Wheel (front, rear, or trailer) Pre Installed Valve Stem : TR554D 10-Hole Hub Pilot 285.75mm Bolt Circle, 220mm Center Bore Outset: 6.60″ Inset: 5.79 Backspacing: 10.675″ Disc Thickness: 0.81″ Weight: 53 Lbs Max Load: 7400 Lbs @ 130 PSI Bolt Hole Diameter: 26mm Decorative Outer Vent Hole Size (Hand Hole): 2.5″

Recommended Tire Size:

• 255/70R22.5 (36.6″ Approx. Height)

Other available tire sizes that may require appropriate lift:

• 275/70R22.5 (37.7″ Approx. Height)
• 295/75R22.5 (40.2″ Approx. Height)
• 11R22.5 (41.5″ Approx. Height)

Fits the following:

1977 Chevy Silverado 3500 1978 Chevy Silverado 3500 1979 Chevy Silverado 3500 1980 Chevy Silverado 3500 1981 Chevy Silverado 3500 1982 Chevy Silverado 3500 1983 Chevy Silverado 3500 1984 Chevy Silverado 3500 1985 Chevy Silverado 3500 1986 Chevy Silverado 3500 1987 Chevy Silverado 3500 1988 Chevy Silverado 3500 1989 Chevy Silverado 3500 1990 Chevy Silverado 3500 1991 Chevy Silverado 3500 1992 Chevy Silverado 3500 1993 Chevy Silverado 3500 1994 Chevy Silverado 3500 1995 Chevy Silverado 3500 1996 Chevy Silverado 3500 1997 Chevy Silverado 3500 1998 Chevy Silverado 3500 1999 Chevy Silverado 3500 2000 Chevy Silverado 3500 1977 GMC Sierra 3500 1978 GMC Sierra 3500 1979 GMC Sierra 3500 1980 GMC Sierra 3500 1981 GMC Sierra 3500 1982 GMC Sierra 3500 1983 GMC Sierra 3500 1984 GMC Sierra 3500 1985 GMC Sierra 3500 1986 GMC Sierra 3500 1987 GMC Sierra 3500 1988 GMC Sierra 3500 1989 GMC Sierra 3500 1990 GMC Sierra 3500 1991 GMC Sierra 3500 1992 GMC Sierra 3500 1993 GMC Sierra 3500< 1994 GMC Sierra 3500 1995 GMC Sierra 3500 1996 GMC Sierra 3500 1997 GMC Sierra 3500 1998 GMC Sierra 3500 1999 GMC Sierra 3500 2000 GMC Sierra 3500
