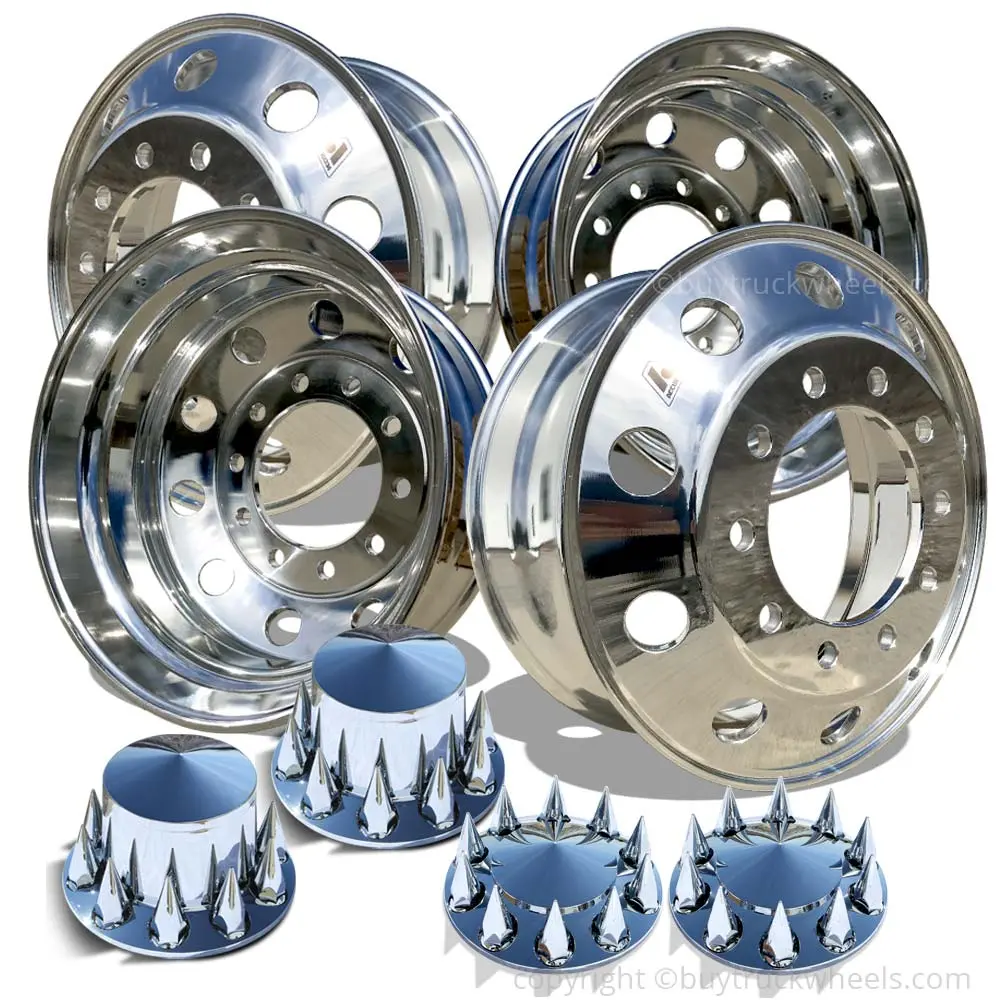

Accuride Polished Single-Axle Wheel Kit – 22.5×8.25 Inches, 10×285.75 Bolt Pattern, Set of 4

Description

Kit Includes:

Wheel:

• Accuride 22.5″ Wheels (43644XP)

Hub Cover Options:

• Pointed Caps Spiked Nut Covers
• Rounded Caps and Regular Nut Covers

Wheel Specs:

Material: Alloy
Finish: High Polished Both Sides (XP)
Position: All Positions (Front, Rear, or Trailer)
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5″ x 8.25″
Bolt Pattern: 10×285.75
Hub Bore Diameter: 220mm
Hand/Vent Holes: 10 @ 2.50″
Wheel Offset: 6.59″
Backspacing: N/A
Disc Thickness: .875″
Weight: 40 lbs
Max Load & Inflation: 7400 lbs @ 131 psi
Installed Valve Stem: TR545D

Additional Information:

Fits These Applications:
Class 8 Trucks
Kenworth
Peterbilt
Freightliner
Volvo
International
Mack
Sterling
Semi Trailers
Tank & Refrigerated Trailers
Van & Flatbed Trailers
Approved Tire Sizes:
255/70R22.5
265/75R22.5
275/80R22.5
295/75R22.5
305/75R22.5
315/80R22.5
10R22.5
11R22.5
12R22.5
Replaces Part:
28867
29068
29094
29105
29126
29172
29173
29352
29540
29555
29644
40020
40124
41644
42644

Need a 6 Wheel Kit?

6 Wheel Kit
Warranty Info: Click Here to Read the Warranty for Accuride Wheels
To File a Claim: Call: (800)-869-2275 Option #1 or Email: warrantyadmin@accuridecorp.com
