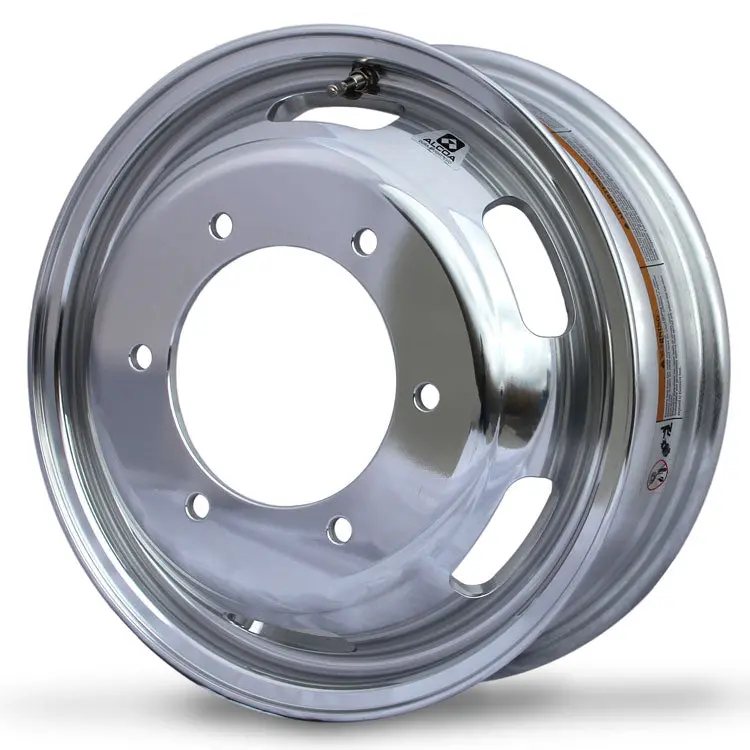

Alcoa 16-inch x 5.5-inch Dura-Bright Evo polished aluminum wheel, hub-piloted design, 6x205mm bolt pattern, engineered for Mercedes-Benz Sprinter 3500 rear axle applications

Description

This new M-Series™ wheel is designed for the Sprinter 3500. It’ll improve your styling and exterior design options for RVs, Shuttles, Vans and Work Truck upfitters building on the Sprinter 3500 cab/chassis. This fully forged aluminum wheel provides corrosion resistance, lighter weight and improved heat management for extended brake and tire life. In addition aluminum wheels enhance the resale value of used vehicles at trade-in.

The 16 x 5.5 J type wheel features 6 elongated hand holes, providing optimal venting in combination with the excellent heat dissipation properties of aluminum. This attractive fully forged aluminum wheel weighs 16.9 pounds (a reduction of about 12 pounds each compared to the steel wheel). They have an identical load rating of 2337 pounds, which is well-suited for superior curb damage resistance, versatile applications and the service for which the Sprinter 3500 is known.

Discover the no-polish, easy-maintenance way to bright, shiny wheels that stay that way. Because the Dura-Bright™ production process penetrates the aluminum, these wheels keep their shine, even after hundreds of washes and thousands of miles, without polishing. Dura-Brights are easy to care for, are guaranteed not to develop filiform corrosion for 10 years, and will not blister or peel due to loss of adhesion of the surface treatment.

Eliminate the need for caustic cleaning products, further protect the environment and reduce maintenance costs. The innovative surface treatment will not chip, crack or peel and prevents filiform corrosion to keep the wheel looking its best with a lot less effort, saving you time and money.

Wheel Specs:

Finish: Dura-Bright® EVO
Position: *Rear Only*
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 16″ x 5.5″
Bolt Pattern: 6×205
Hub Bore Diameter: 161.1mm
Hand/Vent Holes: 6 – Elongated
Wheel Outset: 4.94″
Disc Thickness: .36″Bolt Hole Diameter: 16mm
Weight: 16 lbs
Max Load & Inflation: 2337 lbs @ 80 psi
Installed Valve Stem: 54MS00
Fits These Vehicles:
Mercedes-Benz 3500 DRW Sprinter Van & Cab Chassis
Freightliner 3500 DRW Sprinter Van & Cab Chassis
Dodge 3500 DRW Sprinter Van
Replaces Part:
250802DB

Need an Enitre Wheel Kit?

Alcoa – Sprinter 4 Wheel Kit

Alcoa – Sprinter 6 Wheel Kit
Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
