Description
THIS WHEEL IS DISCONTINUED (JULY 2023)

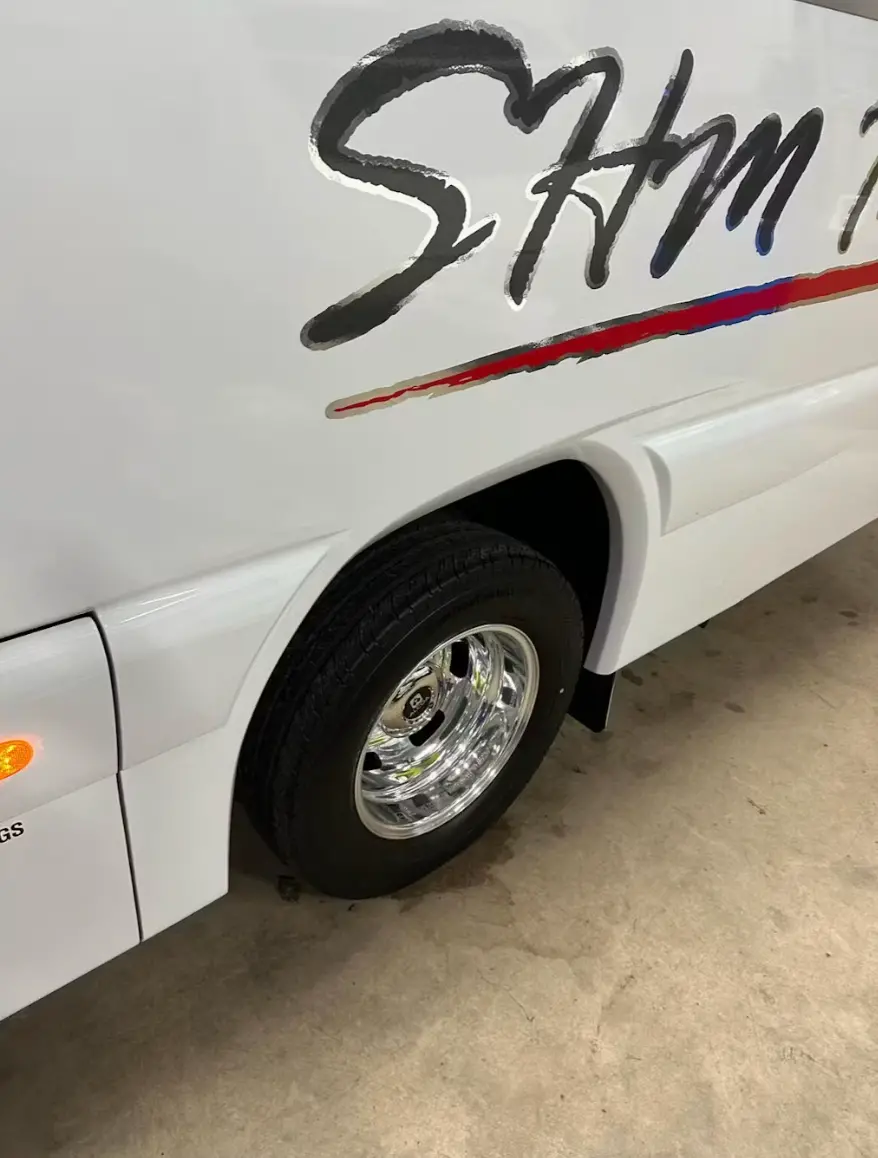

This new M-Series™ wheel is designed for the Sprinter 3500. It’ll improve your styling and exterior design options for RVs, Shuttles, Vans and Work Truck upfitters building on the Sprinter 3500 cab/chassis. This fully forged aluminum wheel provides corrosion resistance, lighter weight and improved heat management for extended brake and tire life. In addition aluminum wheels enhance the resale value of used vehicles at trade-in.
The 16 x 5.5 J type wheel features 6 elongated hand holes, providing optimal venting in combination with the excellent heat dissipation properties of aluminum. This attractive fully forged aluminum wheel weighs 16.9 pounds (a reduction of about 12 pounds each compared to the steel wheel). They have an identical load rating of 2337 pounds, which is well-suited for superior curb damage resistance, versatile applications and the service for which the Sprinter 3500 is known.
Wheel Specs:
Finish: Mirror Polish
Position: *Rear Only*
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 16″ x 5.5″
Bolt Pattern: 6×205
Hub Bore Diameter: 161.1mm
Hand/Vent Holes: 6 – Elongated
Wheel Offset: 4.94″
Disc Thickness: .36″Bolt Hole Diameter: 16mm
Weight: 16 lbs
Max Load & Inflation: 2337 lbs @ 80 psi
Installed Valve Stem: 54MS00
Fits These Vehicles:
Mercedes-Benz 3500 DRW Sprinter Van & Cab Chassis
Freightliner 3500 DRW Sprinter Van & Cab Chassis
Dodge 3500 DRW Sprinter Van
Replaces Part:
250802
Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
