Alcoa 22.5″ Aluminum Wheels + 8- to 10-Lug Adapter Kit for Ford F350 DRW (2005–Present)

Description

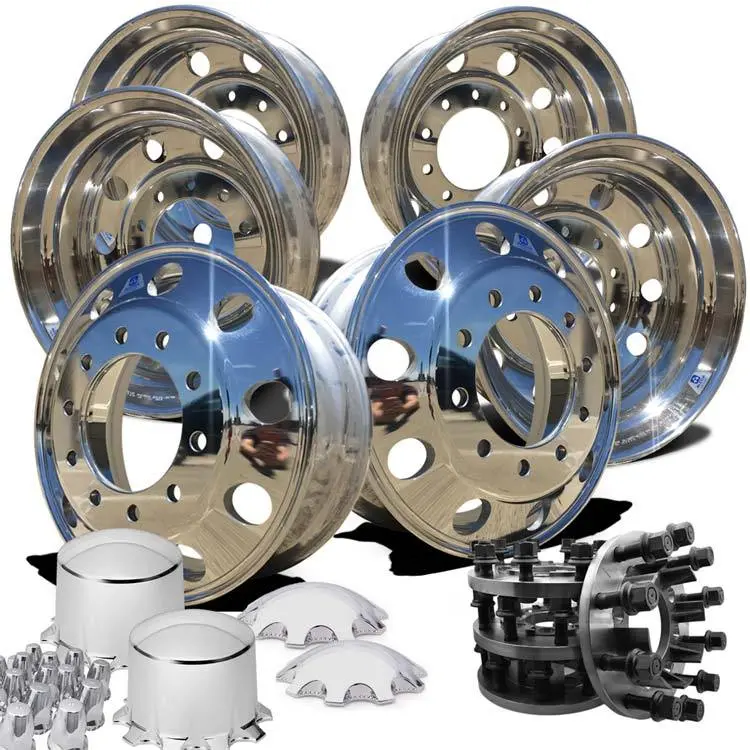

This Polished Aluminum Wheel Kit has Alcoa’s exclusive High Polish Finish and comes with everything you need to turn your Ford F350 into the heavy hauling machine you’re looking for. This kit comes with the heavy duty adapter kit that fits any 2005 – Present Ford F350 DRW. The adapter kit will take your standard 8 on 200 (142 Center Bore) bolt patterns to the larger 10 on 285mm (220mm Center Bore) so you can fit larger 19.5″ or 22.5″ commercial wheels on your truck.

Kit Includes:

Wheel & Adapters:

• 6 Alcoa 22.5″ High Polish Wheels (882677)
• 1 Arrowcraft 8 to 10 Lug Adapter Kit (MAX-200)

Hub Cover Options:

• Pointed Caps Spiked Nut Covers (THUB-PS-SRA)
• Alcoa Multi Piece Caps (07×188-SRA)

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: High Polished Both Sides
Position: All Position Wheel (Front, Rear, or Trailer)
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5″ x 8.25″
Bolt Pattern: 10×285
Hub Bore Diameter: 220mm
Hand/Vent Holes: 10 @ 2.5″
Wheel Offset: 6.60″
Backspacing: 10.675″
Disc Thickness: .81″
Weight: 45 lbs
Max Load & Inflation: 7400 lbs @ 130 psi
Installed Valve Stem: TR545D

Additional Information:

Fits These Trucks:

• 2005 Ford F350 DRW
• 2006 Ford F350 DRW
• 2007 Ford F350 DRW
• 2008 Ford F350 DRW
• 2009 Ford F350 DRW
• 2010 Ford F350 DRW

• 2011 Ford F350 DRW
• 2012 Ford F350 DRW
• 2013 Ford F350 DRW
• 2014 Ford F350 DRW
• 2015 Ford F350 DRW

• 2016 Ford F350 DRW
• 2017 Ford F350 DRW
• 2018 Ford F350 DRW
• 2019 Ford F350 DRW
  2020 Ford F350 DRW
  2021 Ford F350 DRW
  2022 Ford F350 DRW
  2023 Ford F350 DRW
  2024 Ford F350 DRW

Approved Tire Sizes:

• 255/70R22.5
• 265/75R22.5
• 275/80R22.5
• 295/75R22.5
• 305/75R22.5
• 315/80R22.5
• 10R22.5
• 11R22.5
• 12R22.5

Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
