Alcoa 24.5-Inch Mirror-Finished Tandem Axle Wheel Kit

Description

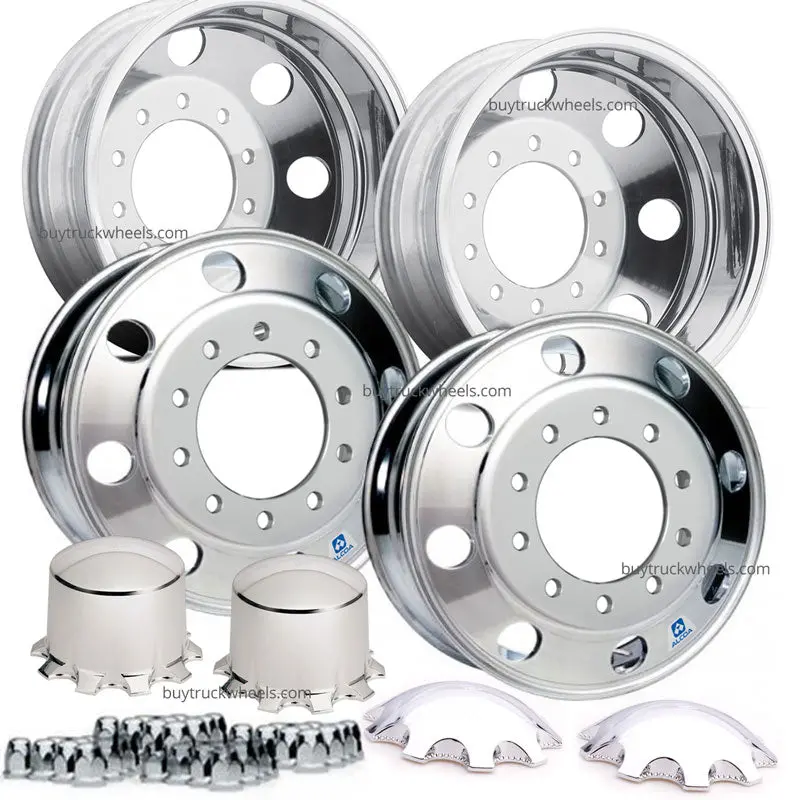

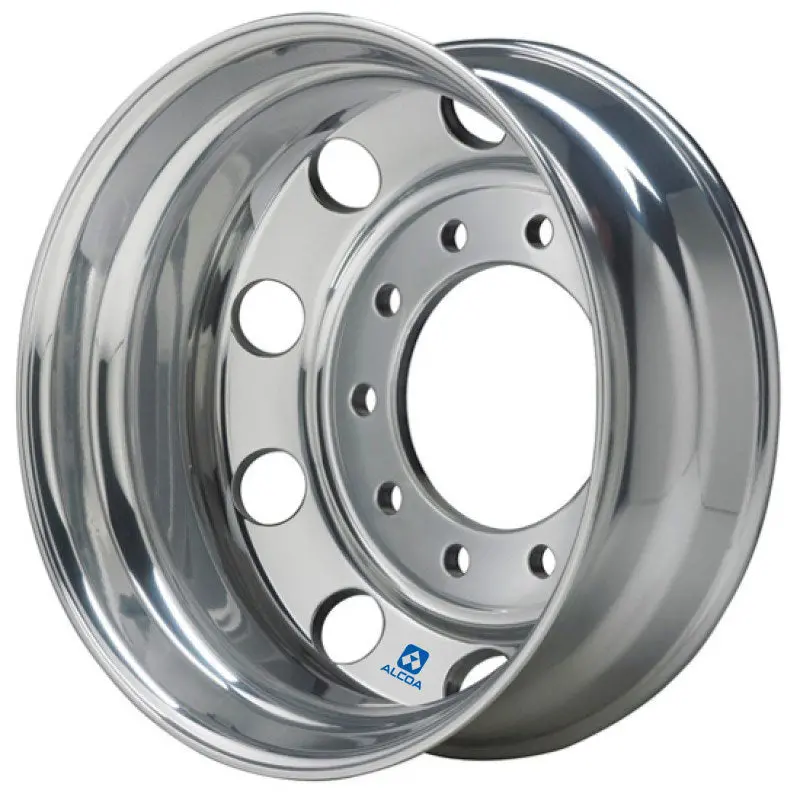

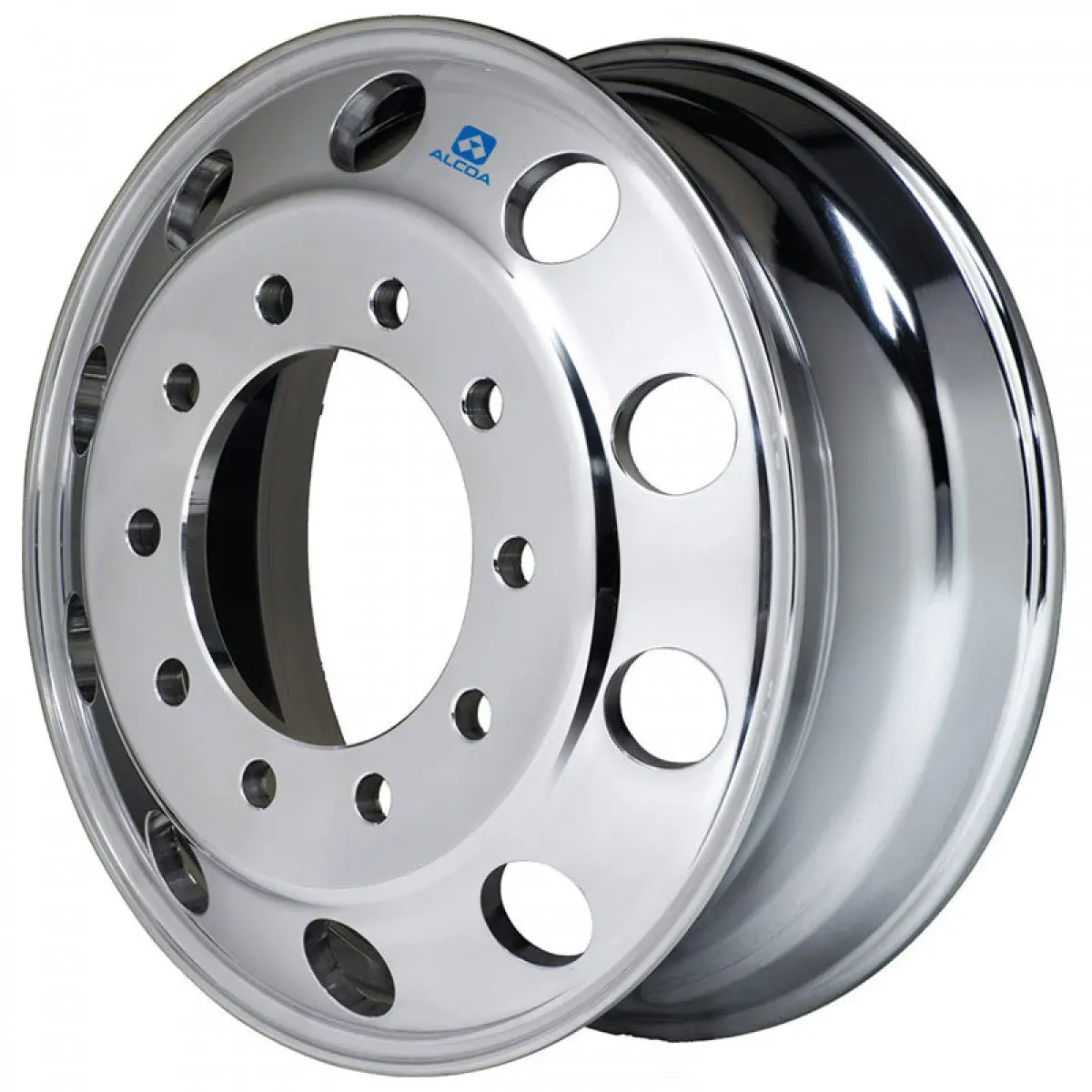

Alcoa 24.5” x 8.25” Mirror Polish 6-Wheel Kit – 98U631 & 98U632

Upgrade your truck with this premium 6-wheel kit featuring Alcoa’s 98U631 and 98U632 Mirror Polished Wheels—engineered for optimal performance, reduced weight, and an ultra-reflective finish. This kit includes steer- and drive-specific wheels for a balanced, factory-correct setup on most Class 8 trucks and trailers.

Kit Includes:

• (2) Alcoa 98U631 Wheels – Steer Position, Mirror Polish

• (4) Alcoa 98U632 Wheels – Drive/Rear Position, Mirror Polish

• Choice of Hub Covers:

  • Northstar Chrome Regular Nut Covers

  • Northstar Chrome Spike Nut Covers

  • Alcoa Multi-Piece Cap Kit

Wheel Specifications:

• Size: 24.5” x 8.25”

• Finish: Mirror Polish (premium aluminum polish, no coating)

• Bolt Pattern: 10-Hole Hub Pilot, 285.75mm Bolt Circle, 220mm Center Bore

• Valve Stem: TR554D (Pre-Installed)

• Weight: ~45 lbs per wheel

• Max Load: 7,400 lbs @ 130 PSI

• Disc Thickness: 0.81”

• Outset/Inboard Specs:

  • 98U631: Steer-specific offset

  • 98U632: Drive-specific inset

Approved Tire Sizes:

• 285/75R24.5

• 11R24.5

Compatible With:

Kenworth, Peterbilt, Freightliner, Volvo, Mack, International, Sterling, and most Class 8 semi-trucks and trailers.

Warranty:

Backed by Alcoa’s manufacturer warranty. Contact 800-242-9898 (Option #1) or file a claim online.
