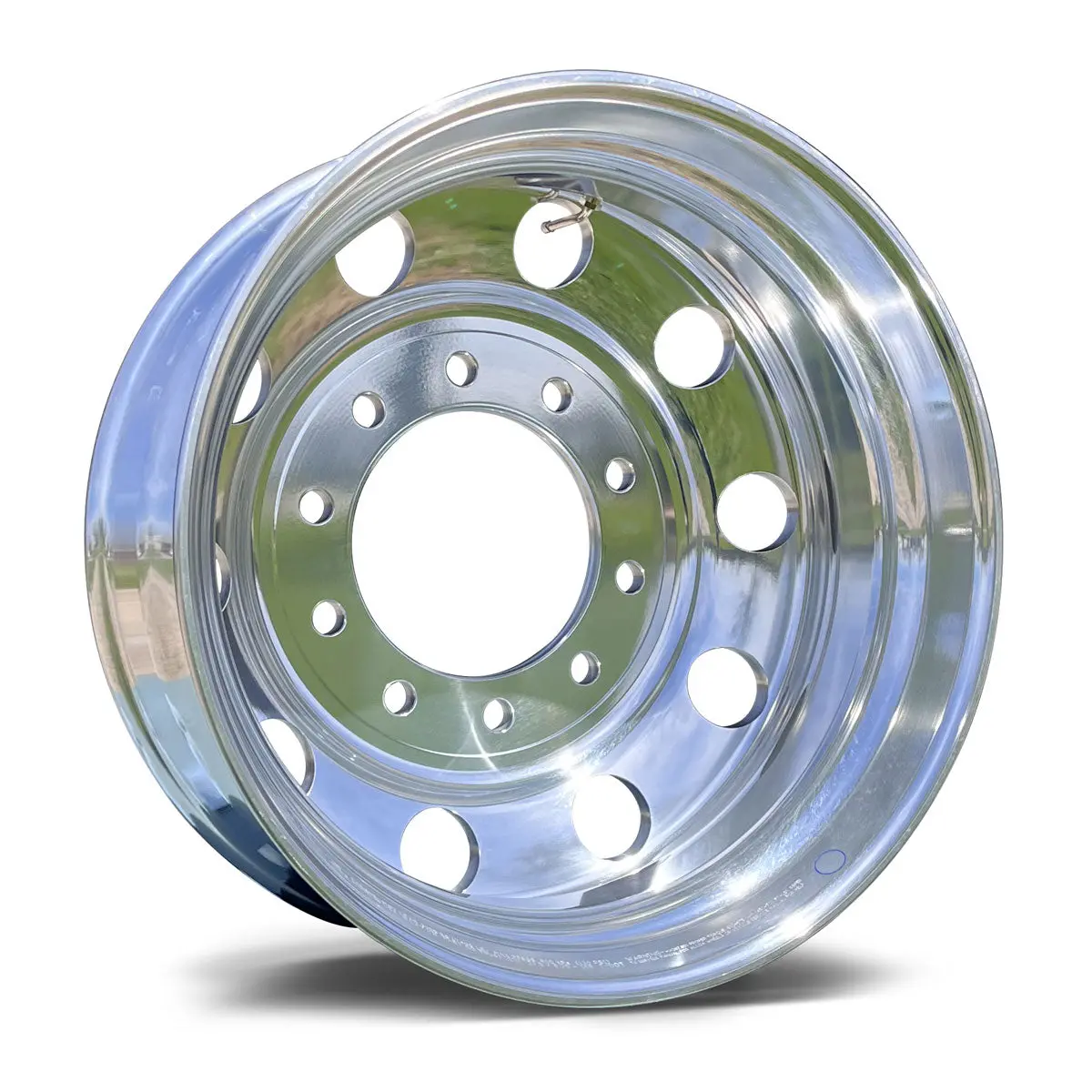

Alcoa 24.5×8.25 Front Wheel – 10-Lug 285mm Hub Pilot with Mirror Polish Finish

Description

Alcoa Part Number: 98U631
Size: 24.5 x 8.25
Finish: Mirror Polish
Position: Front Only
Installed Valve: TR554D
10-Hole (2.70″), 285.75mm Bolt Circle, 220mm Bore
Wheel Offset: 6.60″

Disc Thickness: .875″
Weight: 51 Lbs
Max Load: 7400lbs @ 130psi
Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form

Replaces Part Number:

• 983631
• 983671
• 983641

Approved Tire Size:

• 255/70R24.5
• 275/8024.5
• 295/75R24.5
• 11R24.5

Typical Applications:

• Kenworth & Peterbilt Trucks
• Freightliner & Volvo Trucks
