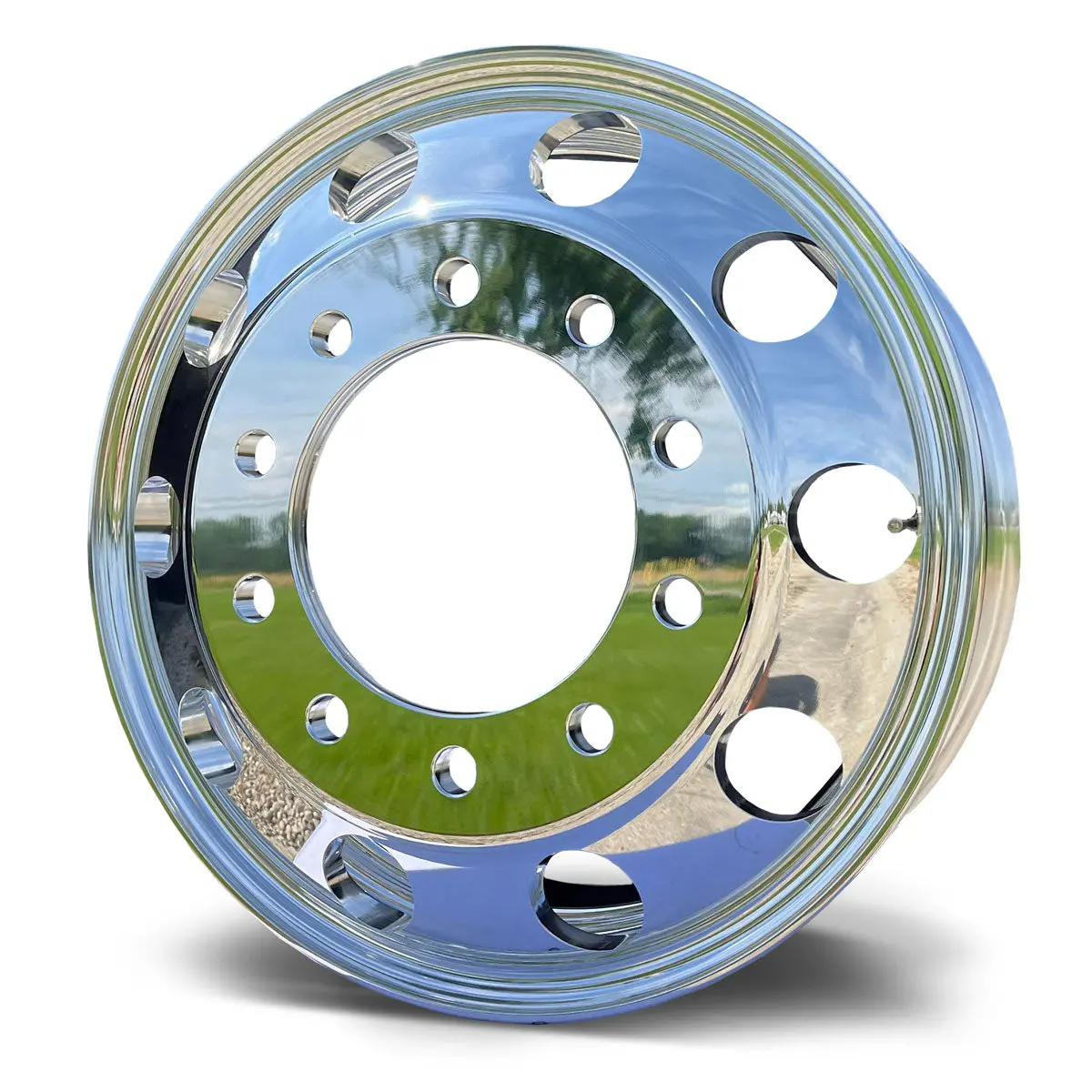

Alcoa Durabright Evo 22.5×9 Front Wheel with 10x285mm Bolt Pattern – Refurbished Return

Description

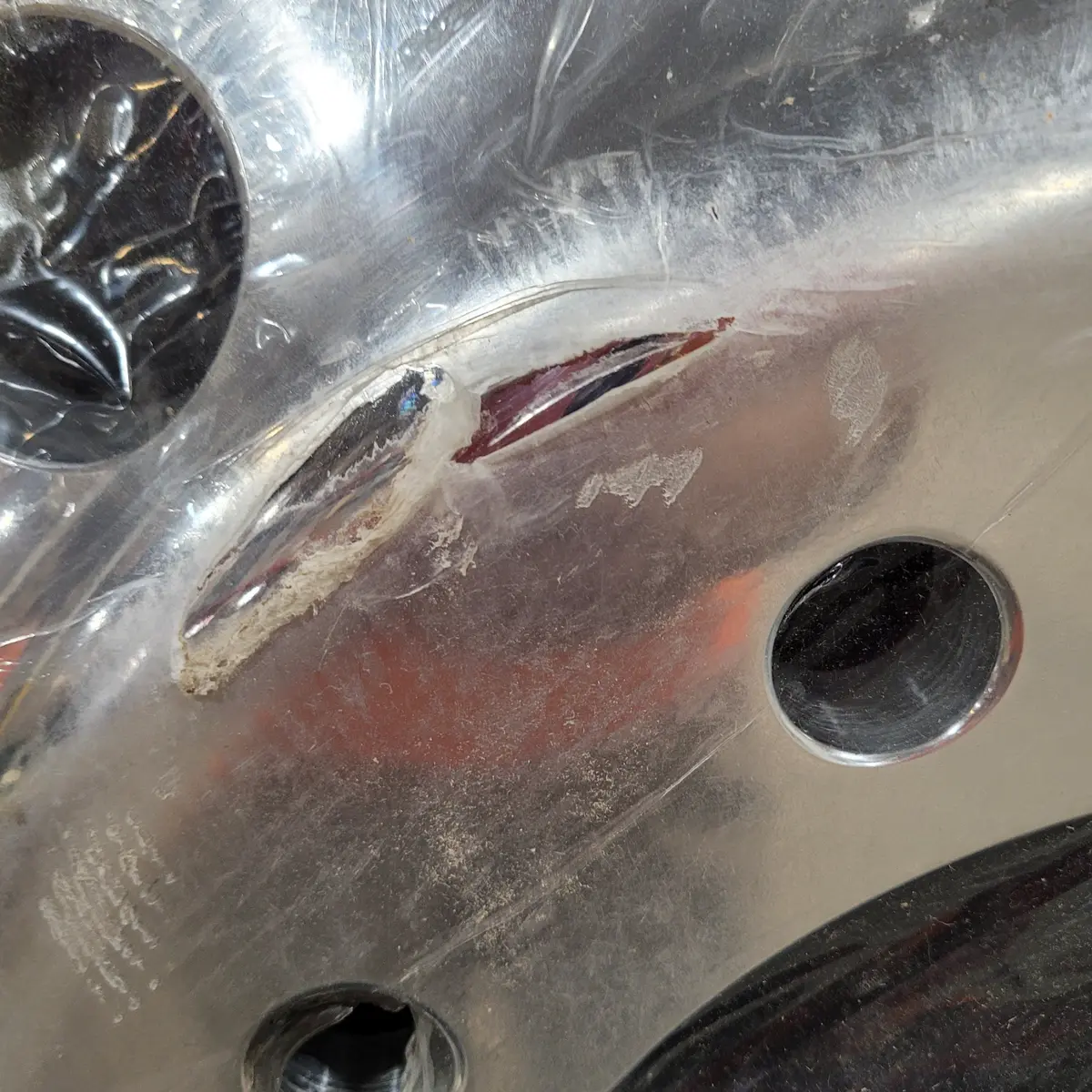

This item has visible imperfections. Please see photos for exact items you will receive.

Alcoa’s newest surface treatment EVO replaces Alcoa’s XBR Technology. The treatment penetrates the aluminum and becomes a part of the wheel. It will not chip, crack, peel or corrode, like conventional coatings do.

Dura-Bright Wheels will not need to be polished you will just be able to wash off with soap and water and they will keep their shine for years.

Alcoa Part Number: 89U641DB

Wheel Specs:
Finish: Dura-Bright EVO Surface Treatment
Position: Front Only
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5″ x 9.00″
Bolt Pattern: 10×285.75
Hub Bore Diameter: 220mm
Hand/Vent Holes: 10 @ 2.00″
Wheel Outset: 6.94″
Disc Thickness: .95″
Bolt Hole Diameter: 26mm
Weight: 56 lbs
Max Load & Inflation: 10000lbs @ 130psi
Installed Valve Stem: TR554D
Warranty Info: Warranty for Alcoa Wheels
File Alcoa Warranty: 800-242-9898 Option #1 or Online Claim Form

Replaces Part: 894651DB, 894641DB, 893641DB

Approved Tire Size:

• 315/80R22.5
• 12R22.5

Typical Applications:

• Trash and Dump Trucks
