Alcoa LVL One 24.5-Inch Tandem Axle Wheel Assembly

Description

Alcoa 24.5” x 8.25” High Polish 6-Wheel Kit – 98U637

Outfit your truck or trailer with this complete 6-wheel kit featuring Alcoa 98U637 High Polish aluminum wheels—renowned for their durability, strength, and low maintenance shine. Perfect for Class 8 trucks and trailers, this setup combines performance with a show-quality finish.

Kit Includes:

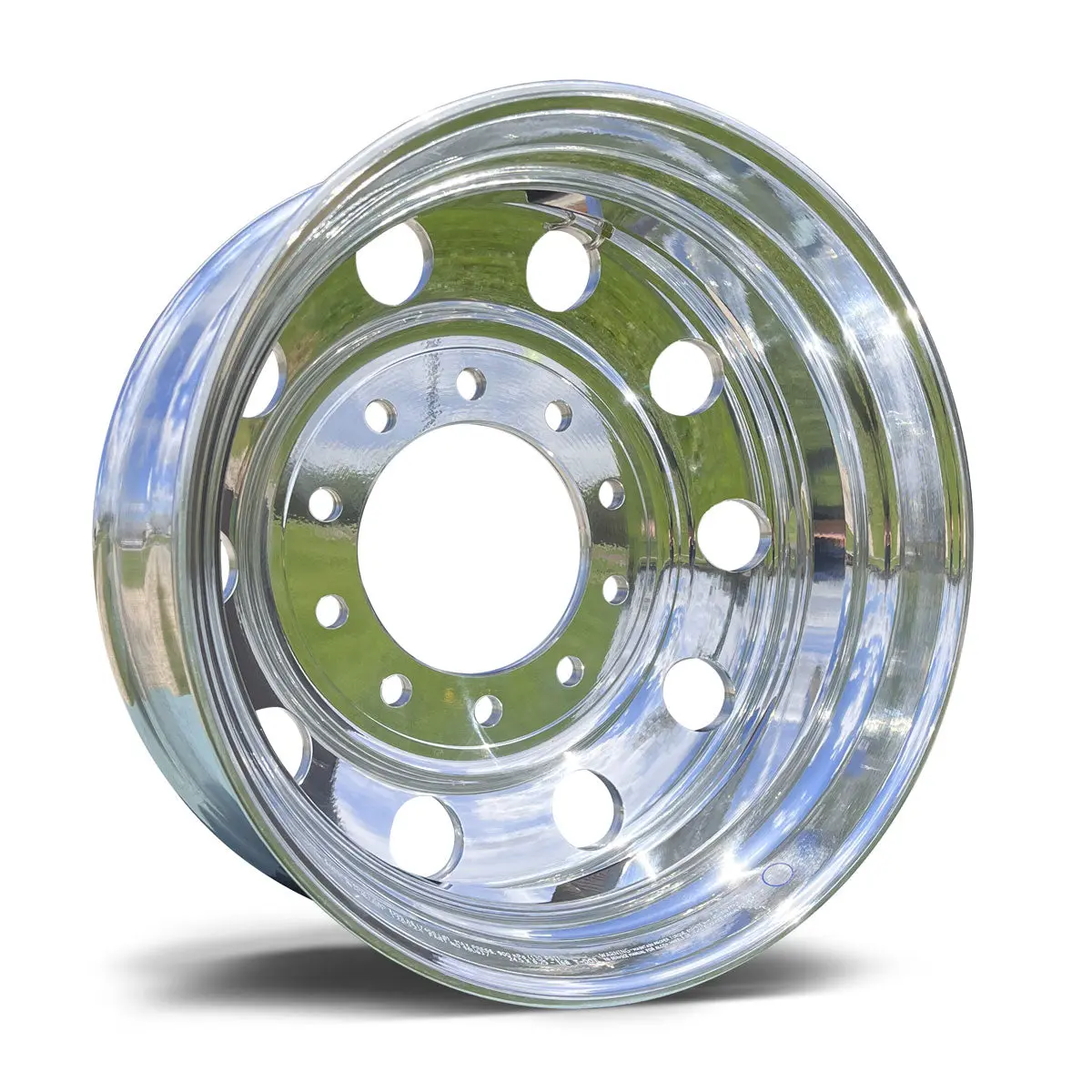

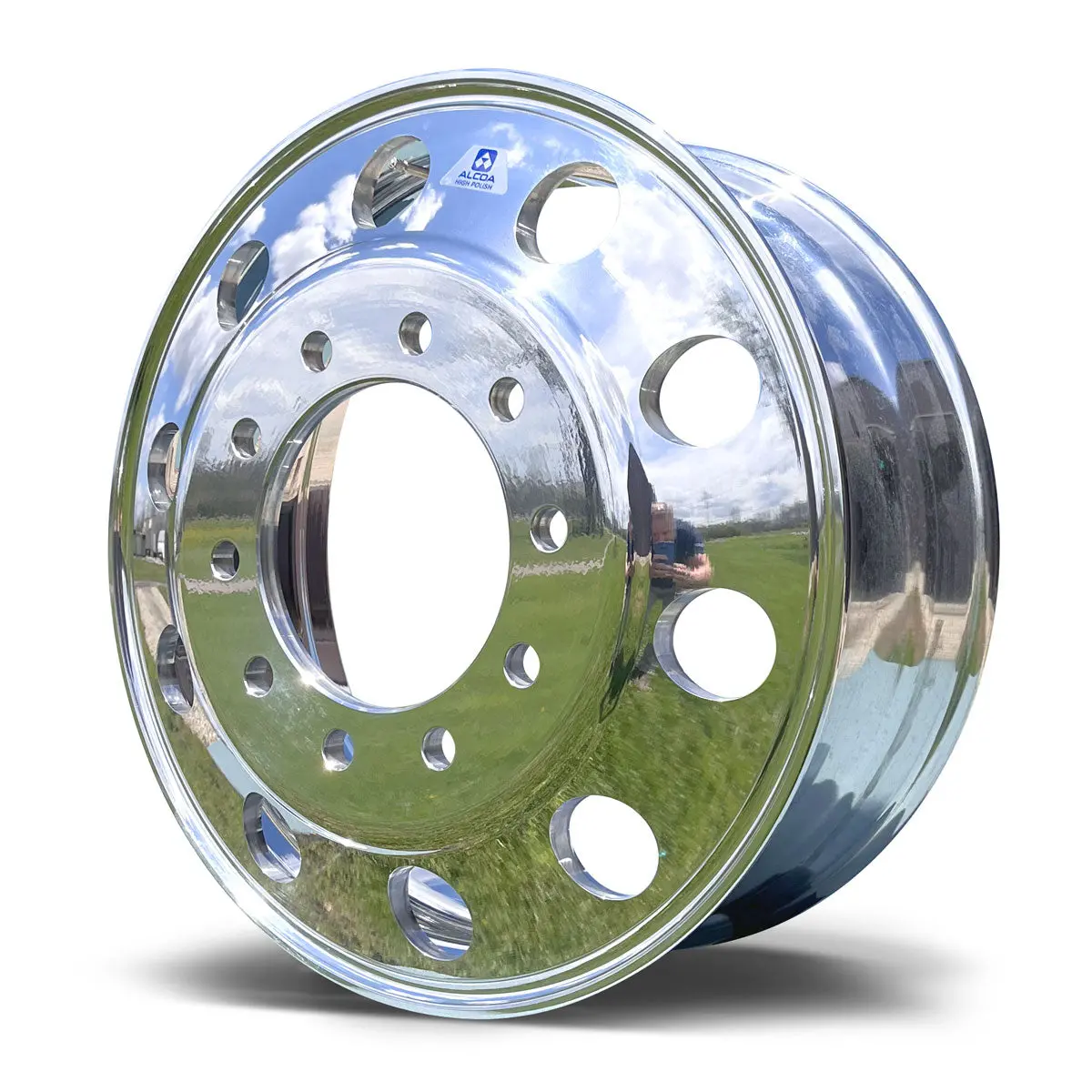

• (6) Alcoa 98U637 Wheels – 24.5” x 8.25”, High Polish, All-Position

• Choice of Hub Covers:

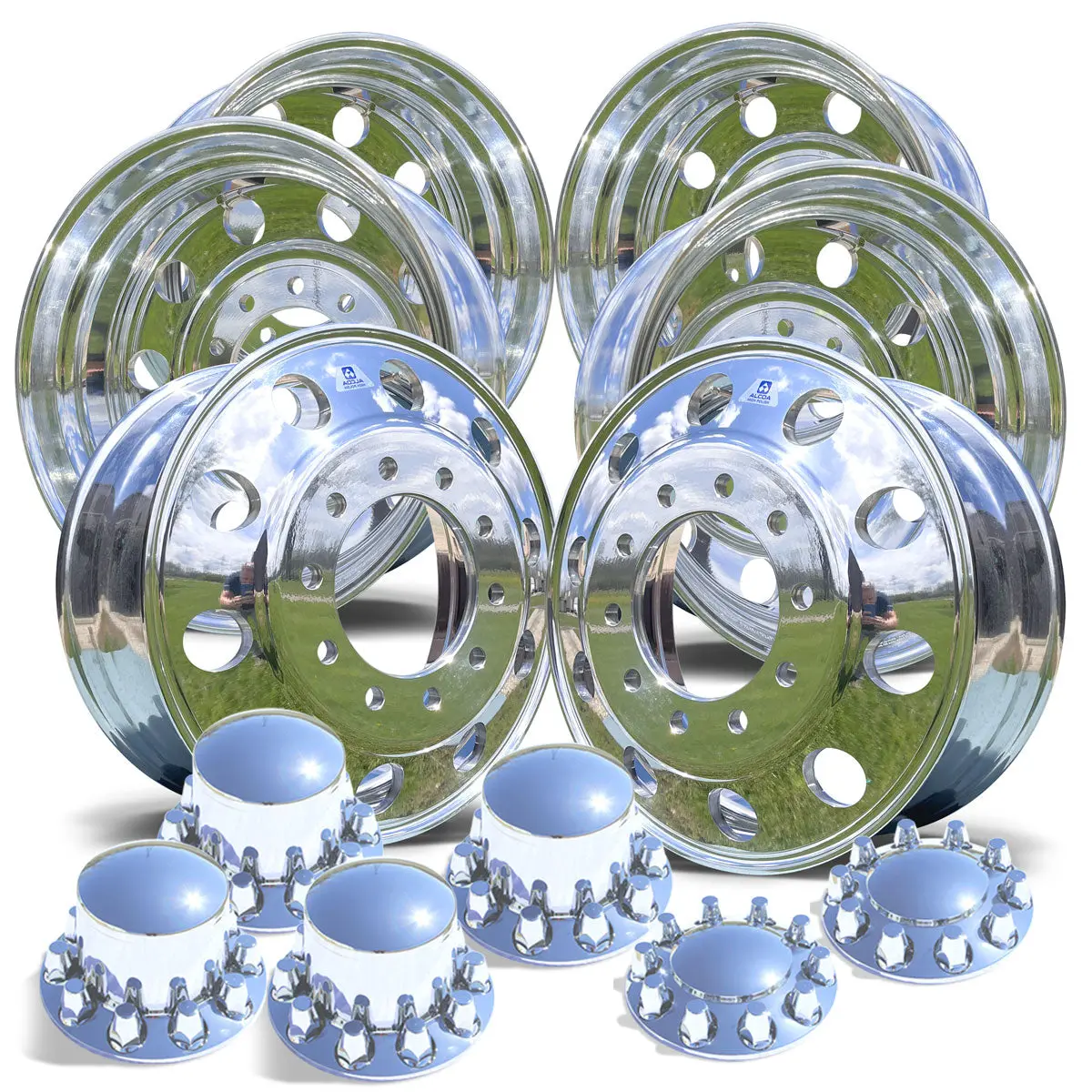

  • Northstar Chrome Regular Nut Covers

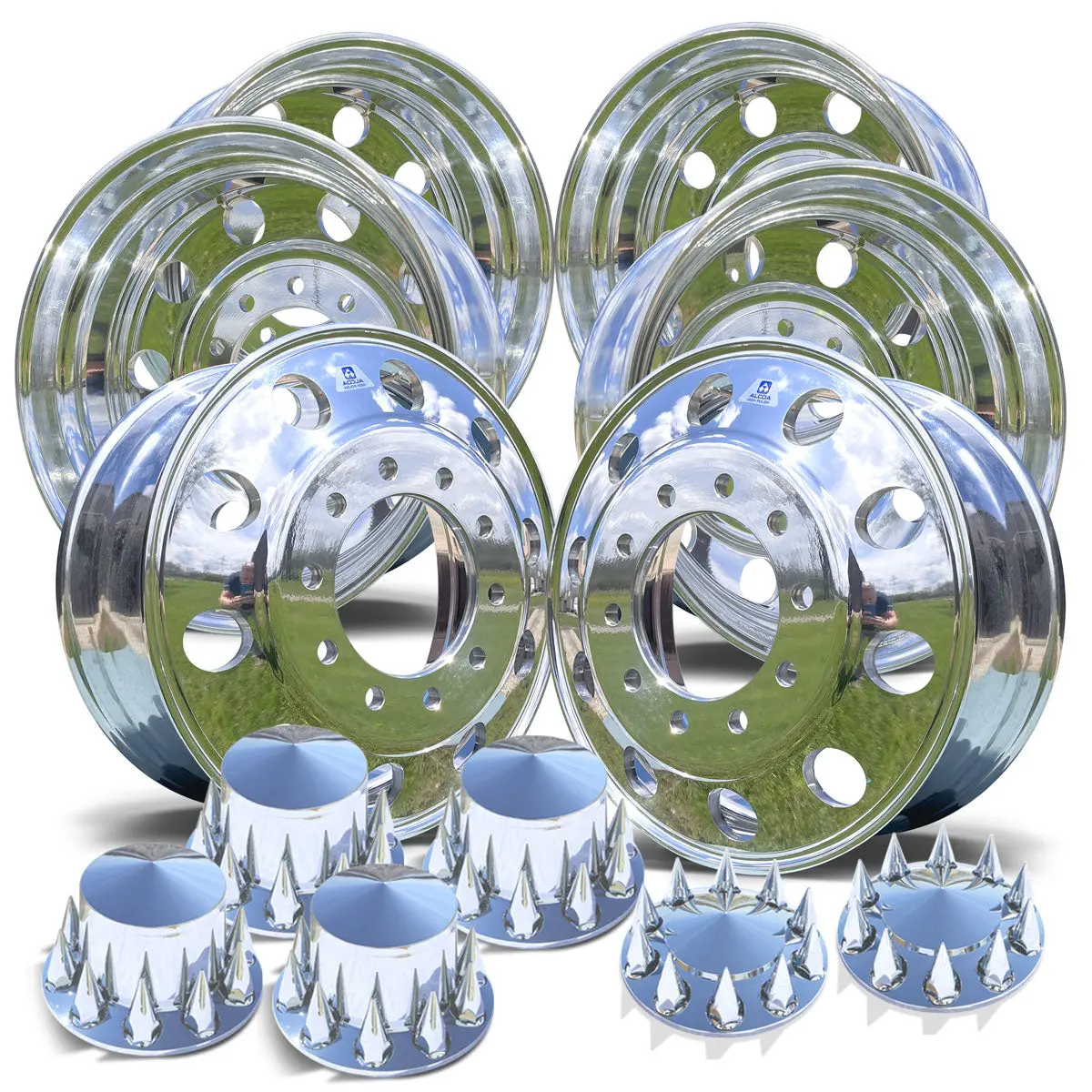

  • Northstar Chrome Spike Nut Covers

  • Alcoa Multi-Piece Cap Kit

Wheel Specifications:

• Part Number: 98U637

• Bolt Pattern: 10-Hole Hub Pilot, 285.75mm Bolt Circle, 220mm Center Bore

• Valve Stem: TR554D (Pre-Installed)

• Outset: 6.60” | Inset: 5.79”

• Disc Thickness: 0.81”

• Weight: 51 lbs per wheel

• Max Load: 7,400 lbs @ 130 PSI

• Finish: High Polish for all positions (front, rear, or trailer)

Approved Tire Sizes:

• 285/75R24.5

• 11R24.5

Replaces Alcoa Part Numbers:

• 983637, 983677, 983640

Vehicle Compatibility:

Ideal for Kenworth, Peterbilt, Freightliner, Volvo, International, Mack, Sterling, and most Class 8 semi-trailers.

Warranty:

Backed by Alcoa’s manufacturer warranty. Contact 800-242-9898 (Option #1) or submit a claim online.
