DESCRIPTION

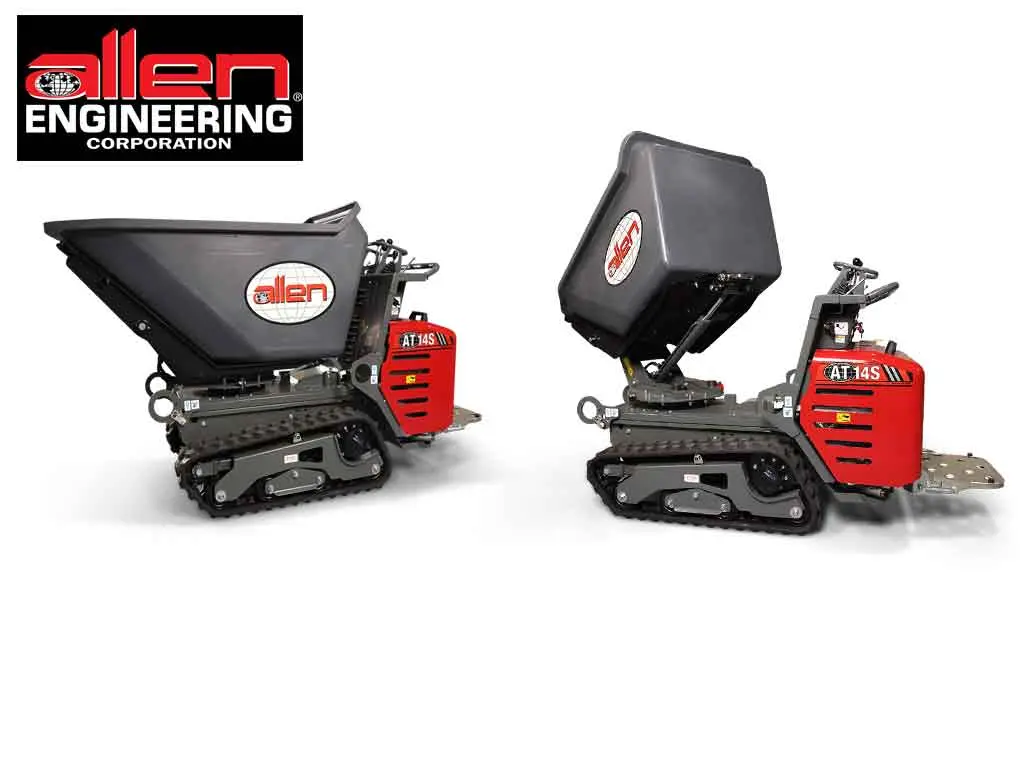

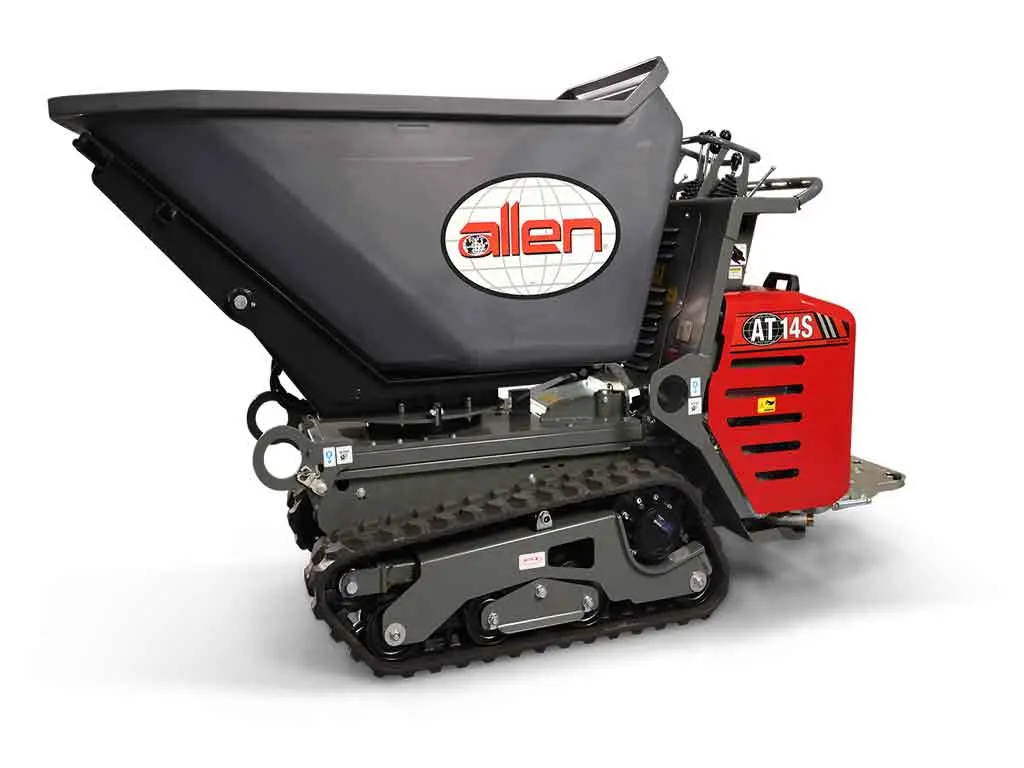

TRACK BUGGIES // AT14S – SWIVEL DUMP
The AT14S rubber track concrete buggy delivers excellent performance and precise maneuverability. Equipped with a 90-degree dump angle and 180-degree pivoting dump, this buggy can place your material exactly where you need it.
TRACK BUGGIES // AT14F – FIXED DUMP
The AT14F rubber track buggy is a rugged and compact machine that will haul and dump any bulk material. This machine comes equipped with simple intuitive controls, a 20 hp engine, and a 14 cubic foot poly bucket. It is a perfect fit for concrete workers, landscapers, contractors, or anyone else who needs to haul or dump material on a regular basis.
TRACK BUGGIES // AT16 – FIXED DUMP
The AT16 is the largest track buggy offered by Allen Engineering. This buggy comes fully equipped with lights, single- hand drive, 2-inch thick steel frame, and a robust 2,500 lb payload capacity. The AT16 rubber track concrete buggy delivers excellent performance and precise maneuverability. Equipped with a 90-degree dump angle buggy can place your material exactly where you need it.
SPECIFICATIONS
| MODEL | AT14S | AT14F | AT16 |
| ENGINE | HONDA GX630 | HONDA GX630 | KOHLER CV740 |
| HP CLASS | 20 HP / 14.9 KW | 20 HP / 14.9 KW | 27 HP / 20.1 KW |
| STARTER | ELECTRIC | ELECTRIC | ELECTRIC |
| FUEL | GAS | GAS | GAS |
| FUEL CAPACITY | 3 GAL / 11.35 L | 3 GAL / 11.35 L | 6 GAL / 22.7 L |
| TOP SPEED | 4-6 MPH / 6-10 KPH | 4-6 MPH / 6-10 KPH | 4-6 MPH / 6-10 KPH |
| PAYLOAD | 1785 LB / 810 KG | 2100 LB / 952 KG | 2500 LB / 1135 KG |
| BUCKET CAPACITY | 14 CU. FT. / 0.39 CU. M | 14 CU. FT. / 0.39 CU. M | 16 CU. FT. / 0.45 CU. M |
| DUMP ANGLE | 90 | 90 | 90 |
| PIVOT ANGLE | 180 | 0 | 0 |
| WEIGHT | 1540 LB / 699 KG | 1420 LB / 644 KG | 1475 LB / 669 KG |
| LENGTH | 98.4″ | 98″ | 102.5″ |
| WIDTH | 33.3″ | 31.5″ | 35.6″ |
| HEIGHT | 54″ | 52.5″ | 62.25″ |
