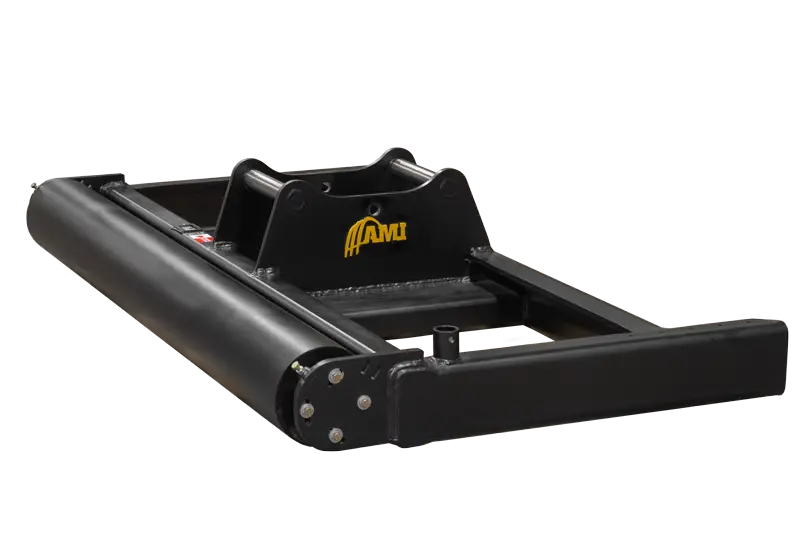

AMI Grading Beam

Optimize your grading performance with the AMI Attachments excavator Grading Beam. Available in 60″ and 72” widths, the Grading Beam is ideal for levelling gravel and other material to a smooth, even surface. In one sweep, the sturdy steel beam with rake attachment passes across the plane to create a level surface, immediately followed by a smooth roller which compacts the gravel or dirt. When used in conjunction with the AMI AXXIS™ TR Tiltrotator, you can achieve greater precision with less repositioning.

Product Features:

Material Holding Cutting Edge

The long, flat cutting edge provides precise grading and controlled material placement by scooping, holding and moving greater volumes of aggregate.

Adjustable Height Compaction Roller

Using slotted bolt holes and a set-screw, the compaction roller quickly adjusts its depth for compaction control.

Greasable Roller Bearings

Maintain the greasable roller bearings on the compaction roller with easy service points.

GPS Post Receiver

The welded post receiver makes it easy to install GPS equipment onto the grading beam for absolute precision.

SPECS

Model	Category	Machine Class	Width	Length	Roller Diameter	Weight
GB60	35-75	6,000 – 24,000 lbs.	60″	45.25″	10″	860
GB72	60-150	14,000 – 24,000 lbs	72″	48.50″	10″	1075
