Ammann APF Series Forward-Traveling Vibratory Plate Compactor

Description

DESCRIPTION

VIBRATORY PLATES– VIBRATORY PLATE FOR EVERY APPLICATION

Ammann Vibratory Plate Compactors are ready for any situation. The product line ranges from a light 119 lb (54 kg) to a much heavier 1819 lb (825 kg) – with many models in between.

APPLICATIONS

• Compaction in confined areas
• Earthwork
• Asphalt and paving
• Light to medium patchwork
• Pipeline and trench construction
• Landscaping and gardening

APF VIBRATORY PLATES – FORWARD MOVING VIBRATORY PLATES

PROUCTIVITY

• Superior compaction output Small machine frame and high force enable quick and complete compaction.
• Balanced base plate Asymmetric base plate for optimal weight distribution and high durability.
• Unmatched speed Superior mobility and high working speed.
• Applications The compactor combines a unique machine concept with an ability to perform in varied applications.

ERGONOMICS

• Low-vibration guide handle Industry-leading HAV values below 2.5 m/sec2 protect the operator and eliminate the need for time-consuming record keeping.
• Convenient machine control Ergonomically optimized for perfect machine control during the working shift.
• Tool-free options Quick and easy machine modifications for multiple applications.
• Safe transport Simple machine security and optimal safety during transport.

SERVICEABILITY

• Maintenance-free exciter system Robust design with well protected ball bearings for long, maintenance-free life.
• Wear-optimized base plate Heavy-duty base plate for extended machine life.
• Protective frame and covers Protects all key components against damage – on the jobsite or during transport.
• Tool-free daily inspection No tools are required for daily maintenance.

*** MODEL 12/33 IS BEING PHASED OUT

SPECIFICATIONS

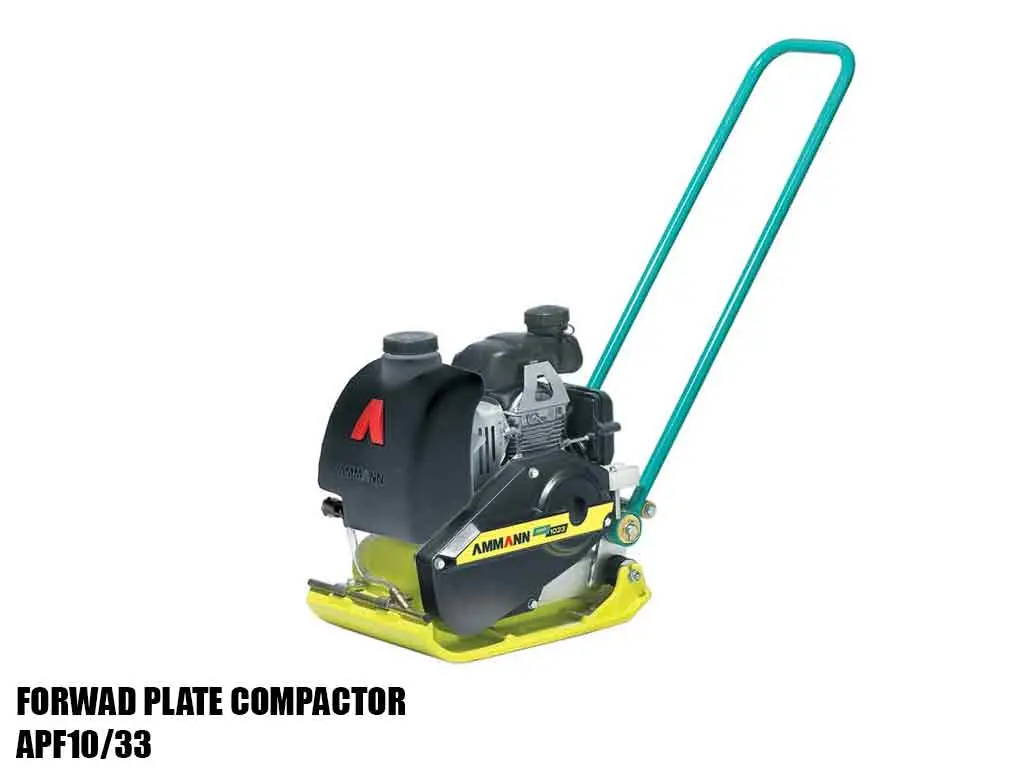

MODEL	APF 10/33	APF 12/33
FUEL	GAS	GAS
WEIGHT	119 LB	150 LB
WIDTH	13″	13″
MAX VIBRATION	6000 VPM	6000 VPM
MAX FORCE	2360 LBF	2697 LBF

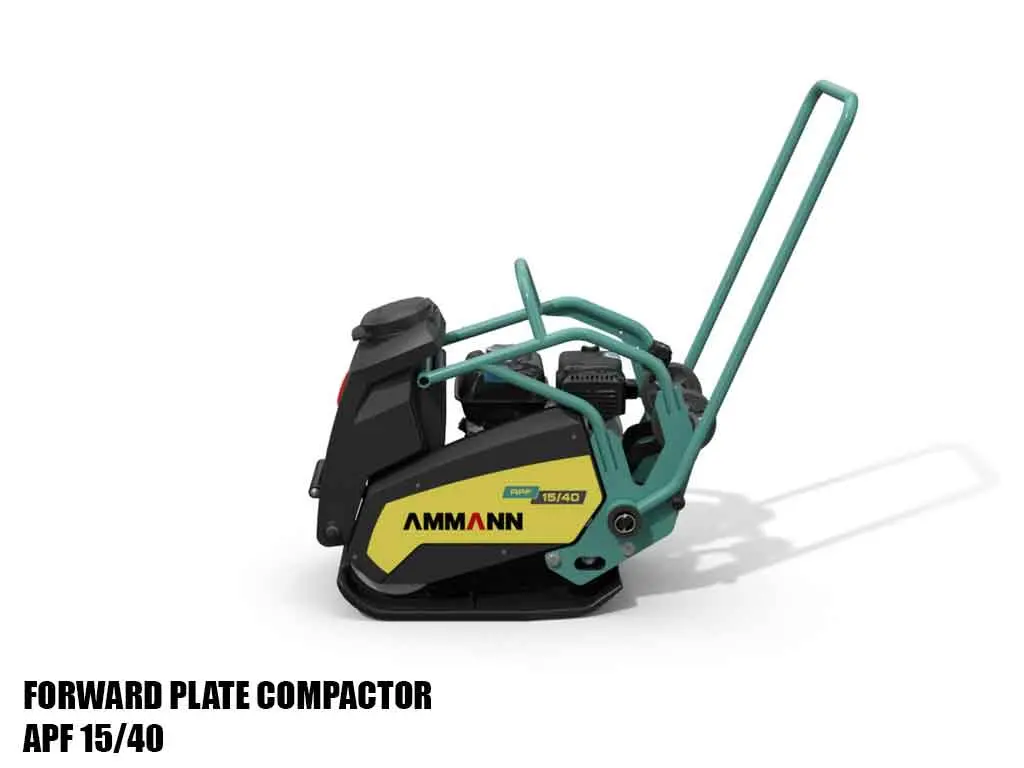

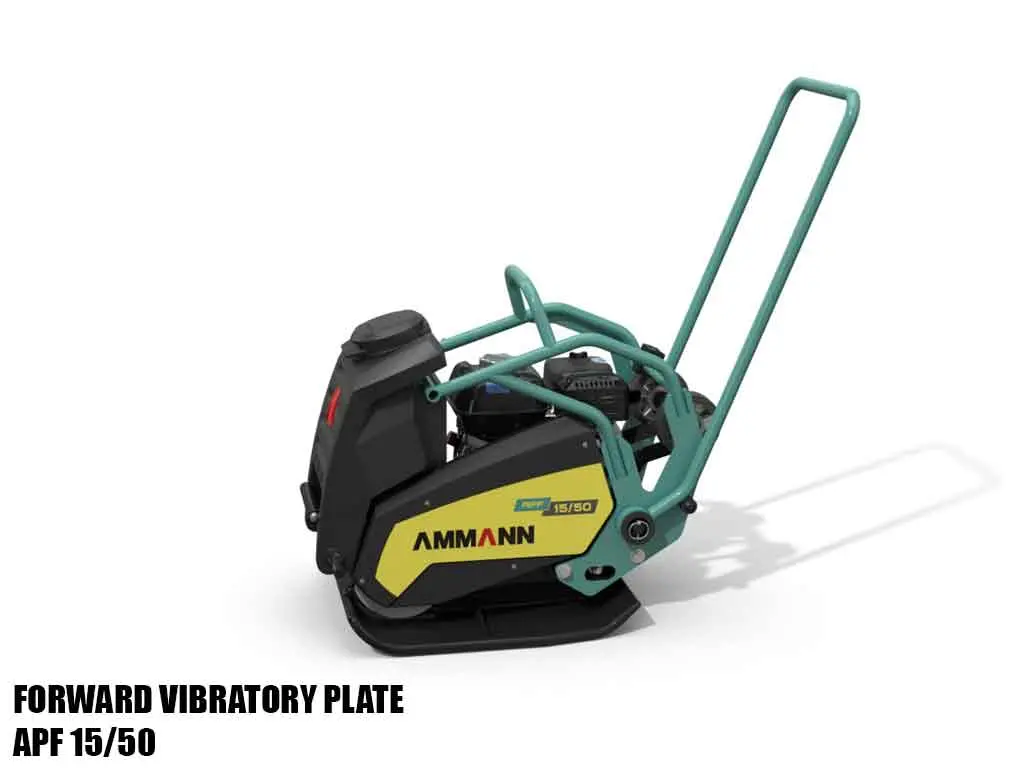

MODEL	APF 15/40	APF 15/50
FUEL	GAS	GAS
WEIGHT	152 LB	176 LB
WIDTH	15.7″	15.7″
MAX VIBRATION	5880 VPM	6000 VPM
MAX FORCE	2697 LBF	3372 LBF

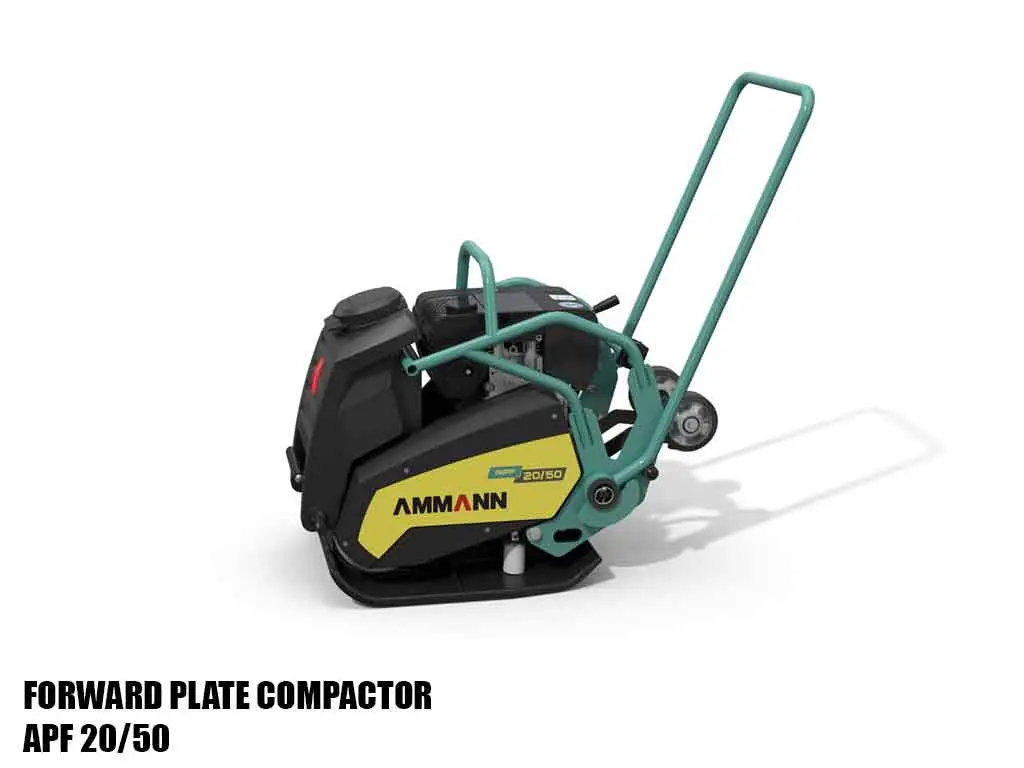

MODEL	APF 20/50	APF 20/50
FUEL	GAS	DIESEL
WEIGHT	194 LB	234 LB
WIDTH	19.7″	13″
MAX VIBRATION	5400 VPM	5400 VPM
MAX FORCE	4046 LBF	4046 LBF
