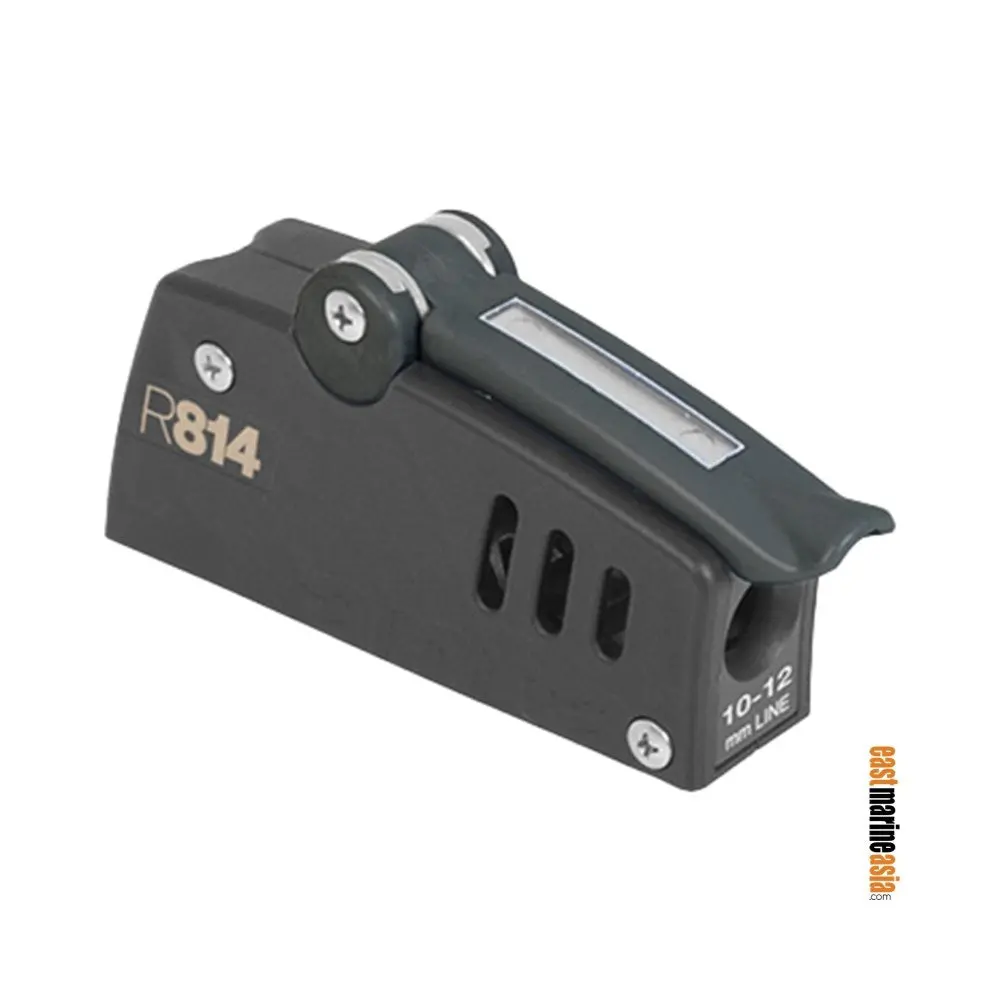

Antal V-Cam R814 Rope Clutch – Single-Sheave Unit

Price range: $235.06 through $243.60

Quantity
SKU: N/A Category: Brand:

Description

*** USE OPTION (1) TO SELECT LINE SIZE ***

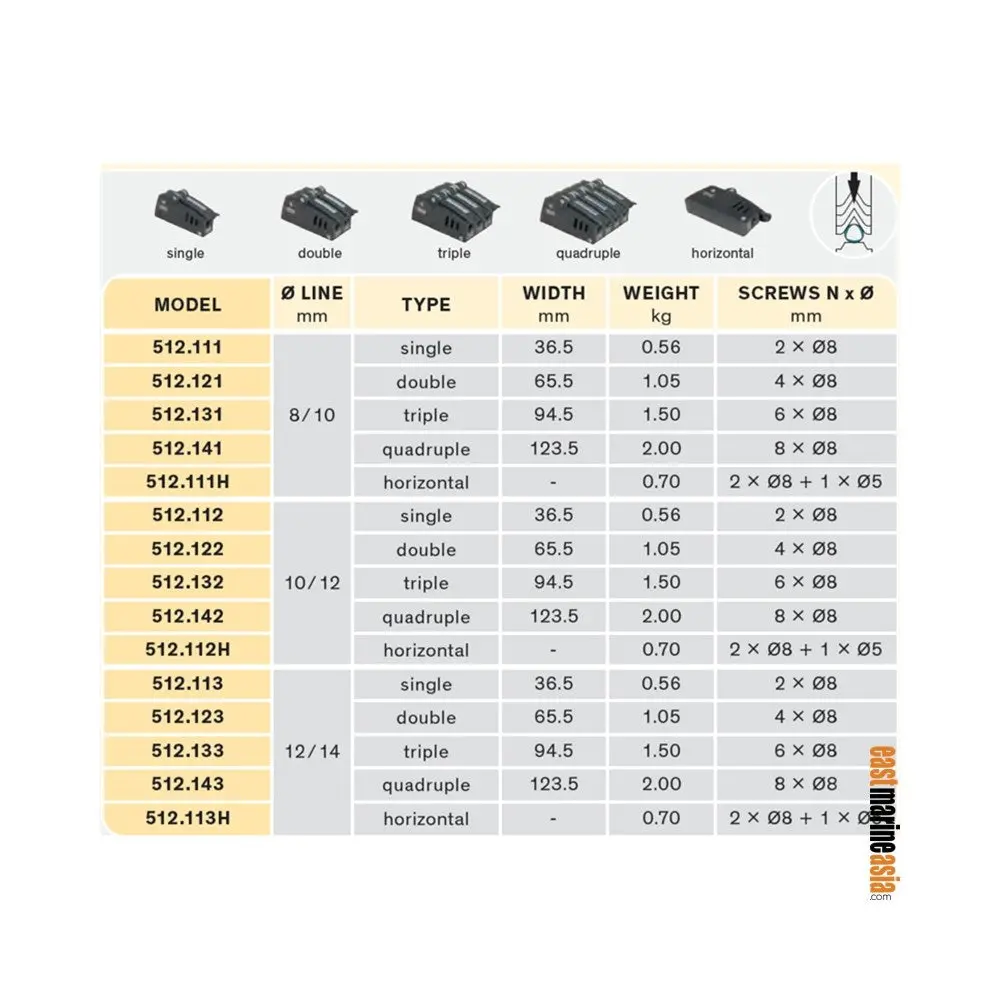

Antal V-cam R814 have loads up to 1500 kg.  It is fitted with a large V-Shaped cam: the V-Grip Antal system.  Three sizes for 8-10, 10-12 and 12-14 mm lines in five versions: single, double, triple, quadruple and side mounting.

Features

  • Stainless steel plates – line entry is protected by stainless steel guides for the best smoothness
  • Cleaning slots – spray fresh water through the side openings for cleaning
  • Exit ring – the exit ring is integrated in the base for the maximum resistance to the side loads
  • Manoeuvres label – set of different labels available in English, French and Italian, sold separately
  • Upward line direction – A 3 degree inclined base to better direct the manoeuvre to the winch

Explore more from our collection.

Additional information

(1) Line Size

8 – 10 mm, 10 – 12 mm, 12 – 14 mm
-

–
UOM (PN#)

Piece (512.111), Piece (512.112), Piece (512.113)
