Baumalight Skid-Steer Boom Mower

Description

DESCRIPTION

9/25

* Warning this attachment requires a safety door while using.

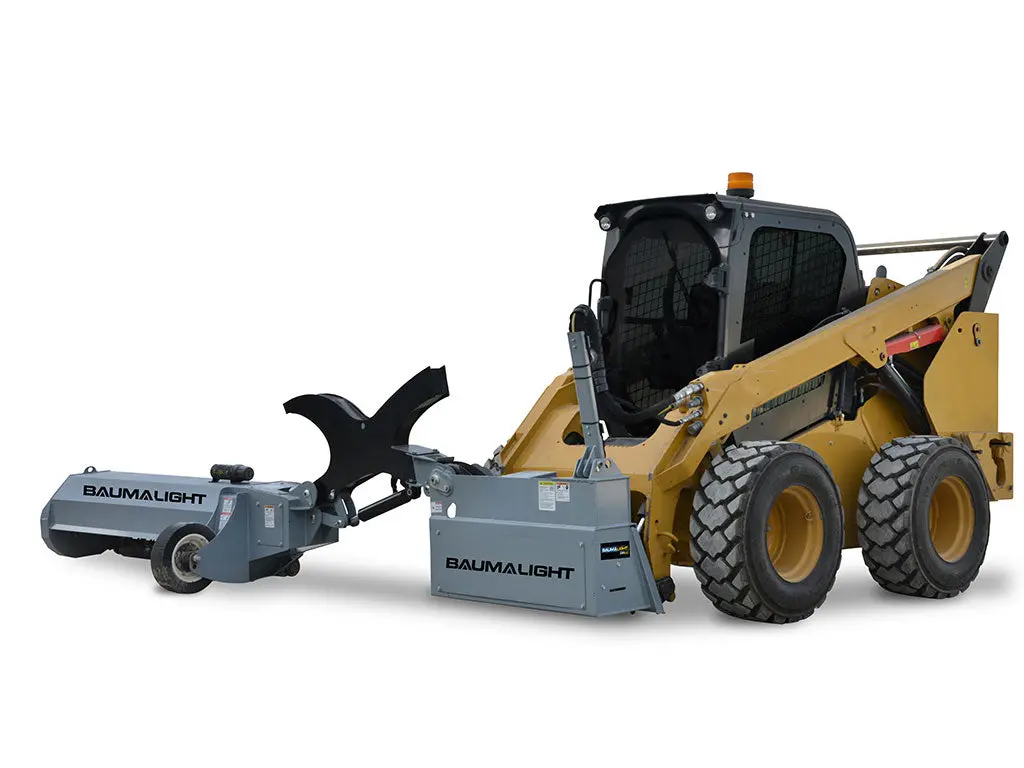

Boom Mower for Skid Steer

The Baumalight Boom Mower for skid steers is built for versatility, durability, and precision mowing. Its curved boom design provides extra clearance, while the variable angle reach makes it ideal for tackling ditches, fence lines, and other hard-to-reach areas. Equipped with large cutting heads featuring our 200 series flail teeth, this mower handles heavy grass with ease and mulches light brush efficiently.

With multiple motor options available, we can match the boom mower to virtually any skid steer size or model. Choose between a flail cutting deck or a rotary mower deck to best fit your application. For specialized needs, custom models are available to suit your mowing and mulching requirements.

Key Features:

• Curved boom for extra clearance

• Folding boom design for easy travel and transport

• Onboard pressure gauge to monitor workload

• AR400 steel plate construction for strength and durability

• AUX in-cab controls available for operator convenience

• Armored, sleeved hose protection for long service life

• Zinc-plated, greaseable pins for easy maintenance

• Heavy-duty cylinders built to withstand tough jobs

• Anti-slip mat for safe, easy cab access

• Requires case drain line

MODELS

	SWA540	SWA550	SWA560	SWF560	SWF580	SWF750
Minimum carrier weight	4500 lbs	5000 lbs	5500 lbs	6000 lbs	8000 lbs	8000 lbs
Flat reach	6′	7’5″	10′	10′	14′	7′
Head size	48″	60″	60″	48″	48″	42″
Teeth clusters	38	48	48	38	38	3 blades
Style	SGL ARM	SGL ARM	SGL ARM	BOOM & STICK	BOOM & STICK	SGL ARM
Teeth	F2000	F2000	F2000	F2000	F2000	CXC542 BLADE
Weight lbs.	1775	1900	1750	1650	1750	2050

SPECS

MOTOR	TYPE	CC	CASE DRAIN	RPM	20GPM	25GPM	30GPM	35 GPM	40GPM
D510	PISTON	34	CRITICAL	2200	1500RPM	2000RPM	2500RPM	2900RPM	3400RPM
D530	PISTON	47	CRITICAL	2100	1000RPM	1500RPM	1800RPM	2100RPM	2500RPM
HX550	PISTON	64	CRITICAL	1400	800RPM	1100RPM	1350RPM	1600RPM	1875RPM
HX570	PISTON	84	CRITICAL	1200	600RPM	850RPM	1000RPM	1200RPM	1450RPM

SERIES	PART #	AUX PINS	CONTROLLER
SWA	D004904	4 LIVE, SWITCHABLE	BUTTONS ON MACHINE JOYSTICK	BEST OPTION
SWA	D004905	3 LIVE, SWITCHABLE	BUTTONS ON MACHINE JOYSTICK	2ND BEST OPTION
SWA	D004906	PLUG INTO 12V IN CAB	UNIVERSAL CONTROL BOX
SWA	D004907	PLUG INTO 12V IN CAB	UNIVERSAL CONTROL BOX	DIFFICULT OPERATION
SWF	D004908	6 LIVE, SWITCHABLE	BUTTONS ON MACHINE JOYSTICK	BEST OPTION
SWF	D004909	4 LIVE, SWITCHABLE	BUTTONS ON MACHINE JOYSTICK	2ND BEST OPTION
SWF	D004910	PLUG INTO 12V IN CAB	UNIVERSAL CONTROL BOX
SWF	D004911	PLUG INTO 12V IN CAB	UNIVERSAL CONTROL BOX	DIFFICULT OPERATION

Fits Tab

Motor Options	Minimum Carrier Weight	Recommended GPM	Maximum
D510	4500	19-26 GPM	28 GPM
D530	4500	25-33 GPM	35 GPM
D510	5000	19-26 GPM	28 GPM
D530	5000	25-33 GPM	35 GPM
D510	5500	19-26 GPM	28 GPM
D530	5500	25-33 GPM	35 GPM
HX550	8000	25-33 GPM	35 GPM
HX570	8000	30-40 GPM	42 GPM
D510	6000	19-26 GPM	28 GPM
D530	6000	25-33 GPM	35 GPM
D510	8000	19-26 GPM	28 GPM
D530	8000	25-33 GPM	35 GPM
