DESCRIPTION

Revised 6/25

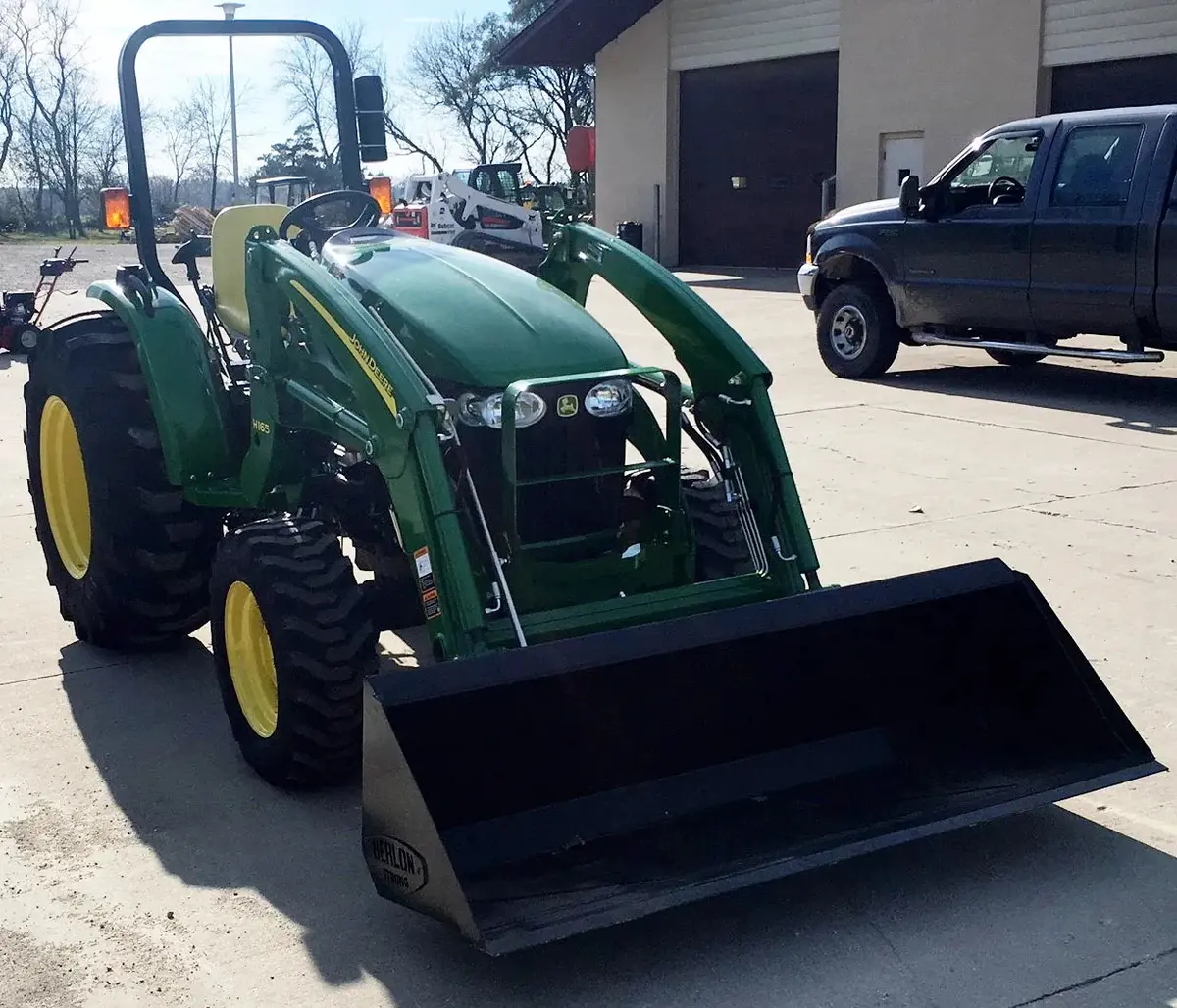

Compact Tractor Bucket

Berlon’s Compact Tractor bucket is ideal for compact tractors and smaller skid loaders.

 Common uses include: Hobby, small skid loaders, and compact tractors.

• 3/16” thick steel body
• Economically priced
• 3/4″ x 6″ weld on cutting edge without holes

SPECIFICATIONS

B SERIES	INSIDE DIMENSION (IN.)	OUTSIDE DIMENSION	“A” HEIGHT	“B” DEPTH	“C” ANGLE	LBS
CCT-54	54.0″	55.5″	21.0″	27.0″	70°	280
CCT-60	60.0″	61.5″	21.0″	27.0″	70°	311
CCT-66	66.0″	67.5″	21.0″	27.0″	70°	342
CCT-72	72.0″	73.5″	21.0″	27.0″	70°	373

How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.

To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)

To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
