Berlon Lowe XR35 Skid Steer Trencher

Description

DESCRIPTION

1/26

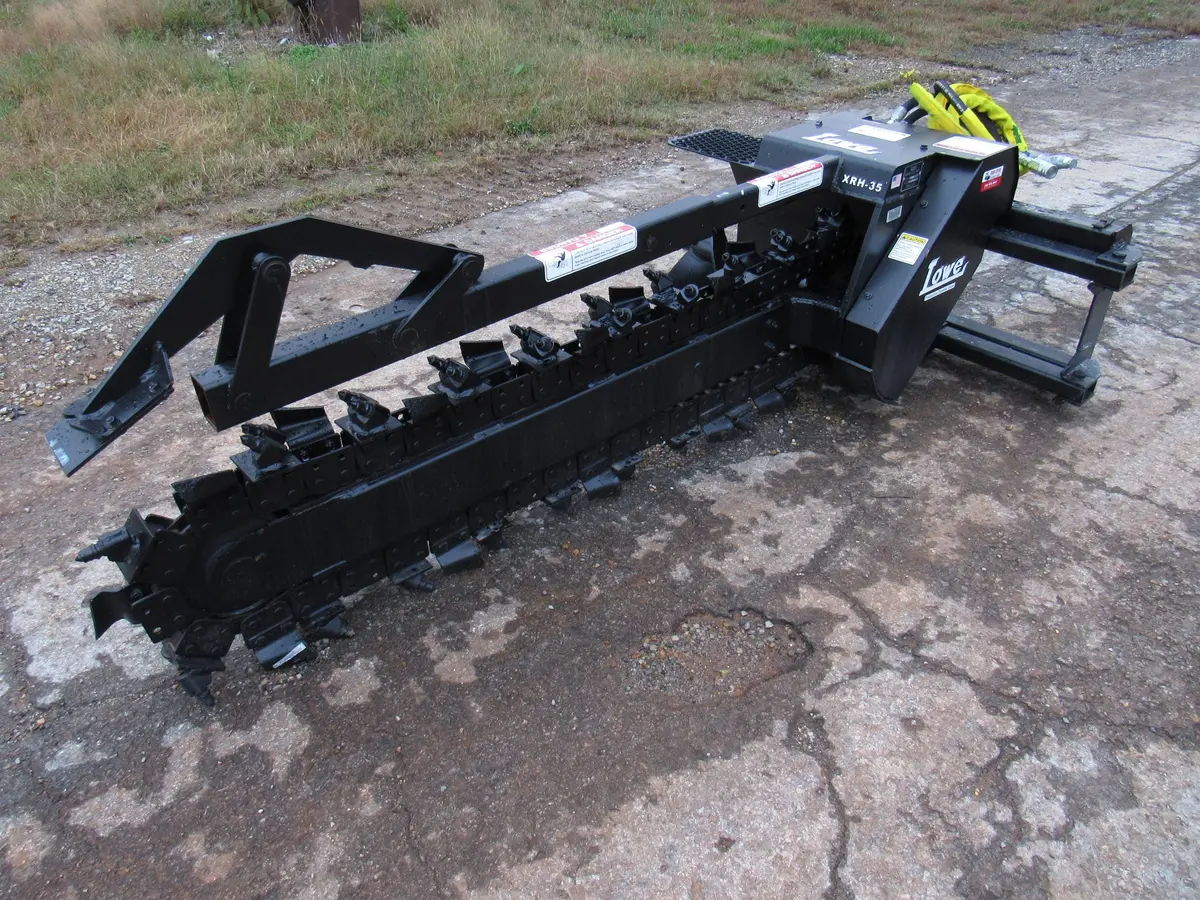

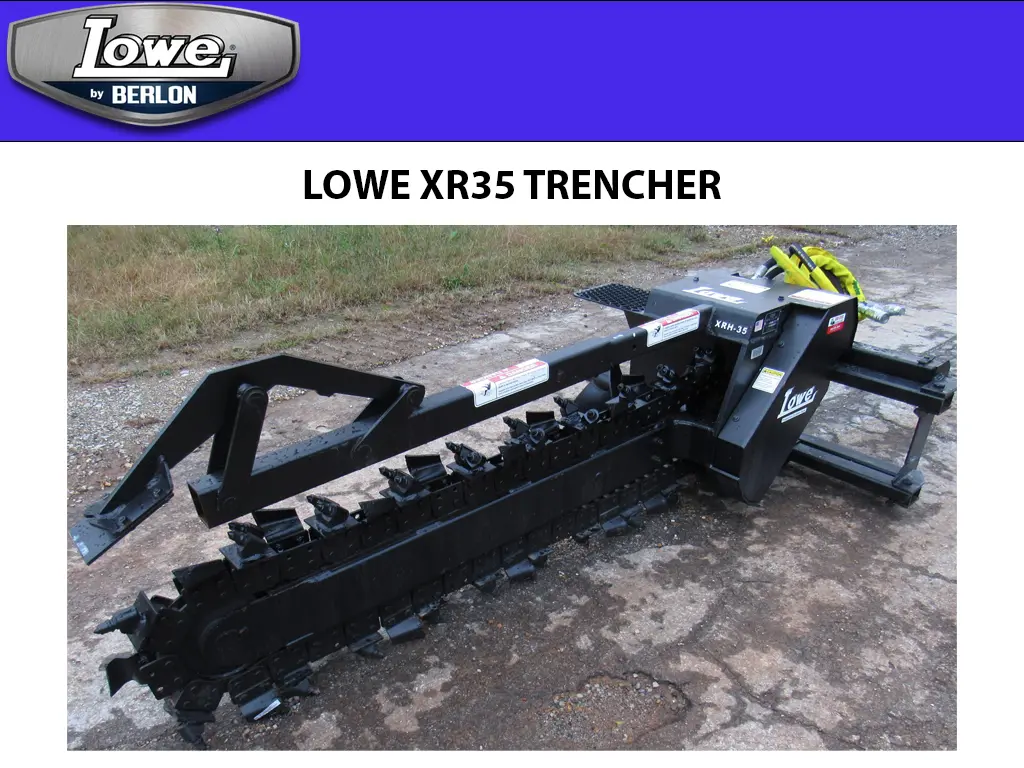

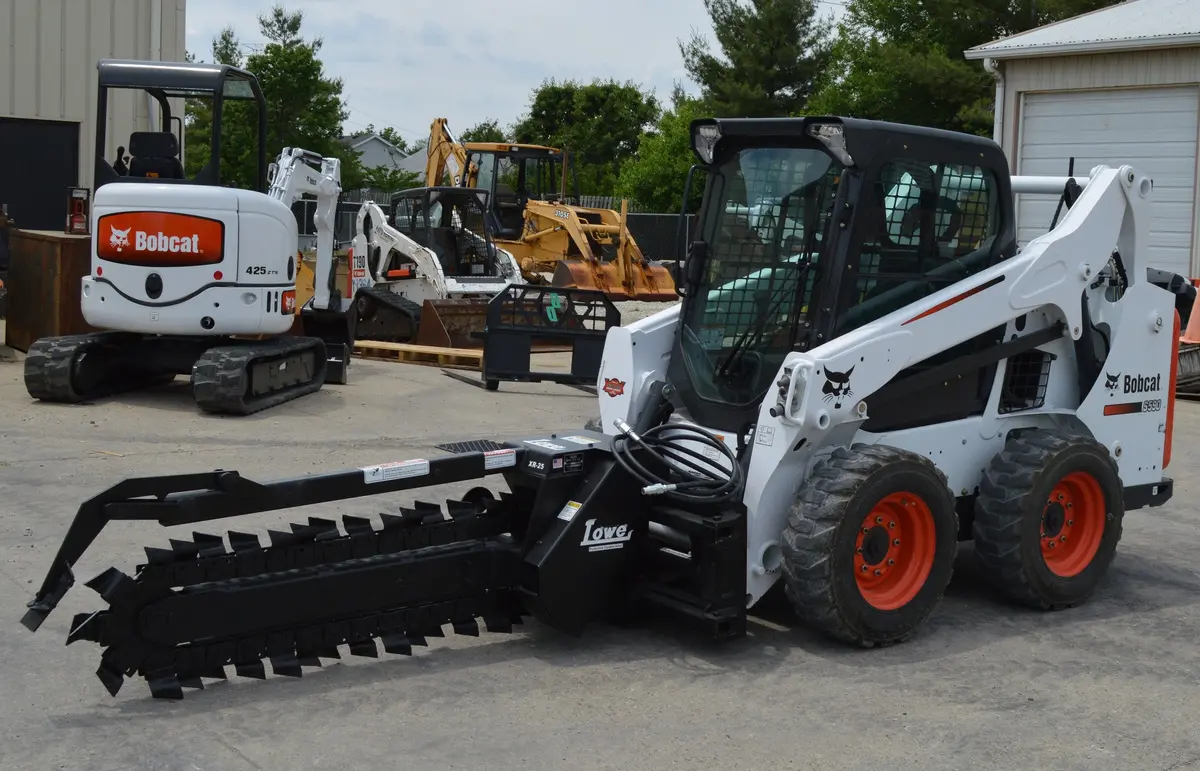

LOWE® XR-35 Trencher Attachment for Skid Steers & Mini Loaders

The LOWE® XR-35 is the most powerful trencher in the XR Series, engineered for high-demand trenching projects. Designed to fit skid steers, compact track loaders, and larger mini-loaders, this attachment delivers exceptional performance across construction, utility, irrigation, agricultural, and rental applications.

Built for Durability and Precision
The XR-35 features a heavy-duty chassis and premium hydraulic components to withstand the toughest jobs. Its fixed, self-aligning boom with grease cylinder adjustment ensures precise trenching, while the oversized boom nose with tapered roller bearings enhances durability. Industrial-strength anti-back flex (ABF) digging chains provide maximum life and superior cutting performance, and the double-flighted auger speeds spoil removal for faster, more efficient work.

Versatile and Operator-Friendly
Manual side-shift is standard, with optional hydraulic side-shift for operators who require frequent adjustments. Multiple boom lengths and chain options allow customization for a variety of trenching depths and soil conditions, from soft earth to rocky ground.

Reliable and Low-Maintenance
The XR-35 is designed with simple, reliable hose routing and high-quality hydraulic motors, reducing downtime and keeping your projects on schedule.

For contractors, landscapers, and utility professionals seeking a powerful, versatile, and reliable trencher, the LOWE® XR-35 is the ultimate choice.

Prices includes Crumber Arm. To remove this option or for custom sizes, contact us at 513-777-6666.

SPECS

LOWE 35 SERIES
BOOM SIZE	36	48	60
MAX DEPTH	36	48	60
MAX WIDTH	12	8	6
HYDRAULIC RANGE	20-45	20-45	20-45
RELIEF	2000-4200	2000-4200	2000-4200
SPEED @ 40GPM	444	444	444
POWER @ 4000 PSI	2287	2287	2287

BIG DAVE

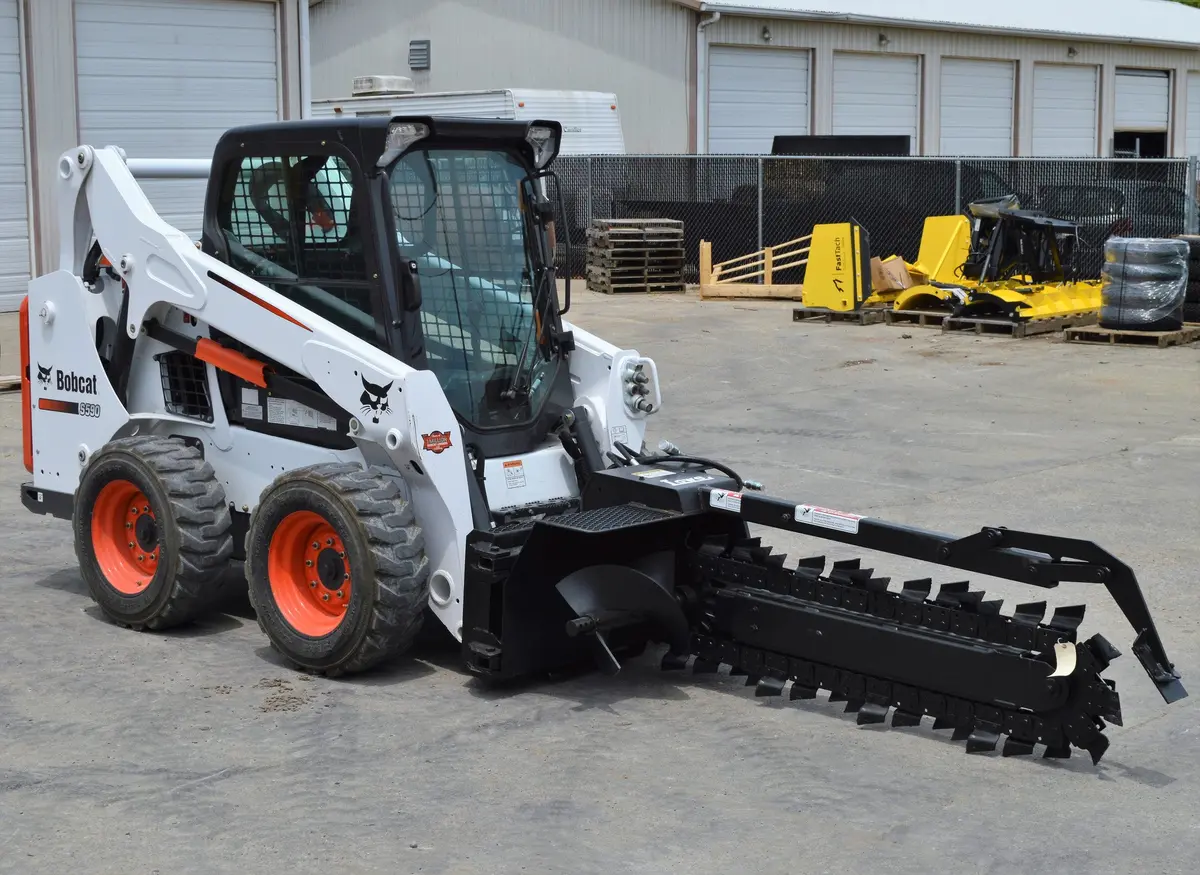

• LOWE® trenching attachments have proven to be one of the most useful tools in the attachment market. Primarily used on skid steer loaders, trenching attachments also excel on compact track loaders and a wide range of mini-loaders. Use them in construction, agriculture, rental, utility, irrigation, and other applications where an open trench is required.

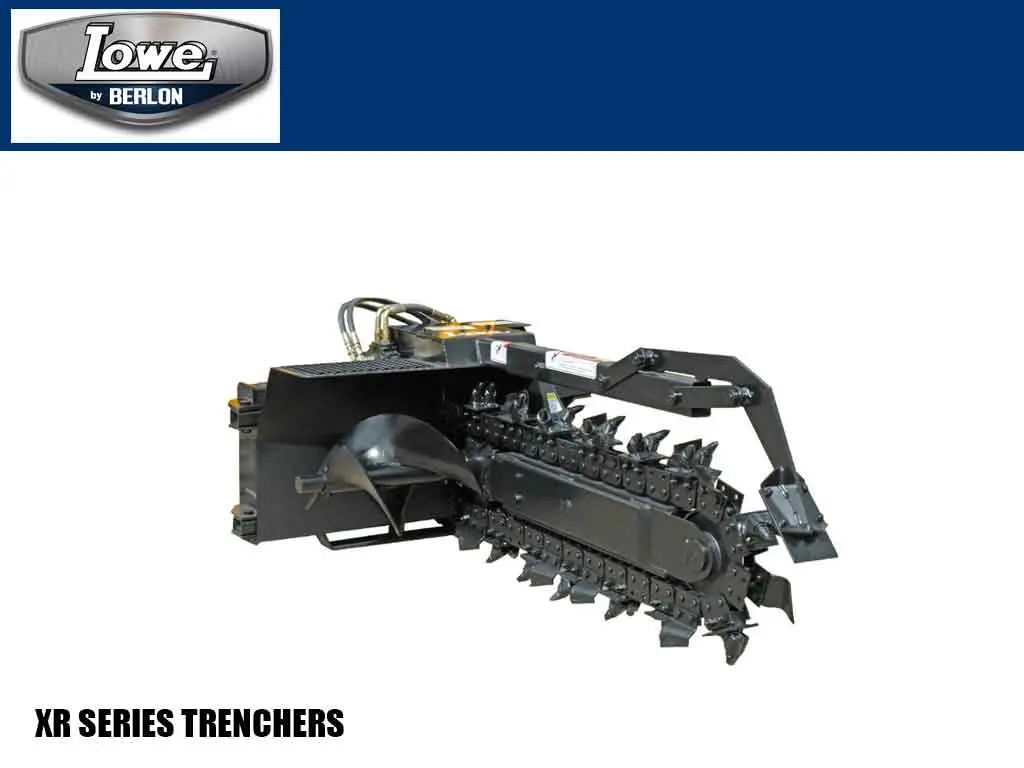

  The XR-Series from LOWE® is the most advanced and durable line of trenching attachments in the industry. They feature:

  • A fixed, self-aligning boom with an industrial strength grease cylinder adjustment system
  • High strength maintenance-free tapered roller bearings in the boom nose
  • Durable oversized boom nose idler
  • Anti-back flex (ABF) digging chain for longer life and maximum digging performance
  • Extra strong chassis
  • High quality hydraulic components and simple hose routing
  • Premium hydraulic motors
  • Double-flighted auger for fast spoil removal

  All standard mount XR-trenchers have a built-in feature that allows for manual side-shifting. The XR-14 though the XRH-35 have an optional hydraulic side shift for users that need to make numerous adjustments to the side shifting capability. Fixed-mount trenchers are also available for those that do not need to side shift and wish to save additional cost.

  With a large selection of boom lengths and digging chains available, find out how a LOWE® trenching attachment can make your machinery investment more useful.

  Trenchers from Lowe Manufacturing Co Inc on Vimeo.

• PACKAGE INCLUDES:

  • XR21 TRENCHER DRIVE

    SKID STEER UNIVERSAL / BOBCAT MOUNTING PLATE

  • HOSES & FLAT FACE COUPLERS
  • 48X6 DOUBLE STANDARD ANTI BACK FLEX CHAIN & BOOM
  • CRUMMER ARM / TRENCH CLEANER

  SPECIFICATIONS:

  • 13 – 25 GPM OIL FLOW REQUIREMENT
  • 6″ TO 12″ TRENCH WIDTHS AVAILABLE
  • 2′ TO 5′ TRENCH DEPTHS AVAILABLE
  • OPTIONAL CHAIN TEETH AVAILABLE

•

  Trenchers and augers are what LOWE is know for. A USA company that was started in 1971. Lowe set the standard for trenchers used on skid steer loaders. This is one of the best performing trenchers for the money. These trenchers have limited downtime and have a low owning and operating cost. This unit fits on most standard or high flow, medium and large frame machines. Match the flow requirement of the trencher to your machine.

  QUALITY:

  PERFORMANCE:

  Here are some of the most common sizes. 36×6 double standard chain, 48×6 double standard chain, 36×6 1/2 Rock & Frost, 48×6 1/2 Rock & Frost

  Let me explain some chains. Single standard (not listed) is for loose damp soil conditions. Double standard is for harder, drier soil. The chain has roughly twice the number of teeth as the single standard. It has a cupped style tooth. Rock & Frost (not listed) is for rock and frozen conditions.1/2 Rock & Frost is recommended for harder soil and mixed rocky conditions. Terminator chains are recommended for hard dry conditions with rock.

  Why buy a model XRH35 ? Torque! more power to dig because you have a bigger motor. And you also probably have a high flow machine that can handle the flow of the attachment.
