DESCRIPTION

4/24

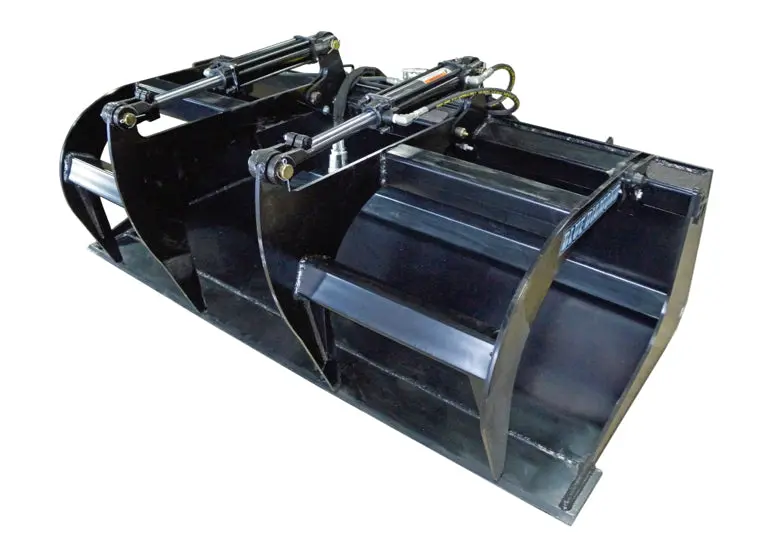

GRAPPLE BUCKET – LIGHT DUTY

The Blue Diamond® Light Duty Grapple Bucket is designed with small loaders in mind with limited lift capacity. Weighing only 454 lbs, it lets you grab a load without the fear of tipping your skid steer. Dual top clamps and grease fittings are standard.

FEATURES INCLUDE:

• Dual independent clamps
• 3/8” steel

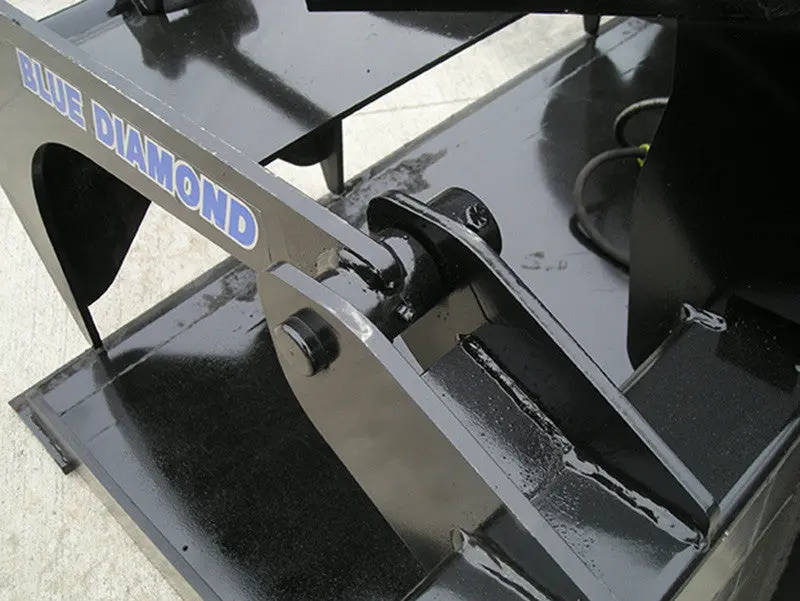

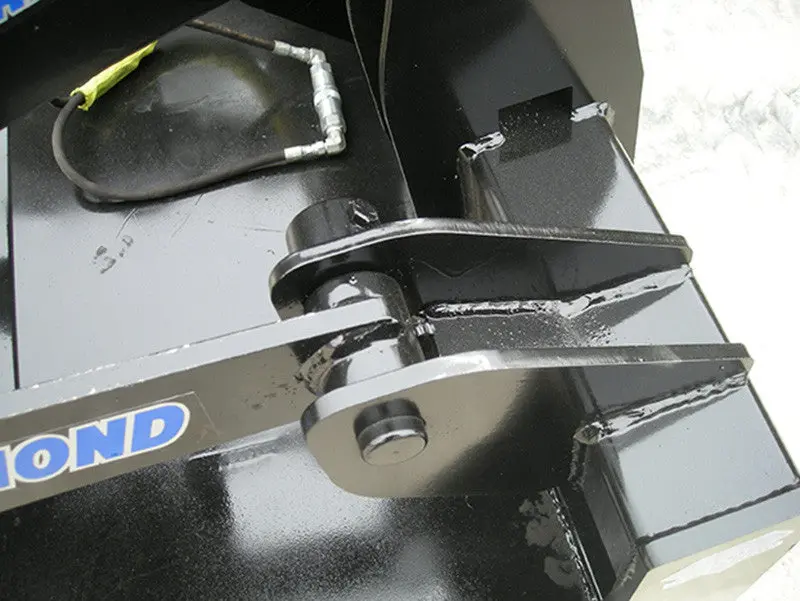

• Greasable 1” pivot pins
• Flat face couplers included
• Opens to 30”

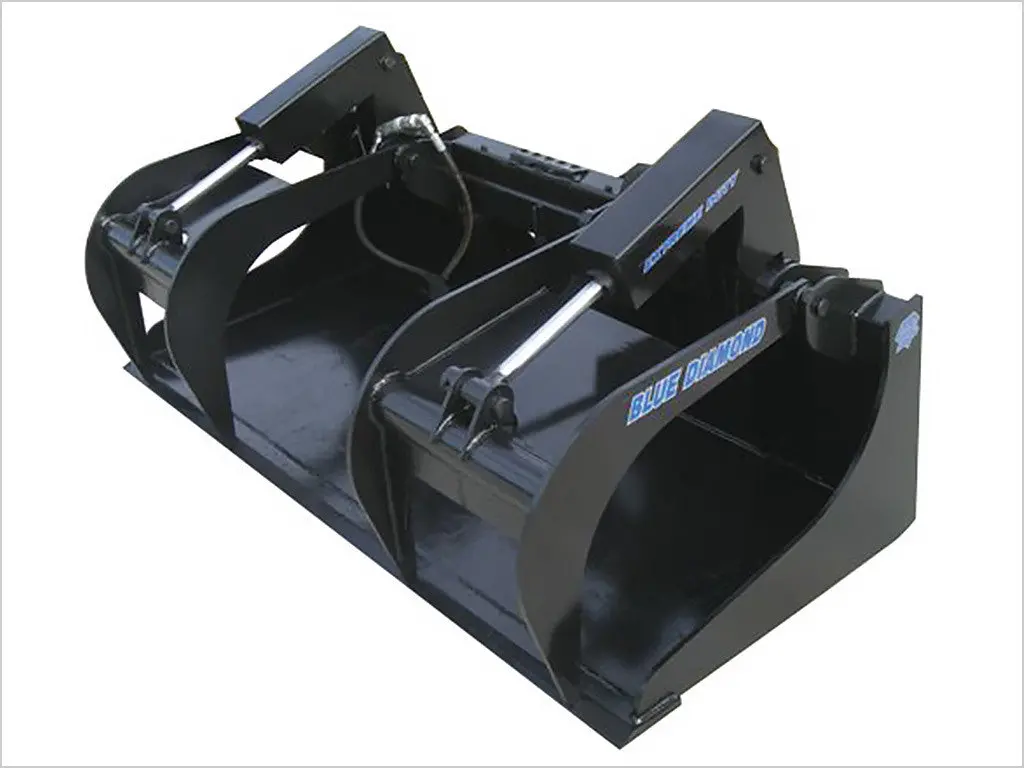

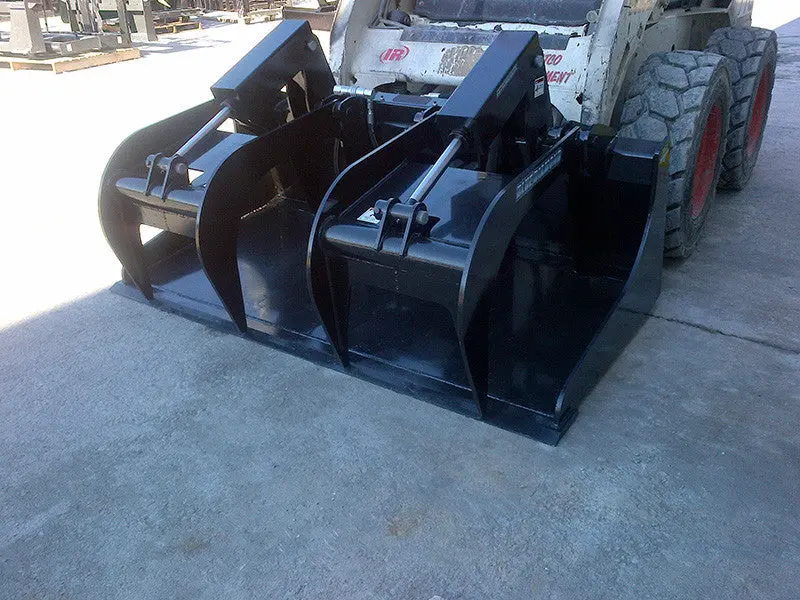

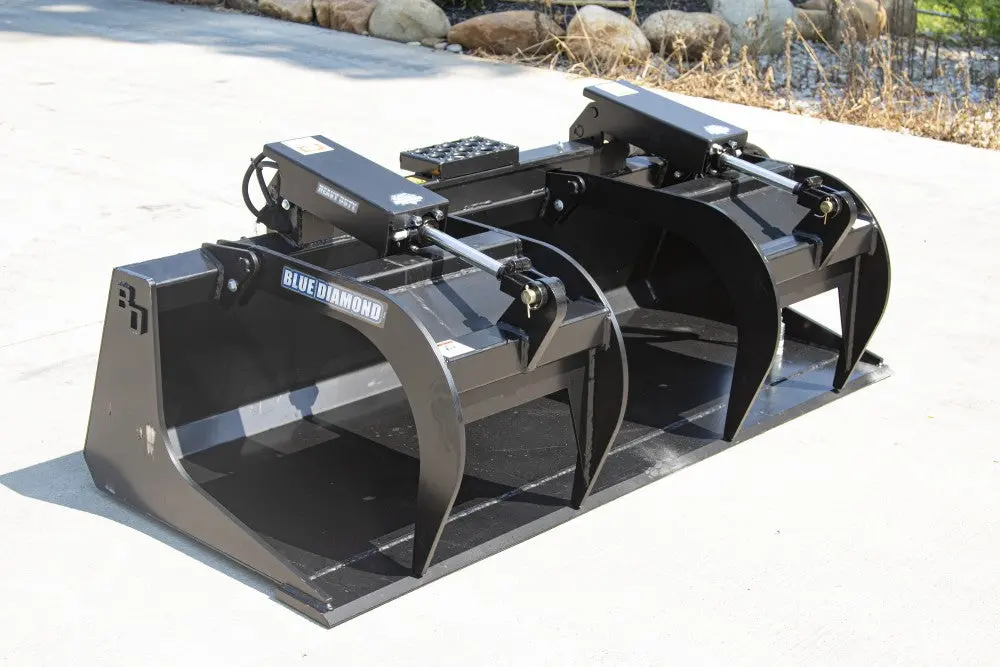

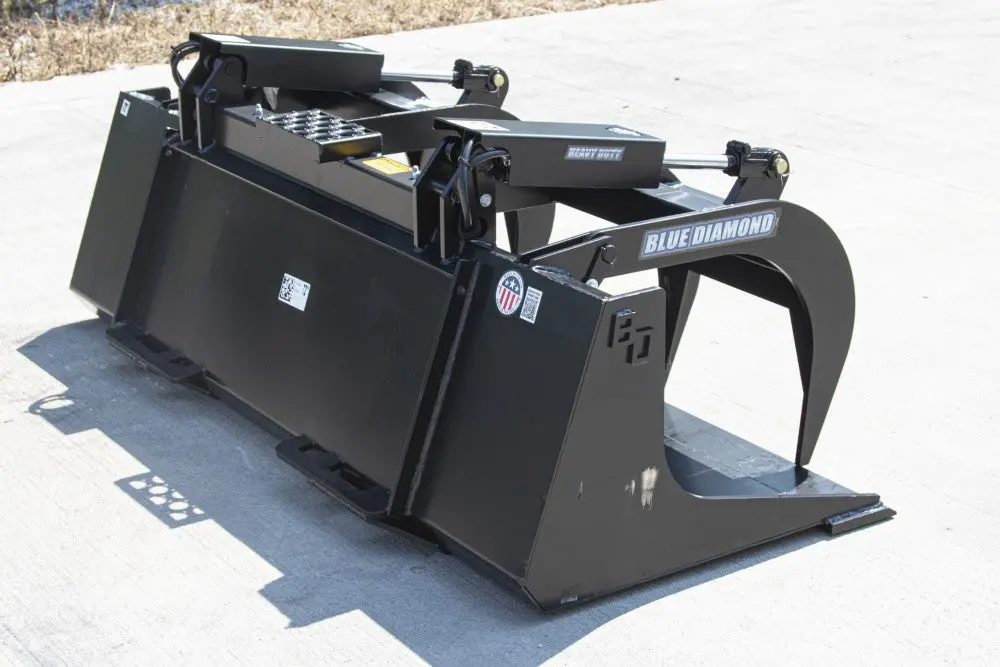

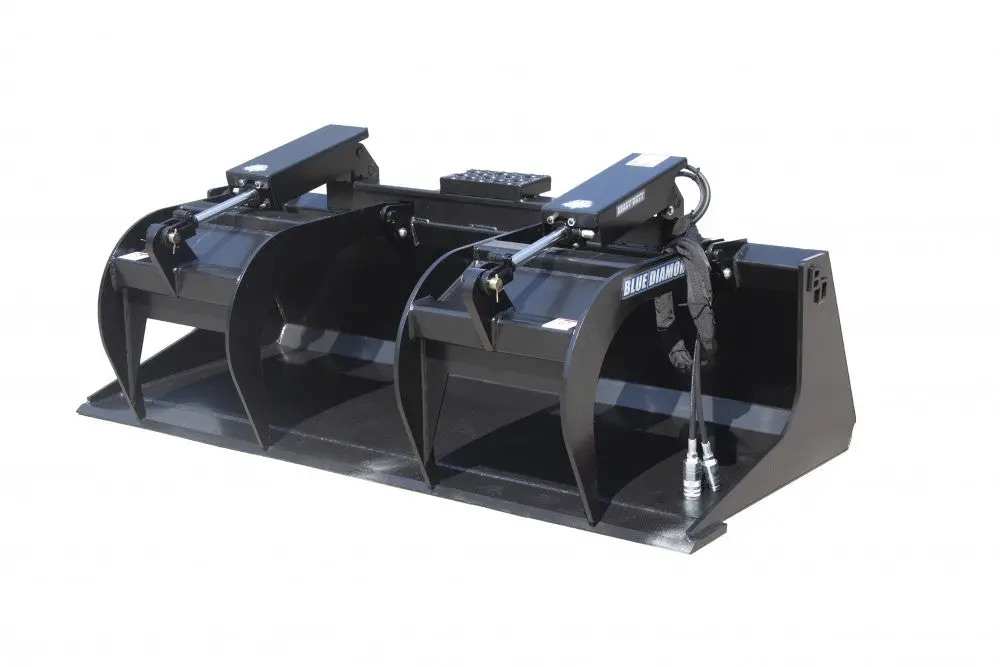

GRAPPLE BUCKET – HEAVY DUTY

The Heavy-Duty Grapple Bucket is designed for up to 50 hp machines with a moderate work load. Made from 1/2” steel, it is strong yet light enough for smaller machines. Pivot-point grease fittings and couplers are standard.

FEATURES INCLUDE:

• 1/2″ thick top clamps
• Cylinder protection covers
• Opens to 32″
• Best suited for machines up to 50HP or 1800 lb lift capacity
• Protected hoses

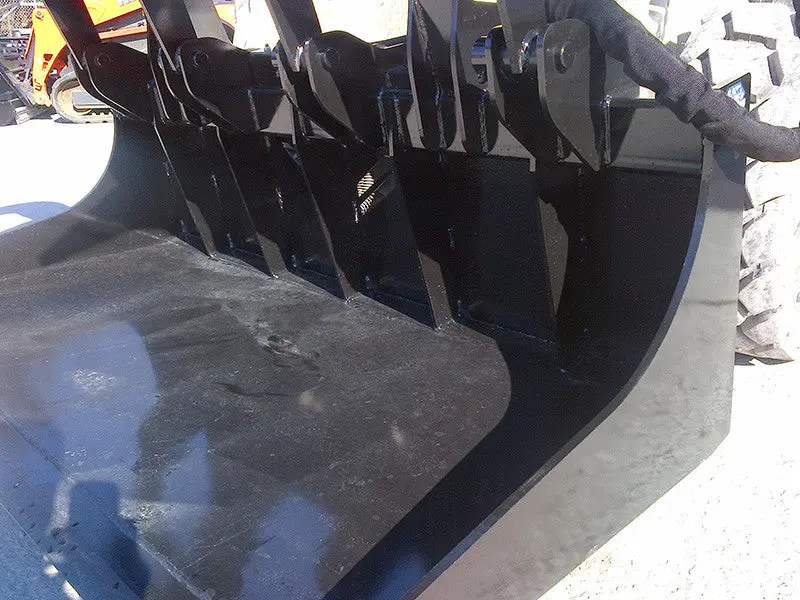

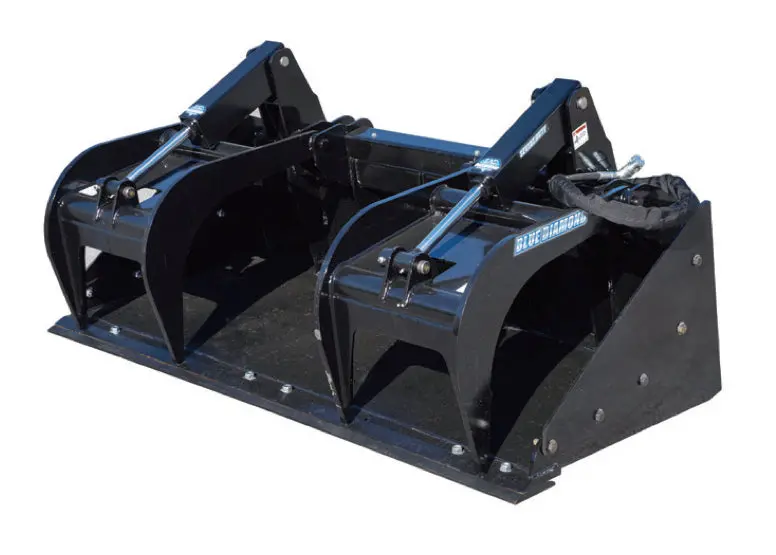

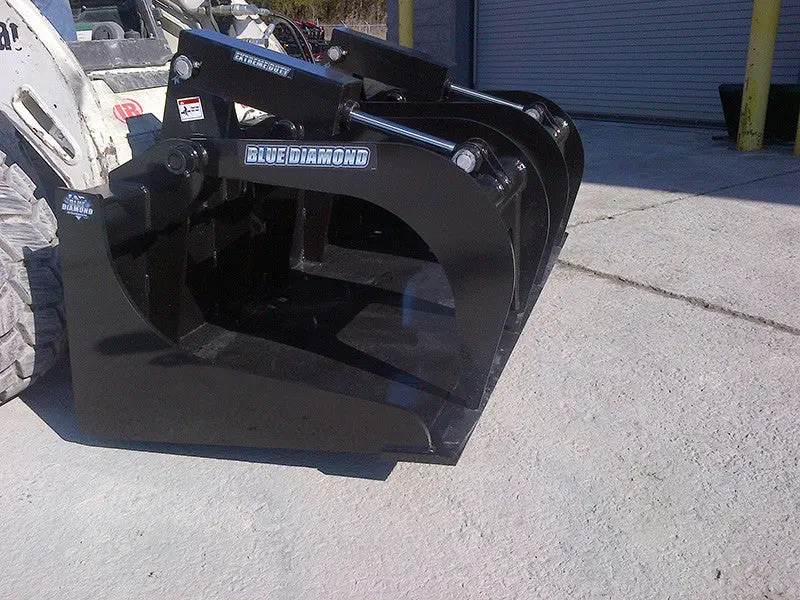

GRAPPLE BUCKET- SEVERE DUTY

This brutal grapple comes from years of input from demolition contractors and recyclers. The Severe duty model combines features from our demolition series, our extreme duty model and some new features to offer one of the most effective and durable grapple buckets in the industry. The bolt-on-sides allows the operator to contain more material if needed or remove them for handling longer products like pipe or trees.

FEATURES INCLUDE:

• No pinch hose routing
• Bolt-on-sides
• 3/4″ top tines
• Heavily reinforced top clamps

SPECIFICATIONS

Light Duty

Part Number	Model	Lift Capacity	Weight
106065	66” Grapple Bucket, Light Duty, Dual Clamps	11.07 CU FT	480 lbs

Heavy Duty

Part Number	Model	Life Capacity	Weight
106077	60” Grapple Bucket,HD, Dual Clamps	10.26 CU FT	440 lbs
106085	66” Grapple Bucket, HD, Dual Clamps	11.07 CU FT	587 lbs
106095	72” Grapple Bucket, HD, Dual Clamps	11.88 CU FT	674 lbs

Severe duty

Part Number	Model	Life Capacity	Weight
106429	60” Grapple Bucket, Severe Duty	10.26 CU FT	905 lbs
106444	66” Grapple Bucket, Severe Duty	11.07 CU FT	1,139 lbs
106454	72” Grapple Bucket, Severe Duty	11.88 CU FT	1,179 lbs
106457	72” Grapple Bucket, Severe Duty W/Teeth	11.88 CU FT	1,066 lbs
106464	78” Grapple Bucket, Severe Duty	12.69 CU FT	1,210 lbs
106476	84” Grapple Bucket, Severe Duty	14.04 CU FT	1,227 lbs
Severe Duty – for machines with 50+ HP.
