Description
DESCRIPTION
* ALWAYS PROTECT THE OPERATOR AND PEOPLE AROUND THIS ATTACHMENT. THIS ATTACHMENT THROWS DEBRIS WHEN IN OPERATION. PLEASE USE ANY AVAILIBLE SAFETY EQUIPMENT.
MINI SKID STEER ATTACHMENTS

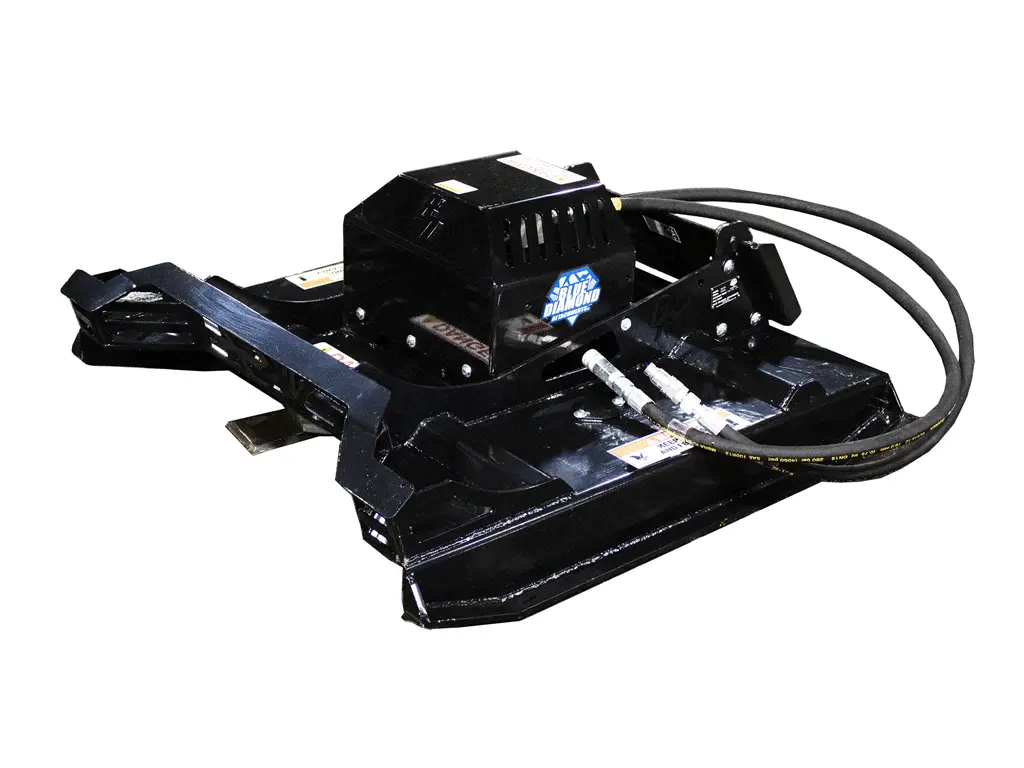

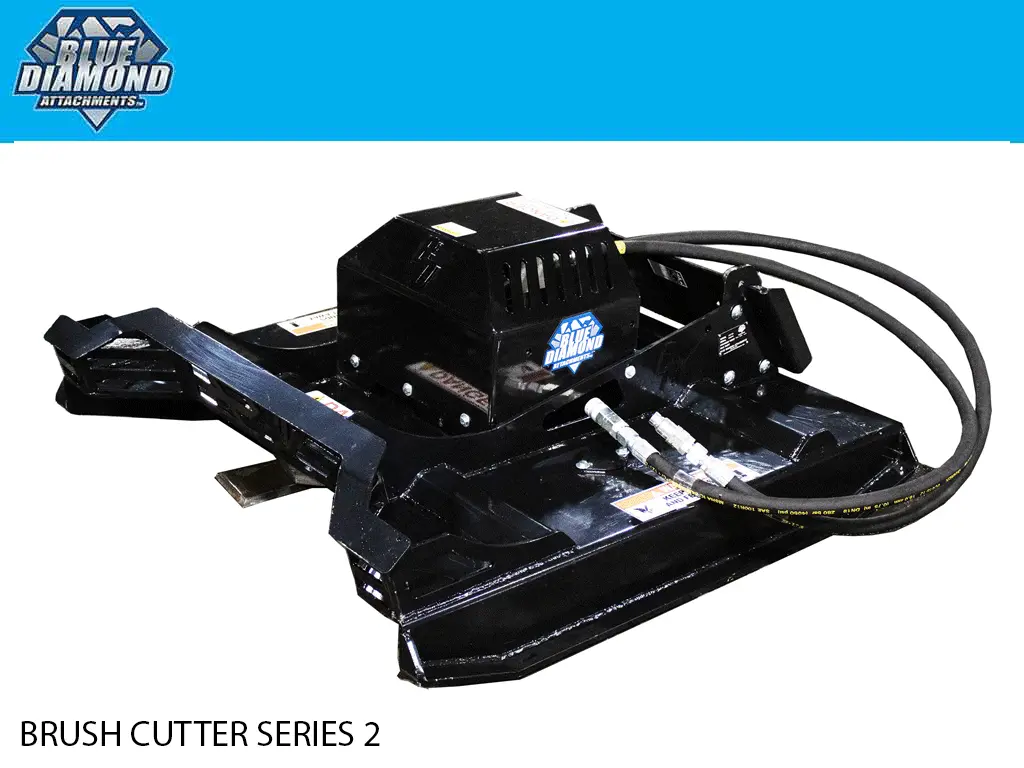

MINI BRUSH CUTTER – SERIES 2 OPEN FRONT
The Blue Diamond® Mini Skid Steer Series 2 Brush Cutters work great in grass and heavy brush up to 4″ diameter! This attachment’s 3 blades with bi-directional cutting and its brutally strong direct drive make this tough brush cutter a front runner in its class. The open front design allows a good bite at the base of trees and shrubs.

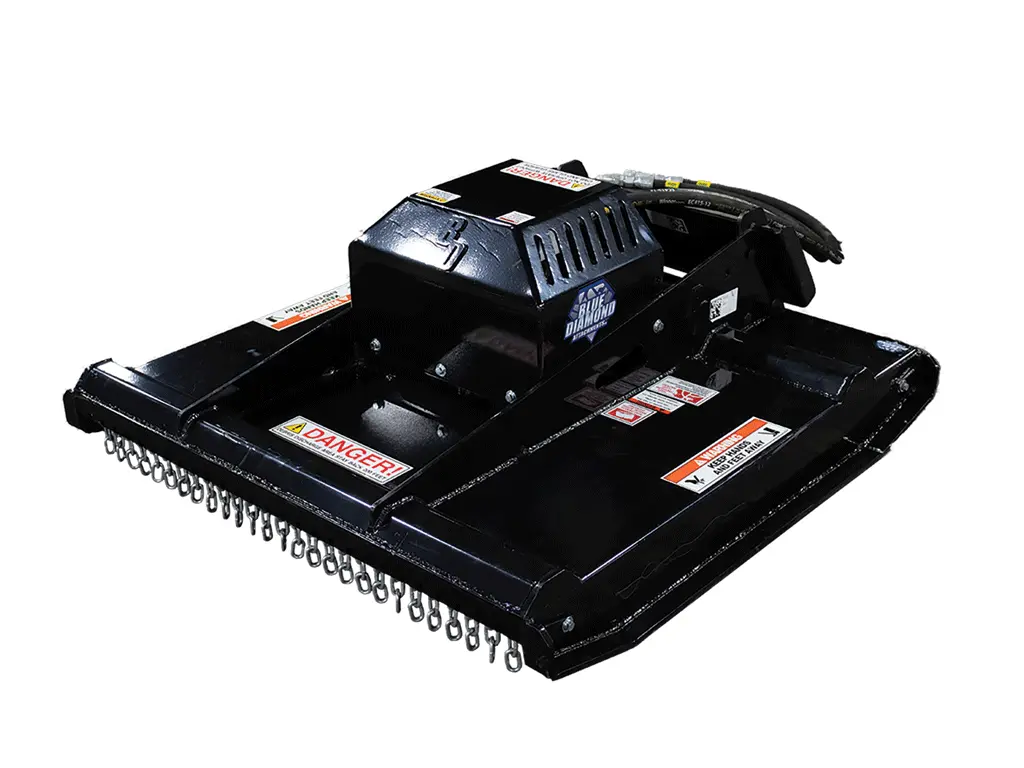

MINI BRUSH CUTTER – SERIES 2 CLOSED FRONT
The Blue Diamond® Mini Skid Steer Series 2 Brush Cutter follows on the heels of its big brother, our extreme duty brush cutter! Using the same robust direct drive system, this brush cutter has raised the bar in the performance of brush cutters used on machines with limited hydraulic flow as low as 9 GPM. This unit will work with flow up to 20 GPM.
FEATURES
OPEN FRONT
- 3 blades
- 4″ cutting capacity
- Direct drive with lifetime warranty on the spindle
- Bi-directional cutting
- Double edged blades
- Minimum required flow: 9 GPM
- Open front design for more aggressive cutting
CLOSED FRONT
- Available in 36”, 42”, or 50” widths
- 3 blades
- 4” cutting capacity
- Direct Drive with lifetime warranty on the spindle
- Minimum required flow: 9 GPM
- Double edged blades
- Bidirectional
SPECS
| SERIES 2 BRUSH CUTTER | |||
|---|---|---|---|
| Part Number | Model | Best Flow | Weight |
| 303716 | 36” Cut, 80CC, Closed Front | 9-20 GPM | 500 lbs |
| 303728 | 42” Cut, 80CC, Open Front | 12-20 GPM | 600 lbs |
| 303722 | 42” Cut, 80CC, Closed Front | 12-20 GPM | 600 lbs |
| 303731 | 50” Cut, 80CC, Closed Front | 10-20 GPM | 800 lbs |
| Mini Universal (-25), Bobcat MT (-26) and Avant (-35) mounts are available for the open and closed front models. Specify which machine that you have. Weights could increase by 50 lbs, depending on the mount. |
