Description

DESCRIPTION

5/25

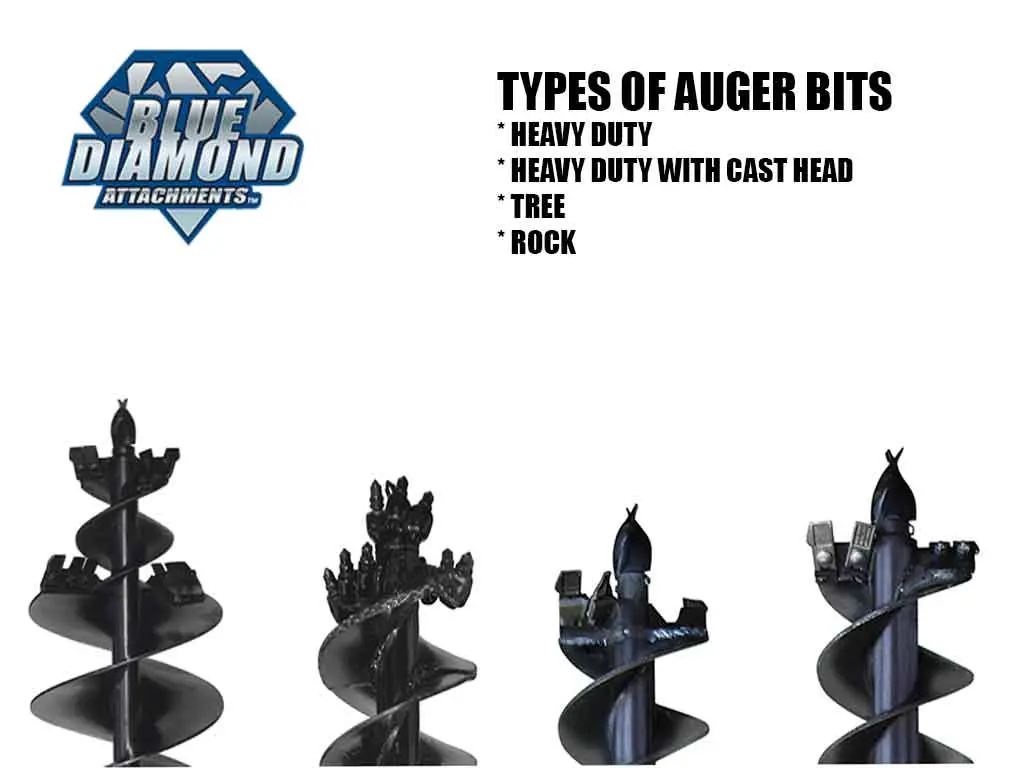

AUGER BITS

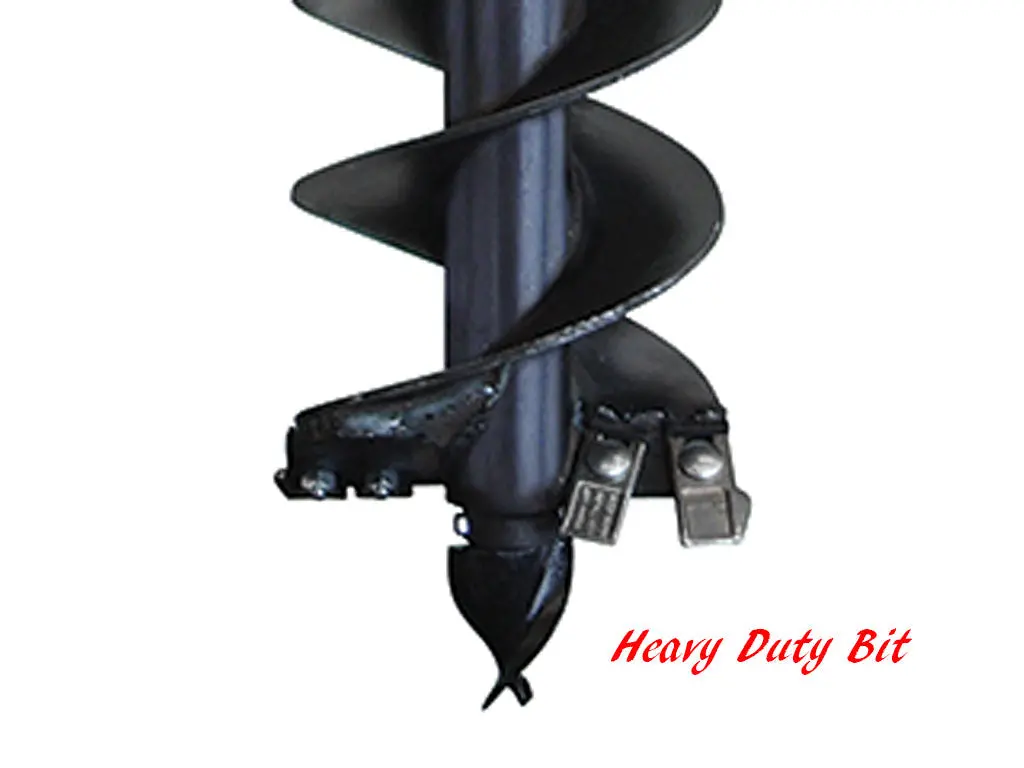

 HEAVY DUTY BITS

• Moderate ground conditions
• Fabricated boring head
• Hardened bolt on teeth
• Hardened fishtail point
• 4′ standard length
• Heavy Duty double flighting

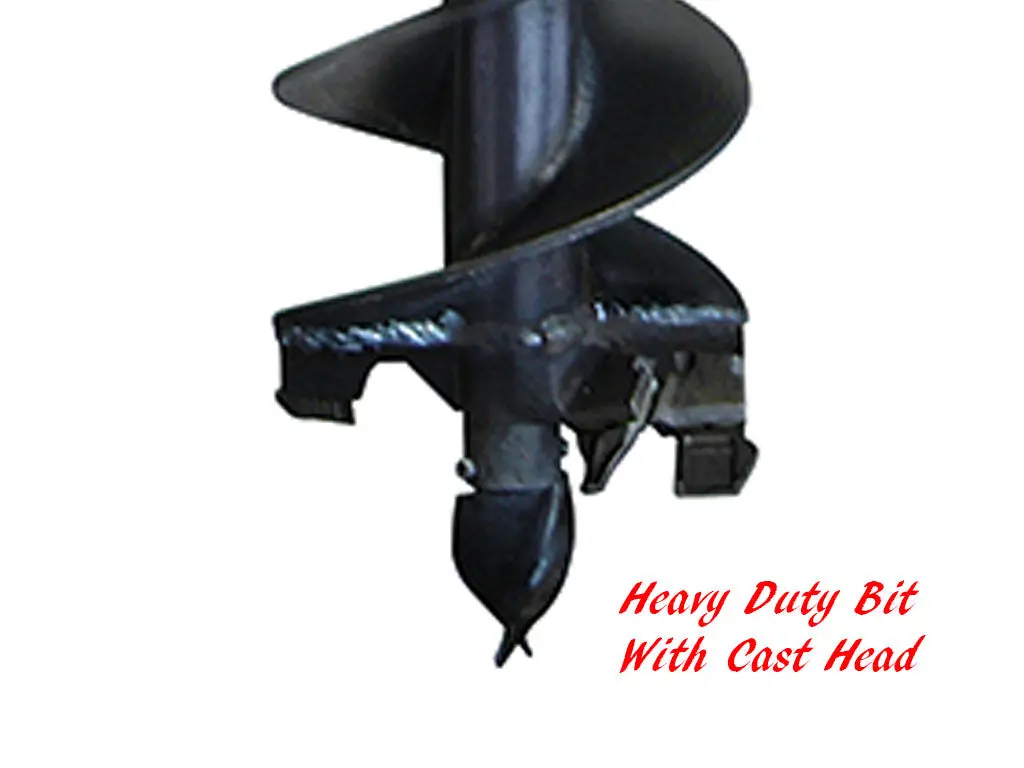

HEAVY DUTY BITS WITH CAST HEAD

• Difficult ground conditions, heavy clay, frozen ground, fracturable rock, asphalt and compacted soils
• Cast steel boring head
• Hardened drive-in teeth
• Hardened fishtail point
• 4′ standard length
• Heavy Duty double flighting
• Carbide teeth available

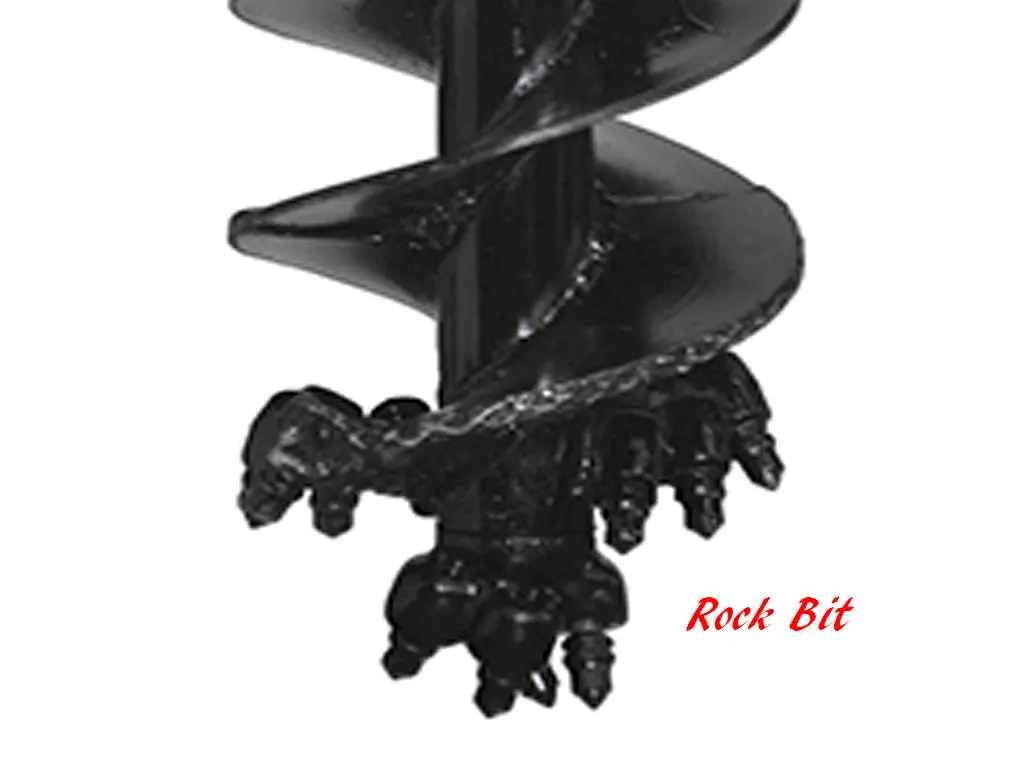

ROCK BITS

REQUIRES MINIMUM DOWN PRESSURE OF 3000 LBS TO WORK WELL

• Solid rock and concrete
• Cast tooth pockets
• Drive-in carbide bullet teeth
• ¾” thick boring head
• 4’ standard length
• Will not work for dirt

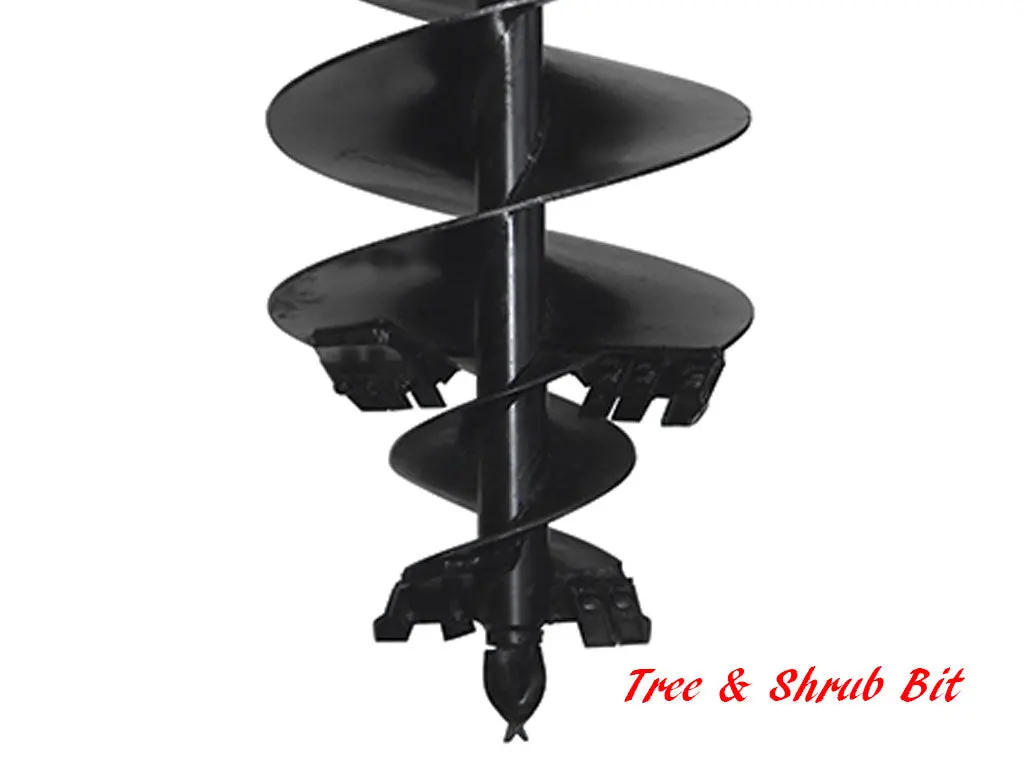

TREE BITS

• Tapered version of Heavy Duty bit

FEATURES INCLUDE :

• Moderate ground conditions
• Fabricated boring head
• Hardened bolt on teeth
• Hardened fishtail point
• 4′ standard length
• Heavy duty double flighting

SPECS

PART NUMBER	MODEL	WEIGHT
HEAVY DUTY BITS	—	—
105105	4″ Diameter, Heavy Duty, W/2″ Hex	37 lbs
105110	6″ Diameter, Heavy Duty, W/2″ Hex	45 lbs
105115	8″ Diameter, Heavy Duty, W/2″ Hex	76 lbs
105120	9″ Diameter, Heavy Duty, W/2″ Hex	85 lbs
105125	10″ Diameter, Heavy Duty, W/2″ Hex	100 lbs
105130	12″ Diameter, Heavy Duty, W/2″ Hex	113 lbs
105135	15″ Diameter, Heavy Duty, W/2″ Hex	132 lbs
105140	16″ Diameter, Heavy Duty, W/2″ Hex	136 lbs
105145	18″ Diameter, Heavy Duty, W/2″ Hex	166 lbs
105147	20″ Diameter, Heavy Duty, W/2″ Hex	182 lbs
105150	24″ Diameter, Heavy Duty, W/2″ Hex	210 lbs
105155	30″ Diameter, Heavy Duty, W/2″ Hex	278 lbs
105160	36″ Diameter, Heavy Duty, W/2″ Hex	372 lbs
HEAVY DUTY WITH CAST HEAD BITS	—	—
105205	6″ Diameter, Cast Head, W/2″ Hex	45 lbs
105208	8″ Diameter, Cast Head, W/2″ Hex	90 lbs
105210	9″ Diameter, Cast Head, W/2″ Hex	98 lbs
105215	10″ Diameter, Cast Head, W/2″ Hex	113 lbs
105220	12″ Diameter, Cast Head, W/2″ Hex	128 lbs
105225	15″ Diameter, Cast Head, W/2″ Hex	139 lbs
105230	16″ Diameter, Cast Head, W/2″ Hex	167 lbs
105235	18″ Diameter, Cast Head, W/2″ Hex	204 lbs
105237	20″ Diameter, Cast Head, W/2″ Hex	231 lbs
105239	24″ Diameter, Cast Head, W/2″ Hex	272 lbs
105241	30″ Diameter, Cast Head, W/2″ Hex	312 lbs
105243	36″ Diameter, Cast Head, W/2″ Hex	430 lbs
105245	42″ Diameter, Cast Head, W/2″ Hex	460 lbs
105250	48″ Diameter, Cast Head, W/2″ Hex	550 lbs
ROCK BITS	—	—
105305	4″ Diameter, Rock, W/2″ Hex	70 lbs
105310	6″ Diameter, Rock, W/2″ Hex	66 lbs
105320	9″ Diameter, Rock, W/2″ Hex	102 lbs
105330	12″ Diameter, Rock, W/2″ Hex	134 lbs
105340	16″ Diameter, Rock, W/2″ Hex	203 lbs
105345	18″ Diameter, Rock, W/2″ Hex	201 lbs
105350	24″ Diameter, Rock, W/2″ Hex	291 lbs
105355	30″ Diameter, Rock, W/2″ Hex	340 lbs
105360	36″ Diameter, Rock, W/2″ Hex	395 lbs
TREE BITS	—	—
105405	18-9″ Diameter, Tree, W/2″ Hex	120 lbs
105410	24-12″ Diameter, Tree, W/2″ Hex	198 lbs
105415	30-15″ Diameter, Tree, W/2″ Hex	264 lbs
105420	36-18″ Diameter, Tree, W/2″ Hex	302 lbs
105425	42-18″ Diameter, Tree, W/2″ Hex	432 lbs
105430	48-24″ Diameter, Tree, W/2″ Hex	449 lbs
