Description
DESCRIPTION

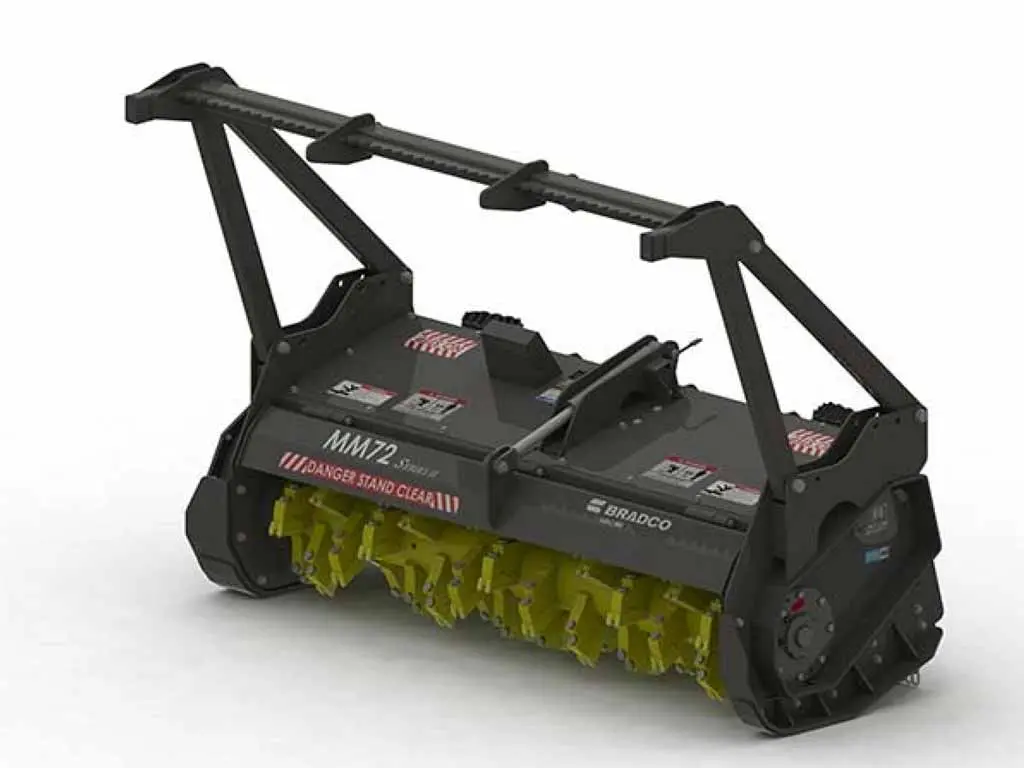

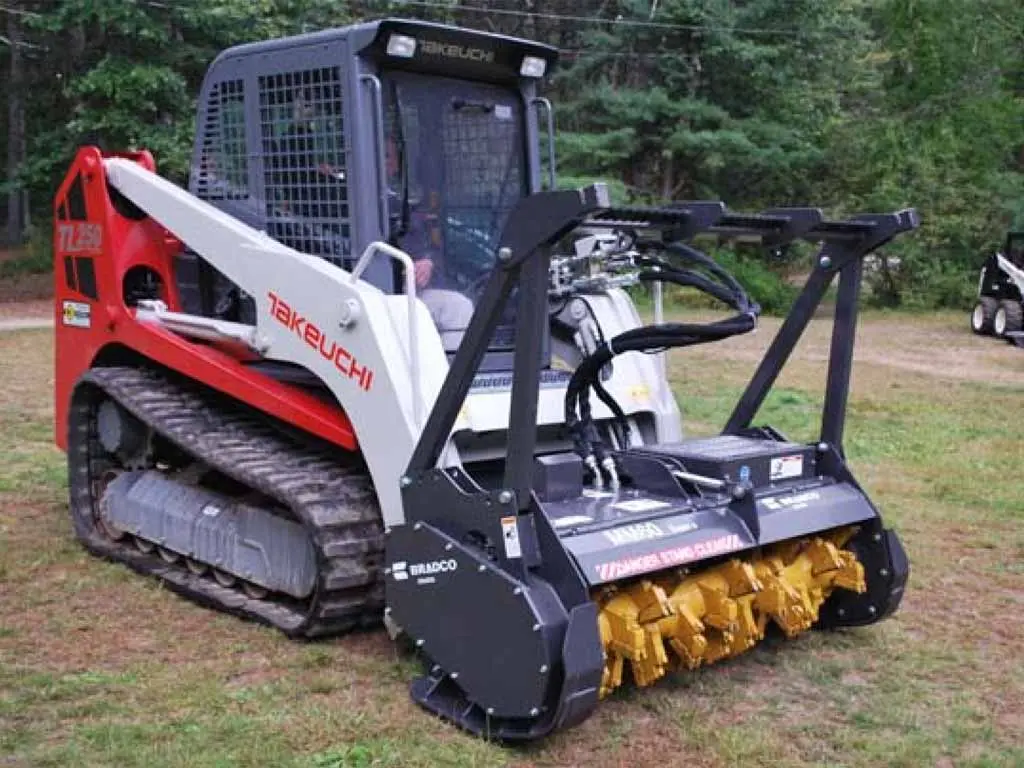

DRUM MULCHER MM60S AND MM72S SERIES 2
The Bradco drum mulcher is designed for land clearing, pipeline and gas pipeline maintenance and DOT right-of-way clearing and maintenance. The drum mulcher is a skid steer mounted mulcher that is able to cut and mulch 8’’ standing trees and is also available CE certified. Fixed hammers with reversible and replaceable carbide and claw teeth can be easily interchanged without needing to rebalancing the rotor. The synchronous belt drive system eliminates belt and drive sprocket slippage. Heavy duty bent axis variable displacement piston motor offers better performance optimization and allows mulcher to be switched easily to other prime movers without having to change out hydraulic motors, belts, or belt drive sprockets/pulleys.
- 60″ and 72″ cutting width
- Shreds up to 8″ diameter hardwood trees
- Patented tooth design and easily interchangeable tooth design options
- Replaceable abrasion resistant AR400 wear plate on skid shoes
- Deflector door standard to control particle size and discharge direction
INCLUDES:
- (3) LINE HIGH FLOW CONFIGURATION, (5) LINE OPTIONAL (CALL)
- 80″ HOSES AND FITTINGS
- CLAW TEETH, CARBIDE TEETH CAN BE A OPTION (CALL)
- CASE DRAIN
- UNIVERSAL SKID STEER MOUNTING
SPECS
| Model | MM60S | MM72S |
|---|---|---|
| PRIME MOVER | SSL, CTL | SSL, CTL |
| WEIGHT | 2530 LB | 2860 LB |
| Overall Width | 72 | 85 |
| Overall Height | 60.24 | 60.24 |
| Overall Length | 49.5 | 49.5 |
| Cutting Width | 60 | 72 |
| Operating Pressure | 3,000-4,000 | 3,500-5,000 |
| Hydraulic Flow | 30-45 | 30-45 |
| Required HYD HP | 60-95 | 75-95 |
| Number of teeth | 44 | 54 |
