Description
DESCRIPTION
6/25
* This product requires a safety door during use. If you can not find one or have questions please call.

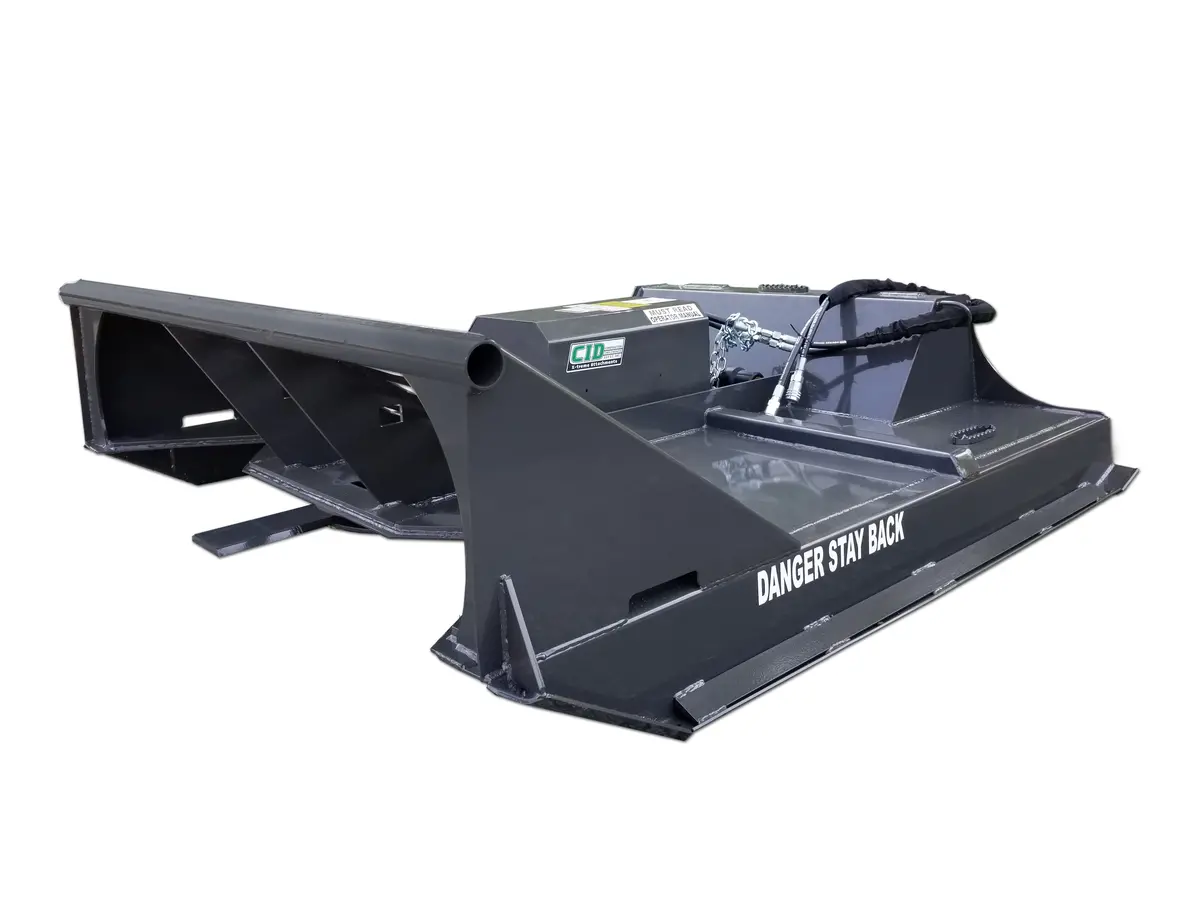

X-Treme Brush Cutter
For tough clearing applications, our X-Treme Brush Cutter series are the ideal attachment . The cutter comes in a 60”, 72” or 78″ cutting width. It is equipped with bidirectional blades, powered by a high torque motor and features a 100 hp omni gear box. We offer flows of 14-20 gpm and 20-30 gpm. These brush cutters do not require case drains.

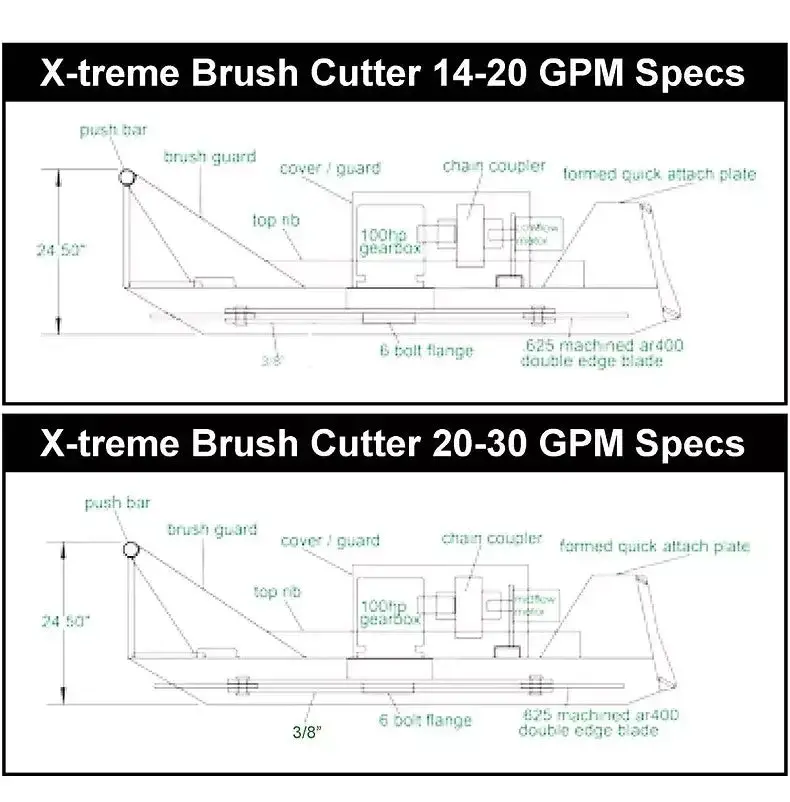

Model Comparisons & Specifications
14 GPM- 20 GPM Model Series
- 6’’ cutting capacity.
- 3/16’’ deck with sides reinforced with 3/8’’ AR400.
- High torque Parker motor.
- 3 bidirectional blades made with 5/8” AR400.
- Does not require a case drain.
- Available in 60”, 72” or 78″ cutting width.
- 3/8″ Double clover leaf shaped blade holder.
- 100 HP right angle gear box with 6 bolt flange.
- 1/4″ deck optional upgrade.
- Optional mulching teeth.
20 GPM- 30 GPM Model Series
- 6’’ cutting capacity.
- 3/16’’ deck with sides reinforced with 3/8’’ AR400.
- High torque Parker motor.
- 3 bidirectional blades made with 5/8” AR400.
- Does not require a case drain.
- Available in 60”, 72” or 78″ cutting width.
- 3/8″ Double clover leaf shaped blade holder.
- 100 HP right angle gear box with 6 bolt flange.
- 1/4″ deck optional upgrade.
- Optional mulching teeth.
X-treme Brush Cutter Extra Protection
Our X-treme brush cutter also comes powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date. The one year warranty does not cover the blades or hoses.
SPECIFICATIONS
XBC60LF
| Product Family | X-Treme Brush Cutter |
| Product | XBC60LF |
| Description | X-Treme 14-20 GPM Brush Cutter – 60″ |
| Motor | High Torque Parker Motor w/ built in relief valve |
| Case Drain | Not Required |
| Flow Requirement (GPM) | 14 – 20 GPM |
| Gearbox | 100 HP right angle |
| Working Width | 60′ |
| # of Blades | 3 |
| Weight (lbs) | 1390 |
| Cutting Capacity | 6″ |
| Deck Thickness | 3/16″ deck w/ 3/8″ AR400 reinforced sides |
| Blade Holder | 6 Bolt Flange Blade Carrier |
| Blades | 5/8″ AR400 |
XBC60MF
| Product Family | X-Treme Brush Cutter |
| Product | XBC60MF |
| Description | X-Treme 20-30 GPM Brush Cutter – 60″ |
| Motor | High Torque Parker Motor |
| Case Drain | Not Required |
| Flow Requirement (GPM) | 20 – 30 GPM |
| Gearbox | 100 HP right angle |
| Working Width | 60″ |
| # of Blades | 3 |
| Weight (lbs) | 1393 |
| Cutting Capacity | 6″ |
| Deck Thickness | 3/16″ deck w/ 3/8″ AR400 reinforced sides |
| Blade Holder | 6 Bolt Flange Blade Carrier |
| Blades | 5/8″ AR400 |
XBC72MF
| Product Family | X-Treme Brush Cutter |
| Product | XBC72MF |
| Description | X-Treme 20-30 GPM Brush Cutter – 72″ |
| Motor | High Torque Parker Motor |
| Case Drain | Not Required |
| Flow Requirement (GPM) | 20 – 30 GPM |
| Gearbox | 100 HP right angle |
| Working Width | 72″ |
| # of Blades | 3 |
| Weight (lbs) | 1716 |
| Cutting Capacity | 6″ |
| Deck Thickness | 3/16″ deck w/ 3/8″ AR400 reinforced sides |
| Blade Holder | 6 Bolt Flange Blade Carrier |
| Blades | 5/8″ AR400 |
XBC72LF
| Product Family | X-Treme Brush Cutter |
| Product | XBC72LF |
| Description | X-Treme 14-20 GPM Brush Cutter – 72″ |
| Motor | High Torque Parker Motor w/ built in relief valve |
| Case Drain | Not Required |
| Flow Requirement (GPM) | 14 – 20 GPM |
| Gearbox | 100 HP right angle |
| Working Width | 72″ |
| # of Blades | 3 |
| Weight (lbs) | 1641 |
| Cutting Capacity | 6″ |
| Deck Thickness | 3/16″ deck w/ 3/8″ AR400 reinforced sides |
| Blade Holder | 6 Bolt Flange Blade Carrier |
| Blades | 5/8″ AR400 |
XBC78MF
| Product Family | X-Treme Brush Cutter |
| Product | XBC78MF |
| Description | X-Treme 20-30 GPM Brush Cutter – 78″ |
| Motor | High Torque Parker Motor |
| Case Drain | Not Required |
| Flow Requirement (GPM) | 20 – 30 GPM |
| Gearbox | 100 HP right angle |
| Working Width | 78″ |
| # of Blades | 3 |
| Weight (lbs) | 2016 |
| Cutting Capacity | 6″ |
| Deck Thickness | 3/16″ deck w/ 3/8″ AR400 reinforced sides |
| Blade Holder | 6 Bolt Flange Blade Carrier |
| Blades | 5/8″ AR400 |
XBC78LF
| Product Family | X-Treme Brush Cutter |
| Product | XBC78LF |
| Description | X-Treme 14-20 GPM Brush Cutter -78″ |
| Motor | High Torque Parker Motor w/ built in relief valve |
| Case Drain | Not Required |
| Flow Requirement (GPM) | 14 – 20 GPM |
| Gearbox | 100 HP right angle |
| Working Width | 78″ |
| # of Blades | 3 |
| Weight (lbs) | 1890 |
| Cutting Capacity | 6″ |
| Deck Thickness | 3/16″ deck w/ 3/8″ AR400 reinforced sides |
| Blade Holder | 6 Bolt Flange Blade Carrier |
| Blades | 5/8″ AR400 |
| Notes | Optional Items: 1/4″ deck upgrade, Mulching Teeth, and Motor Upgrade to 16-26 GPM |
XBC84MF
| Product Family | X-Treme Brush Cutter |
| Product | XBC84MF |
| Description | X-Treme 20-30 GPM Brush Cutter – 84″ |
| Motor | High Torque Parker Motor |
| Case Drain | Not Required |
| Flow Requirement (GPM) | 20 – 30 GPM |
| Gearbox | 100 HP right angle |
| Working Width | 84″ |
| # of Blades | 3 |
| Cutting Capacity | 6″ |
| Deck Thickness | 3/16″ deck w/ 3/8″ AR400 reinforced sides |
| Blade Holder | 6 Bolt Flange Blade Carrier |
| Blades | 5/8″ AR400 |
XBC84LF
| Product Family | X-Treme Brush Cutter |
| Product | XBC84LF |
| Description | X-Treme 14-20 GPM Brush Cutter – 84″ |
| Motor | High Torque Parker Motor w/ built in relief valve |
| Case Drain | Not Required |
| Flow Requirement (GPM) | 14 – 20 GPM |
| Gearbox | 100 HP right angle |
| Working Width | 84″ |
| # of Blades | 3 |
| Cutting Capacity | 6″ |
| Deck Thickness | 3/16″ deck w/ 3/8″ AR400 reinforced sides |
| Blade Holder | 6 Bolt Flange Blade Carrier |
| Blades | 5/8″ AR400 |
| Notes | Optional Items: 1/4″ deck upgrade, Mulching Teeth, and Motor Upgrade to 16-26 GPM |
XBC1626-78MT
| Product Family | X-Treme Brush Cutter |
| Product | XBC1626-78MT |
| Description | XD BRUSH CUTTER- 78″- 16-26 GPM WITH MULCHING TEETH |
| Weight (lbs) | 1726 |
XBC1626-84MT
| Product Family | X-Treme Brush Cutter |
| Product | XBC1626-84MT |
| Description | XD BRUSH CUTTER- 84″- 16-26 GPM WITH MULCHING TEETH |
| Weight (lbs) | 1879 |
XBC1626-60MT
| Product Family | X-Treme Brush Cutter |
| Product | XBC1626-60MT |
| Description | XD BRUSH CUTTER- 60″- 16-26 GPM WITH MULCHING TEETH |
| Weight (lbs) | 1450 |
XBC1626-72MT
| Product Family | X-Treme Brush Cutter |
| Product | XBC1626-72MT |
| Description | XD BRUSH CUTTER- 72″- 16-26 GPM WITH MULCHING TEETH |
| Weight (lbs) | 1602 |
XBCLF60MT
| Product Family | X-Treme Brush Cutter |
| Product | XBCLF60MT |
| Description | X-TREME 14-20 GPM BRUSH CUTTER W/ MULCHING TEETH- 60″ |
| Weight (lbs) | 1379 |
XBCLF72MT
| Product Family | X-Treme Brush Cutter |
| Product | XBCLF72MT |
| Description | X-TREME 14-20 GPM BRUSH CUTTER W/ MULCHING TEETH- 72″ |
| Weight (lbs) | 1761 |
XBCLF78MT
| Product Family | X-Treme Brush Cutter |
| Product | XBCLF78MT |
| Description | X-TREME 14-20 GPM BRUSH CUTTER W/ MULCHING TEETH- 78″ |
| Weight (lbs) | 1759 |
XBCLF84MT
| Product Family | X-Treme Brush Cutter |
| Product | XBCLF84MT |
| Description | X-TREME 14-20 GPM BRUSH CUTTER W/ MULCHING TEETH- 84″ |
XBCMF60MT
| Product Family | X-Treme Brush Cutter |
| Product | XBCMF60MT |
| Description | X-TREME 20-30 GPM BRUSH CUTTER W/ MULCHING TEETH- 60″ |
| Weight (lbs) | 1557 |
XBCMF72MT
| Product Family | X-Treme Brush Cutter |
| Product | XBCMF72MT |
| Description | X-TREME 20-30 GPM BRUSH CUTTER W/ MULCHING TEETH- 72″ |
| Weight (lbs) | 1704 |
XBCMF78MT
| Product Family | X-Treme Brush Cutter |
| Product | XBCMF78MT |
| Description | X-TREME 20-30 GPM BRUSH CUTTER W/ MULCHING TEETH- 78″ |
| Weight (lbs) | 1820 |
XBCMF84MT
| Product Family | X-Treme Brush Cutter |
| Product | XBCMF84MT |
| Description | X-TREME 20-30 GPM BRUSH CUTTER W/ MULCHING TEETH- 84″ |
