DESCRIPTION
3/25

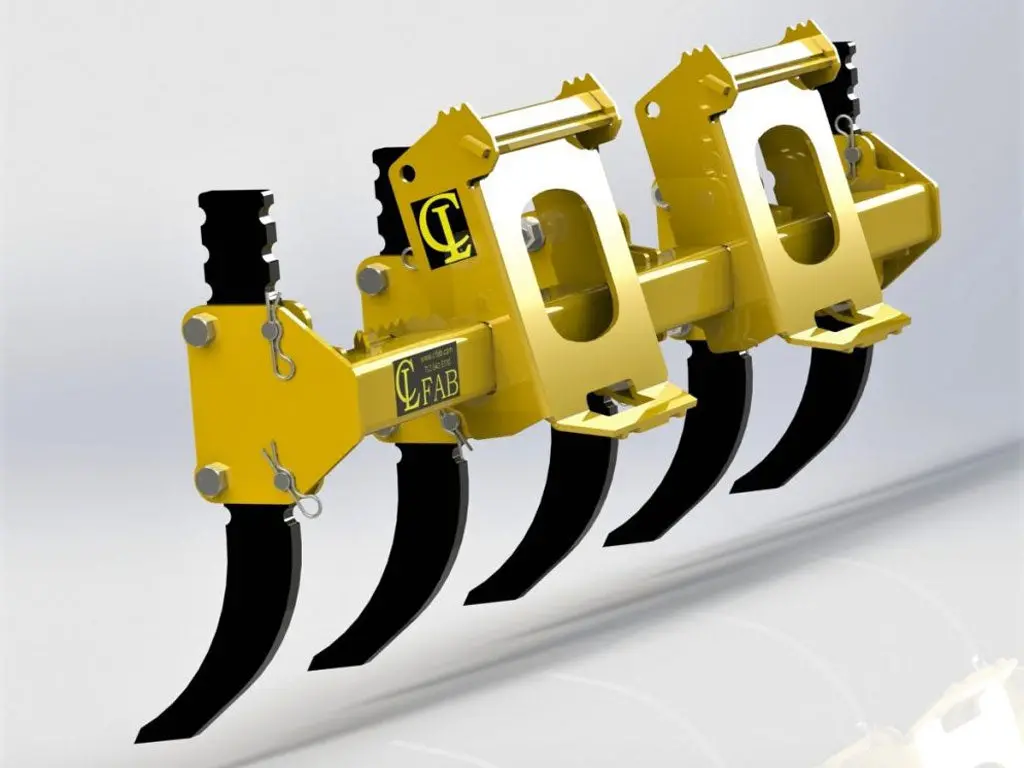

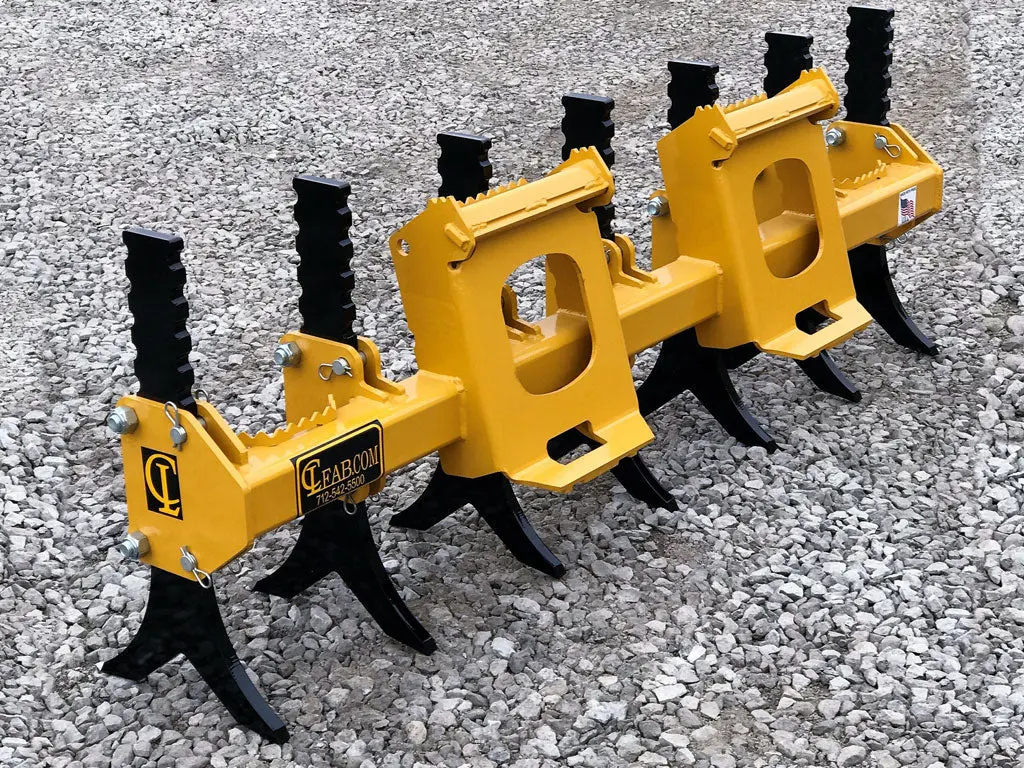

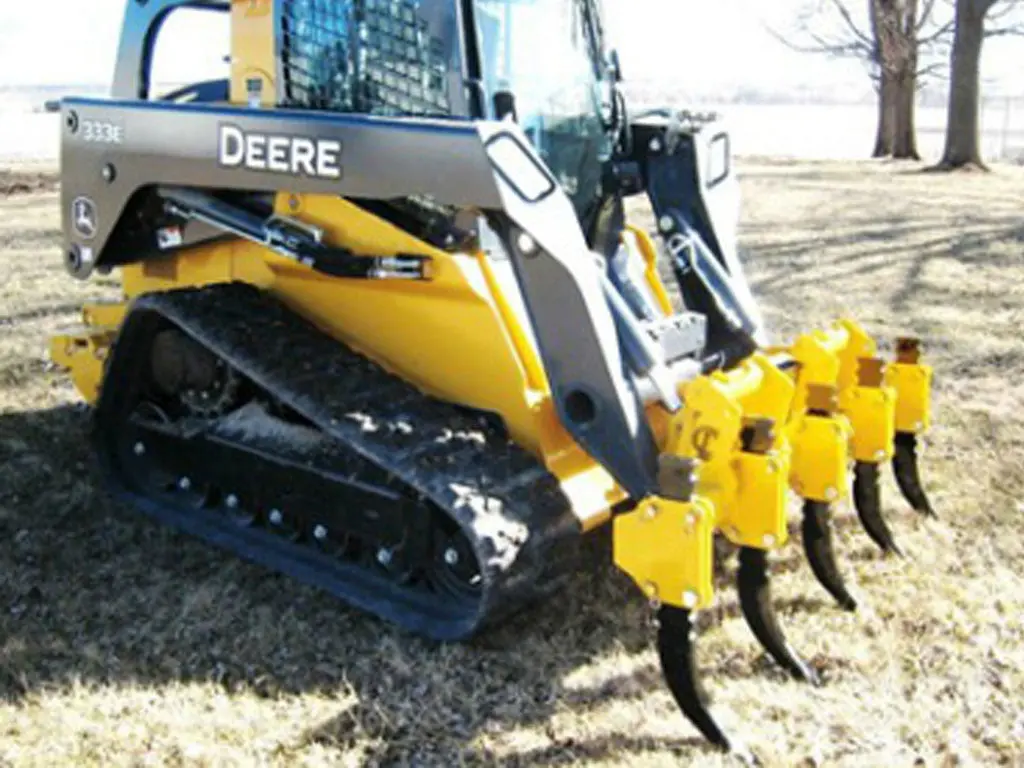

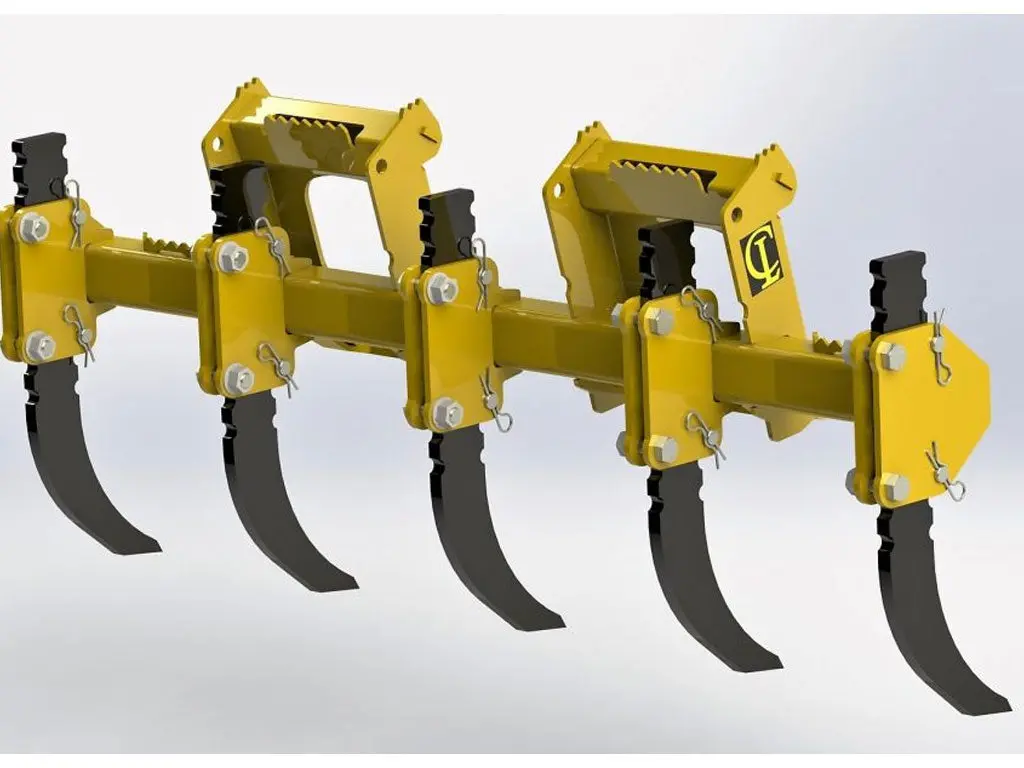

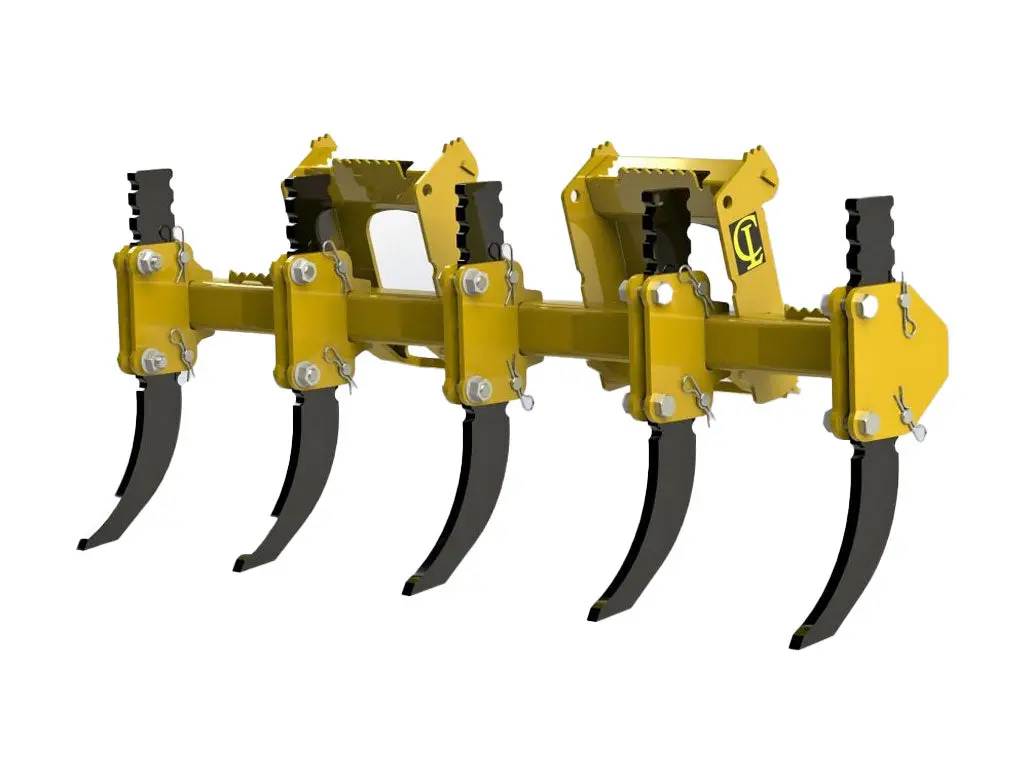

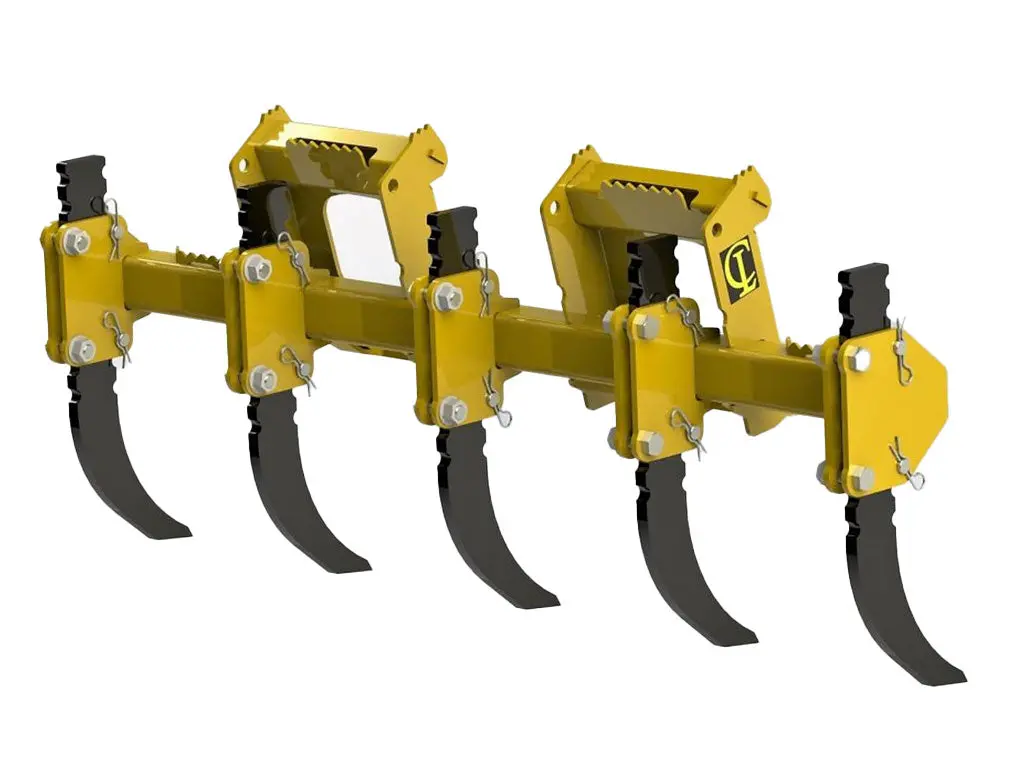

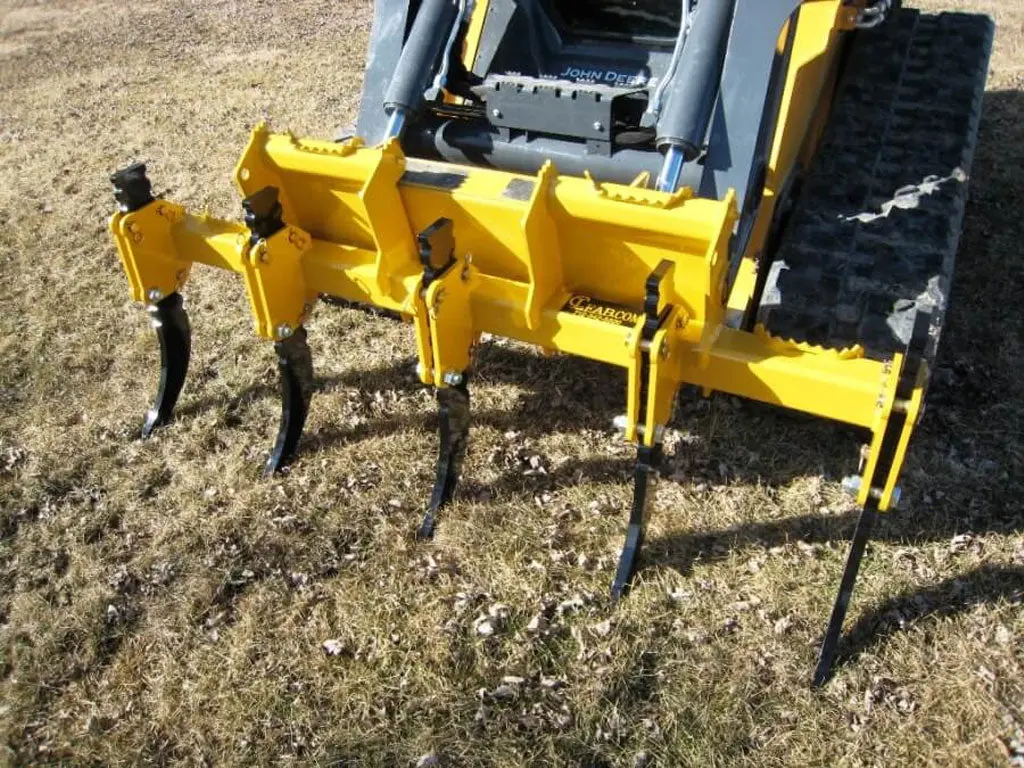

The new XR Ripper is now available from CL Fab in two widths: 76″ and 84″. It is built for compact track loaders and skid steers and can handle the power of the biggest skid steers and compact track loaders.
With the XR Ripper you can:
- Rip and scarify hard ground.
- Tear out roots, rocks and dig up stumps.

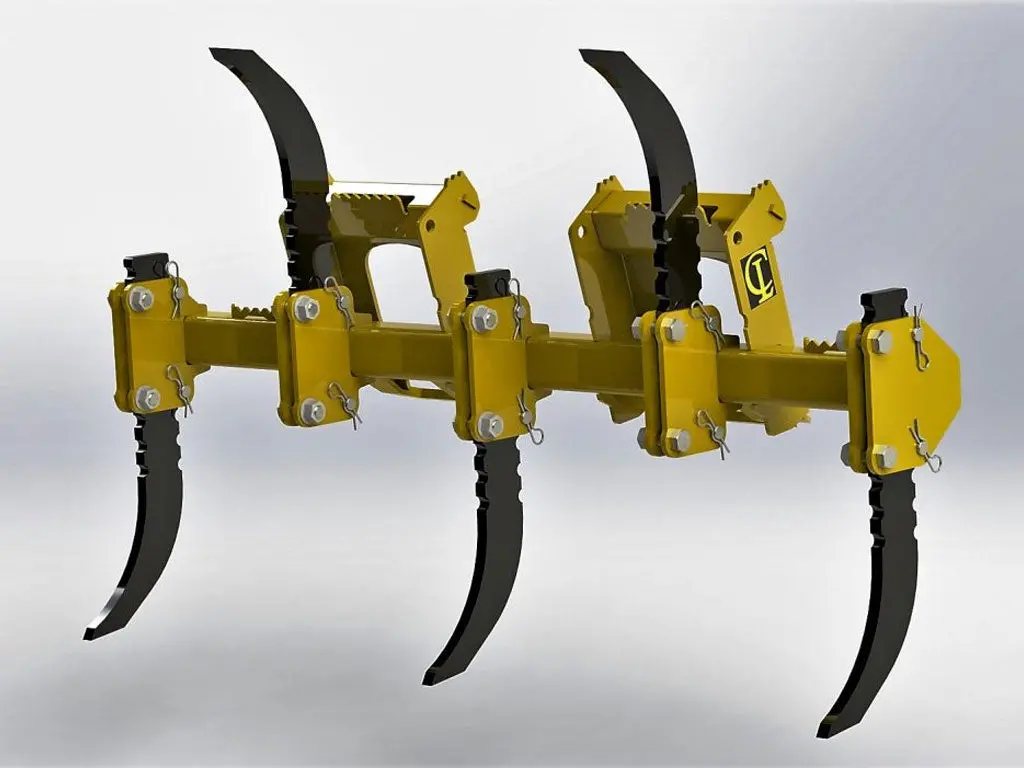

- Reversible teeth for forward or reverse ripping.
- Maximum depth is 20″ below grade.
FEATURES
- Reversible, 1″x30″ AR400 steel tines
- 4″x4″x.375 tubing frame
- 3/4″ thick upper and lower skid steer attach points
- Four Anti-skid steps
- Tooth mount plates are 1/2″ thick
- Tough, powder coated finish
- No tools needed to adjust tines
OPTIONS

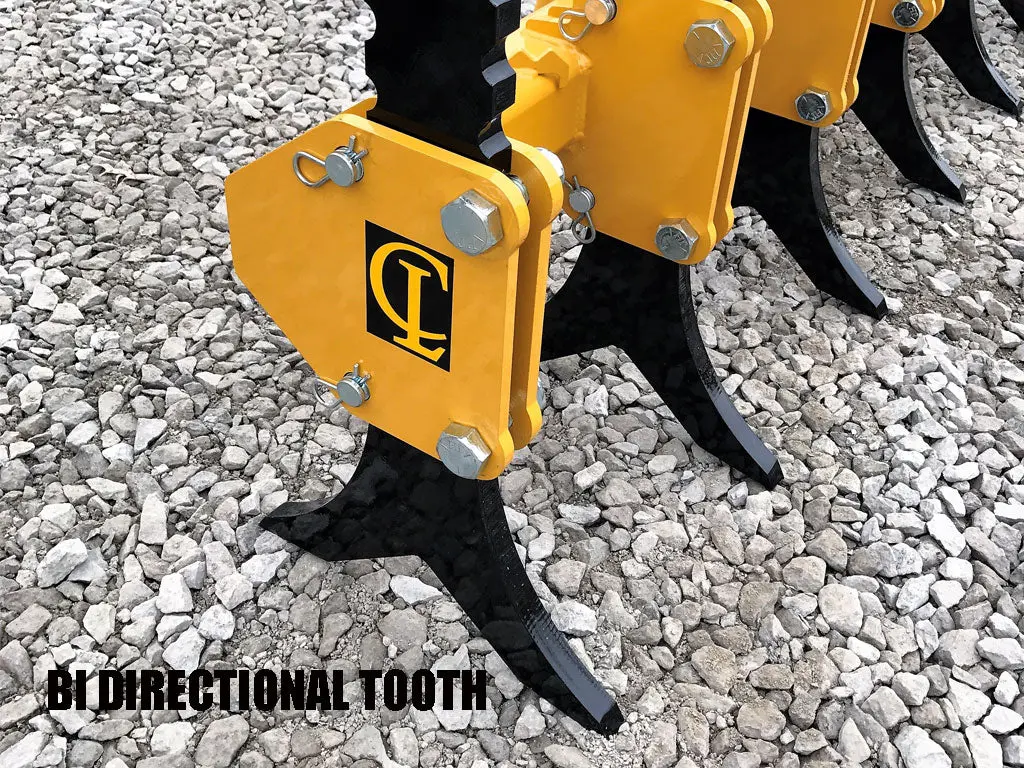

- Bi-directional teeth

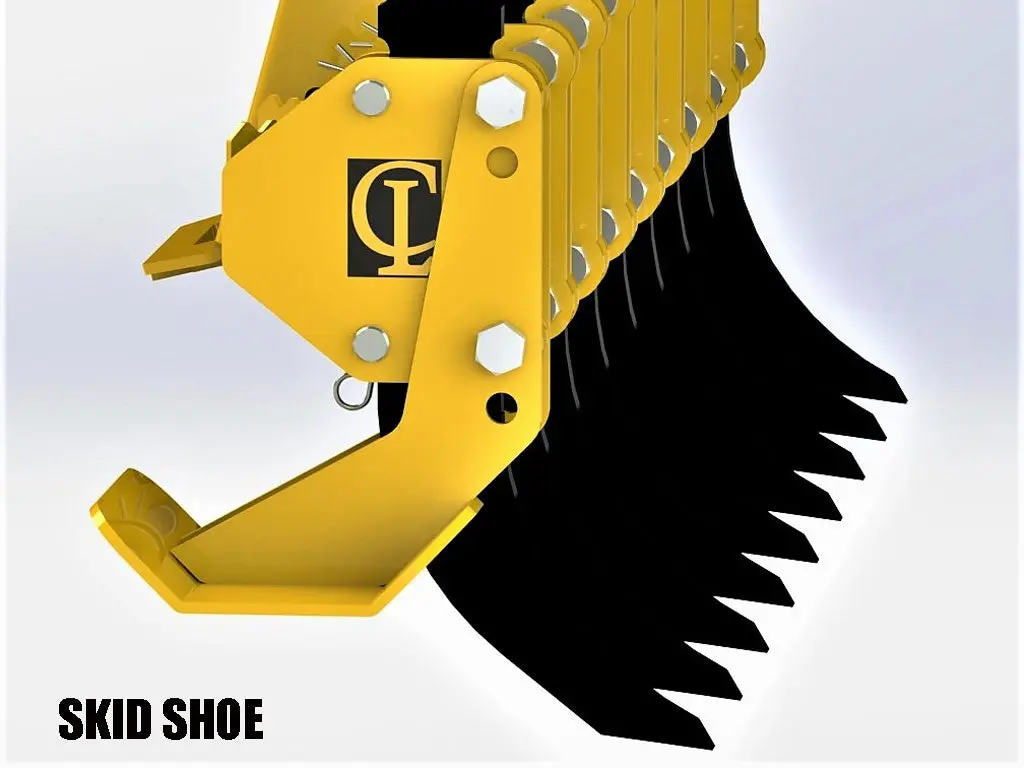

- Skid shoe kit

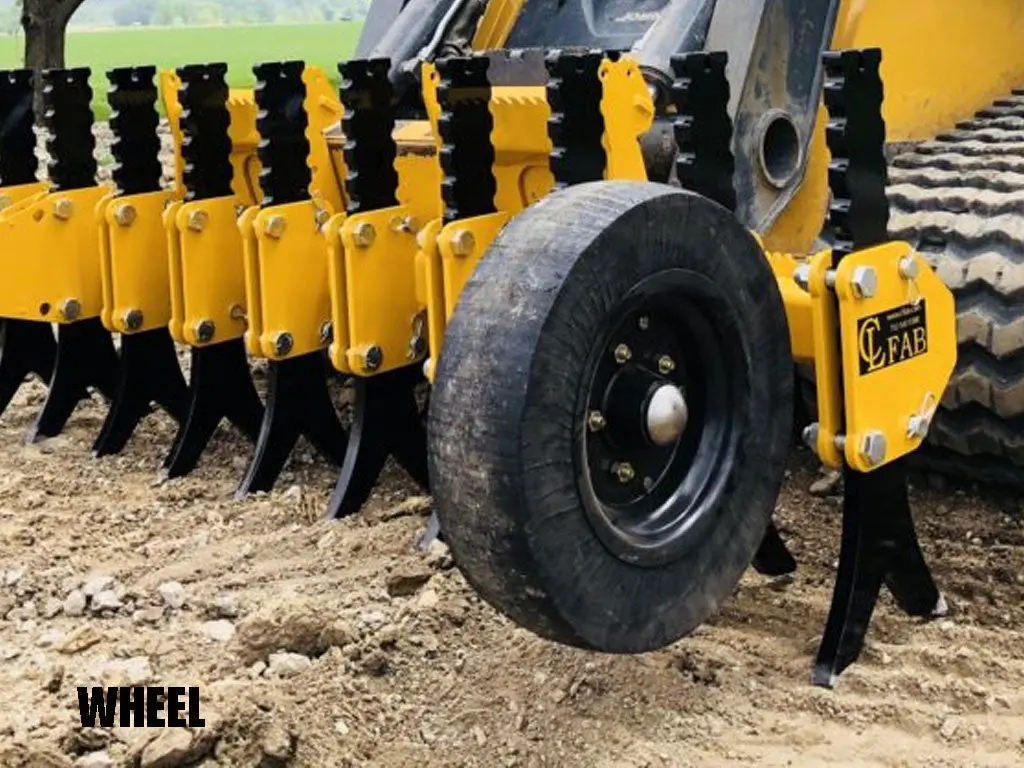

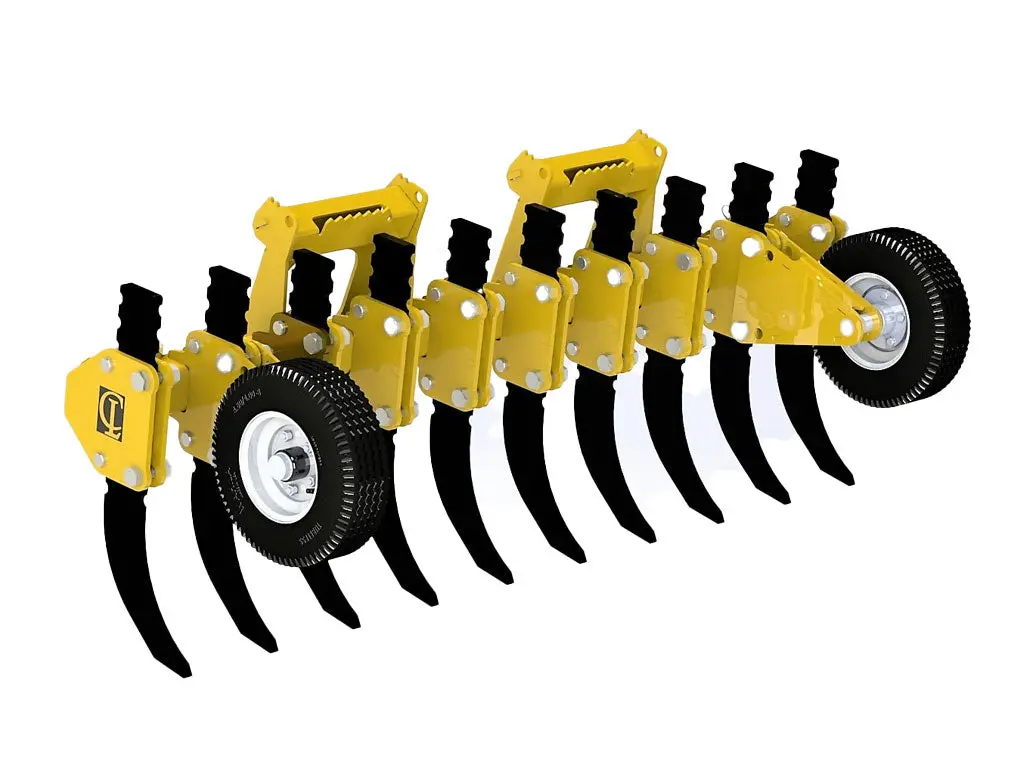

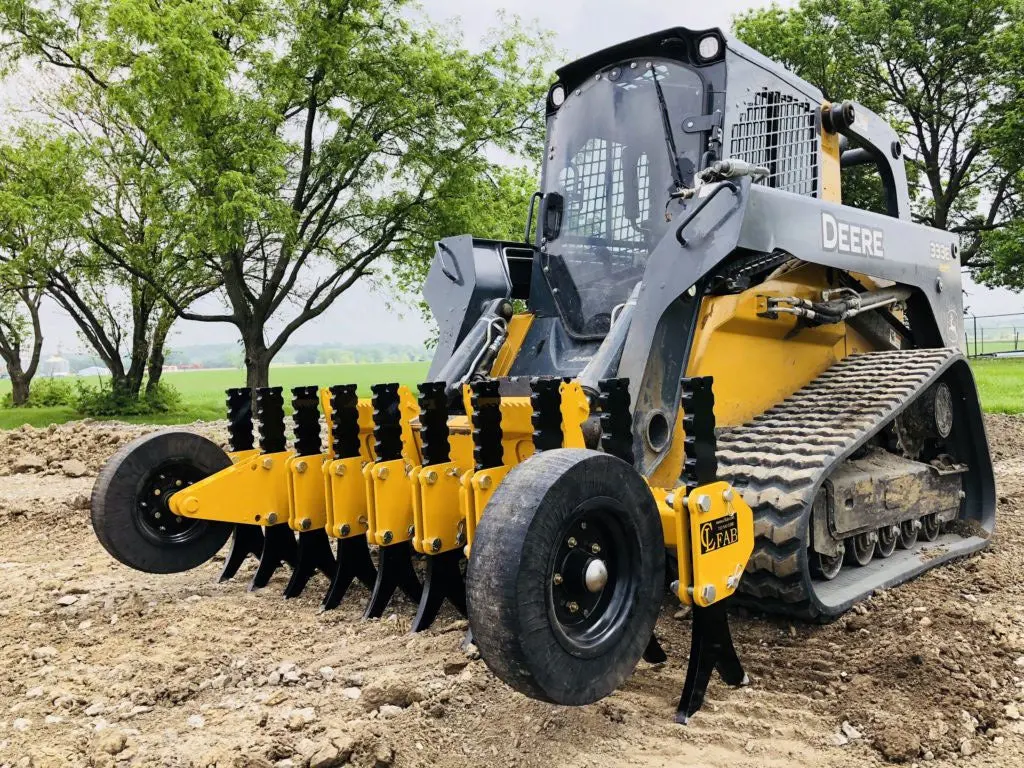

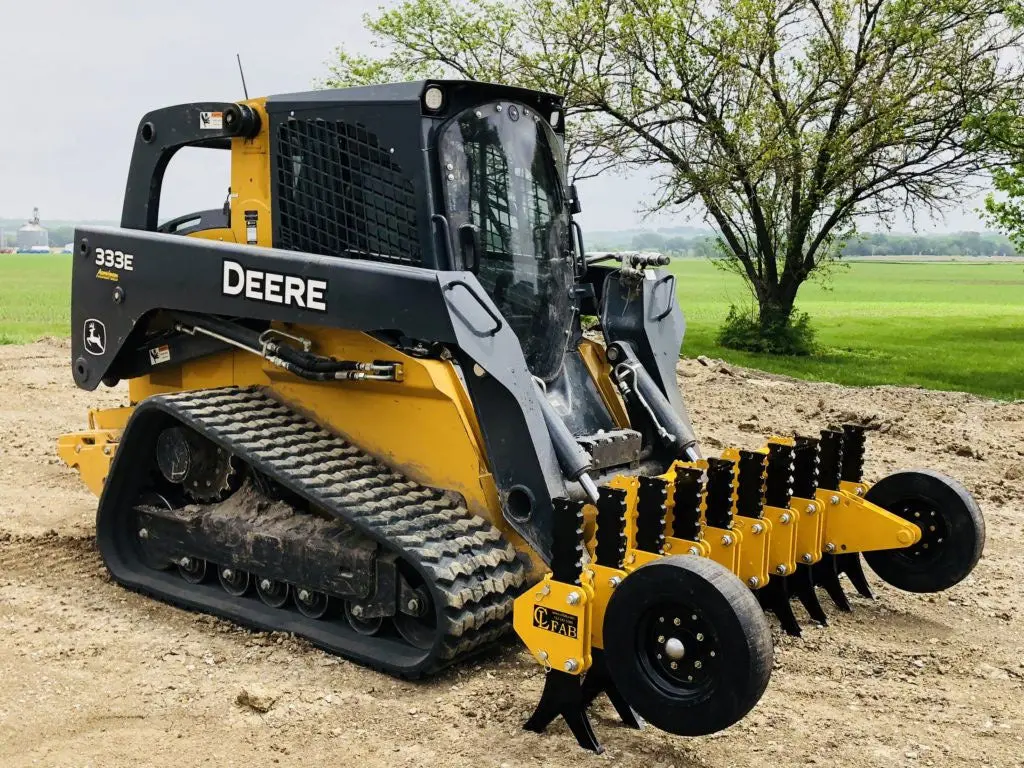

- Wheel kit
SPEC
| MODEL | WIDTH | TEETH | SPACING | LBS |
| XR76-5 | 76″ | 5 | 18.75” | 575 |
| XR76-7 | 76″ | 7 | 12.5” | 685 |
| XR76-9 | 76″ | 9 | 9.375” | 795 |
| XR76-10 | 76″ | 10 | 8.33” | 850 |
| XR84-5 | 84″ | 5 | 20.75” | 585 |
| XR84-7 | 84″ | 7 | 13.87” | 695 |
| XR84-9 | 84″ | 9 | 10.375” | 805 |
| XR84-10 | 84″ | 10 | 9.25” | 860 |
| Skid Shoes | 65 | |||
| Wheels | 95 |
