MINI SKID STEER ATTACHMENTS

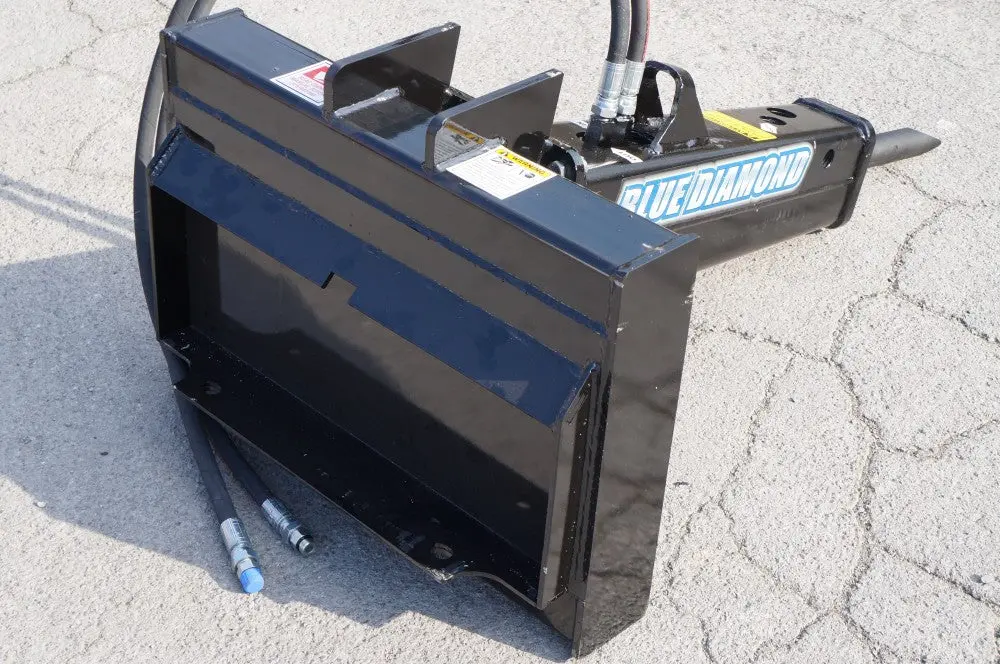

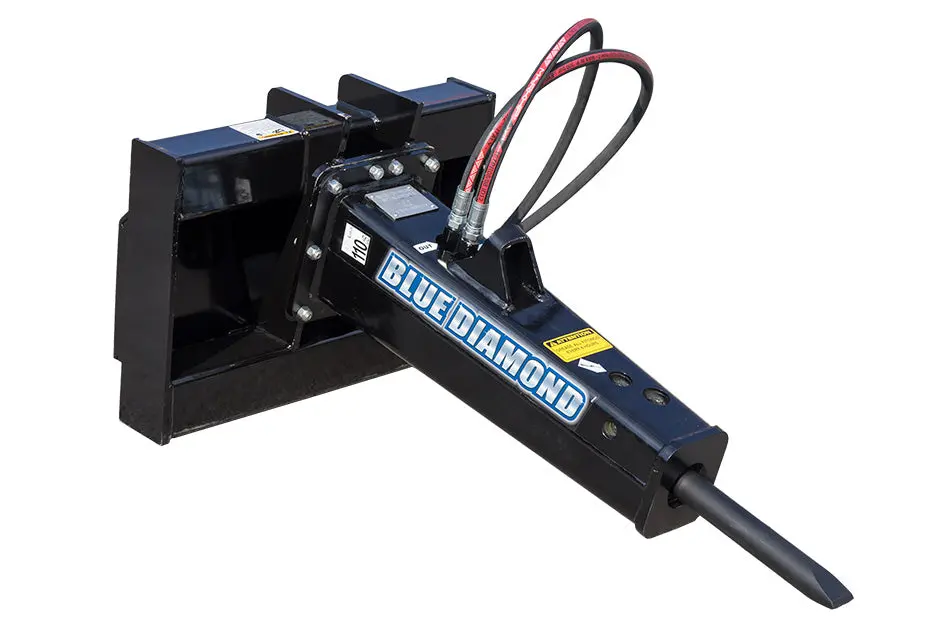

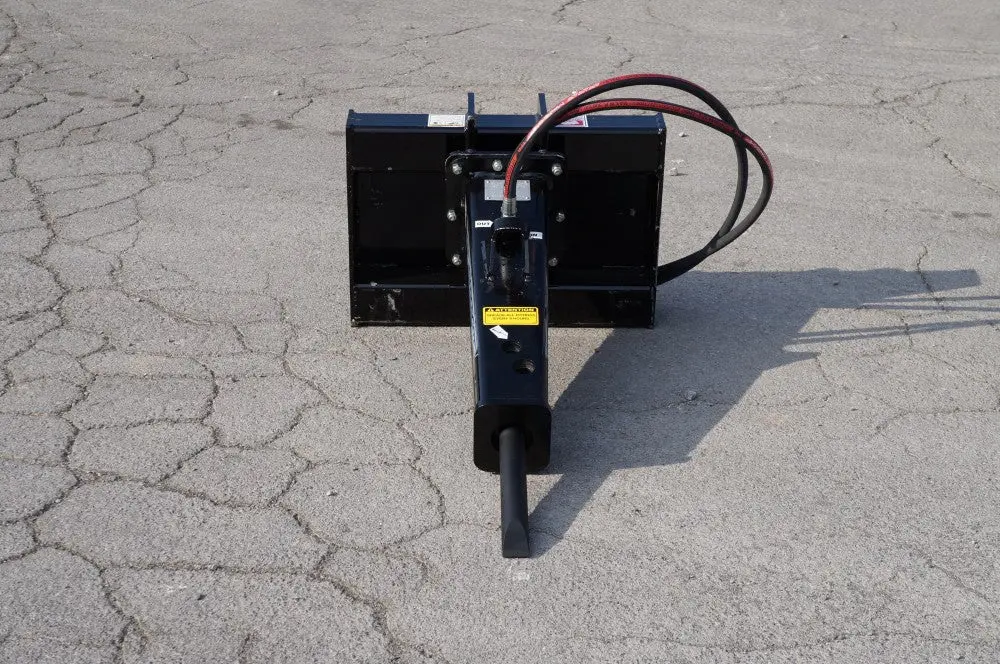

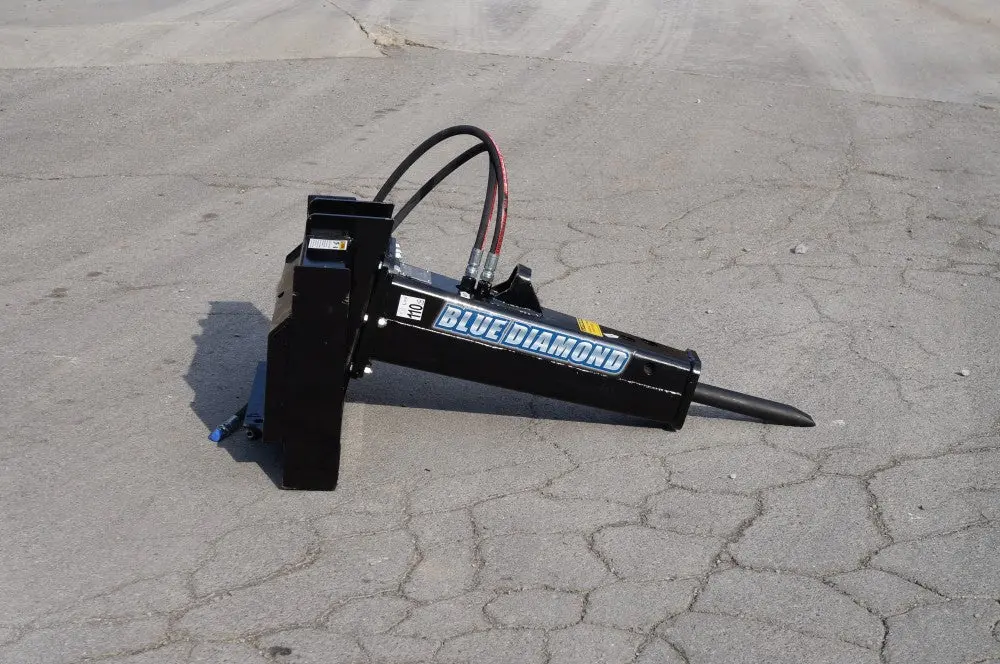

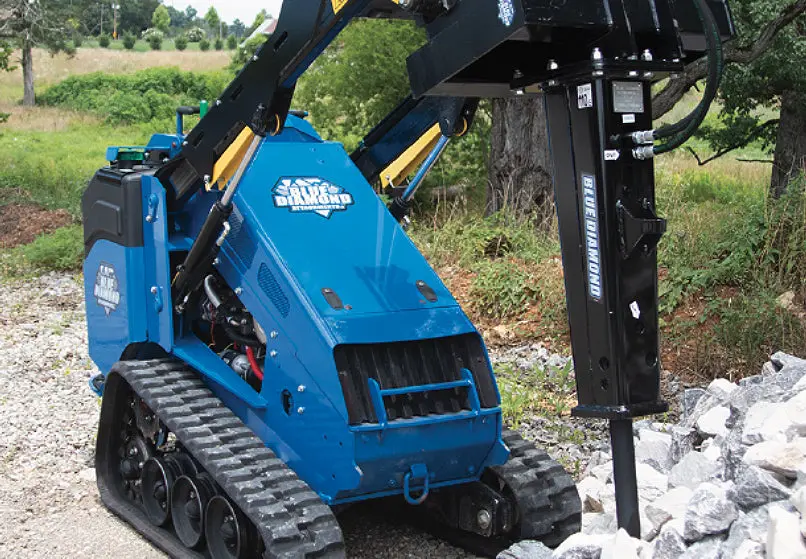

MINI-MACHINE MOUNT HYDRAULIC BREAKER
Our 10 year quest to develop a superior hydraulic breaker for mini skid steers is now available from Blue Diamond®. This “hammer” design offers technology, simplicity, reliability, ease of setup, and service support. No more downtime, get started on your demolition, construction, and quarry jobs now.
FEATURES INCLUDE :
- 3 year warranty
- Mono-block design / no tie rods
- Anti-blank firing system hydraulic brake
- No re-gassing needed
- Only 2 internal moving parts
- 2 speed control / variable stroke
- Quiet Operation
- Self-regulating
- Body bushings around piston
SPECS
| PART NUMBER | MODEL | WORKING PRESSURE | MAX OIL FLOW | FREQUENCY (BPM) | OPERATING WEIGHT | TOOL DIAMETER | ENERGY CLASS | CARRIER WEIGHT | (PSI) BACK PRESSURE |
|---|---|---|---|---|---|---|---|---|---|
| 335005 | HB50 | 1,750 | 7 | 1,200 | 257 LBS | 1.5 | 100 | 1,500-2,650 LBS | 290-360 |
| 335009 | HB95 | 1,750 | 11 | 1,200 | 355 LBS | 1.8 | 200 | 2,650-4,000 LBS | 290-360 |
| 335016 | HB165 | 1,750 | 13 | 1,200 | 498 LBS | 2.2 | 400 | 4,000-6,600 LBS | 290-360 |
| 335021 | HB210 | 1,750 | 16 | 1,100 | 598 LBS | 2.5 | 500 | 6,100-9,900 LBS | 290-360 |
