Compact Hydraulic Hammers for Allied Mini Loaders

Description

DESCRIPTION

1/26

Formally Allied Construction Products

HYDRAULIC HAMMERS

MINI LOADER

There is a Rammer® hydraulic hammer for virtually any breaking application. So whether you are working with demolition, recycling, mining, construction or quarrying, we have the hammer to give you the best results.

Rammer® hammers are tough, durable and offer you the most economical owning and operating costs while delivering maximum production.

PERFORMANCE LINE

Rammer’s Performance Line hammers are the perfect solution for your challenges when you value quality and reliability.

When developing the Performance Line, operator comfort was an important goal. The vibration and soundproof housing minimizes the noise level and effectively dampens vibrations. Other innovative features are the quick tool change system.

SMALL RANGE HAMMERS

Designed with proven Rammer standards, the Performance Line Small Range hammers feature vibration and soundproof housing, central hose connections for easy mounting of hydraulic quick hitch mounting bracket and fast-change tool system for quick and safe tool changing.

MODEL	CARRIER (Mini Loader)	GPM	ENERGY CLASS
R01P	1500-3500 LBS	4.0 – 6.6	200
R02P	2600-4900 LBS	4.0 – 10.0	350
R03P	3100-7100 LBS	6.6- 13.0	500

OPTIONS: (NOT LISTED)

• NITROGEN CHARGE KITS
• BASE PLATE WITH MOUNTING HOLES

* ALWAYS PROTECT THE OPERATOR AND WORKERS AROUND THIS ATTACHMENT WHILE IT IS WORKING.

SPECS

R01P

The Rammer R01P is your reliable and profitable solution for carriers between 0.7-2.1 tons. The 95 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.

The R01P’s simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.

FEATURES

• Twin handed
• Vibration and sound suppressed
• Flange mounting
• Fast-change tool system
• RD3 incl. MyFleet (retrofit)
• Original RAMMER tools
• Piston type accumulator
• Excellent power-to-weight ratio

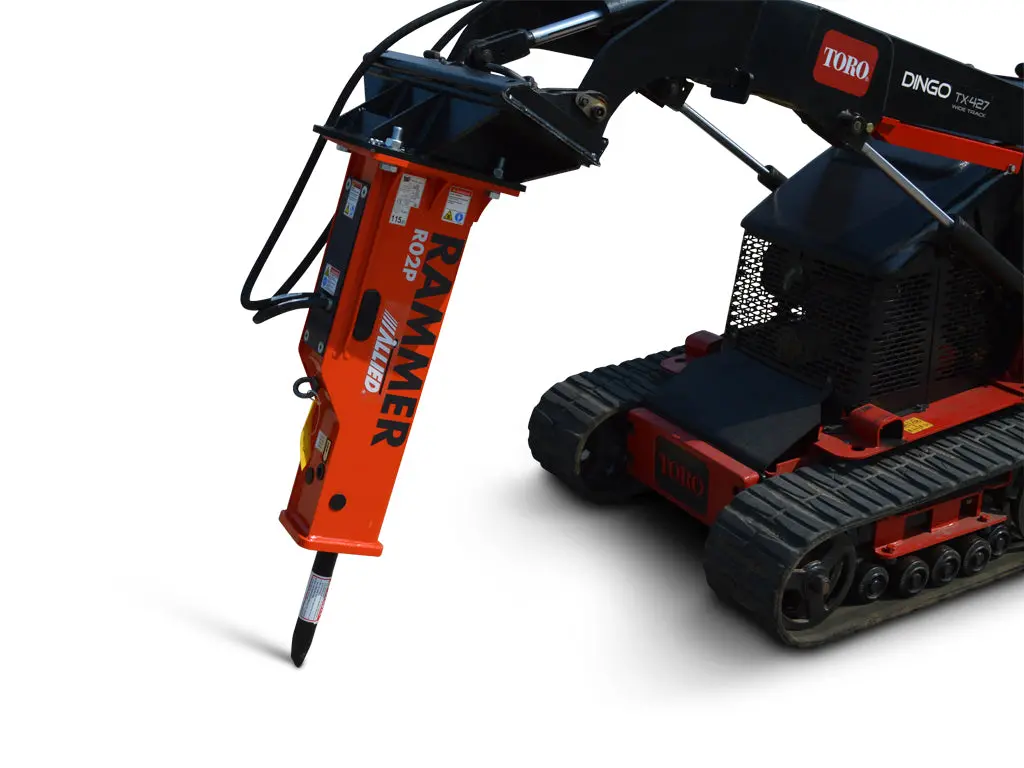

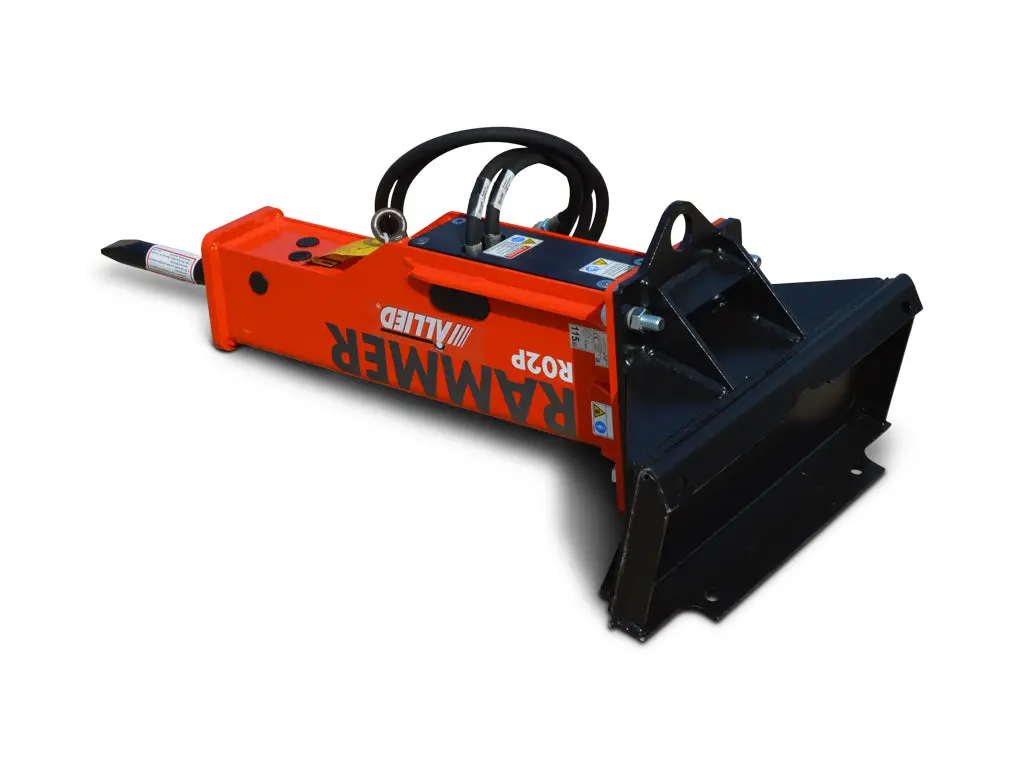

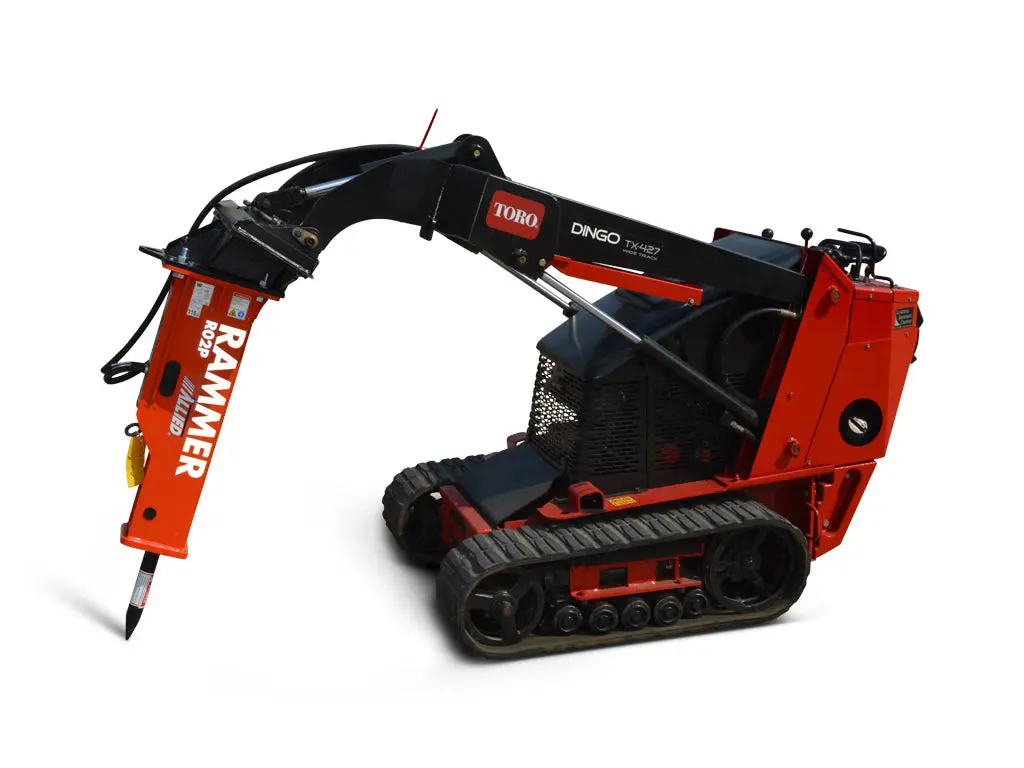

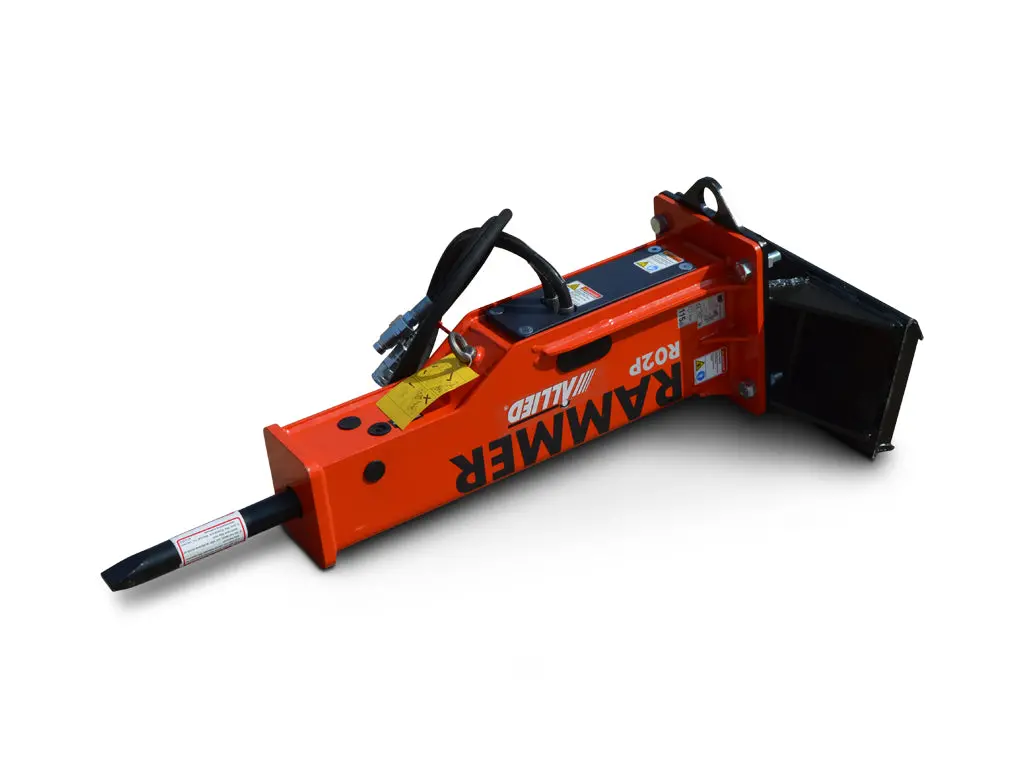

R02P

The Rammer R02P is your reliable and profitable solution for carriers between 1.3-3.3 tons. The 130 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.

The R02P’s simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.

FEATURES

• Twin handed
• Vibration and sound suppressed
• Flange mounting
• Fast-change tool system
• RD3 incl. MyFleet (retrofit)
• Original RAMMER tools
• Piston type accumulator
• Excellent power-to-weight ratio

R03P

The Rammer R03P is your solid and profitable partner for carriers between 2.0-4.4 tons. The 180 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.

The R03P’s simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.

FEATURES

• Twin handed
• Vibration and sound suppressed
• Flange mounting
• Fast-change tool system
• RD3 incl. MyFleet (retrofit)
• Original RAMMER tools
• Piston type accumulator
• Excellent power-to-weight ratio

R01P
MIN WORKING WEIGHT	209 LB
TOOL DIAMETER	1.57″
OIL FLOW RANGE	4-7 GPM
IMPACT RATE	700-1400 BPM
OPERATING PRESSURE	1160-1740 PSI
PRESSURE RELIEF MIN	2176 PSI
PRESSURE RELIEF MAX	2466 PSI
BACK PRESSURE	290 PSI
INPUT POWER	7 HP
MINI EXCAVATOR RANGE	1763-4630 LB
SKID STEER RANGE	1543-3527 LB
NOISE LEVEL	110 DBA
NOISE LEVEL GUARANTEED	114 DBA

MODEL	R02P
MIN WORKING WEIGHT	287 LB
TOOL DIAMETER	1.77″
OIL FLOW RANGE	4-11 GPM
IMPACT RATE	450-1400 BPM
OPERATING PRESSURE	870-1740 PSI
PRESSURE RELIEF MIN	2176 PSI
PRESSURE RELIEF MAX	2466 PSI
BACK PRESSURE	290 PSI
INPUT POWER	11 HP
MINI EXCAVATOR RANGE	2886-7275 LB
SKID STEER RANGE	2646-4850 LB
NOISE LEVEL	111 DBA
NOISE LEVEL GUARANTEED	115 DBA

MODEL	R03P
MIN WORKING WEIGHT	408 LB
TOOL DIAMETER	2.09″
OIL FLOW RANGE	7-13 GPM
IMPACT RATE	600-1200 BPM
OPERATING PRESSURE	1088-1740 PSI
PRESSURE RELIEF MIN	2176 PSI
PRESSURE RELIEF MAX	2466 PSI
BACK PRESSURE	290 PSI
INPUT POWER	13 HP
MINI EXCAVATOR RANGE	4409-9700 LB
SKID STEER RANGE	3086-7055 LB
NOISE LEVEL	112 DBA
NOISE LEVEL GUARANTEED	116 DBA



 TOOLS

CHISEL TOOL The Standard Chisel Tool is used for rock and reinforced concrete.
LONG CHISEL TOOL The Long Chisel is designed to be used mainly on a breaker boom, where it supplies the extra length to tackle hard rock that may obstruct a crusher.
MOIL POINT TOOL Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunnels.
PYRAMID TOOL The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration rate, especially concrete, are short work for the Pyramid tool.
SPADE TOOL, PARALLEL TO BOOM “Parallel” tools have the cutting edge in line with the boom.  Spade tools are ideal for cutting through materials such as asphalt and frozen or compact ground. Spade tool allows the material to be broken in such a precise manner that it is ideal for road or pavement repair work.
SPADE TOOL, TRANSVERSE TO BOOM “Transverse” tools have the cutting edge across the boom.  Spade tools are ideal for cutting through materials such as asphalt and frozen or compact ground. Spade tool allows the material to be broken in such a precise manner that it is ideal for road or pavement repair work.
COMPACTING PLATE TOOL The Ground Compacting Tool allows compatible hammers to double in function as a ground compactor, removing the need to have a specialized  compacting attachments or machines at smaller job sites.
LONG MOIL POINT TOOL The Long Moil Point Tool is designed to be used mainly with a breaker boom where it supplies the extra length to break rock which may block a crusher.
