Description

DESCRIPTION

8/25

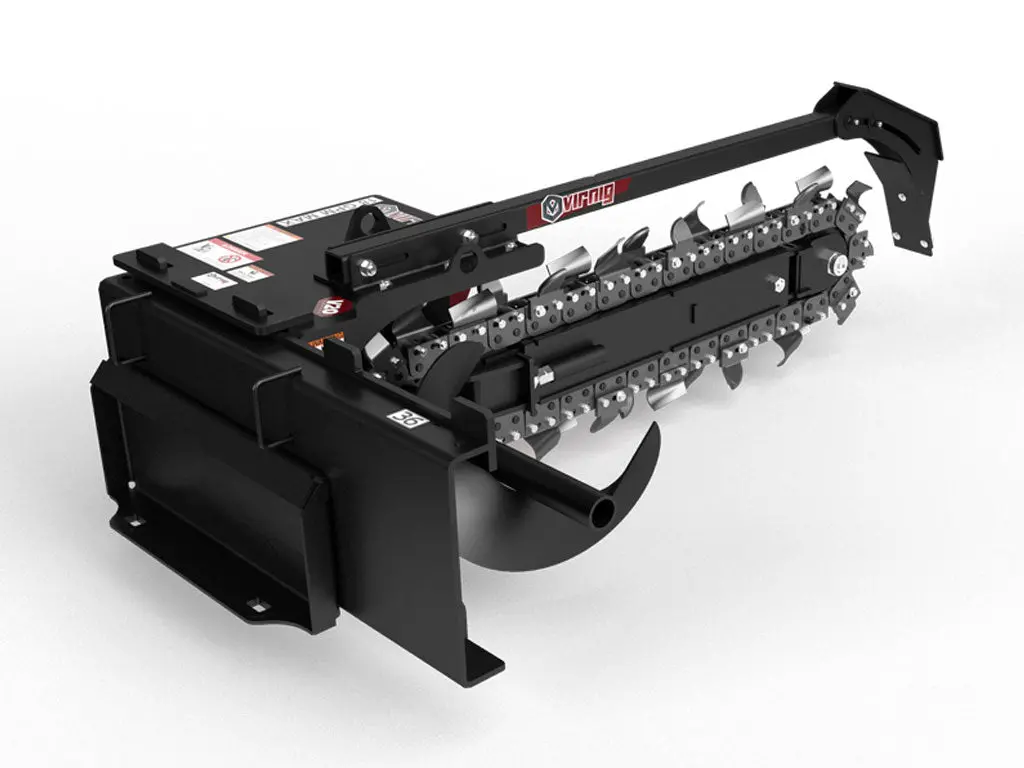

Maximize your mini skid steer’s productivity with the depth adjustment system, anti-back flex chain, and side shift feature.

• 4-POSITION DEPTH ADJUSTMENT SYSTEM ALLOWS OPERATOR TO SET DESIRED TRENCHING DEPTH
• ANTI-BACK FLEX CHAIN FOR TOUGH DIGGING CONDITIONS
• MANUAL SIDE-SHIFT & REMOVABLE AUGER FOR TRENCHING CLOSE TO STRUCTURES
• GREASABLE IDLER BEARING AT TRENCHER BOOM END FOR LONGEVITY
• STANDARD CRUMBER KEEPS TRENCH BOTTOM CLEAN & SMOOTH
• BI-DIRECTIONAL CHAIN ROTATION TO EXPEL OBJECTS

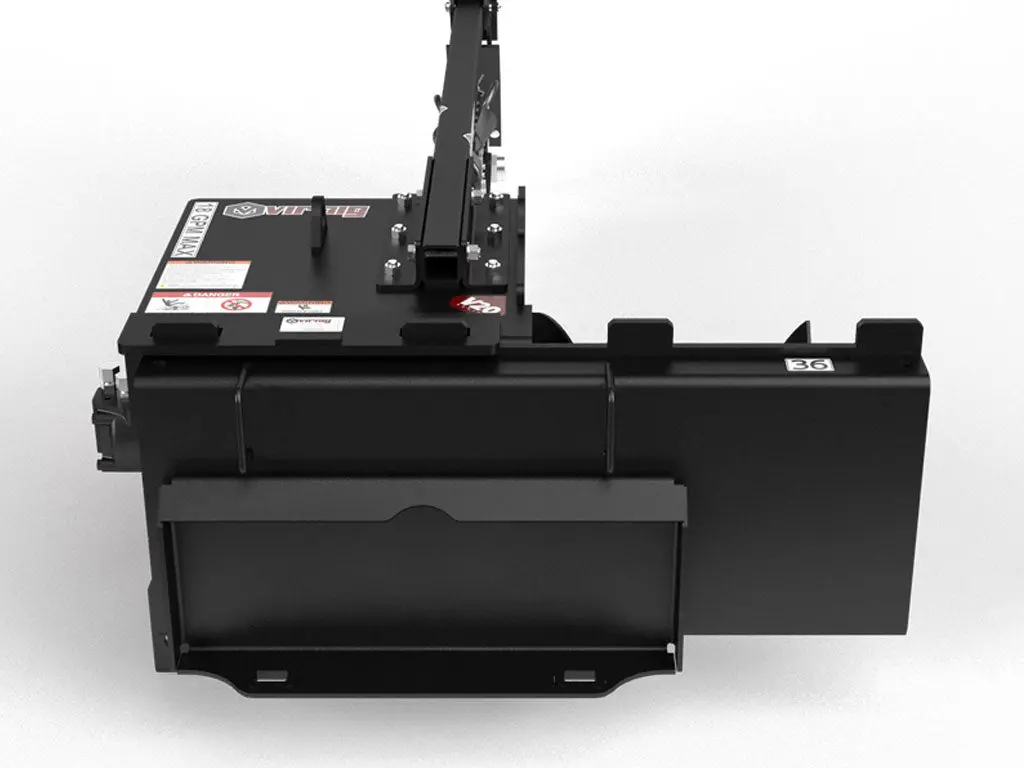

Choose from three mini skid mounts:

• Mini Universal (all brands except Bobcat® and ASV®)
• Bobcat® Mini
• ASV® Mini
• Note: None of the above are compatible with universal skid steer mount.

FOUR CHAIN STYLES AVAILABLE
Digging Depth	Chain Width	Single Standard¹	Double Standard²	70/30 Combo³	Rock and Frost⁴
36″	4″	✓	✓	✓	✓
36″	6″	✓	✓	✓	✓
36″	8″	✓	✓	✓	✓
48″	4″	✓	✓	✓	✓
48″	6″	✓	✓	✓	✓

¹Single Standard – Cup tooth every other station. Designed for soft to medium soils. Works well in wet and sticky soils such as wet clay.
²Double Standard – Cup tooth every station. Designed for soft to medium soils. Works well in sandy, dry, and loosely-packed soils.
³70/30 Combo – 70% shark-style teeth with embedded carbide inserts & 30% cup teeth. For soft to hard soils as well as rocky. The most versatile chain style.
⁴Rock and Frost – 50% cup teeth, 50% replaceable, rotating carbide rock teeth. Designed for rocky soils as well as frost. Carbide teeth spin as they hit rocks for even wear and longevity.
•Other chain configurations are available. Contact Virnig to discuss options.

SPECS

*With 70/30 Combo chain. ASV® mount adds approximately 10 pounds and Bobcat® mount adds 15 pounds to model weight.
