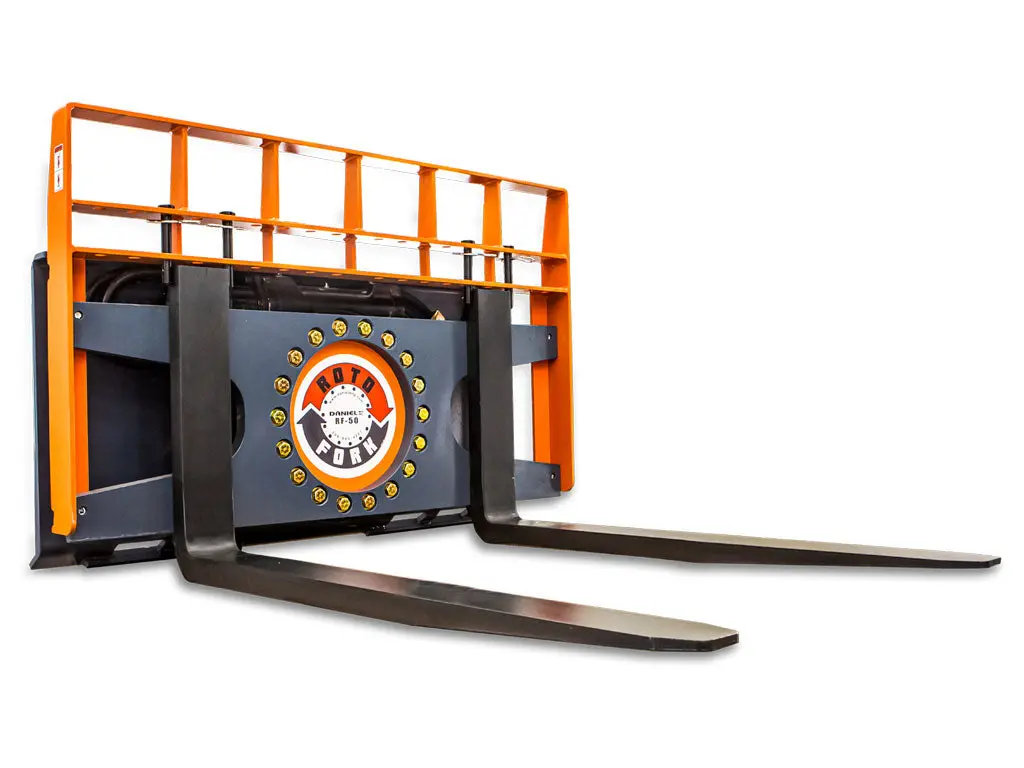

Daniel Manufacturing RF-50 Rotating Skid Steer Fork Attachment

Description

DESCRIPTION

REVISED 1/25

OMNI ROTO FORK RF-50

SKID STEER

The Roto Fork RF-50 is a heavy duty rotating fork system that offers continuous bi-directional rotation with a 5,000 pound load capacity. The hydraulic worm drive slewing ring provides precision control and self locking positioning as well as a slim profile to maintain the load center close to the machine. Robust fork positioners allow multiple location choices with easy to use pin retainers. The low profile carriage rack grants high visibility and ease of access for the operator. Pair this with our Xtreme Duty Demolition Carts for efficient material handling. Great for demolition and landscaping applications!

(Omni Attachments was formally known as Daniel MFG)

Features:

• 360° Continuous Rotation for Maximum Efficiency

  Unlike standard pallet fork attachments, the Roto Fork RF-50 features a hydraulic worm drive slewing ring, allowing for smooth, controlled, and self-locking positioning. This ensures precise load handling while keeping materials secure during transport.

  Heavy-Duty Load Capacity

  With a 5,000-pound load capacity, this skid steer pallet fork is built for the heaviest lifting tasks, whether you’re moving concrete slabs, timber, or large debris piles. The robust design ensures durability and long-term performance in demanding environments.

  Slim Profile for Enhanced Stability

  The Roto Fork RF-50’s low-profile carriage rack enhances operator visibility and maintains the load center close to the skid steer, resulting in better stability and maneuverability, even in tight spaces.

  Adjustable Fork Positioners for Versatility

  Unlike fixed pallet forks, this attachment features adjustable fork positioners, allowing you to modify fork spacing to accommodate various load sizes. The secure pin retainers make adjustments quick and easy, ensuring maximum flexibility on the job site.

  Built to Withstand Harsh Conditions

  Manufactured with high-strength steel and reinforced with a 4″ square x 1/2″ wall pole, the Roto Fork RF-50 is designed to endure harsh demolition sites, rugged terrain, and extreme workloads.

Ideal Applications for the Roto Fork RF-50

• Demolition – Handle heavy debris, concrete slabs, and rubble with ease.
• Landscaping – Move logs, large rocks, and heavy materials efficiently.
• Construction – Transport steel beams, pallets, and building materials safely.
• Warehouse & Industrial – Improve workflow by easily rotating and adjusting loads.
• Agriculture – Perfect for lifting and transporting large bales, feed, and farm supplies.

SPECS

• Fork Load Capacity @24″ Load Center – 5,000 lbs
• Overall Height – 32 in
• Overall Width – 48 in
• Overall Fork Width (Maximum) – 48 in
• Overall Fork Width (Minimum) – 8-1/4 in
• Forks – 1-1/4” X 4” X 42” ITA Class 2
• Maximum Hydraulic Pressure – 4000 psi
• Material – GR50/T1 Alloy Steels
• Weight – 800 lbs.

---
