Digga Bigfoot Trencher Attachment Compatible with Mini Loaders

Description

DESCRIPTION

1/26

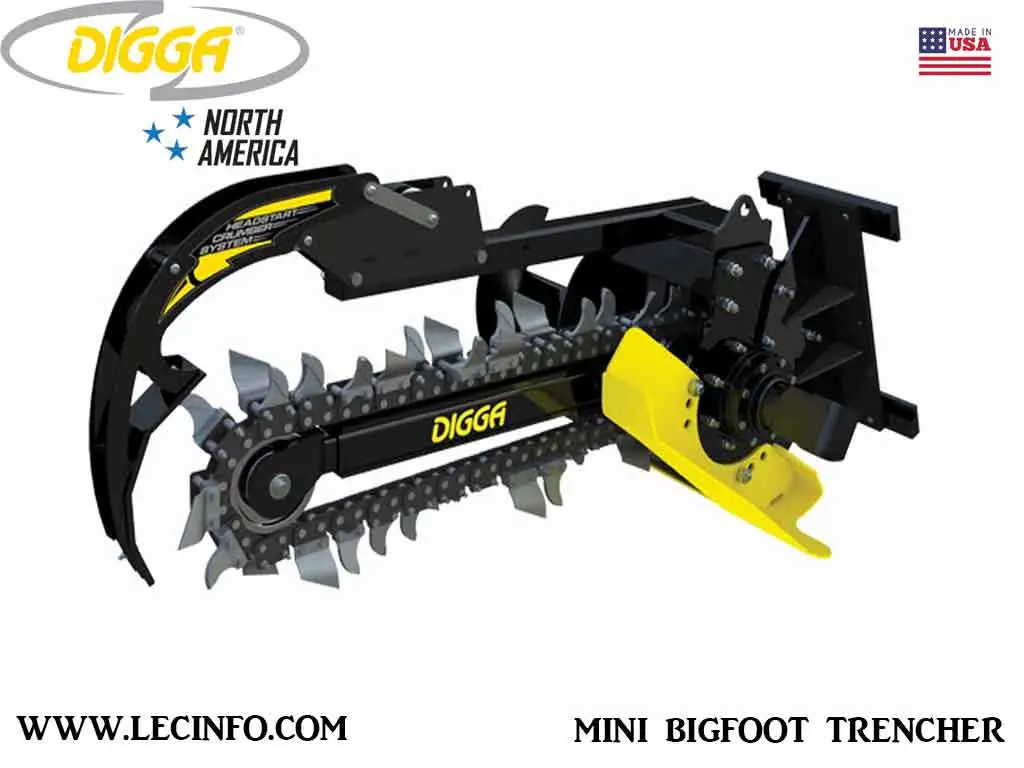

Digga Bigfoot Trenchers

Mini Loaders & Walk-Behind Machines

The Digga Bigfoot Mini Trencher is a compact, high-performance trenching solution designed for precision work in tight spaces. Built in-house to Digga’s exacting standards, this trencher delivers consistent depth control, smooth operation, and reliable performance across a wide range of ground conditions—from clean soil to rock, asphalt, and frozen ground.

Built for Accuracy, Efficiency, and Control

Digga’s Bigfoot Trencher features an adjustable depth control skid foot that ensures the operator maintains a consistent trench depth throughout the job. The skid foot is fully visible from the operator’s position, allowing accurate placement without guesswork.

This attachment also features Digga’s Head-Start Crumber System (patent pending), which allows the crumber bar to start inside the trench. This eliminates the need to exit the machine to reset the bar, saving time and improving safety while keeping the trench clean and uniform.

Designed for maximum flexibility, the trencher frame can be side-shifted, allowing operators to dig close to buildings, curbs, and permanent structures—ideal for urban work and tight-access job sites.

Versatile Chain Options for Any Ground

Digga Bigfoot Trenchers are available with three chain options, giving you the right cutting performance for your conditions:

• Earth Chain – Cup tooth on every second station; best for clean ground without roots or floaters

• Combo Chain – Combination of tungsten and earth teeth; ideal for hard soil, roots, shale, and rocky ground

• Diggatac Chain – Full tungsten teeth on every station; best for hard shale, asphalt, frozen ground, and rock

This flexibility makes the Bigfoot a true all-around trenching solution for contractors.

Ideal Applications & Machine Compatibility

Common Uses:

• Pipe laying for irrigation systems

• Underground power and communication lines

• Road and pathway repairs

• General construction and landscaping

Compatible Machines:

• Mini loaders

• Walk-behind machines

• Skid steer loaders

• Excavators up to 4.5 tons

Included with Every Trencher

• Hydraulic hoses & fittings

• Mounting hardware

• Crumber bar

---

Specifications – Digga Bigfoot 900 Trencher

Specification	900
Cutting Depth	Up to 36″
Cutting Widths	4″ / 6″ / 8″
Foot Depth Presets	18″ / 24″ / 30″ / 36″
Recommended Flow	13–25 GPM
Motor Type	2K Bell Eaton
Max Pressure (Do Not Exceed)	3,500 PSI @ 16 GPM
Max Flow (Do Not Exceed)	25 GPM @ 2,900 PSI
Max Continuous Power	34 HP
Length	74″
Horizontal Height	32″
Width	38″
Weight	320 lbs

---

Why Choose the Digga Bigfoot Trencher?

• Precise depth control for consistent trenching

• Patent-pending crumber system improves safety and productivity

• Side-shift frame for trenching close to structures

• Multiple chain options for any soil or surface condition

• Manufactured in-house for unmatched quality and reliability

• Backed by Digga’s industry-leading warranty

The Digga Bigfoot Trencher is the go-to attachment when clean trenches, operator efficiency, and dependable performance matter most.

SPECS

SPECIFICATION	900
CUTTING DEPTH	UP TO 36″
CUTTING WIDTHS	4″ / 6″ / 8″
FOOT DEPTH PRESETS	18″ / 24″ / 30″ / 36″
RECOMMENDED FLOW	13-25 GPM
MOTOR TYPE	2K BELL EATON
MAX PRESSURE – DO NOT EXCEED	3500 PSI @ 16 GPM
MAX FLOW – DO NOT EXCEED	25 GPM @ 2900 PSI
MAX CONTINUOUS POWER	34 HP
LENGTH	74″
HORIZONTAL HEIGHT	32″
WIDTH	38″
WEIGHT	320 LBS

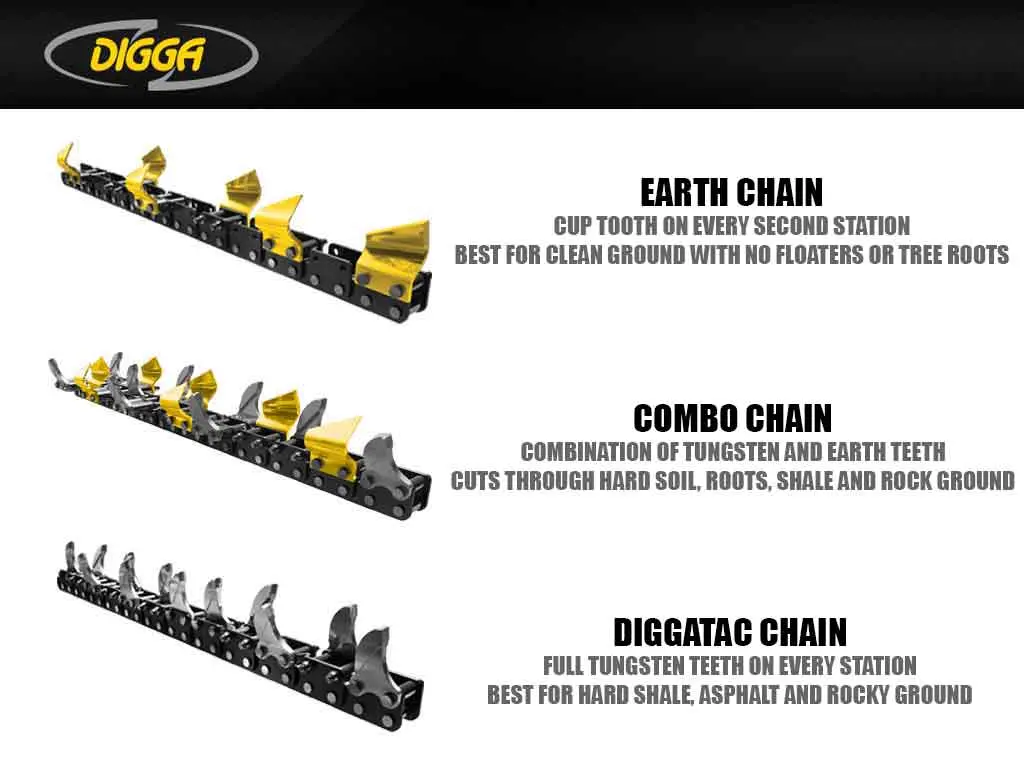

CHAINS

CHAIN	DESCRIPTION
EARTH CHAIN	CUP TOOTH ON EVERY SECOND STATION BEST FOR CLEAN GROUND WITH NO FLOATERS OR TREE ROOTS
COMBO CHAIN	COMBINATION OF TUNGSTEN AND EARTH TEETH CUTS THROUGH HARD SOIL, ROOTS, SHALE AND ROCK GROUND
DIGGATAC CHAIN	FULL TUNGSTEN TEETH ON EVERY STATION BEST FOR HARD SHALE, ASPHALT AND ROCKY GROUND
