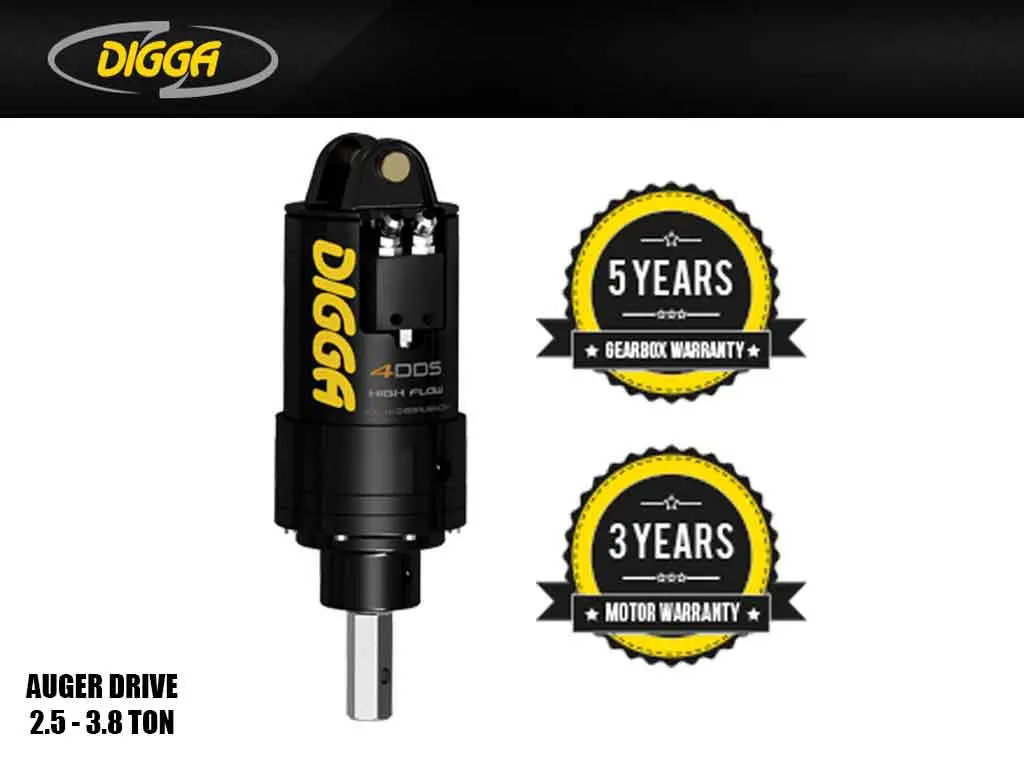

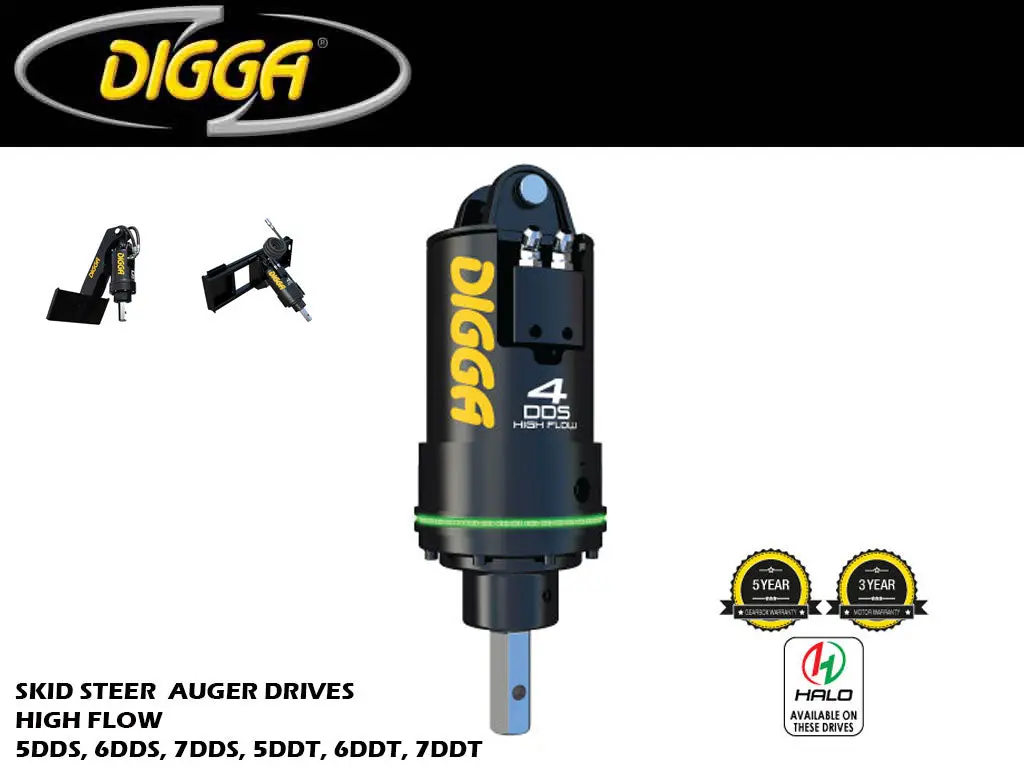

Digga DDS Series Skid Steer Auger Drive Designed Exclusively for High-Flow Hydraulic Systems

Description

DESCRIPTION

10/25

High Flow Skid Steer Auger Drives – Digga

Digga’s high flow skid steer auger drives deliver unmatched drilling power, durability, and precision. Backed by over 30 years of design and engineering, these auger attachments are built in-house using premium-grade materials and strict quality standards.

Equipped with Digga/Eaton bell motors featuring an integrated pressure relief valve, these drives eliminate bulky valve blocks and reduce leak points for superior reliability. The compact gearbox design allows the auger to reach deeper without extensions, maximizing drilling depth and performance.

Exclusive to Digga, the optional Halo Alignment System ensures every hole is perfectly plumb, eliminating the need for a spotter and increasing jobsite efficiency. Available in single-speed, two-speed, and low-pressure options, these auger drives suit a wide range of high-flow skid steer loaders.

With the addition of Digga’s patented Energy Control Valve (ECV), operators can safely install screw anchors while protecting the motor from damaging pile flickback.

---

Key Features

• Compact, high-torque gearbox built by Digga

• Eaton motor with integrated relief valve for durability and leak prevention

• Two-piece shaft design for maximum side load support

• Halo Alignment System for precise vertical drilling

• Single-speed and two-speed options available (including low-pressure models)

• Lifetime shaft pull-out warranty

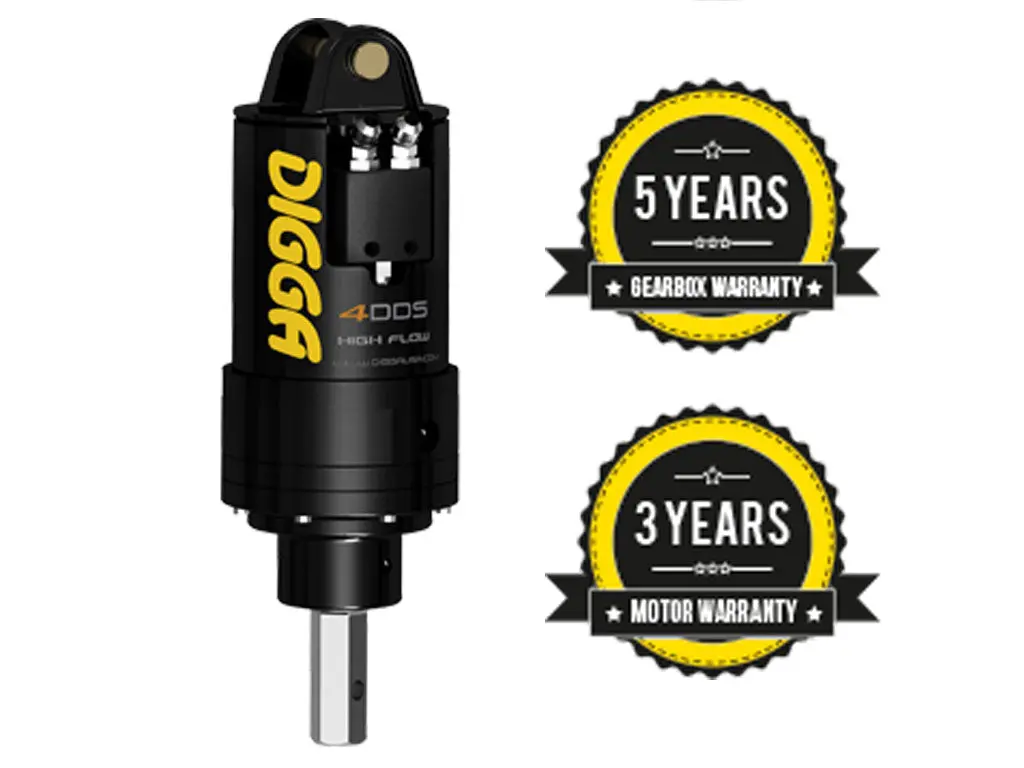

• 5-year gearbox and 3-year motor warranty

• Easily upgradeable to screw anchor drive with anti-kickback valve

OPTIONS

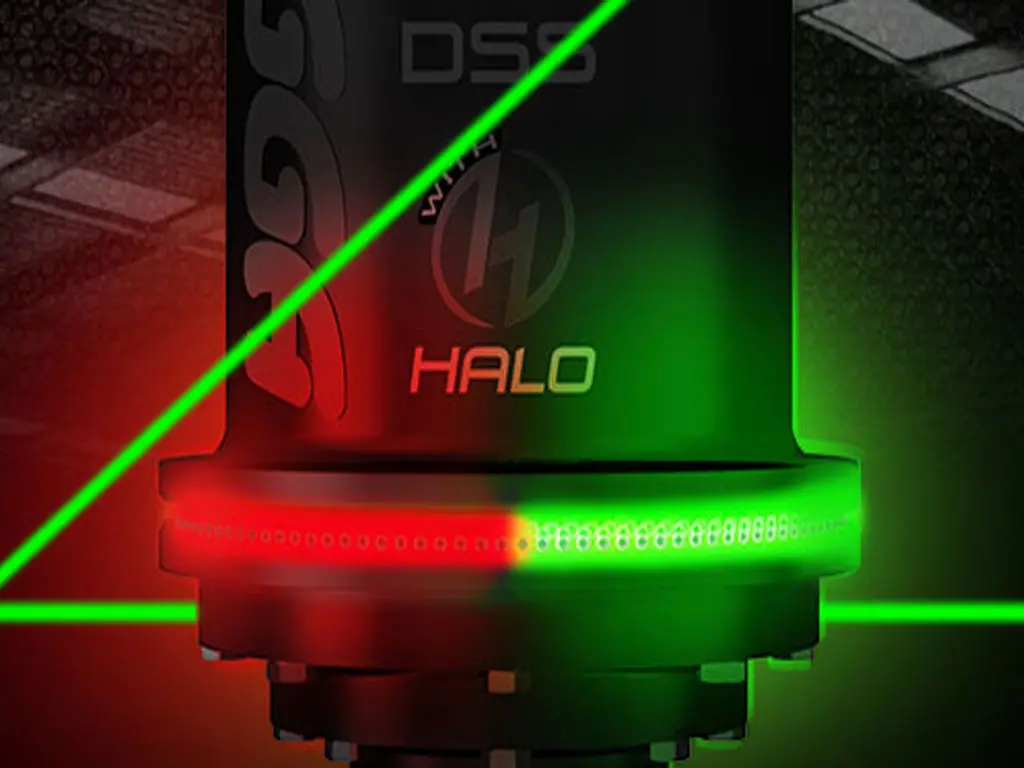

The Halo Auger Alignment System is located in the hood ring of the auger. It provides the operator with a simultaneous clear line of sight to itself, and the hole being dug. HALO utilizes a band of LED lights, which when fully illuminated green, indicate the auger is plumb. If the auger moves from its plumb position, a sequence of red and green lights will be lit to effortlessly guide the operator back to plumb. Available range at time of launch, will include ALS, ADS, DSS, and DDS augers up to 30t.

SPECS

SPECS	4DDS	5DDS	6DDS
TORQUE (FT-LBS @ 3000 PSI	3,583	3,903	4,909
MAX TORQUE FT-LBS @ 3500 PSI	4,180	4,553	5,728
RECOMMENDED FLOW (GPM)	10-36	10-36	12-36
MOTOR TYPE	EATON	EATON	EATON
MAX PRESSURE – DO NOT EXCEED	3500 PSI @ 27 GPM
MAX FLOW – DO NOT EXCEED	42 GPM @ 3100 PSI	55 GPM @ 1700 PSI
MAX HORSE POWER	55	55	55
PRESSURE RELIEF VALVE	INCLUDED	INCLUDED	INCLUDED
STANDARD OUTPUT SHAFT	2” HEX	2.5″ HEX	2.5″ HEX
HALO	OPTIONAL	OPTIONAL	OPTIONAL
RECOMMENDED AUGER	A4 / RC4	A6 / RC6	A6 / RC6
MAX AUGER DRILLING (CLAY / SHALE)*	24″	24″	30″
MAX DRILLING DIAMETER EARTH*	40″	40″	40″
WEIGHT (LBS)	180	290	290
OVERALL LENGTH (IN)	29″	33.7″	33.7″
DIAMETER (IN)	9.4″	11.4″	11.4″

BIG DAVE

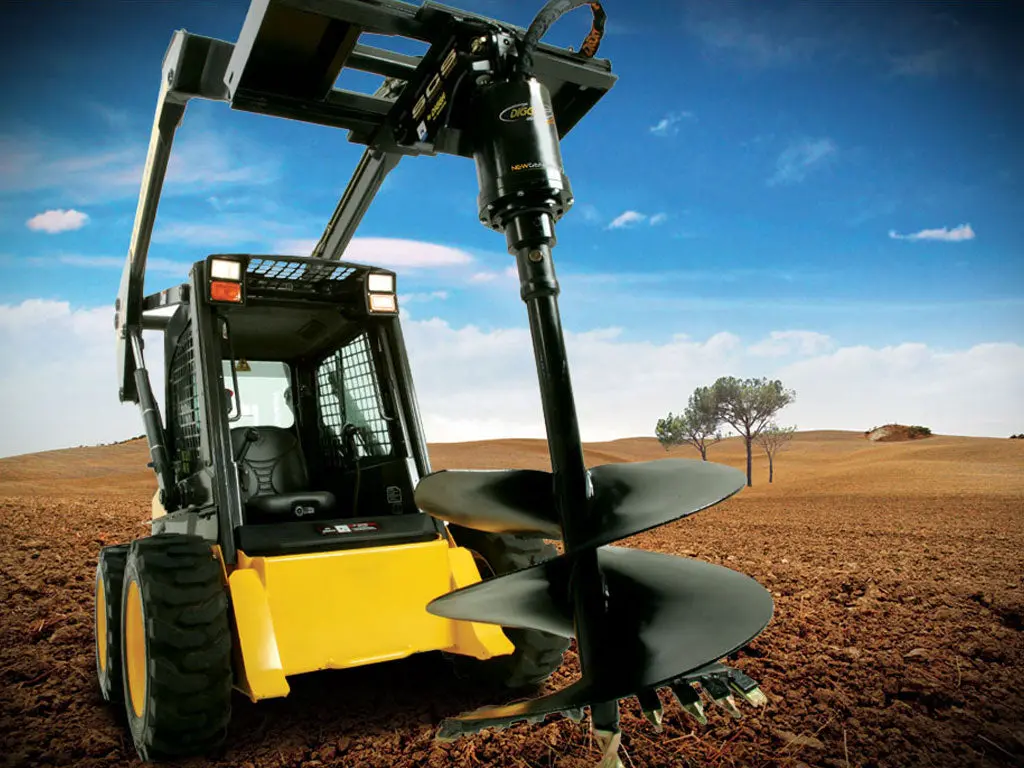

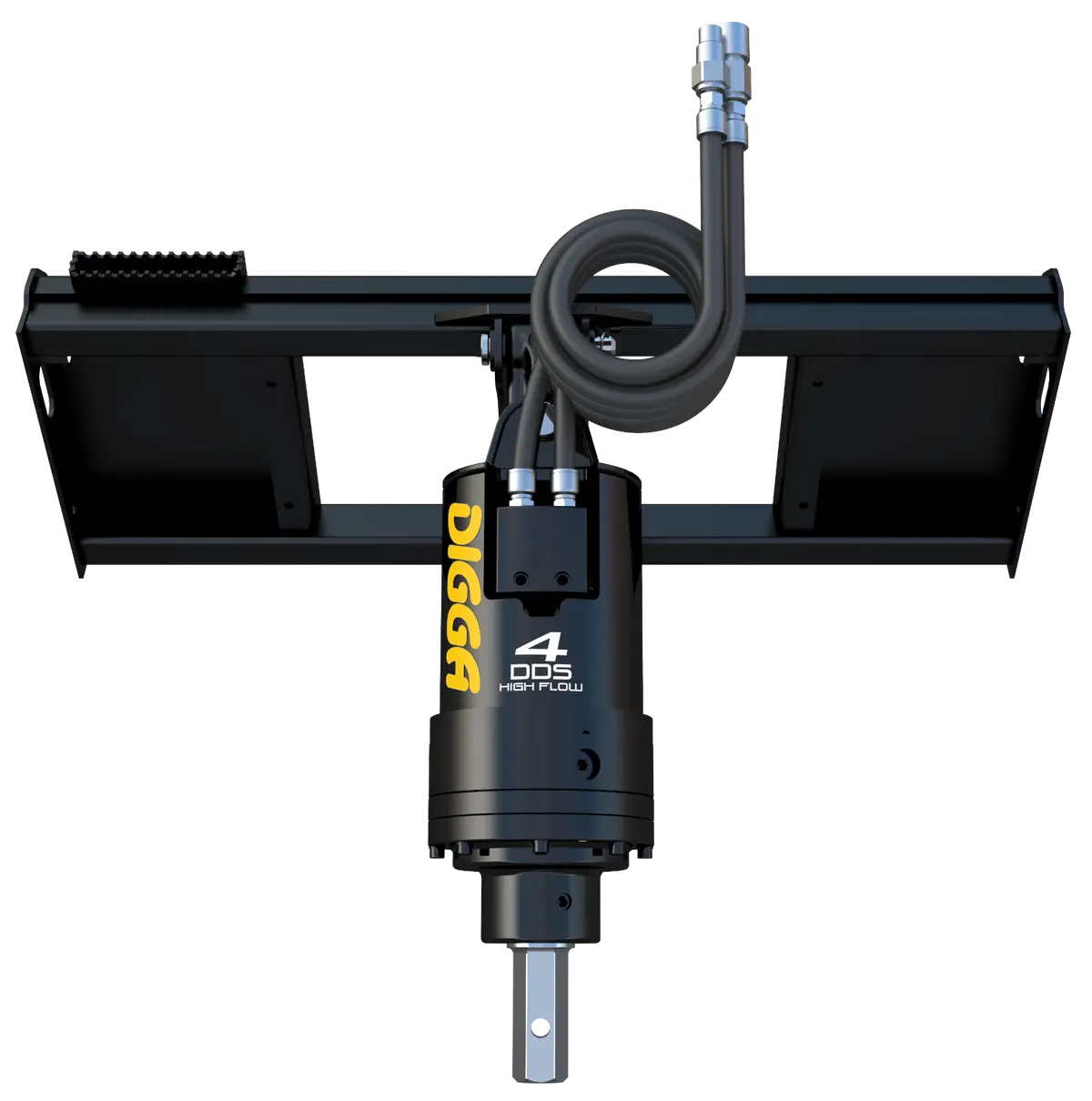

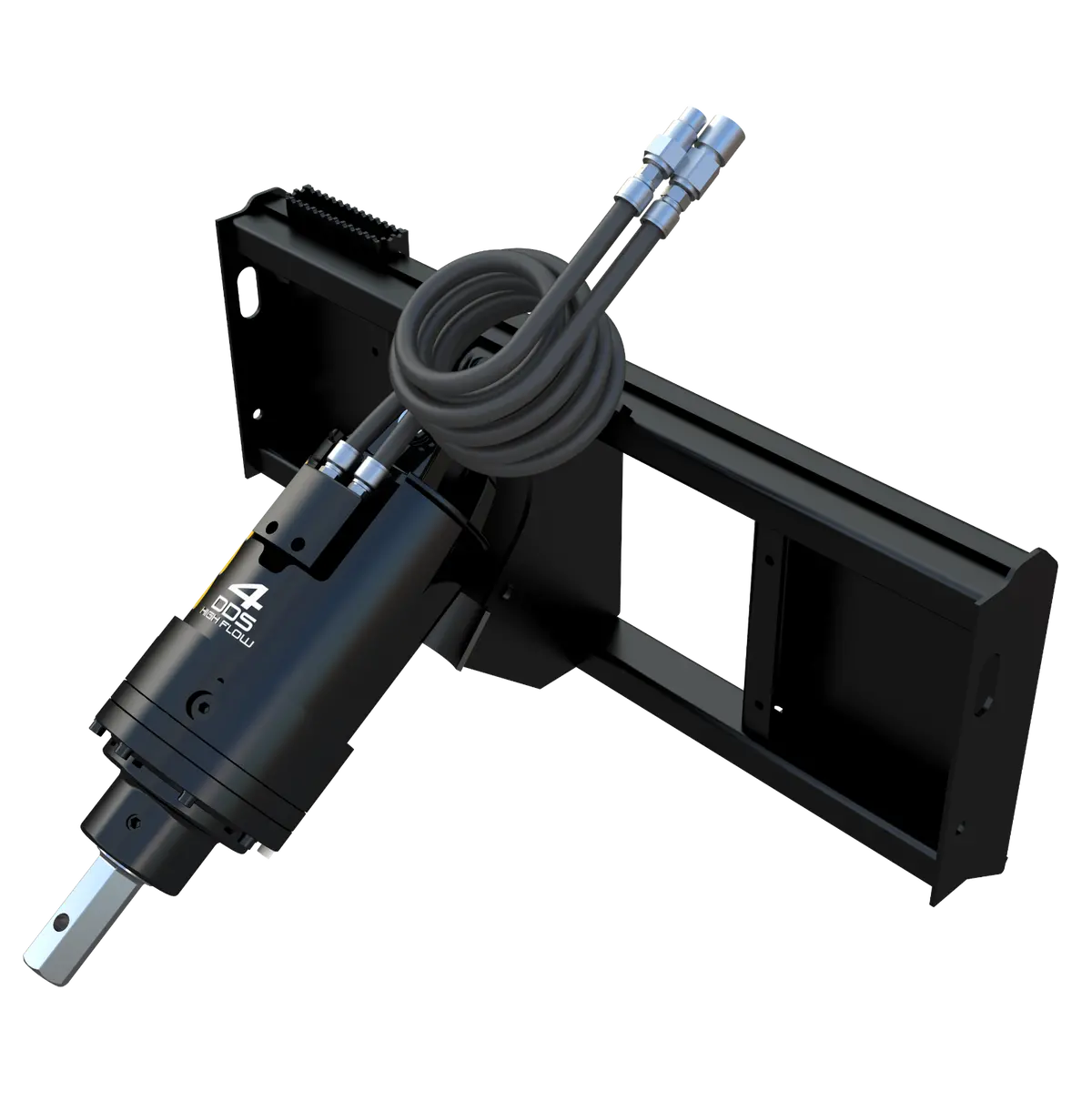

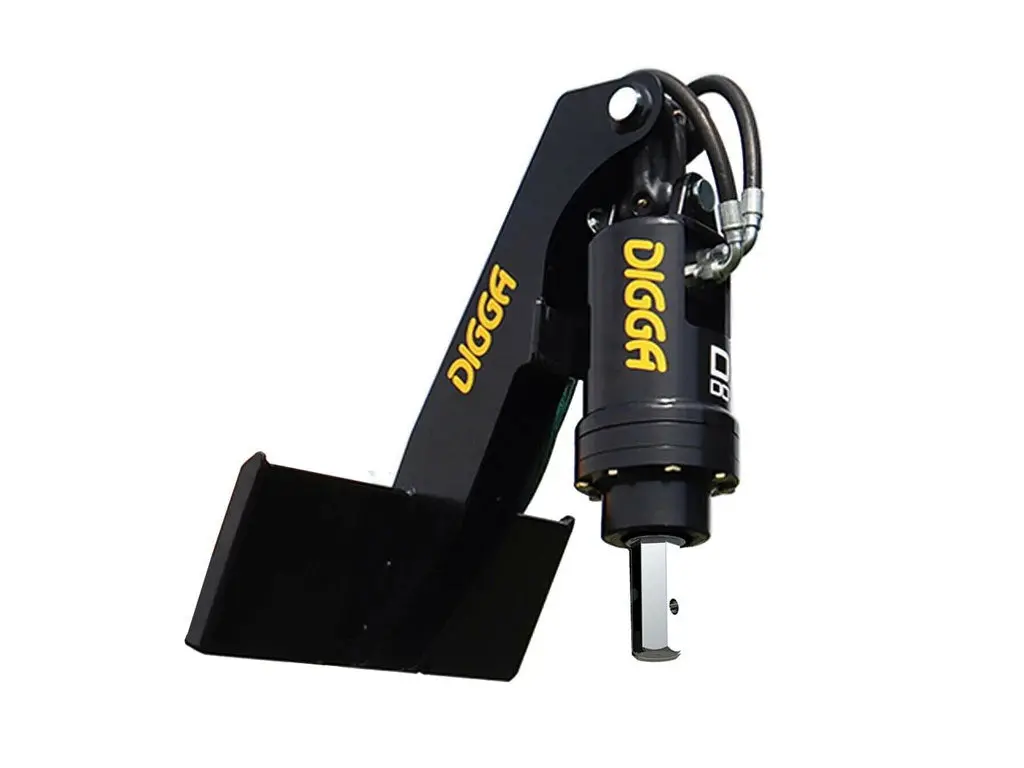

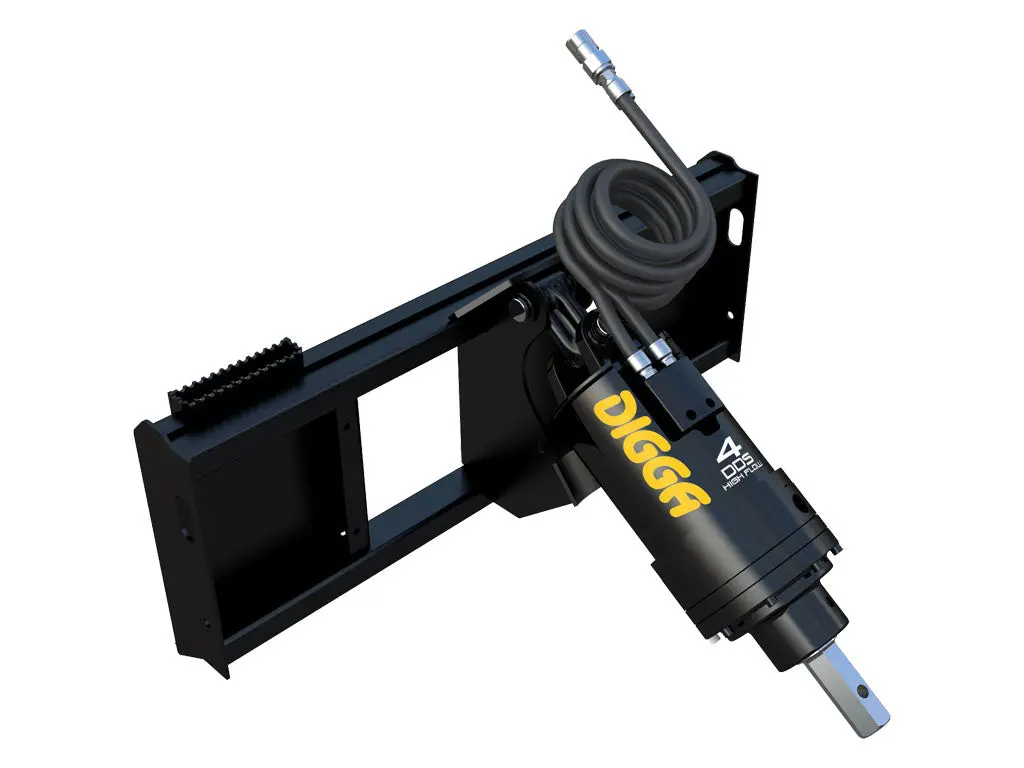

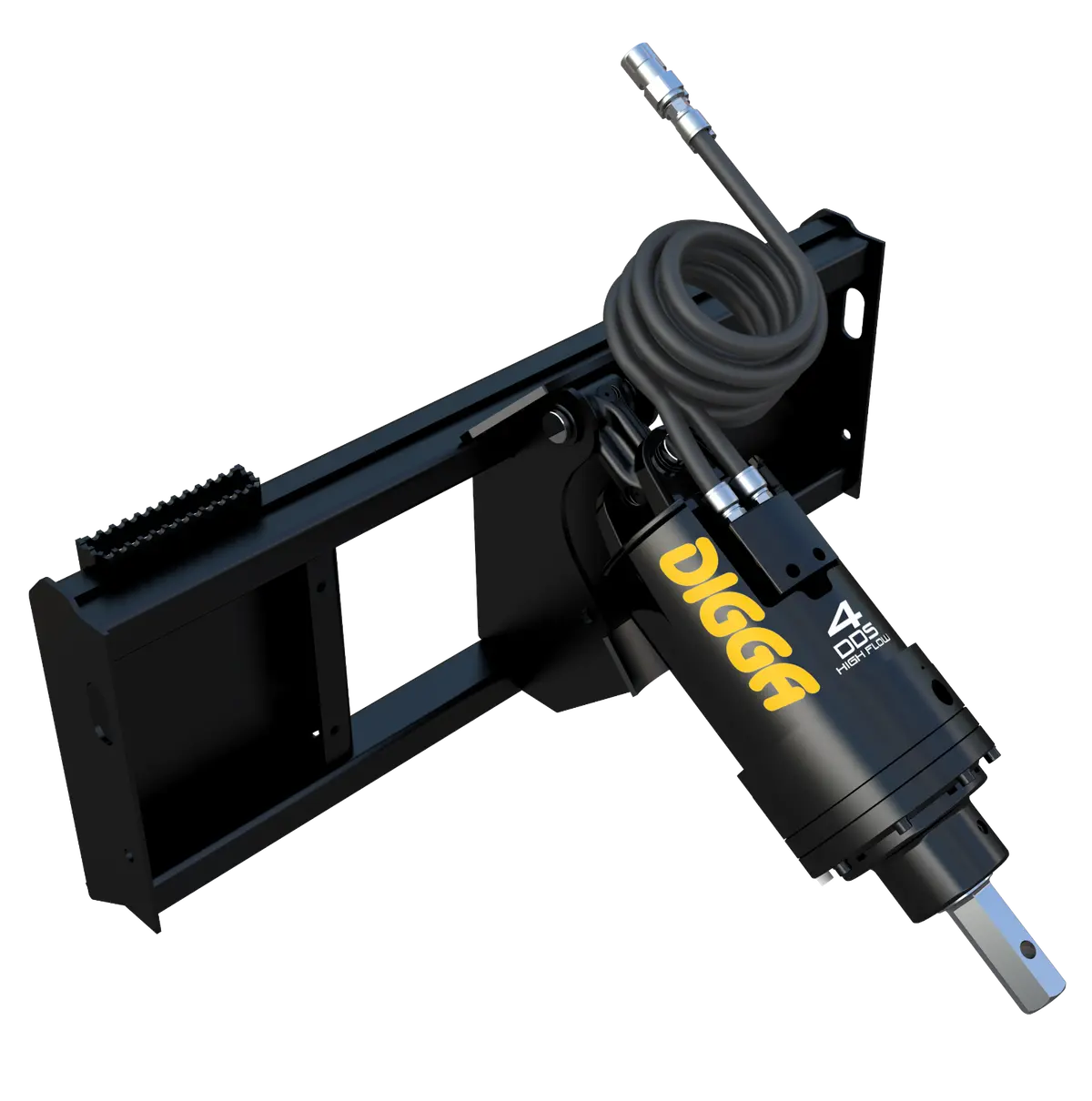

The 4DDS, 5DDS and 6DDS auger drives are designed for heavy duty drilling. These augers are designed for high flow skid steers depending on the model. These augers have a four way swing mounting (forward and back, side to side). An mounting extension option allows you to use bit extensions to drill deep holes. The package includes The hoses, fittings, drive and mountings so it is ready to go on the job site.
