DESCRIPTION

5/24

A FASTER AUGER FOR MACHINES BETWEEN 15-30T (FOR DRILLING)

Digga’s high powered augers operate at a maximum pressure 5,000psi, providing you with faster speed and performance – Without detuning your machine.

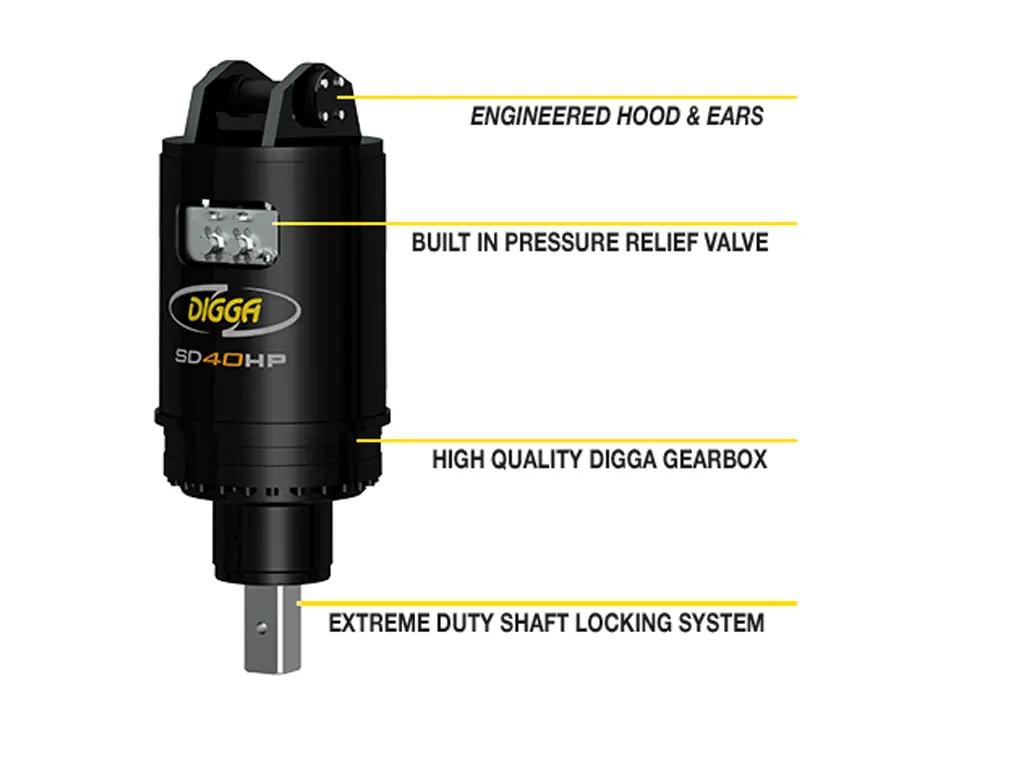

Compact high quality gearbox made by Digga

Gears are precision machined by Digga from high grade quality alloy steel, providing you with a highly efficient pressurized gearbox which ensures no leaks and minimal maintenance.

Built-in PRV (pressure relief valve) as standard

ensures max volumetric effeciency for consistent & efficient pile installation throughout the working day.

Engineered hood and ears

For maximum strength. Specifically designed for heavy duty drilling applications.

Extreme heavy duty shaft locking system

The Digga 2 piece shaft, is a separate component to the planetary carrier, isolating the planetary gears from the pushing, pulling & bending forces generated by the machine.

HOSES AND DISCONNECTS SOLD SEPARATELY – CALL FOR PRICE

SPECS

SPECS	SD45HPS	SD50HPS	SD70HPS	SD80HPS	SD95HPS
MAX TORQUE (FT-LBS)	33,654	39,463	51,634	62,638	69,244
MAX SPEED (RPM)	46	39	30	25	22
MAX FLOW (GPM)	100 GPM @ 3,500 PSI
MAX PRESSURE – DO NOT EXCEED	5,000 PSI @70 GPM
MAX HORSE POWER	201	201	201	201	201
MOTOR TYPE	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON
PRESSURE RELIEF VALVE	INCLUDED	INCLUDED	INCLUDED	INCLUDED	INCLUDED
ENERGY CONTROL VALVE	NOT INCLUDED	NOT INCLUDED	NOT INCLUDED	NOT INCLUDED	NOT INCLUDED
STANDARD OUTPUT SHAFT	100MM SQUARE	100MM SQUARE	100MM SQUARE	100MM SQUARE	100MM SQUARE
HALO	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL
RECOMMENDED AUGER	RC11 / DR11	RC11 / DR11	RC11 / DR11	RC11 / DR11	RC11 / DR11
MAX AUGER DIAMETER (CLAY / SHALE)*	60″	60″	60″	60″	60″
MAX AUGER DIAMETER (EARTH)*	79″	79″	79″	79″	79″
WEIGHT (LBS)	1,843	1,843	1,843	1,843	1,843
OVERALL LENGTH (IN)	50.9″	50.9″	50.9″	50.9″	50.9″
DIAMETER (IN)	23.6″	23.6″	23.6″	23.6″	23.6″
