DESCRIPTION

5/24

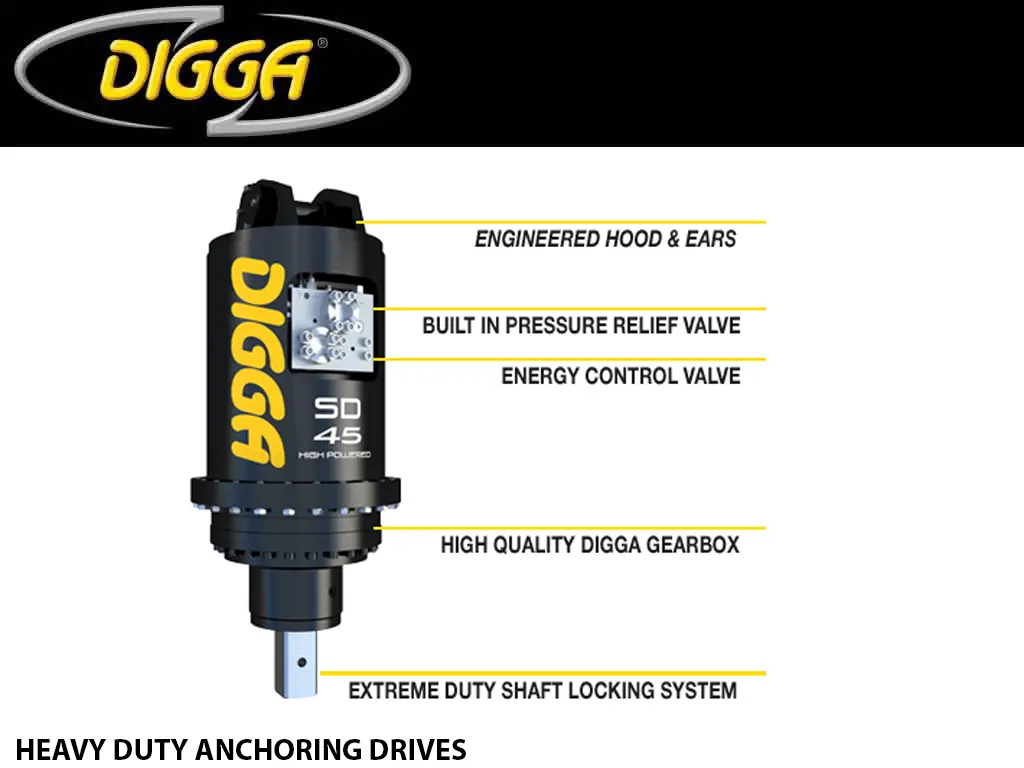

2 SPEED SUPA ANCHOR DRIVES

HOSES AND DISCONNECTS SOLD SEPARATELY – CALL FOR PRICE

The Supa Drive range provides you with the most versatile selection of supreme planetary drives boasting greater power and speed. Designed for screw piling and ground anchor installation up to 70,000 ft-lbs.
Digga’s innovative compact design and industry leading innovations make this range of drive units the industry’s first choice for anchored applications. With world leading technology as standard inclusions such as the Energy Control Valve (ECV) which prevents rapid decompression of oil caused by pile kick-back, and a built-in Pressure Relief Valve (PRV) to give you peace of mind that your investment is protected.

FEATURES

• 2 Speed drive system
• Compact high torque Digga manufactured gearbox
• The highest volumetrically efficient motor available
  – Maintain consistent & efficient pile installation
• Extreme duty shaft locking system
• No complex hoses, valving or filtration
• Built-in Pressure Relief Valve standard
• Energy Control Relief Valve
• 1yr Gearbox & 1yr Motor Warranty

DIMENSIONS

• Overall Length: from 50.9″
• Diameter: from 23.6″

FASTER HIGH POWERED 2-SPEED AUGERS FOR MACHINES BETWEEN 15-30T

Digga’s High Powered Drives operate at a MAX PRESSURE OF 5,000 PSI providing you the speed and performance without detuning your machine.

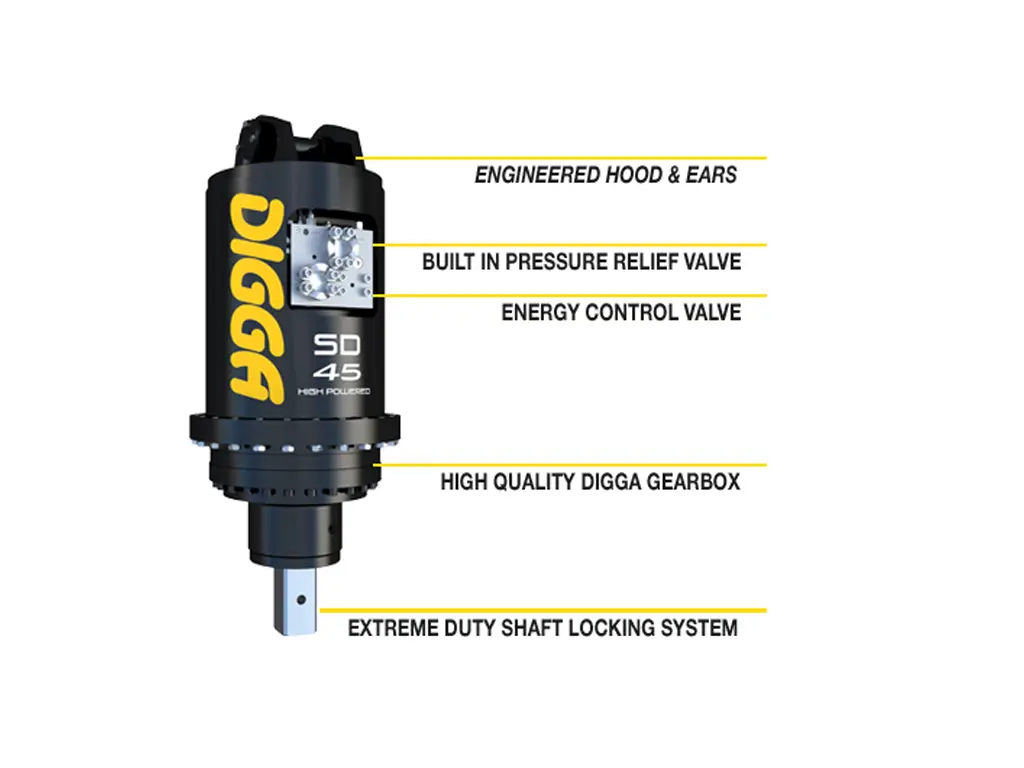

Compact high quality gearbox made by Digga

Gears are precision machined by Digga from high grade quality alloy steel, providing you with a highly efficient pressurized gearbox which ensures no leaks and minimal maintenance.

Built-in PRV (pressure relief valve) as standard

ensures max volumetric effeciency for consistent & efficient pile installation throughout the working day.

.

Integrated ECV (energy control valve)

This revolutionary bypass valve is fitted to the drive to control the rapid decompression of oil.

Engineered hood and ears

For maximum strength. Specifically designed for heavy duty drilling applications.

Extreme heavy duty shaft locking system

The Digga 2 piece shaft, is a separate component to the planetary carrier, isolating the planetary gears fromthe pushing, pulling & bending forces generated by the machine.

SPECS

Two Speed

SPECS	SD 45	SD 50	SD 70	SD 80	SD 95
MAX TORQUE	32,892 FT-LBS	38,569 FT-LBS	50,465 FT-LBS	60,828 FT-LBS	67,675 FT-LBS
MAX FLOW	DO NOT EXCEED 100 GPM @ 3,500 PSI
MAX PRESSURE	DO NOT EXCEED 3,500 PSI @ 100 GPM
MAX POWER	DO NOT EXCEED 201 HP
MOTOR	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON
PRV	INCLUDED	INCLUDED	INCLUDED	INCLUDED	INCLUDED
ECV	INCLUDED	INCLUDED	INCLUDED	INCLUDED	INCLUDED
OVERALL LENGTH	50.9″	50.9″	50.9″	50.9″	50.9″
DIAMETER	23.6″	23.6″	23.6″	23.6″	23.6″
WEIGHT (NO HITCH / OIL)	1848 LBS	1843 LBS	1843 LBS	1843 LBS	1859 LBS
SHAFT	100MM SQUARE	100MM SQUARE	100MM SQUARE	100MM SQUARE	100MM SQUARE

Two Speed High power

	SD45HPT	SD50HPT	SD70HPT	SD80HPT	SD95HPT
MAX TORQUE (FT-LBS)	33,654	39,463	51,634	62,638	69,244
MAX SPEED (RPM) LOW TORQUE	78	66	51	42	38
MAX SPEED (RPM) HIGH TORQUE	46	39	30	25	22
MAX FLOW (GPM)	100 GPM @ 3,500 PSI
MAX PRESSURE – DO NOT EXCEED	5,000 PSI @70 GPM
MAX HORSE POWER	201	201	201	201	201
MOTOR TYPE	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON	RADIAL PISTON
PRESSURE RELIEF VALVE	INCLUDED	INCLUDED	INCLUDED	INCLUDED	INCLUDED
ENERGY CONTROL VALVE	INCLUDED	INCLUDED	INCLUDED	INCLUDED	INCLUDED
STANDARD OUTPUT SHAFT	100MM SQUARE	100MM SQUARE	100MM SQUARE	100MM SQUARE	100MM SQUARE
RECOMMENDED AUGER	RC11 / DR11	RC11 / DR11	RC11 / DR11	RC11 / DR11	RC11 / DR11
MAX AUGER DIAMETER (CLAY / SHALE)*	60″	60″	60″	60″	60″
MAX AUGER DIAMETER (EARTH)*	79″	79″	79″	79″	79″
WEIGHT (LBS)	1,843	1,843	1,843	1,843	1,843
OVERALL LENGTH (IN)	50.9″	50.9″	50.9″	50.9″	50.9″
DIAMETER (IN)	23.6″	23.6″	23.6″	23.6″	23.6″
