NURSERY JAWS 2 TREE FORKS
SKID STEER
Perfect Grip

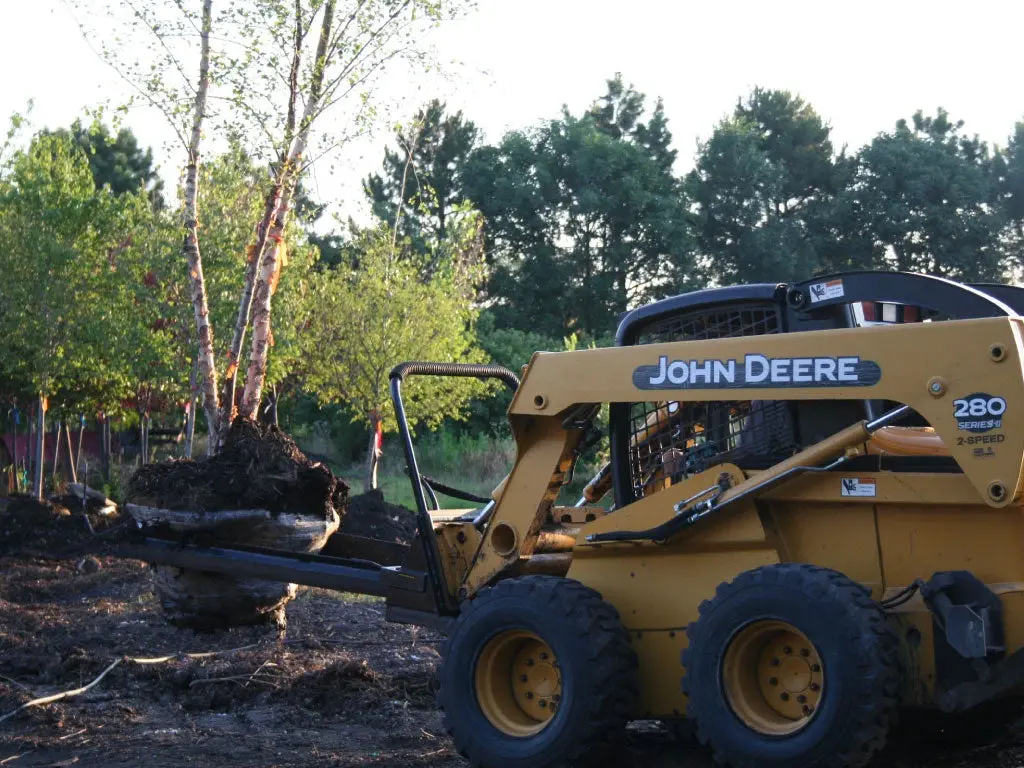

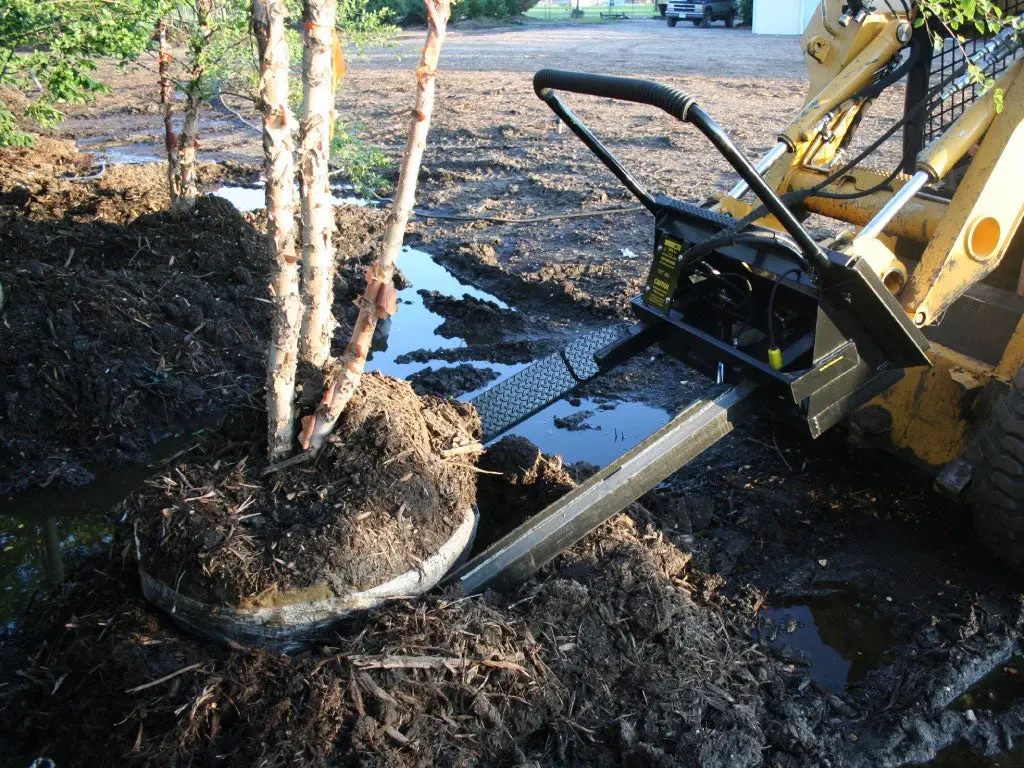

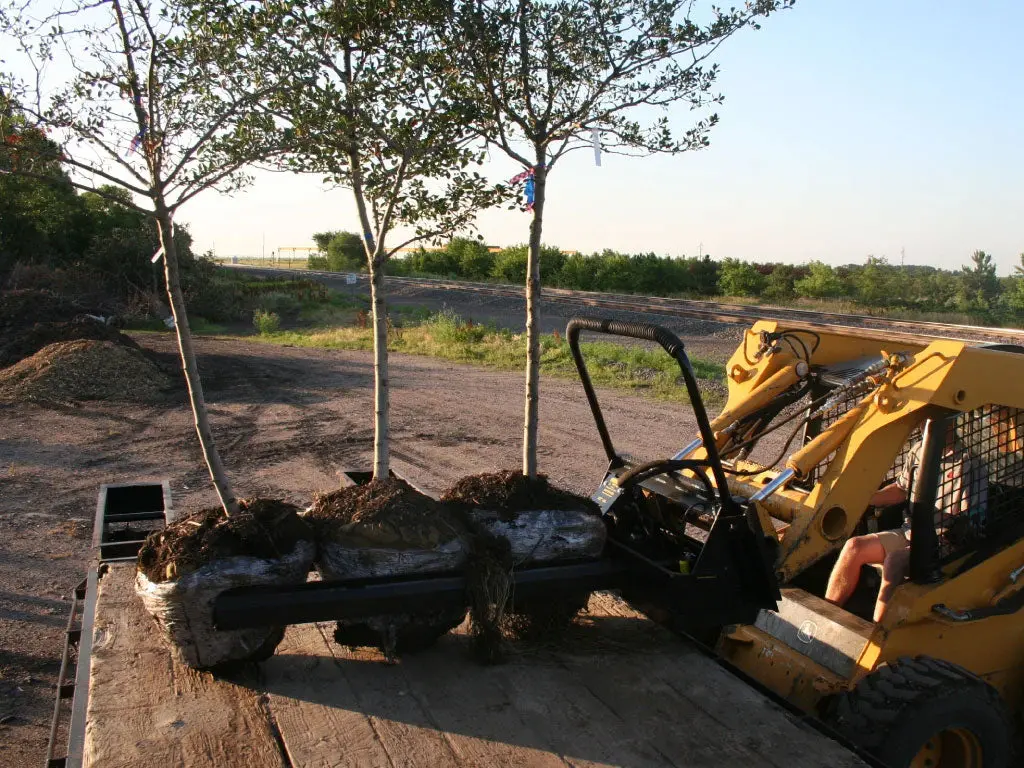

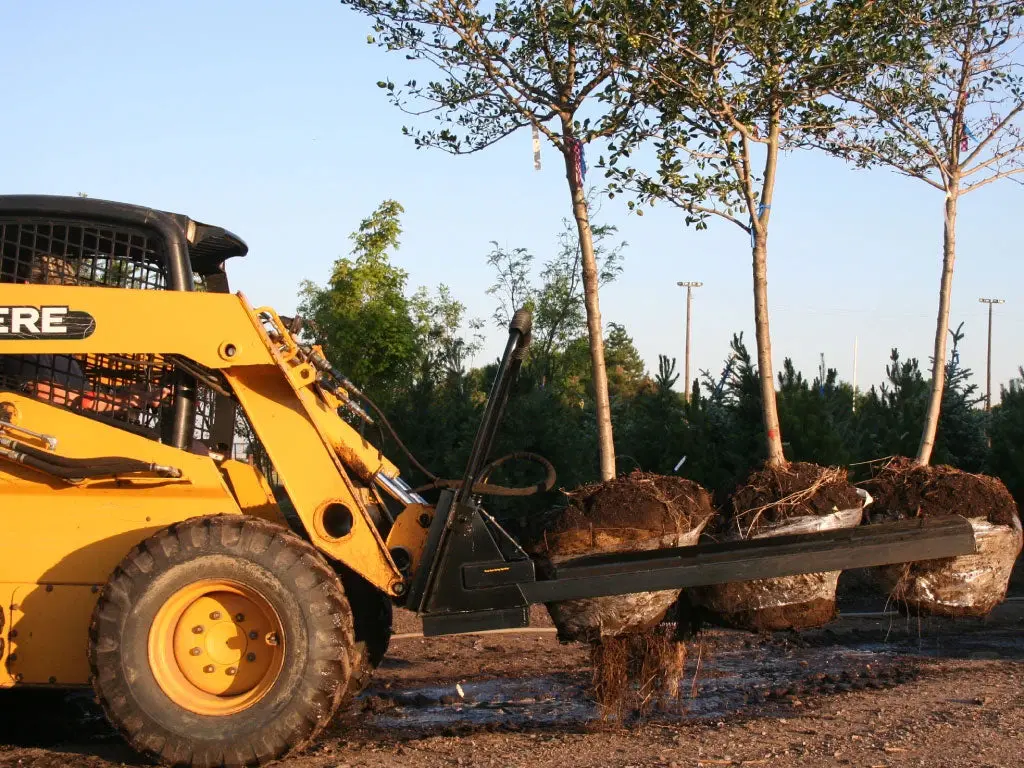

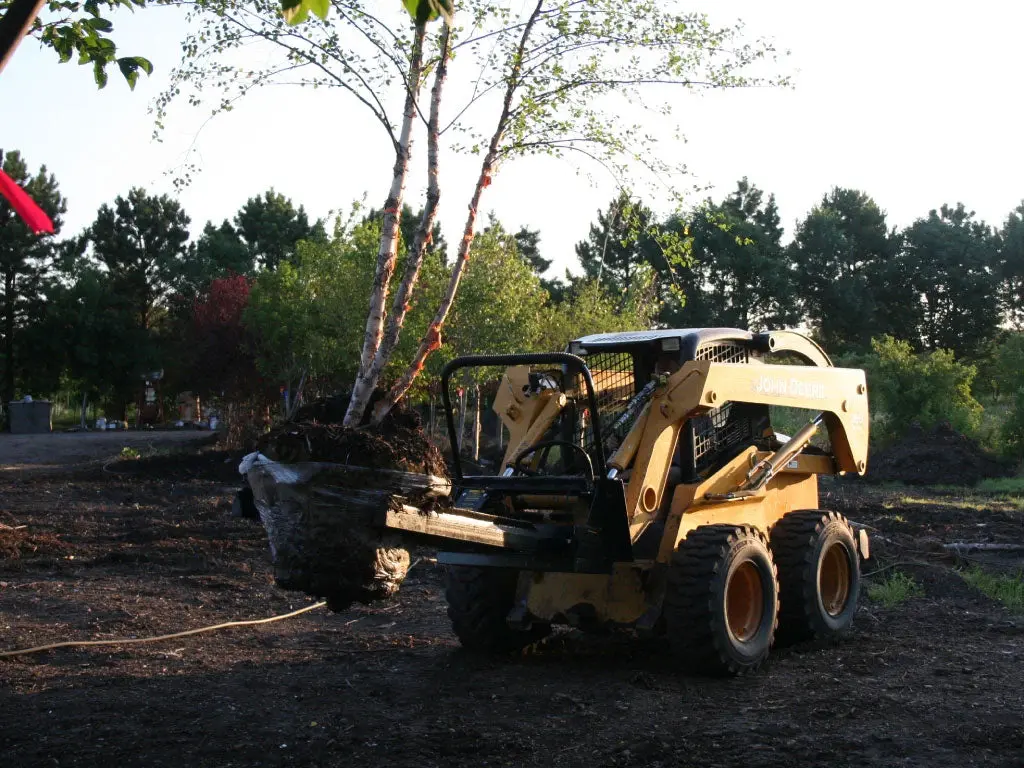

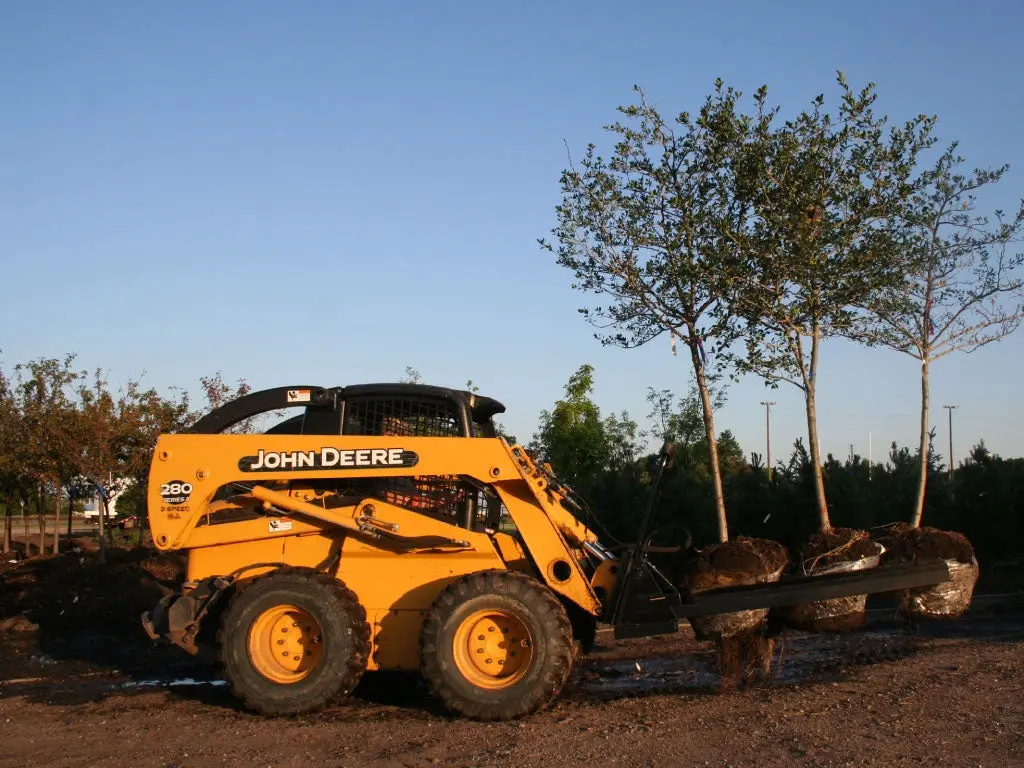

The Nursery Jaws® 2 features a hydraulically expanding pivot point that allows you to handle a variety of material. The Nursery Jaws® 2’s versatility allows you to move multiple B&B and different sizes of tree balls at the same time. Different degrees of pitch for the forks are available for the perfect grip to move containerized and boxed trees. The Nursery Jaws® 2 will provide years of invaluable service to your business.
Features
- Ability to “grasp” B&B up to 50″, 3-24″ B&B or 2 42″ B&B tree’s at once
- Move wooden boxes up to 36″
- Move plastic containers
- Load, stack and double stack
- Replace and plant large nursery stock
- Carry loads up to 3000 lbs
- Adjustable Padded Tree Guard
- Quick-Tach Bracket For Most Front End Loaders
- Optional 80″ Forks
Options:
- (2) DIFFERENT SIZE PADDLES 72″x5″ & 80″X5″
- UPGRADDED PREASURE RELIEF COUPLERS -ALLOWS EASIER CONNECTION TO MACHINE
- FLOW CONTROL – ALLOWS YOU TO CONTROL SPEED OF PADDLE MOVEMENT
- BOX PADDLES – PADDLES MADE A 9 DEGREE ANGLE FOR LOADING BOXED MATERIALS
** Paddle length is the total length, and does not reflect the total usable length.
SPECS
Fork length is a total length. It does NOT equal usable length.
Hoses – 6′ long
| FORK LENGTHS | 72″,80″ |
| FORK ANGLE | 22 DEGREES |
| FORK MATERIAL | 5″ TREAD PLATE |
| SPREAD OF FORKS | 17″-27″ |
| OPEN AT TIPS |
66″ FORK- 63″ 72″ FORK- 66″ |
| WEIGHT |
66″ FORK-675 LB 72″ FORK-700 LB |
| CARRYING CAPACITY | 3000 LB |
| HYDRAULICS | 3000 PSI |
| CAPACITY |
50″ B&B 20″-30″ BOX 65 GAL POT 3000 LB BOULDER |
BIG DAVE
How To Determine Which Model of Nursery Jaws To Choose
By asking the right questions, you can easily determine which Nursery Jaws best fit your operation. For example, a small landscaper with a 1200lb lift capacity loader does not need a Nursery Jaws 2. Conversely, a large wholesaler with a 3000 lb capacity loader should not have a Nursery Jaws Jr. There are a few exceptions to every rule, but here are a few guidelines to follow.
Nursery Jaws 2-New Style…
- What material s will the NJ 2 handle? Up to 44″ B&B, 24″ boxes, plastic containers, grow bags, small rocks and boulders.
- Loader requirements? 1500-3000lbs rated capacity
- Characteristics of the Nursery Jaws 2? Simple to use, durable, same side loading and unloading (66″ or 72″ forks), double stacking and planting.
