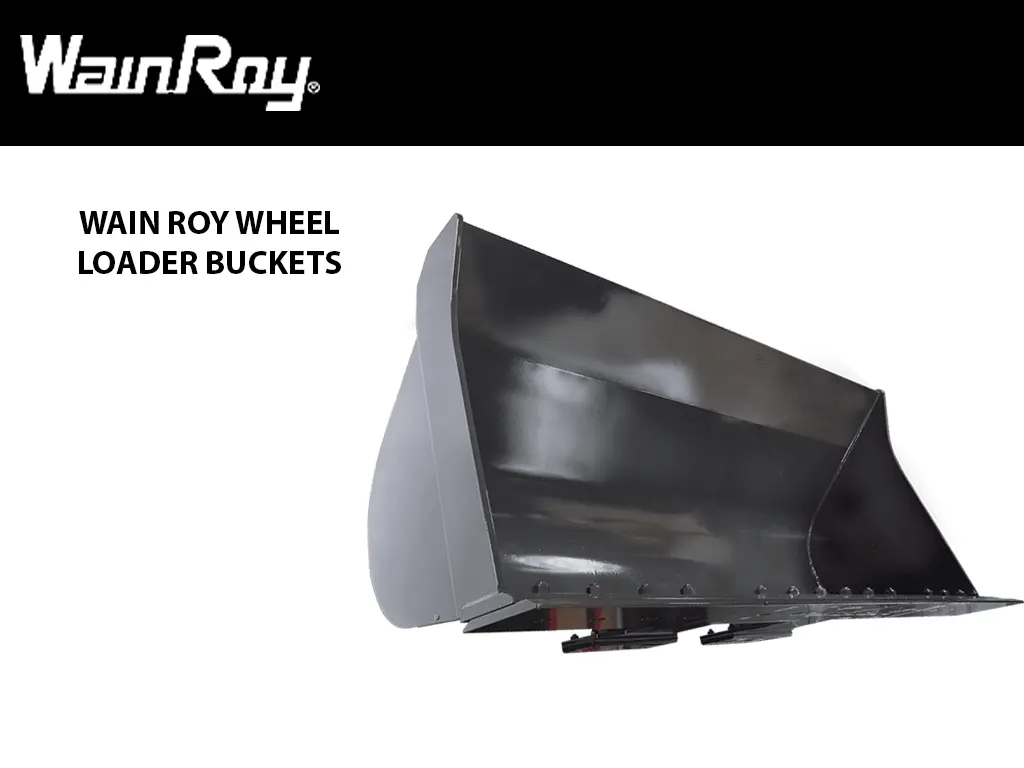

Durable Wain Roy Buckets Designed for JRB-Style Quick-Attach Couplers

Description

DESCRIPTION

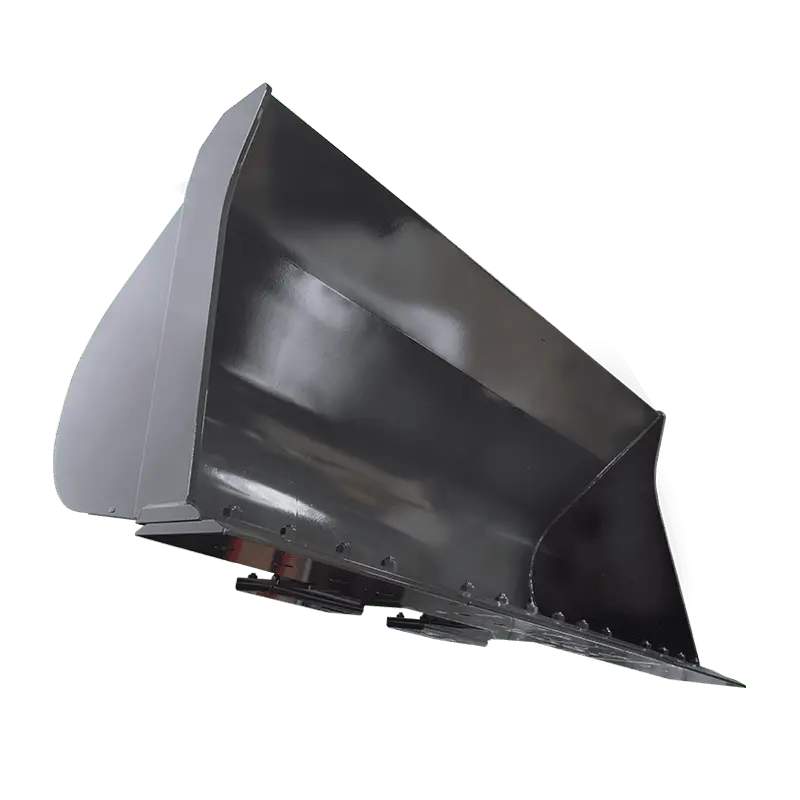

GENERAL PURPOSE WHEEL LOADER FOR JRB^® STYLE COUPLER

FEATURES

• Compatible with popular JRB ® coupler and John Deere ® coupler styles
• Flat top edge allows you to visually level the bucket
• 100 KSI yield material in critical wear areas of bucket, 50 KSI yield material in all other areas
• 1‑piece moldboard on 1.5 to 3.75 cubic yard buckets
• 1‑piece bridge on all buckets for added strength
• Replaceable skid shoes and bolt‑on cutting edges (BOCEs)
• New slope bottom design features 5% raised dump angle and better roll and fill
• Intended for use in dirt, gravel, loose materials up to 3,000 lbs per cubic yard

SPECIFICATIONS

ALL SPECIFICATIONS ARE FOR 3 PIECE OEM STYLE EDGE. CALLS FOR SPEIFICATIONS ON 4 PIECE OEM STYLE EDGE

BUCKET CLASS	WIDTH	SAE HEAPED CAPACITY (CU. YD.)	SKID SHOE KIT	LBS
CLASS 2	97″	1.50	3	1508
CLASS 2	100″	1.75	3	1565
CLASS 2	100″	2.00	2	1888
CLASS 2	102″	2.25	2	1959
CLASS 2	106″	2.50	2	2137
BUCKET CLASS	WIDTH	SAE HEAPED CAPACITY (CU. YD.)	SKID SHOE KIT	LBS
CLASS 3	106″	2.50	2	2137
CLASS 3	102″	2.75	1	2328
CLASS 3	106″	3.00	1	2495
BUCKET CLASS	WIDTH	SAE HEAPED CAPACITY (CU. YD.)	SKID SHOE KIT	LBS
CLASS 5	106″	3.00	1	2495
CLASS 5	106″	3.25	1	2900
BUCKET CLASS	WIDTH	SAE HEAPED CAPACITY (CU. YD.)	SKID SHOE KIT	LBS
CLASS 6	119″	3.50	2	3440
CLASS 6	119″	3.75	2	3498
CLASS 6	119″	4.00	2	4164
CLASS 6	119″	4.25	2	4320
CLASS 6	119″	4.50

FITS

CLASS 2

MAKE	MODEL
CASE	521E, 521E XT, 521EXR, 521F, 521G
CATERPILLAR	910M, 912G, 914M, 918M, 924H, 924Hz, IT14G
DAEWOO / DOOSAN	DL200, DL60
DRESSTA	510E, 515E, 515EH, 515EH HL
GEHL	540, 650
HYUNDAI	HL740-9
JCB	411 HT, 416 HT, 417 HT
JOHN DEERE	324K, 344J, 344L, 444K HL, 444K Powerllel, 444K Z-bar
KAWASAKI	50ZV, 60Z7, 60ZV-2
KOMATSU	WA120-3, WA150-5, WA150-6
LIEBHERR	L508, L509, L510, L514
NEW HOLLAD	LW90, W100B, W110, W110C, W110TC
TEREX	SKL160H, SKL844, SKL854, TL120, TL160, TXL160-1
VOLVO	L40B, L45B, L45H, L50D, L50E, L50H
YANMAR	V10, V12

CLASS 3

MAKE	MODEL
CASE	621DXT, 621E, 621E XR, 621F, 621G
CATERPILLAR	628Hx, 926M, 928H, 930H, 930M, 938H, IT38H
DAEWOO / DOOSAN	DL200, DL200-5, DL200TC-5, DL220-5, DL250, DL250-5
DRESSTA	520E, 520EH, 520EH HL
GEHL	750
HYUNDAI	HL540-9, HL757-9, HL760-9, HL940, HL955, HL955 XT, HL960
JCB	426HT, 427HT, 427ZX
JOHN DEERE	524K HL, 524K HL WH, 524K WH, 524K Z-Bar, 524K-II, 524K-II HL, 524K-II Z-Bar, 544K HL, 544K HL Powerllel, 544K HL WH, 544K WH, 544K Z-Bar, 544K-II HL, 544K-II Powerllel, 544K-II Z-Bar
KAWASAKI	62Z7, 65TMV-2, 65VZ-2, 67TM7
KOMATSU	WA180-3, WA200-5, WA200-7, WA200-8, WA200PZ-6, WA270-7, WA270-8
LIEBHERR	L514, L524 2plus1, L526, L528 2plus1
NEW HOLLAD	W130, W130B, W130C, W130TC
TEREX	SKL260H, SKL863, TXL200-2
VOLVO	L60D, L60E, L60F, L60H, L70E, L70F, L70H

CLASS 5

MAKE	MODEL
CASE	721E, 721E XR, 721E XT, 721F, 721G
CATERPILLAR	930M, 938H, 938M, 950GC, 950H, 950M, 962H, 962L, IT38H
DAEWOO / DOOSAN	DL250, DL250-5, DL250TC-5, DL280-5
DRESSTA	530E
HYUNDAI	HL740-9, HL757-9, HL760-9, HL955, HL960, HL960 HD, HL960 XT
JCB	436HT, 436ZX, 437 HT
JOHN DEERE	624K HL, 624K Powerllell, 624K WH, 624K Z-Bar, 624K-II, 624K-II HL, 624K-II Powerllel, 624K-II TC, 624K-II Z-Bar
KAWASAKI	67Z7, 70TMV-2, 70Z7, 70Z7 T4F, 70ZV-2
KOMATSU	WA250-3, WA250-5, WA250-6, WA250PZ-6, WA320-3, WA320-5, WA320-6, WA320-7, WA320-8, WA320PZ-6
LIEBHERR	L524 2plus1, L528 2plus1, L538, L538 2plus1, l542 2plus1, L546, L550 Xpower
NEW HOLLAD	LW170, LW170B, LW170TC, W170C
TEREX	SKL873, TL260, TXL250-1, TXL250-2
VOLVO	L60E, L60F WH, L90E, L90F, L90H

CLASS 6

MAKE	MODEL
CASE	821E, 821E XR, 821F, 821G
CATERPILLAR	950GC, 950H, 950M, 962H, 962L, 962M, 966M XE, 972M XE, IT62H
DAEWOO / DOOSAN	DL300, DL300-5, DL350-5
DRESSTA	530E
HYUNDAI	HL757-9, HL760-9, HL770-9, HL960, HL960 HD, HL960XT, HL965, HL965XT
JCB	456HT, 456ZX, 457HT
JOHN DEERE	644K HL, 644K HL WH, 644K Powerllel, 644K WH, 644K Z-Bar, 724K HL, 724K HL WH, 724K WH, 724K Z-Bar
KAWASAKI	80Z7, 80Z7 T4F, 80ZV-2, 85Z7, 85ZV-2
KOMATSU	WA380-3, WA380-5, WA380-6, WA380-7, WA380-8
LIEBHERR	L524 2plus1, L528 2plus1, L538 2plus1, L542 2plus1, L550 2plus2, L550 Xpower Z-bar, L556 Xpower Z-bar
NEW HOLLAD	W190, W190B, W190C
TEREX	TXL300-1, TXL300-2
VOLVO	L110E, L110H, L120E, L120H, L120LB, L90E, L90F WH
