Description
DESCRIPTION

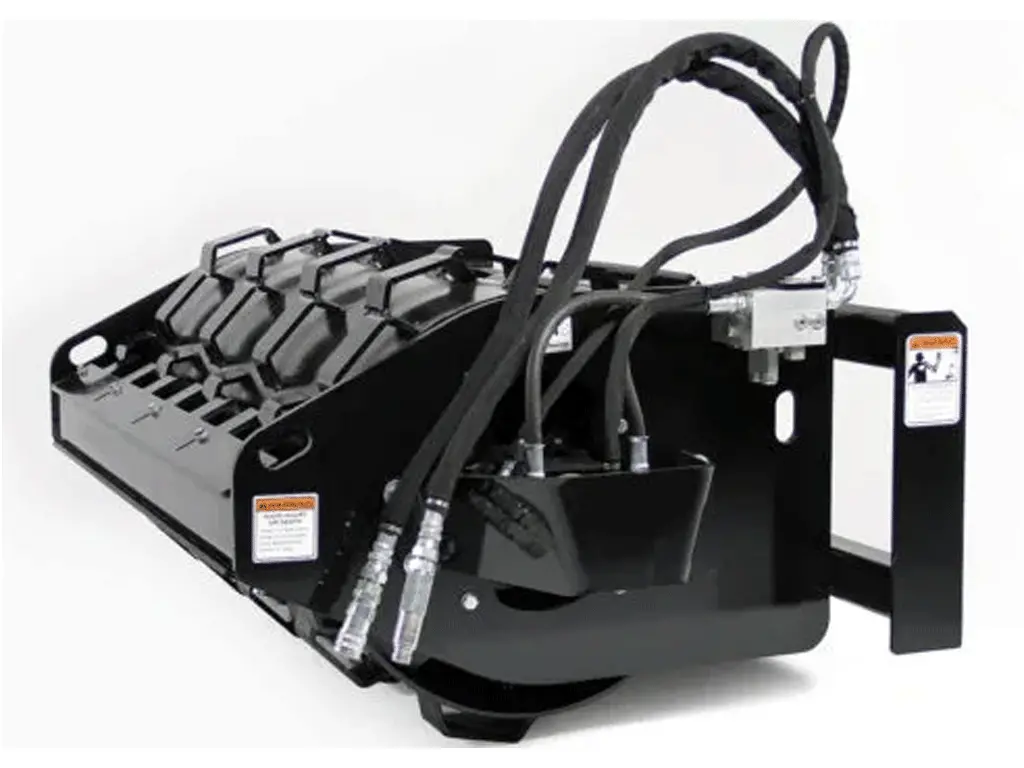

Vibratory Packer
Description
Compact flatwork, trenches and asphalt patching jobs while moving forward or in reverse. Offset drum design compacts next to sidewalks, walls or curbs. Drum oscillation keeps the roller in contact with the surface on uneven terrain.
Features
- Offset drum design allows the right side of the roller to extend past the machine. This is very useful when compacting next to sidewalks, walls, or curbs
- Durable one-piece drum for extra strength
- Dual-direction vibration motor permits compaction traveling in either direction
- Drum rubber isolation mounts reduce vibration transfer to loader and operator
- Solid shaft running the full length of the drum is equipped with 4 greaseable bearings
* REQUIRES CASE DRAIN LINE
* HOSES & FITTINGS INCLUDED IN PRICE
SPECS
| Model | 72 Smooth | 72 Padded Foot |
|---|---|---|
| Part Number | 900722 | 900723 |
| Operating Weight | 1,720 lb. | 1,870 lb. |
| Height | 24” | 27.5” |
| Width | 84” | 84” |
| Length | 42” | 42” |
| VPM | 2,000 @ 18 GPM | 2,000 @ 18 GPM |
| Flow Range | 11-22 GPM | 11-22 GPM |
| Dynamic Force | 4,150 lb. | 4,100 lb. |
| Amplitude | .06” | .05” |
| Compacting Energy | 80 lb./in. | 290 lb./in. |
| Oscillation | +/- 15° | +/- 15° |
| Case Drain | Required | Required |
| Options | ||
| Case Drain Coupler | ||
| Factory Installed Couplers |
