Description

Upgrade your classic Chevy or GMC dually with the strength and premium appearance of Northstar forged aluminum wheels. This complete 16×6 mirror polished wheel kit is engineered specifically for dual rear wheel applications and delivers the durability, performance, and professional finish needed for both work trucks and restoration builds.

Manufactured from forged 6061-T6 aluminum alloy, these wheels are significantly stronger and lighter than cast aluminum or factory steel wheels. The forging process creates a dense, uniform grain structure that improves impact resistance, load capacity, and long-term durability.

Each wheel is mirror polished on both sides, providing a clean, high-end appearance while also offering excellent corrosion resistance for long-term reliability.

Designed with a hub-pilot dual-mount system, these wheels ensure precise alignment, smoother ride quality, and secure clamping under heavy loads—making them ideal for work trucks, commercial chassis, and classic dually restorations.

Forged for Work

Northstar wheels are engineered with the philosophy “Forged for Work.”

Forged aluminum construction provides several advantages over cast wheels and factory steel wheels:

• Superior impact resistance compared to cast aluminum

• Uniform grain structure for improved ride quality and tire life

• Better thermal conductivity, helping brakes and tires run cooler

• Natural corrosion resistance, eliminating rust issues common with steel wheels

• Reduced weight, improving efficiency and handling

These benefits make Northstar wheels an ideal upgrade for work trucks, classic dually restorations, and commercial chassis vehicles.

What’s Included

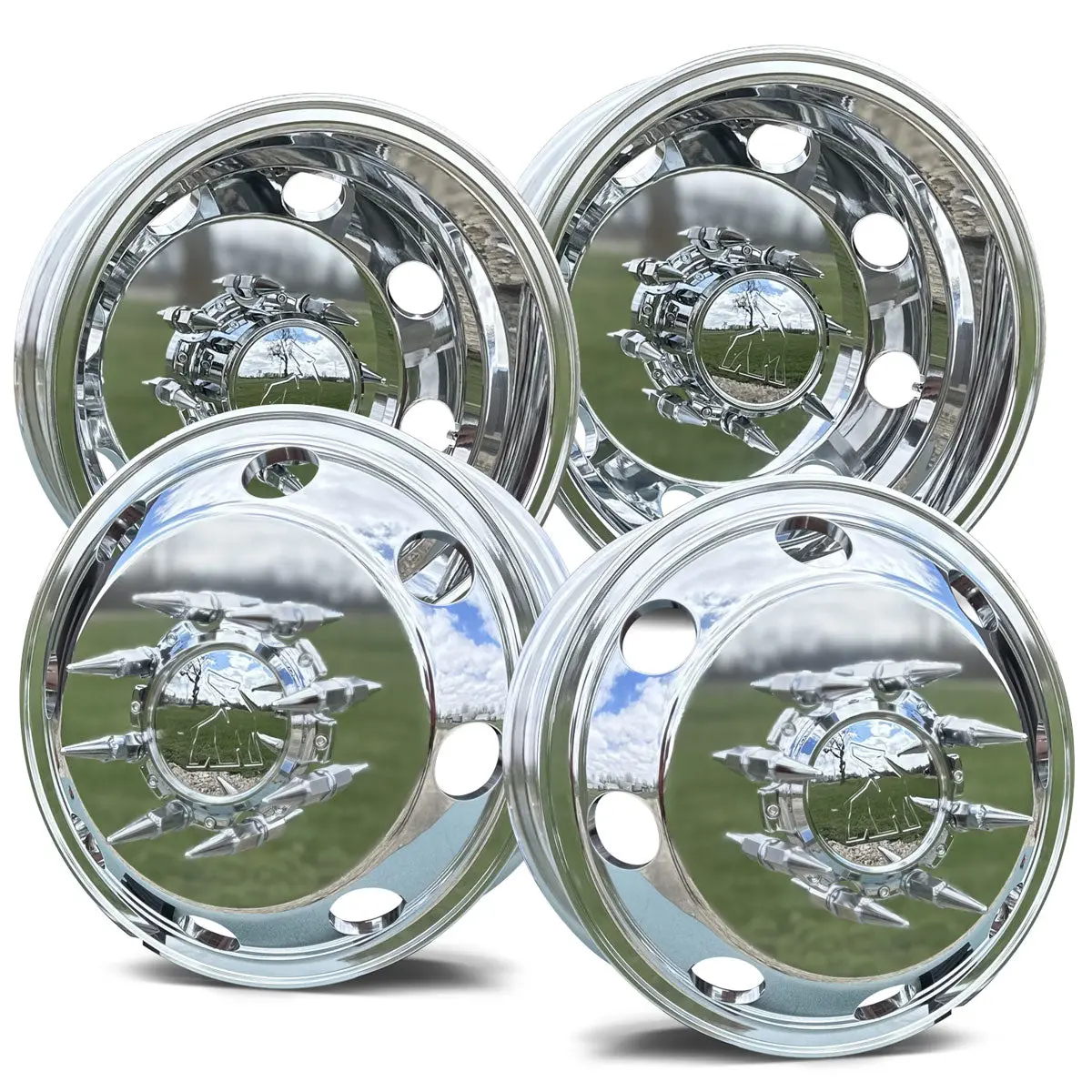

✔ (4) Northstar 16×6 Forged Aluminum Wheels

Mirror polished finish on both sides

✔ (2) Front Chrome Hub Covers

✔ (2) Rear Chrome Hub Covers

✔ (32) Lug Nuts

Choose your style at checkout:

• Chrome Acorn Lug Nuts

• Chrome Spike Lug Nuts

✔ TR553 Valve Stems Installed

Everything needed for a complete installation.

Wheel Specifications

Wheel Size: 16 x 6

Material: Forged 6061-T6 Aluminum Alloy

Finish: Mirror Polished (Both Sides)

Bolt Pattern: 8 x 6.5 (8 x 165.1mm)

Hub Bore: 4.56”

Mounting: Hub Pilot Dual-Mount (Two-Piece Flange Nut)

Hand Holes: 8

Offset: 5.4”

Weight: 23 lbs

Load Rating:

3,000 lbs per wheel @ 95 PSI

Valve Stem: TR553 Installed

Vehicle Fitment

Designed to fit the following dual rear wheel trucks and chassis:

Chevy/GMC 3500 DRW

1977–2000

Chevy/GMC C30 DRW

Chevy/GMC K30 DRW

Chevy/GMC P30 Chassis

Fits vehicles equipped with factory 8×6.5 (8×165.1) bolt pattern and 16” dually wheels.

Perfect for:

• Squarebody dually trucks

• Classic work truck restorations

• Motorhome and RV chassis

• Utility and service trucks

• Commercial fleet vehicles

Why Choose Northstar Forged Wheels?

✔ Forged aluminum construction for superior strength

✔ Lighter than steel and stronger than cast wheels

✔ Mirror polished finish on both sides

✔ Improved heat dissipation for brakes and tires

✔ Excellent corrosion resistance

✔ Choice of chrome acorn or spike lug nuts

✔ Complete installation kit included

✔ Ideal for work trucks or classic dually builds

✔ Free shipping on all orders

✔ Backed by a 5-Year Manufacturer Warranty

Built for Classic Dually Trucks

Whether you’re restoring a squarebody Chevy dually, refreshing a C30 work truck, or upgrading a P30 commercial chassis, this Northstar forged aluminum wheel kit provides the strength, durability, and polished finish needed to modernize your classic dually.
