DESCRIPTION
12X16.5 (12-16.5) GALAXY SKID STEER TIRE

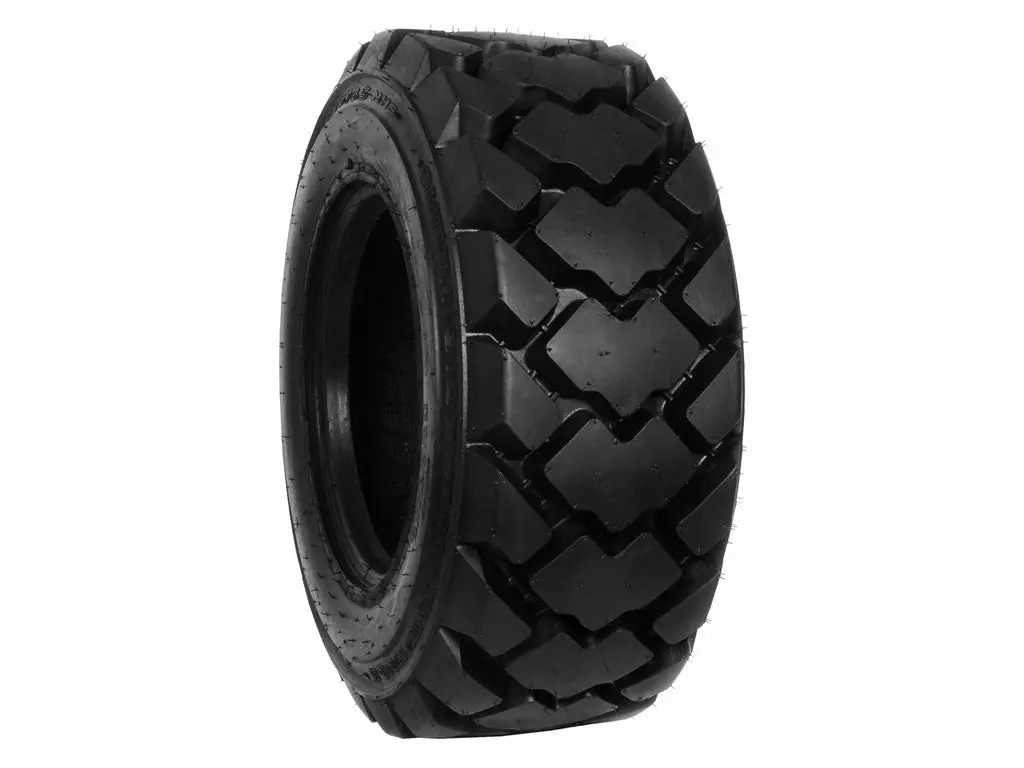

GALAXY HULK L-4
The Hulk has a unique tread pattern that allows it to operate in severe applications while providing superior self-cleaning characteristics. The Hulk has a minimum tread depth of 44/32nds and a lug-to-void ratio of 68% solid to 32% void. Because of the deep tread depth and solid-to-void ratio, the Hulk will provide extraordinary hours of service and reduces downtime due to cuts and punctures.
SKID STEER TIRES
Skid Steer service is very demanding on tires. Steel reinforcement, heavy duty sidewalls and rim guard protection are just a few of the special features you’ll find on many of Galaxy and Primex skid steer tires. These skid steer tires have what it takes to outperform your expectations, and they’re available for virtually any application imaginable.
SPECS
| CODE | SIZE | TYPE | PR | RIM | WT | NS | OD | SW | SLR | L.C.C.@AP | SP |
| lbs@psi | |||||||||||
| 133266 | 12-16.5 | TL | 12 | 9.75 | 98 | 44 | 32.9 | 12.0 | 15.1 | 4,210@40 | 5 |
BIG DAVE
BEST APLICATIONS:
- HARD SURFACES
- SNOW
FITS
ALL
DUMMYOTT
ASV
RS-50RS-60RS75VS-75
BOBCAT
121320002400500600610611620630631632641645700731825843853853H863863G863H863HF873873H8838853943953963980A220A300A300-2A770M444S130S150S160S175S185S205S220S250S300S330S450S510S530S550S570S590S595S630S650S66S740S750S76S770S850S86
CASE
1835C1838184018451845B1845C40XT410420430435440445450465480FLL 4X4580L60XT70XT75XT85XT90XT95XTSR150SR160SR160BSR175SR175BSR200SR210SR210BSR210BSR220SR240SR240BSR250SR270SR270BSV185SV185BSV250SV280SV280BSV300SV340SV340B
CAT
216216B226226B226B3226BHF226D226D3228232B232D232D3236236B236D236D3242B242BHF242D242D3246246B246C246D246D3248248B252252B252B3256C256C2262262B262C262D262D3268B272C272D272D2272D2-XHP272D3272D3-XE904HTH255TH255C
DAEWOO
1340XL1550XL1760xl2060XL430440-PLUS450-PLUS460801DSL602DSL702DSL801DSL802DSL902
GEHL
42404515461046154625463546404640E4640TURBO483548405240E5625563556405640TURBO6620662566356640760078007810R135R150R165R190R220R260RS4-14RS5-19RS5-19GEN3SL3935SXSL4635SL4635SXSL4635SXT/DXTSL4835SL5635SL5635 SXT/DXTSL5635SXT/DXTSL6635SL6635SXT/DXTSL7600SL7610SL7800SL7810SV270V270V330V400V420
GENIE
GTH-5519GTH2506GTH5519S40S45
HYUNDAI
HSL610HSL810HSL850-7A
JCB
155170175190205215W225250260260W2702702803003303303TS-8W
JLG
25RTS33RTS400S40RTS450A450AJ460SJ500RTSG15-18AG518A
JOHN DEERE
1702102402502602602-SPEED2702702-SPEED2802802-SPEED312GR313314G315316GR317318D318E318G320320D320E320G320G324E324G3253252-SPEED326B326D326E3283282-SPEED328D328E330G3323322-SPEED332D332E332G447555756675675777588758875
KOMATSU
1020SK07SK07J-2SK09SK09J-2SK1020-5SK1020-5TURBOSK1026SK1026-5TURBOSK714-5SK815SK815-5SK815-5TURBOSK818-5SK820SK820-5
KUBOTA
SSV65SSV75
MANITOU
1350R1650R2200R2700V3300VMLT420MLT625MT420MT5519MT625MTA5519
MERLO
P27.6P27.6PLUS
MUSTANG
1350R1500R1650R1900R202220322042204420502050HIFLOW2054205620602060HIFLOW2064206620702070HIFLOW20742076208620952099210521092200R2600R2700V3300V4000V4200V930A940960
NEW HOLLAND
555EL150L160L170L175L180L185L190L213L215L216L218L220L221L223L225L228L230L234L316L318L320L321L328L334L465L553L555L585L775L781L783L785L865L885LB75BLS140LS150LS160LS170LS180LS185BLS190LX465LX485LX565LX585LX665LX685LX865LX885LX985
SCAT TRAK
1300C1300D1500D1500D1500DX1700C1750D2000D2000DX2300D2300DX
SKYJACK
SJ46AJSJ519TH
TAKEUCHI
TS50RTS60RTS60VTS70VTS80RTS80V2
TEREX
GTH5519R200STSR-50TSR-60TSR70TSR80TSV-50TSV-70TSV-80TSV-90V230S
THOMAS
2200250320T105T115T133ST135T135ST153T173HLST175T175TURBOT183HDT203HDT205T220T225T233HDT243T245HDKT245HDST245TURBOT255
TOYOTA
4SDK104SDK84SDK8-H
VOLVO
MC110MC115BMC135CMC60MC70MC80MC85CMC90
WACKER
SW16SW17SW20SW21SW24SW28SW32
XTREME
XR5919XR619A
YANMAR
S190RS220RS270V
