Description
DESCRIPTION

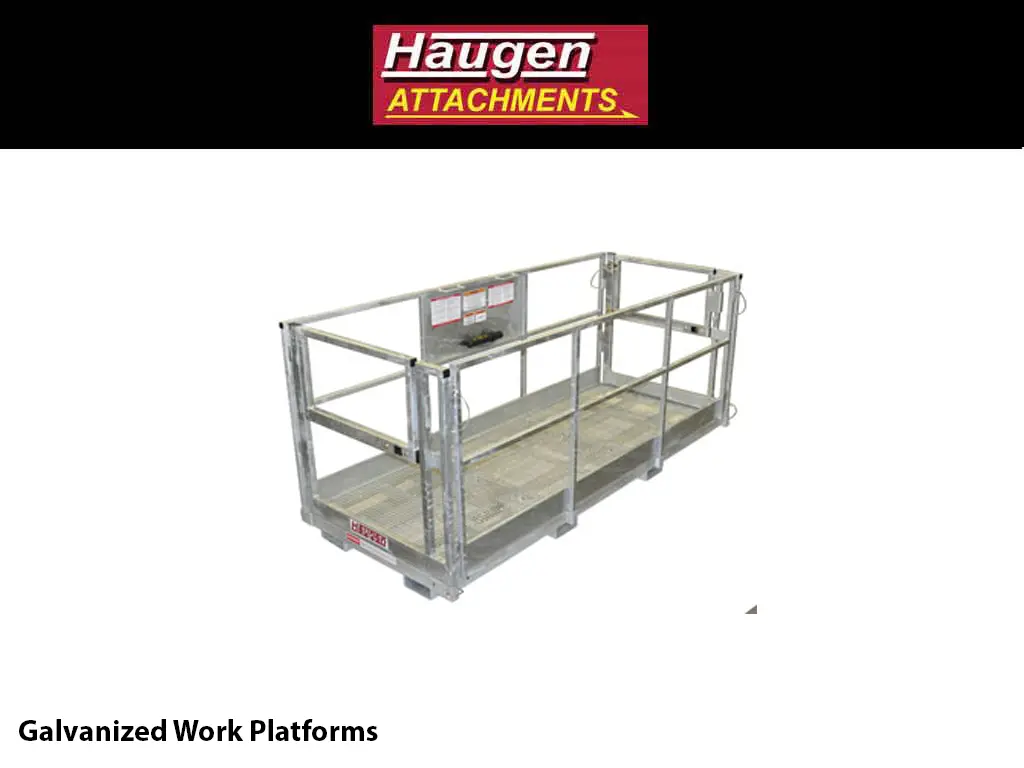

Industrial Work Platforms
– Meets or exceeds ANSI/OSHA
Standards (B56.6-2016), &
( CSA B335-04)
– Safety restraint tie downs
– Inward swinging doors
– Large fork pockets fit tines up to 2.75” x 7.75”
– Collapsible sides for easy transportation
– Non Skid expanded metal floor
– 6 inch toe kick on all sides
– End Fork Pockets are standard on all model
except the 4×4
Specify tine dimensions when ordering
SPECIFICATIONS
| Model Number | Size | Doors | Capacity | Weight |
|---|---|---|---|---|
| MWP 4×4 | 4’x4′ | 1 Door | 1,000 lbs. | 395 lbs. |
| MWP 4×6 | 4’x6′ | 1 Door | 1,000 lbs. | 487 lbs. |
| MWP 4×8 | 4’x8′ | 2 Doors | 1,000 lbs. | 578 lbs. |
| MWP 4×116 | 4’x9’8″ | 2 Doors | 1,000 lbs. | 630 lbs. |
| Options | |
| HB (High Back) | High Back option for 4×4, 4×6, 4×8 and 4×116(Required when the platforms are use with vertical mast forklifts) |
| Fork Pocket Options | |
| Industrial Pockets | Standard Pocket size on all Haugen Platforms Fits Fork Tines up to 2.75” thick x 7.75” wide Fork Pockets are centered at 38” |
| Large Pockets | Optional Large Pockets Fits Fork Tines up to 3 1/2” thick x 9 1/2” wide |
