Haugen Skid Steer Snow Buckets

Description

DESCRIPTION

Standard Snow Buckets

 Standard Snow Buckets for Skid-steer Loaders is large capacity bucket recommended for snow and light material.

 Features

• 3/4″ x 6″ high carbon cutting edge (predrilled)
• Four 1/2″ x 3″ wear bars
• Steps for easy access to your machine
• Inside gussets for extra durability
• Many sizes available

 Options

• 5/8″ x 8″ reversible bolt-on Cutting edge
• Euro/global style mount
• Dumpster Hooks

__________________________________________________________________________________________________________________________________________________________________________________________

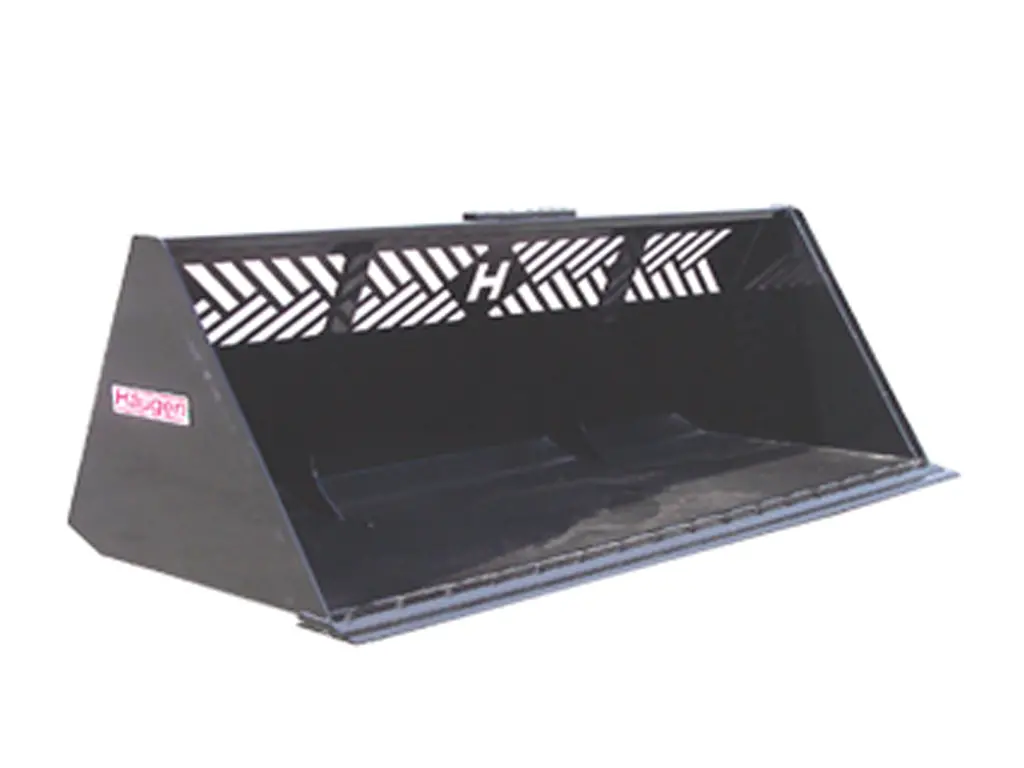

Medium Snow Buckets

Medium Duty Snow Bucket for large Skid-Steer loaders.  This bucket will move tons of snow fast with great visibility.

Features

• Manufactured with a see through window for visibility
• 3/4″ x 6″ high carbon cutting edge (pre-drilled)
• Four 1/2″ x 3″ Wear bars
• Built-in steps
• Inside gussets for extra durability
• Many sizes available

Options

• 5/8″ x 8″ reversible Bolt-on Edges
• Euro/Global mounts
• Dumpster hooks

__________________________________________________________________________________________________________________________________________________________________________________________

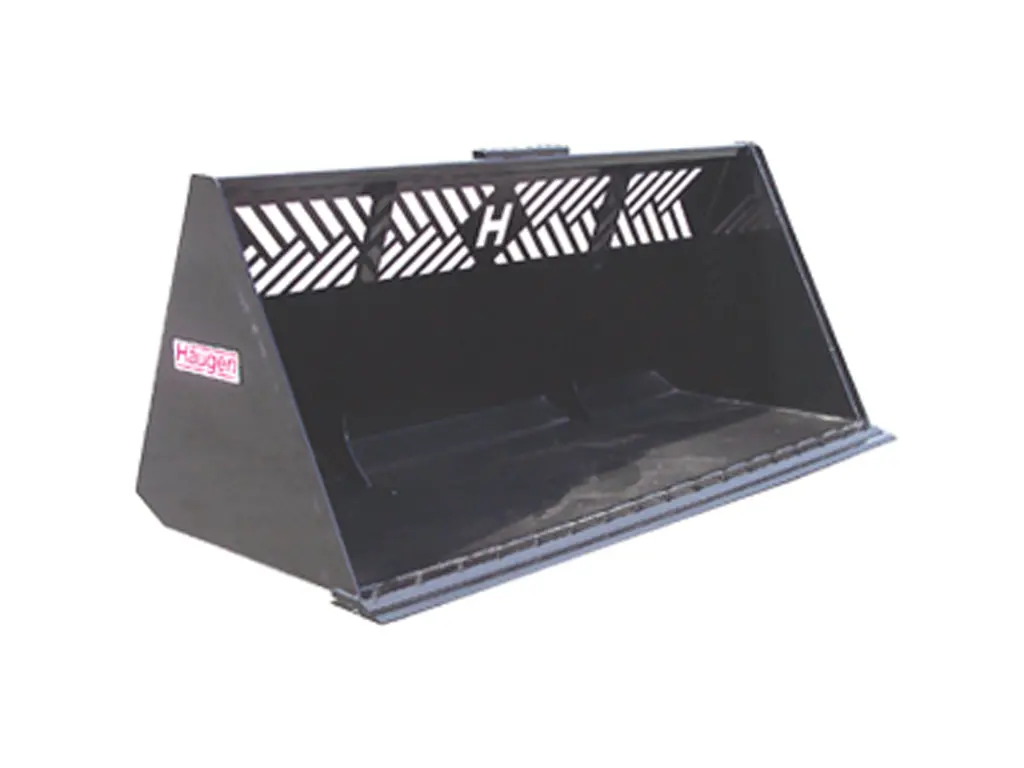

Mega Snow Buckets

Mega Duty Snow Bucket for large Skid-steers.  Very large bucket for snow and light material.

Features

• Manufactured with a see through window for visibility
• 3/4″ x 6″ High carbon cuting edge  (pre-drilled)
• Four 1/2″ x 3″ wear bars
• Inside gussets for extra durability
• Built-in Steps

Options

• 5/8″ x 8″ reversible Bolt-on cutting edge
• Euro/Global mounts

SPECIFICATIONS

Standard Snow Buckets

Model	Bucket Height	Inside Depth	Bucket Width	Heaped Capacity	Weight
MSB 60	27″	37″	60″	22.25 Cu.Ft.	480 lbs
MSB 66	27″	37″	66″	24.50 Cu.Ft.	510 lbs
MSB 72	27″	37″	72″	26.50 Cu.Ft.	540 lbs
MSB 78	27″	37″	78″	28.75 Cu.Ft.	570 lbs
MSB 84	27″	37″	84″	31.00 Cu.Ft.	610 lbs
MSB 90	27″	37″	90″	33.00 Cu.Ft.	640 lbs
MSB 96	27″	37″	96″	35.25 Cu.Ft.	670 lbs
MSB 102	27″	37″	102″	37.50 Cu.Ft.	710 lbs
MSB 108	27″	37″	108″	39.75 Cu.Ft.	750 lbs

 Medium Snow Buckets

Model	Bucket Height	Inside Depth	Bucket Width	Heaped Capacity	Weight
MMSB 72	30″	41″	72″	32.10 Cu.Ft.	710 lbs
MMSB 84	30″	41″	84″	37.40 Cu.Ft.	775 lbs
MMSB 96	30″	41″	96″	42.70 Cu.Ft.	825 lbs
MMSB 102	30″	41″	102″	44.90 Cu.Ft.	875 lbs

 Mega Snow Buckets

Model	Bucket Height	Inside Depth	Bucket Width	Heaped Capacity	Weight
MHSB 84	42″	42.50″	84″	45.35 Cu.Ft.	975 lbs
MHSB 96	42″	42.50″	96″	51.30 Cu.Ft.	1050 lbs
MHSB 102	42″	42.50″	102″	55.10 Cu.Ft.	1190 lbs
