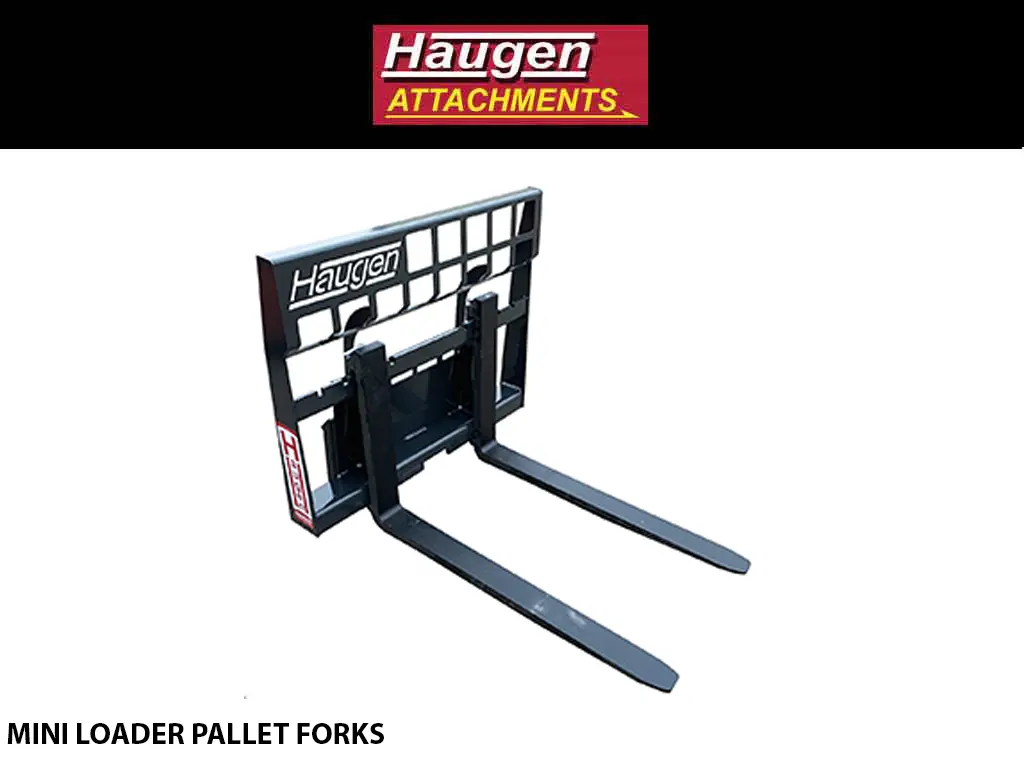

Haugen Standard-Duty Pallet Forks for Skid Steer Loaders

Description

DESCRIPTION

STANDARD DUTY PALLET FORKS

Rail Style Pallet Forks for skid-steer loaders.  Unlike other economy Pallet Forks these Forks and Frames are built heavy and will give you years of dependability and strength.   Plus Haugen Pallet Forks are 100% made in the USA

Features

• Fork Tines are flush with the Brick Guard
  for better load support and increased capacity.
• Heavy Duty reinforced top and bottom rails
• Adjustable tines from 0 to 45 inches
• 5000 lbs and 6000 lbs capacity models available
• Brick Guards have a 10 degree angle
  built-in to maximize your Skid-Steers
  roll back and lifting capacity

Options

• Optional 60 inch Wide Brick Guards
• 60 inch tines available on 6000 lbs brick guards
• Bolt-on Steps

______________________________________________________________________________________________________________________________________________________________________________________

 WALK THROUGH PALLET FORKS

Rail Style Pallet Forks for skid-steer loaders.  Unlike other economy Pallet Forks these Forks and Frames are built heavy and will give you years of dependability and strength.   Plus Haugen Pallet Forks are 100% made in the USA

Features

• Fork Tines are flush with the Brick Guard
  for better load support and increased capacity.
• Heavy Duty reinforced top and bottom rails
• Adjustable tines from 0 to 45 inches
• 5000 lbs and 6000 lbs capacity models available
• Brick Guards have a 10 degree angle
  built-in to maximize your Skid-Steers
  roll back and lifting capacity

SPECIFICATIONS

STANDARD DUTY

Model	Fork Length	Fork Size	Weight	Lift Capacity
MPF 42-10	42 Inch	1.5″ x 4″	385 lbs	5000 lbs.
MPF 48-10	48 Inch	1.5″ x 4″	395 lbs	5000 lbs.
MHPF 48-10	48 Inch	1.75″ x 4″	495 lbs	6000 lbs.
MHPF 60-10	60 Inch	1.75″ x 4″	530 lbs	6000 lbs.
MHPF 72-10	72 Inch	1.75″ x 4″	560 lbs	6000 lbs.
Euro/Global Mount
Large Volume Pricing available — Call for Details

WALK THROUGH

Model	Fork Length	Fork Size	Weight	Lift Capacity
MPF 42-WT	42 Inch	1.5″ x 4″	375 lbs	5000 lbs.
MPF 48-WT	48 Inch	1.5″ x 4″	385 lbs	5000 lbs.
MHPF 48-WT	48 Inch	1.75″ x 4″	485 lbs	6000 lbs.
MHPF 60-WT	60 Inch	1.75″ x 4″	520 lbs	6000 lbs.
MHPF 72-WT	72 Inch	1.75″ x 4″	550 lbs	6000 lbs.
