DESCRIPTION

Revised  6/24

MULCHERS FOR EXCAVATORS

PML/EX

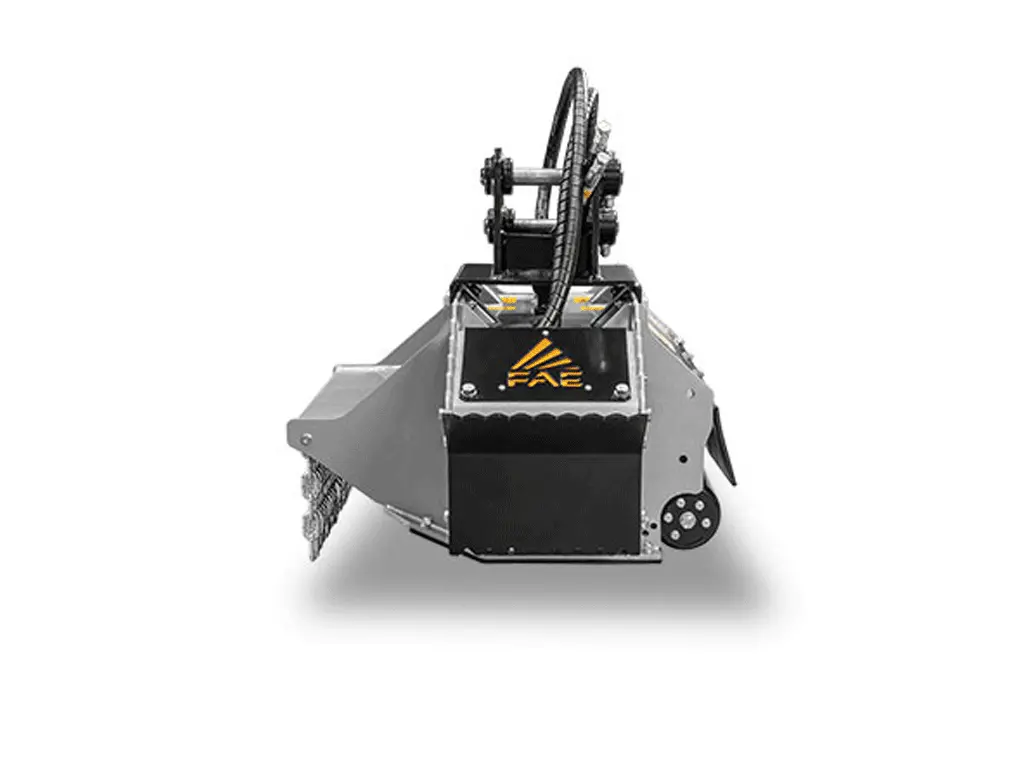

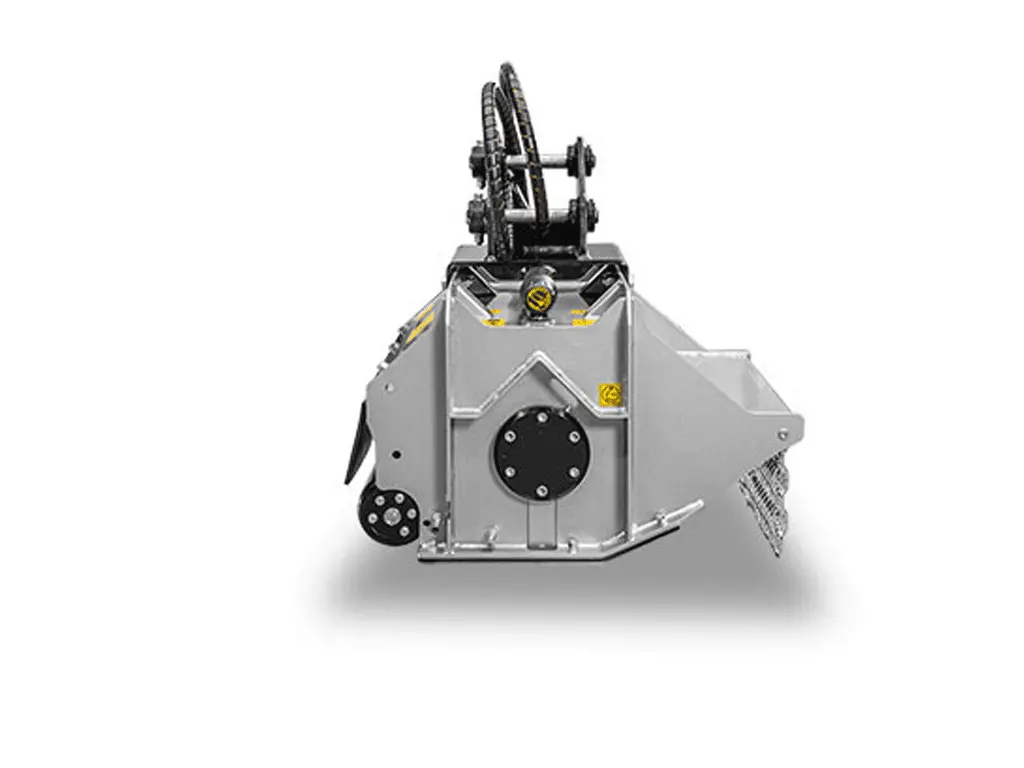

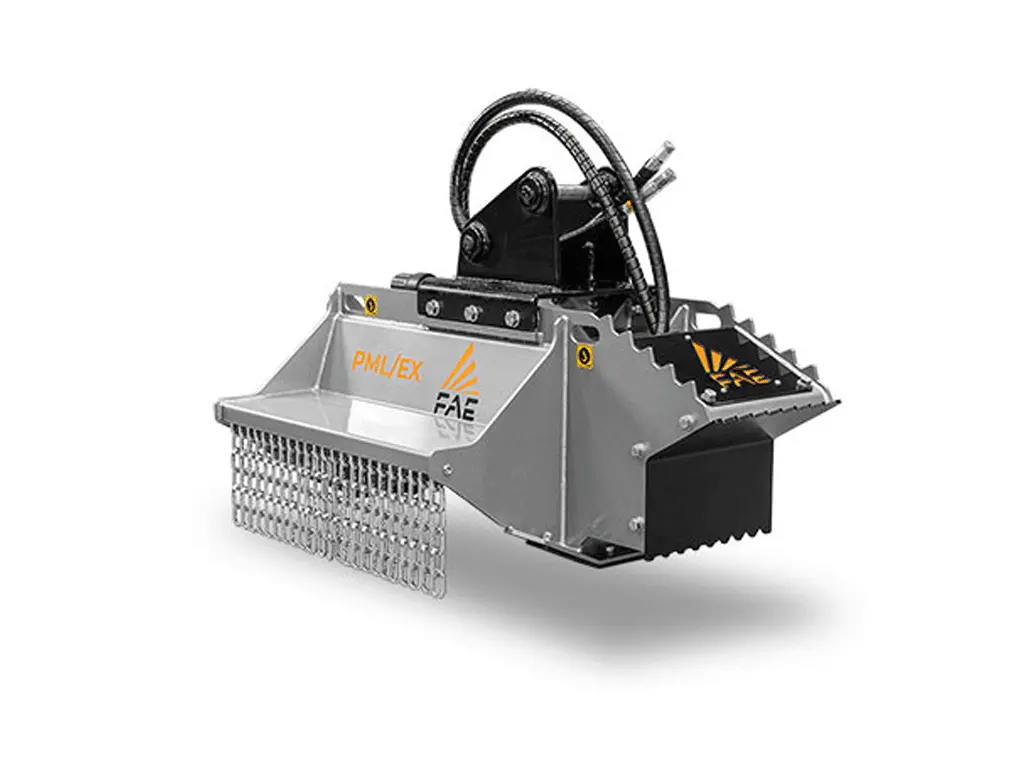

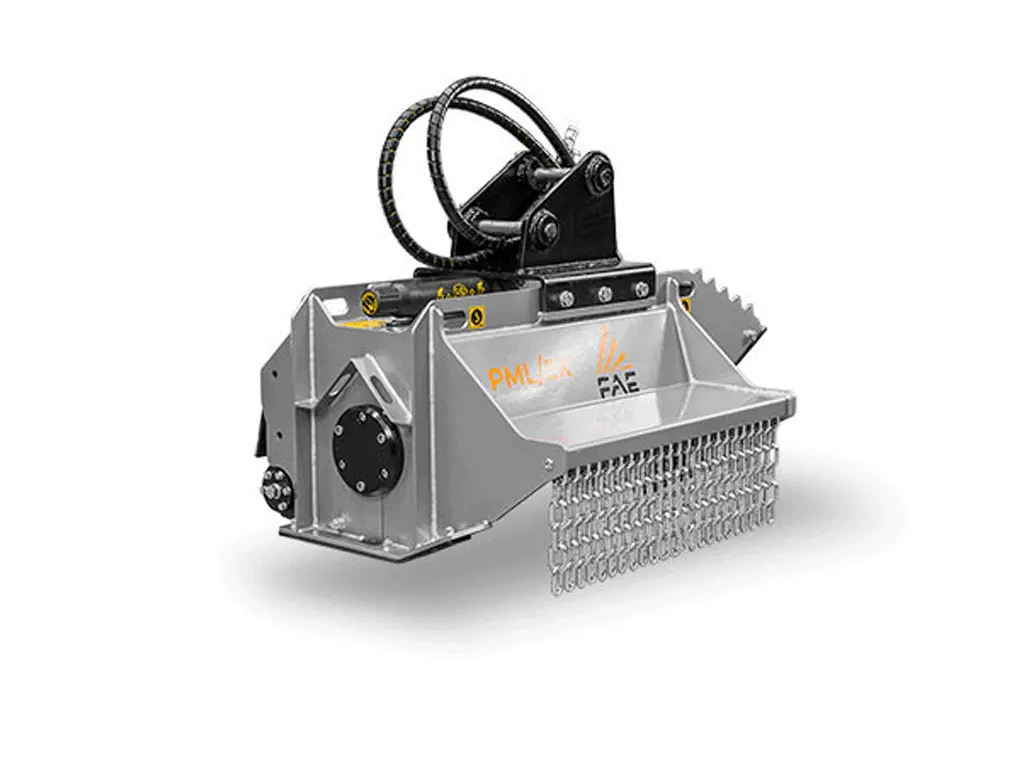

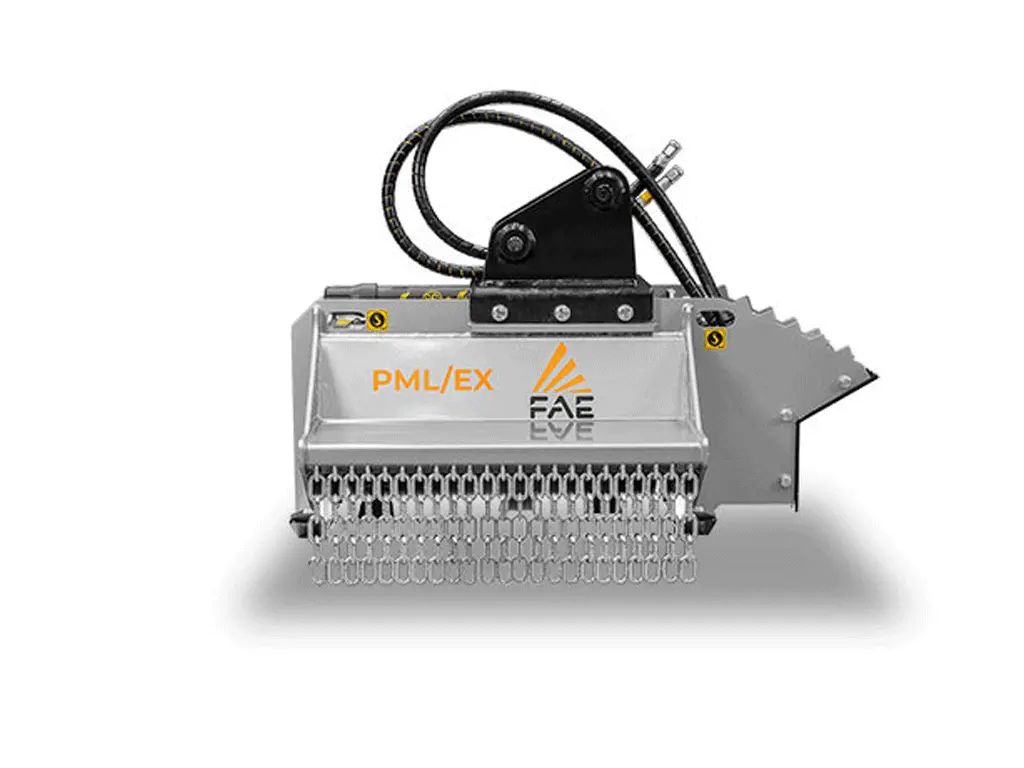

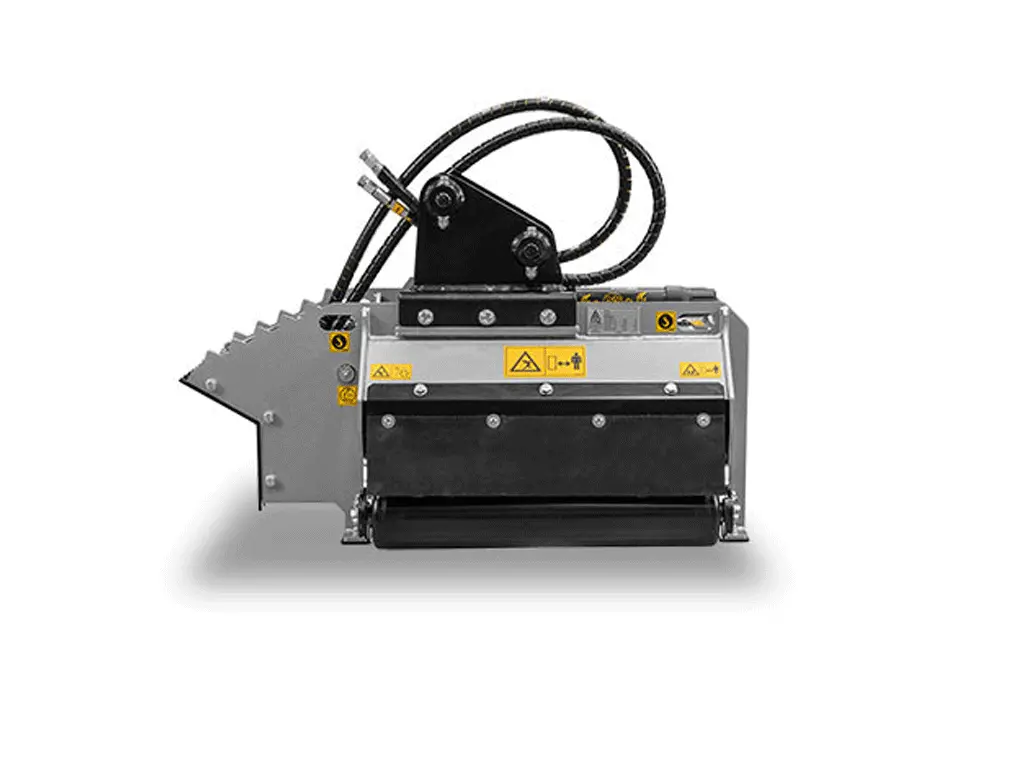

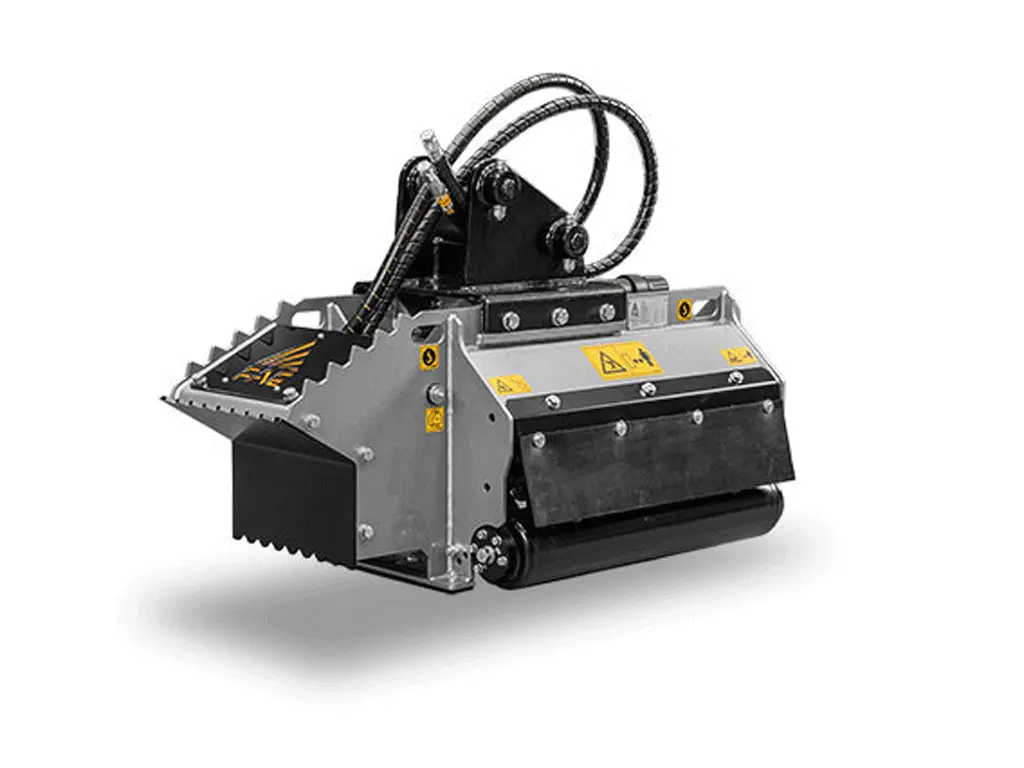

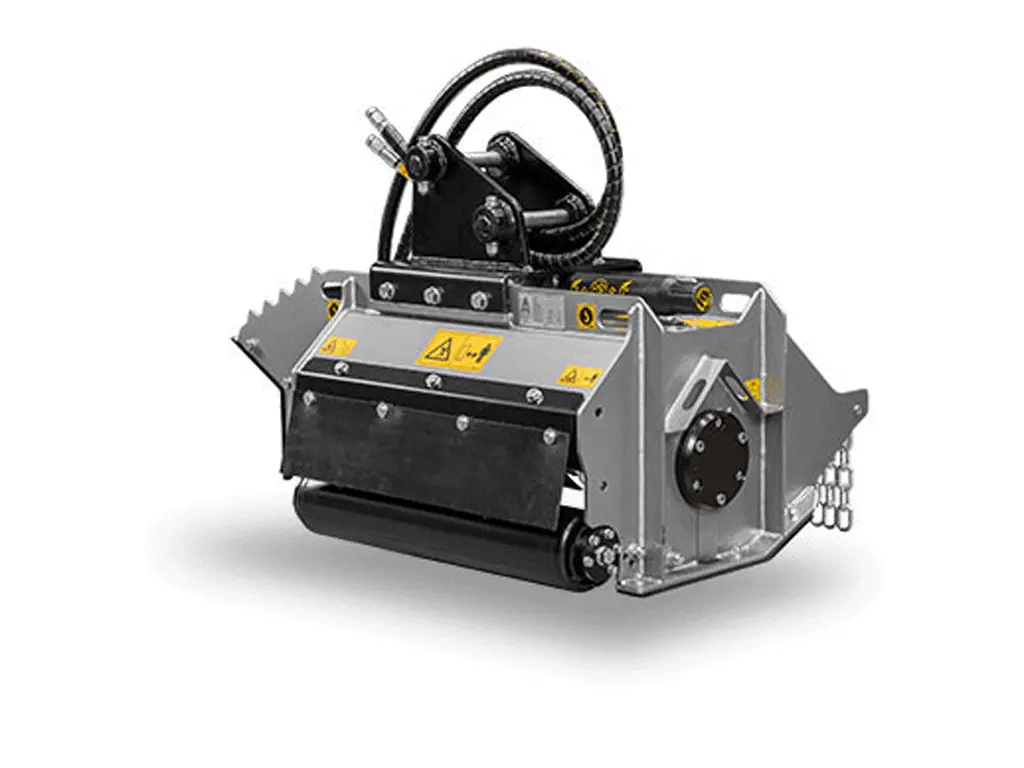

Mulcher with hammer/flail rotor for excavators.

The PML/EX flail mulcher for 2–7.5 ton excavators can shred light vegetation, shrubs and trees up to 5 cm in diameter. The head is designed for high productivity, durability, and easy installation and maintenance. The PML/EX’s Direct Drive motor minimizes maintenance and makes it possible to have an extremely compact machine body. The hydraulic motor’s compatibility with excavators that do not have a drainage line makes the head easier to install. This feature makes the head a plug and play piece of equipment. The PML/EX can be equipped with PML hammers or Y-flail.

• Direct Drive Motor
  for less maintenance and greater compactness
• Different hydraulic motors
  for different excavator models
• Fixed thumb bracket built into the frame
  useful for moving material that needs to be mulched
• Adjustable support roller

APPLICATIONS:

• ROADSIDE AND RAILWAY VEGETATION MAINTENANCE
• CANALS, RIVERS, PONDS OVERGROWTH CLEANUP
• ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS

STANDARD EQUIPMENT

• 11 cc-gear hydraulic motor (PML/EX 75)
• 16 cc-gear hydraulic motor (PML/EX 100)
• 25 cc-gear hydraulic motor (PML/EX 125-150)
• Flow Control valve with integrated safety and anti-cavitation valves
• Direct-drive transmission
• Interchangeable protection chains
• Support roller
• Motor enclosed in the frame
• Enclosed, dust-resistant machine body
• Wear-resistant interchangeable Hardox® soles
• Hydraulic hoses
• Thumb bracket
• Pressed steel counter blades (welded)
• Deflector (PML/EX 125-150)

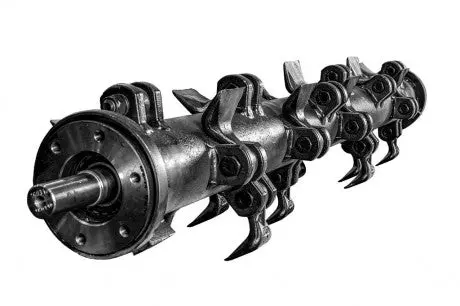

TOOLS	Hammer PML	Blade Y/2
EQUIPPED	STANDARD	OPTIONAL
APPLICATION	Bushes and branches	Bushes and branches

** WE WILL CONTACT YOU ABOUT YOUR MACHINE AND MOUNTING

OPTIONS

• 25 cc-gear hydraulic motor (PML/EX 75-100)
• 16 cc-gear hydraulic motor (PML/EX 75-125-150)
• 11 cc-gear hydraulic motor (PML/EX 100-125-150
• Customized attachment bracket kit with customized pins

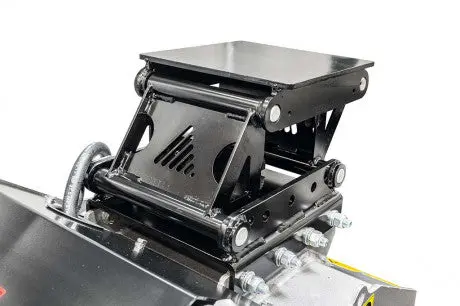

• Attachment plate with self-leveling device
• Multiple tooth options

SPECS

MODEL	PML/EX75	PML/EX 100	PML/EX 125	PML/EX 150
Flow rate (gal/min)	7-24	7-24	7-24	7-24
Pressure (PSI)	2600-3600	2600-3600	2600-3600	2600-3600
Excavator weight (t)	2-4	3.5-5.5	5-7.5	5-7.5
Working width (in)	28	40	49	59
Weight (lbs)	463	595	661	750
Rotor diameter (in)	14.2	14.2	14.2	14.2
Max shredding diameter (in)	2	2	2	2
No. hammers type PML	10	16	20	24
No. flails type Y/2	10	16	20	24
