SNOW PLOW

PLOWMAXX

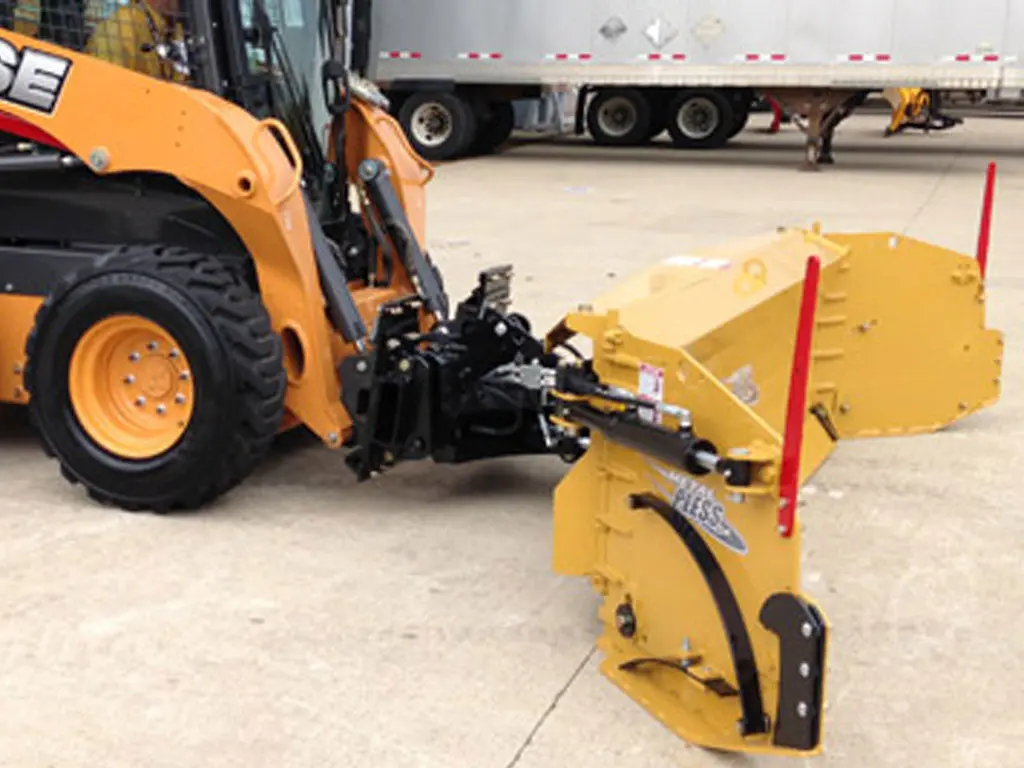

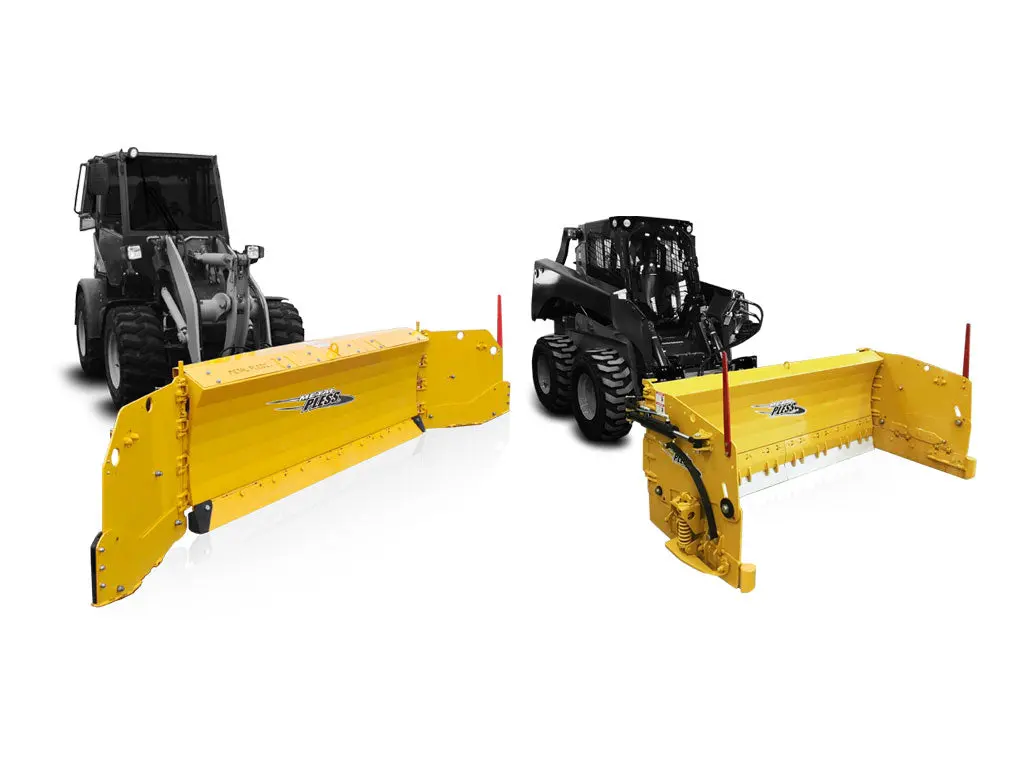

Snow plow with hydraulic wings and angle. The PlowMaxx can be installed on a skid steer, backhoe or wheel loader.

180° multiple hydraulic side wing positions
Side wings made of “Heavy duty” steel CHT400
“Heavy duty” CHT400 steel multi-section mechanical trip edge ½’’ x 6’’ (Std)
SOFT drive mechanical steel trip edge, “Heavy duty” multi-section ½” x 6″ (HD)
Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives (LE)
Carbide cutting edge on main moldboard only (LE)
3 adjustable crossover relief valves for hydraulic protection on the side wings and power angle system
Wings have self-leveling abrasion shoes made of CHT400 steel
Wear plate welded to the skid shoes on the side wings (Std)
SOFT drive mechanical steel trip edge on the wings (HD/LE)
Lateral floating of the blade
Adjustable angulation of the blade
Triple electric valve selector kit (DVDE3) 12 or 24 volts
Baked powder paint
This system requires 1 set of oil outlets

Teflon cutting edge ¾” x 6″
Carbide cutting edge
Curb runners
Non standard colour
Quick attach
Eight (8) button joystick and electric valve (operate all 8 functions by the press of a button) (electric over hydraulic 3 spools mounted on the blade with electric control and necessary cable for the installation in the cab)

BASIC VARIATIONS on blade positions

SPECS

Model	Blade position & width			Side wings	Application	Approx. weight
	Box	Scoop	Extended	H x W	(max. operating weight)
PLLT04.527-8.5	4’6″	6’6″	8’6″	27″ x 24″	6000 lbs	875 lbs
PLLT0527-10	5′	7’6″	10′	27″	6000 lbs	1114 lbs
PLLT0627-11	6′	8’6″	11′	27″	6000 lbs	1242 lbs
PLLT0727-12	7′	9’6″	12′	27″	6000 lbs	1297 lbs
PLSS0630-11	6′	8’6″	11′	30″	12 000 lbs	1640 lbs
PLSS0730-12	7′	9’6″	12′	30″	12 000 lbs	1740 lbs
PLSS0830-13	8′	10’6″	13′	30″	12 000 lbs	1930 lbs
PLBH0736-13	7′	10′	13′	36″	18 000 lbs	2107 lbs
PLBH0836-14	8′	11′	14′	36″	18 000 lbs	2250 lbs
PLBH0936-15	9′	12′	15′	36″	20 000 lbs	2340 lbs
PLBH0836-16	8′	12′	16′	36″ x 48″	20 000 lbs	2435 lbs
PLBH1036-16	10′	13′	16′	36″	20 000 lbs	2427 lbs
PLBH1236-18	12′	15′	18′	36″	20 000 lbs	2620 lbs
PLLD0842-15	8′	11’6″	15′	42″	25 000 lbs	2842 lbs
PLLD0842-16	8′	12′	16′	42″ x 48″	25 000 lbs	3000 lbs
PLLD1042-17	10′	13’6″	17′	42″	25 000 lbs	3205 lbs
PLLD1042-18	10′	14′	18′	42″ x 48″	25 000 lbs	3277 lbs
PLLD1242-19	12′	15’6″	19′	42″	25 000 lbs	3326 lbs

Explore more from our collection.

Models	PLSS0830-13STD, PLSS0830-13HD, PLSS0830-13LE
