Description
DESCRIPTION

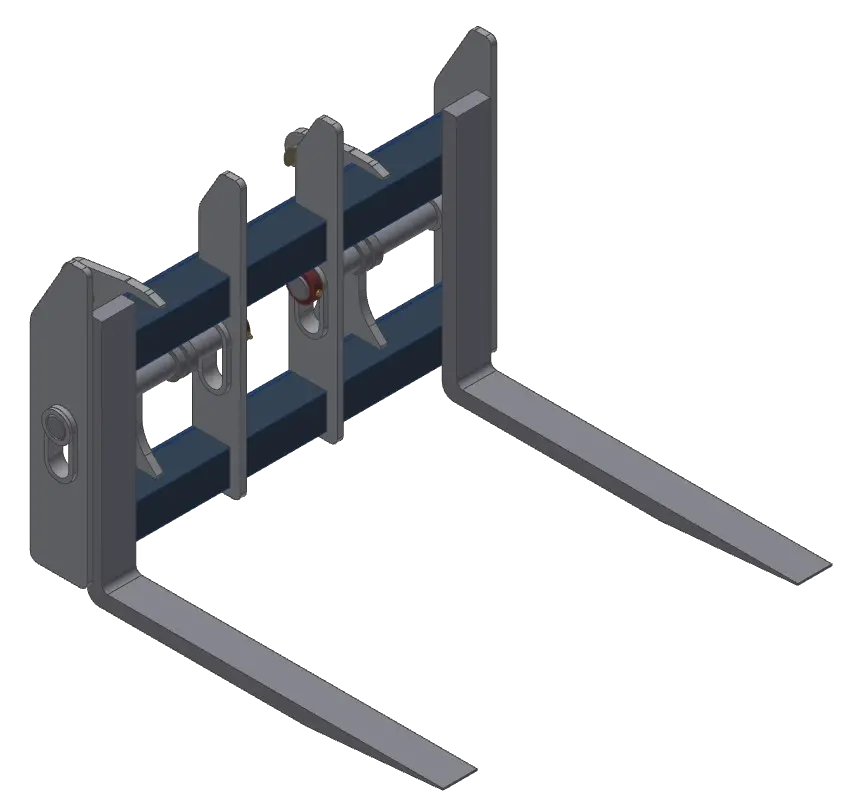

Log & Lumber Forks (Class 500 Only)

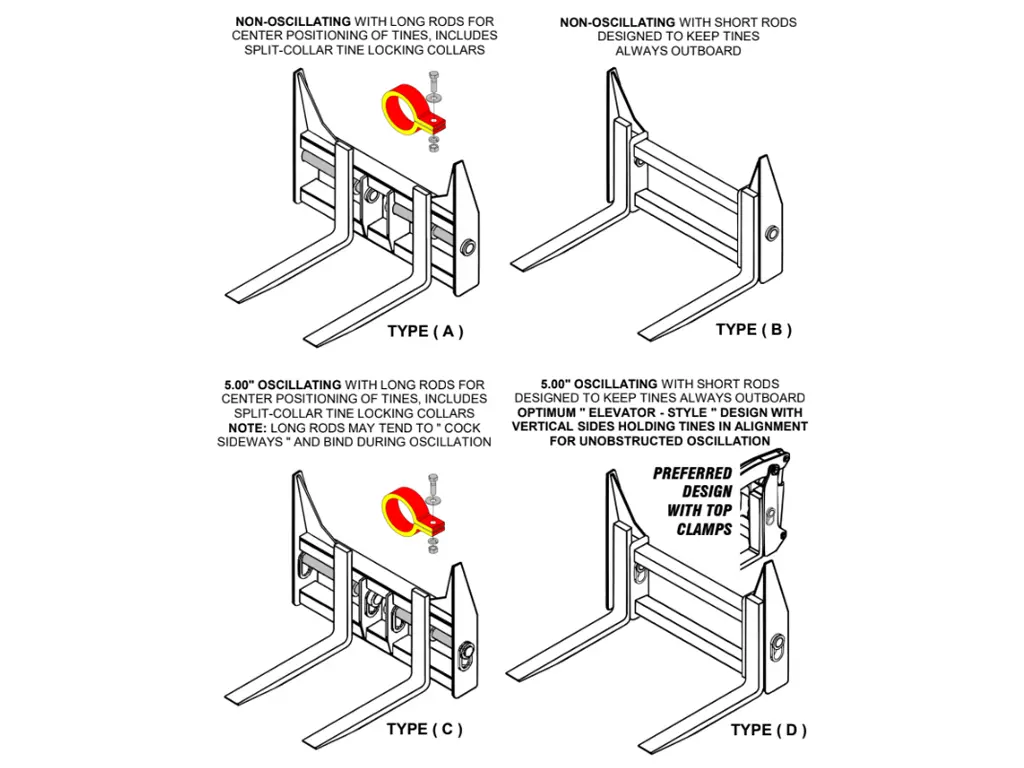

PLEASE CHECK THE PICTURES OF THE STYLES BELOW!
TAG Log & Lumber Forks Offer A Heavy Duty Fork Solution For Lumber Yards.
- Heavy Duty Carriage
- Full Length Sides And Gussets With Optional Extra Height Single Piece Back Stops
- Rod Mounted Tines
- Carriages Offered With Fixed Tine Rods Or 5.00″ Oscillating Rods
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60″ – 106″
- Tine Lengths: 48″ – 96″
- **See Fork Carriage Configurations For Further Options**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the “FITS” tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
SPECIFICATIONS
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24″ Load | Weight |
| 500 | P500LF8048 | 80″ | 3.0″ X 7″ X 48″ | 38″-72″ | 33250 LBS |
1655 LBS |
| 500 | P500LFO8048 | 80″ | 3.0″ X 7″ X 48″ | 38″-72″ | 33250 LBS | 1655 LBS |
| 500 | P500LF8060 | 80″ | 3.0″ X 7″ X 60″ | 38″-72″ | 33250 LBS | 1805 LBS |
| 500 | P500LFO8060 | 80″ | 3.0″ X 7″ X 60″ | 38″-72″ | 33250 LBS | 1805 LBS |
| 500 | P500LF8072 | 80″ |
3.0″ X 7″ X 72″ |
38″-72″ | 33250 LBS | 1955 LBS |
| 500 | P500LFO8072 | 80″ |
3.0″ X 7″ X 72″ |
38″-72″ | 33250 LBS | 1955 LBS |
| 500 | P500LF8084 | 80″ |
3.0″ X 7″ X 84″ |
38″-72″ | 33250 LBS | 2105 LBS |
| 500 | P500LFO8084 | 80″ |
3.0″ X 7″ X 84″ |
38″-72″ | 33250 LBS | 2105 LBS |
| 500 | P500LF8096 | 80″ |
3.0″ X 7″ X 96″ |
38″-72″ | 33250 LBS | 2255 LBS |
| 500 | P500LFO8096 | 80″ |
3.0″ X 7″ X 96″ |
38″-72″ | 33250 LBS | 2255 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24″ Load | Weight |
| 500 | QC500LF8048 | 80″ | 3.0″ X 7″ X 48″ | 38″-72″ | 33250 LBS | 1655 LBS |
| 500 | QC500LFO8048 | 80″ | 3.0″ X 7″ X 48″ | 38″-72″ | 33250 LBS | 1655 LBS |
| 500 | QC500LF8060 | 80″ | 3.0″ X 7″ X 60″ | 38″-72″ | 33250 LBS | 1805 LBS |
| 500 | QC500LFO8060 | 80″ | 3.0″ X 7″ X 60″ | 38″-72″ | 33250 LBS | 1805 LBS |
| 500 | QC500LF8072 | 80″ | 3.0″ X 7″ X 72″ | 38″-72″ | 33250 LBS | 1955 LBS |
| 500 | QC500LFO8072 | 80″ | 3.0″ X 7″ X 72″ | 38″-72″ | 33250 LBS | 1955 LBS |
| 500 | QC500LF8084 | 80″ | 3.0″ X 7″ X 84″ | 38″-72″ | 33250 LBS | 2105 LBS |
| 500 | QC500LFO8084 | 80″ | 3.0″ X 7″ X 84″ | 38″-72″ | 33250 LBS | 2105 LBS |
| 500 | QC500LF8096 | 80″ | 3.0″ X 7″ X 96″ | 38″-72″ | 33250 LBS | 2255 LBS |
| 500 | QC500LFO8096 | 80″ | 3.0″ X 7″ X 96″ | 38″-72″ | 33250 LBS | 2255 LBS |
