DESCRIPTION

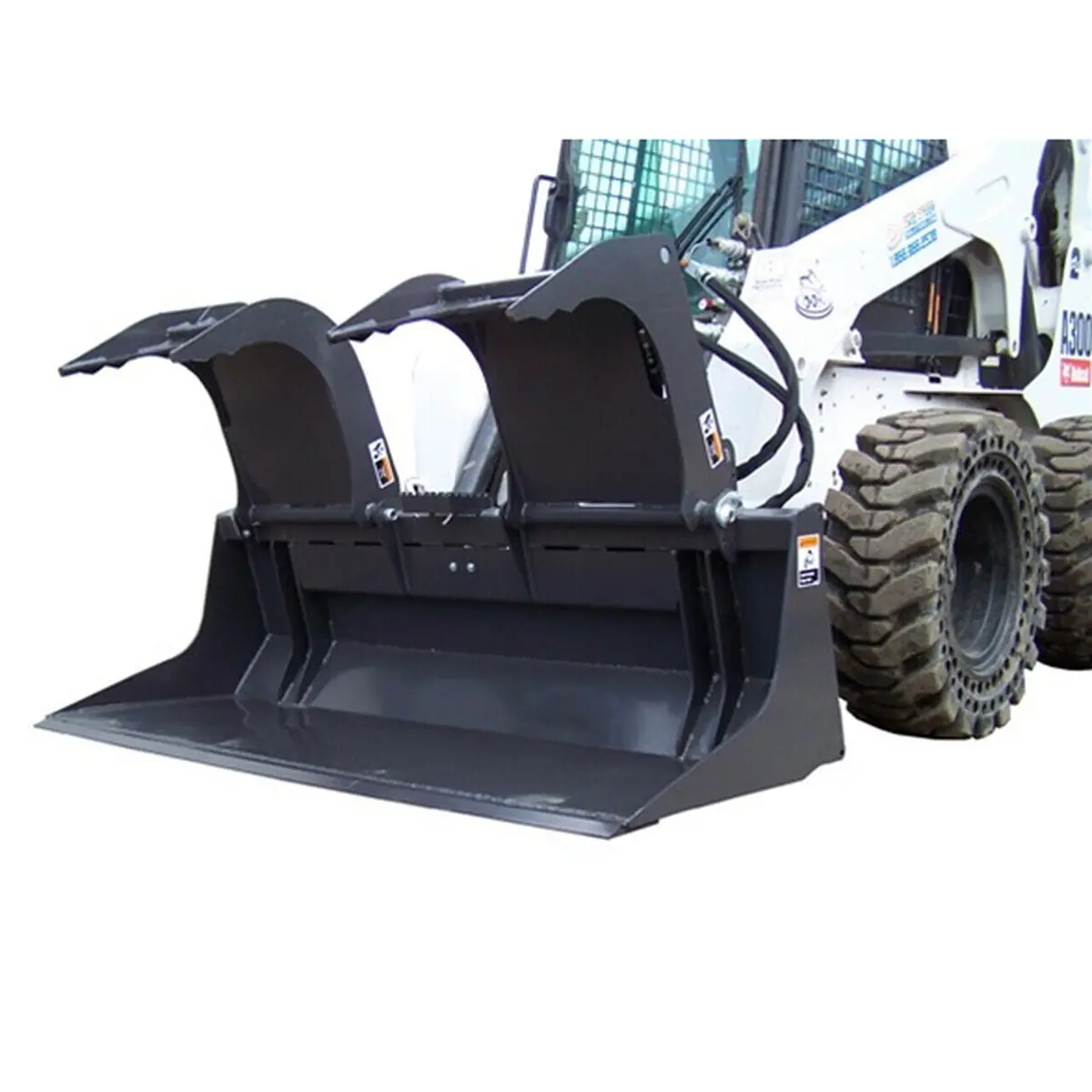

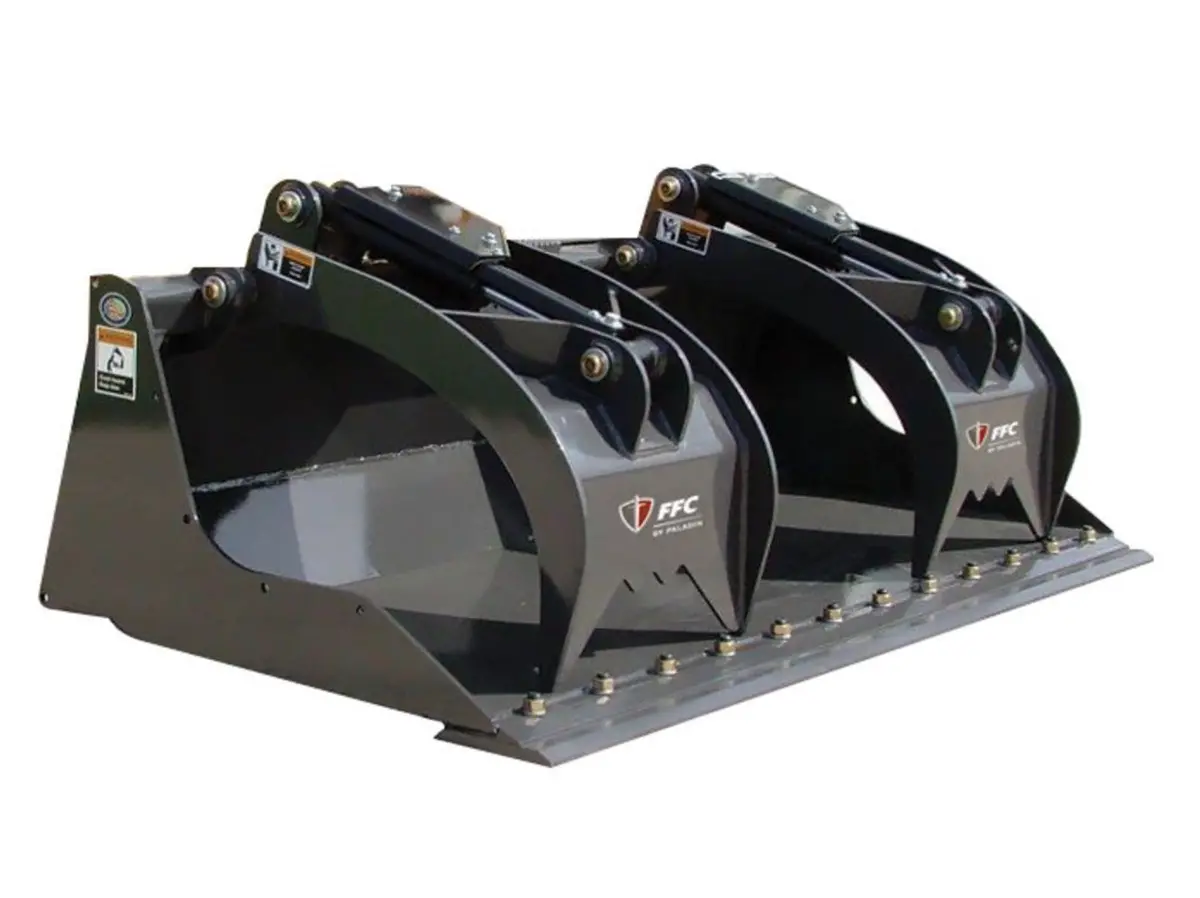

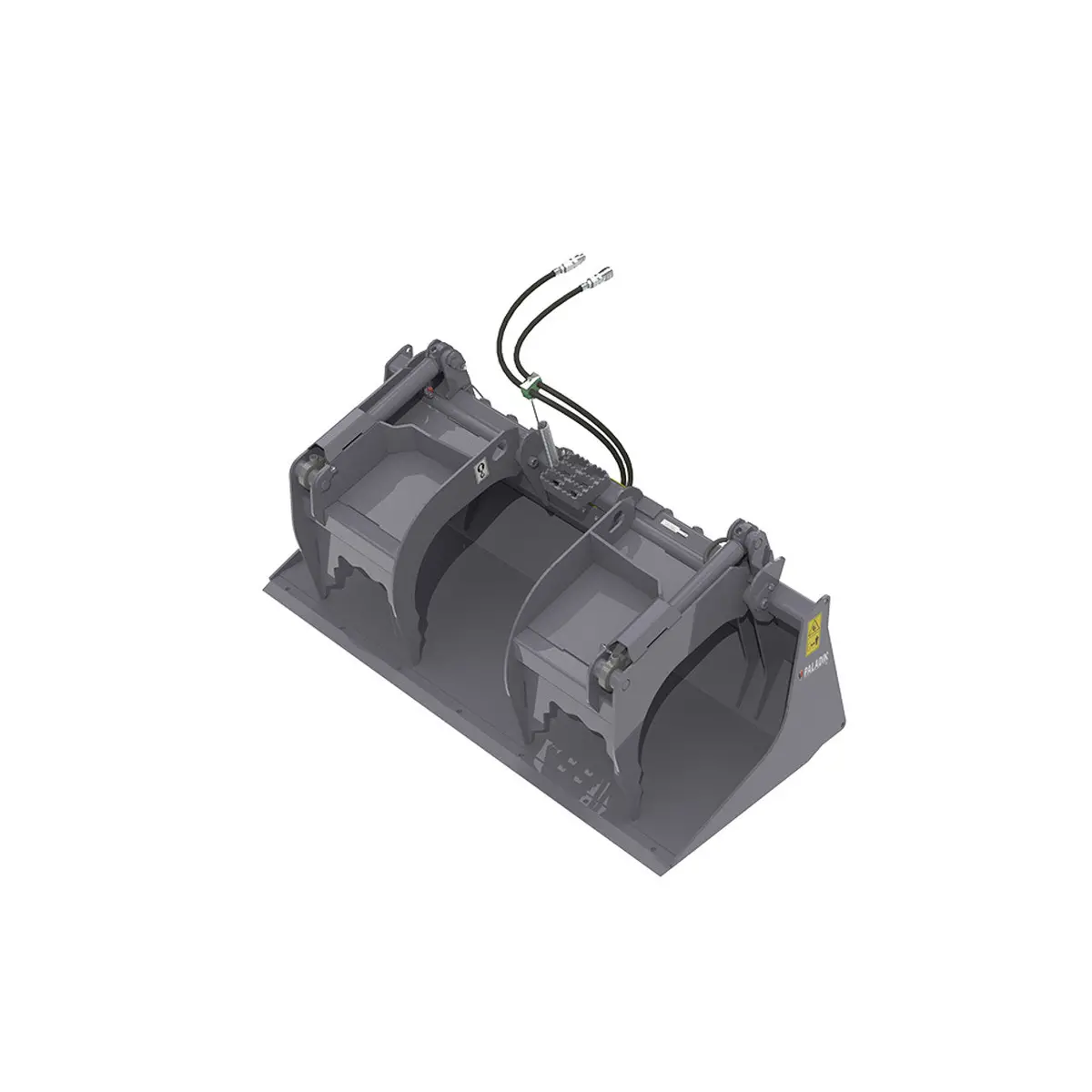

SCRAP GRAPPLE BUCKETS
The FFC Commercial Scrap Grapple and Utility Grade Scrap Grapples are ideal for recycling, construction clean up, heavy duty material handling, rock work, landscaping, demolition clean up, and farm work.
SD & HD FEATURES
- Standard cylinder guards protect all cylinder components
- Standard load check valve
- 1.25″ cylinder pivot pins
- 1.25″ x 24″ patented grapple pins reduce torsional force
- Patented cushioned cylinders are 2″ x 8″ x 1.25″ on full feature
- Bucket edge drilled for FFC® replaceable edge unless specified
- Optional .75″ x 8″ double bevelled edge
XD FEATURES
- Optional cylinder guards protect all cylinder components
- 1.5″ x 8.625″ heat-treated, greasable pivot pins on full feature
- 1.5″ x 27.125″ patented grapple pins reduce torsional force
- 375″ end plates
- Patented cushioned & sleeved cylinders are 2.5″ x 8″ x 1.75″ on full feature
- Bucket edge drilled for FFC® replaceable edge unless specified
- Optional .75″ x 8″ double bevelled edge
SPECIFICATIONS
| Duty class | Width (in) | Lbs | Height open (in) | Height closed (in) | Depth (in) | Holes | Hole spacing (in) |
| Standard | 60″ | 775 | 34″ | 20″ | 36″ | 7 | 9″ |
| Standard | 66″ | 800 | 34″ | 20″ | 36″ | 7 | 10″ |
| Standard | 72″ | 870 | 34″ | 20″ | 36″ | 7 | 11″ |
| Heavy | 76″ | 1081 | 40″ | 20″ | 38″ | 8 | 10″ |
| Heavy | 82″ | 1133 | 40″ | 20″ | 38″ | 9 | 10″ |
| Extreme | 72″ | 1303 | 45.5″ | 19″ | 38″ | 7 | 11″ |
| Extreme | 78″ | 1514 | 45.5″ | 19″ | 38″ | 9 | 9″ |
| Extreme | 82″ | 1542 | 45.5″ | 19″ | 38″ | 9 | 10″ |
BIG DAVE
Not available at this time.
