Heavy-Duty Skid Steer Bucket – Blue Diamond Long-Bottom Design

Price range: $92.17 through $92.93

Quantity
SKU: N/A Category: Brand:

Description

DESCRIPTION

3/24

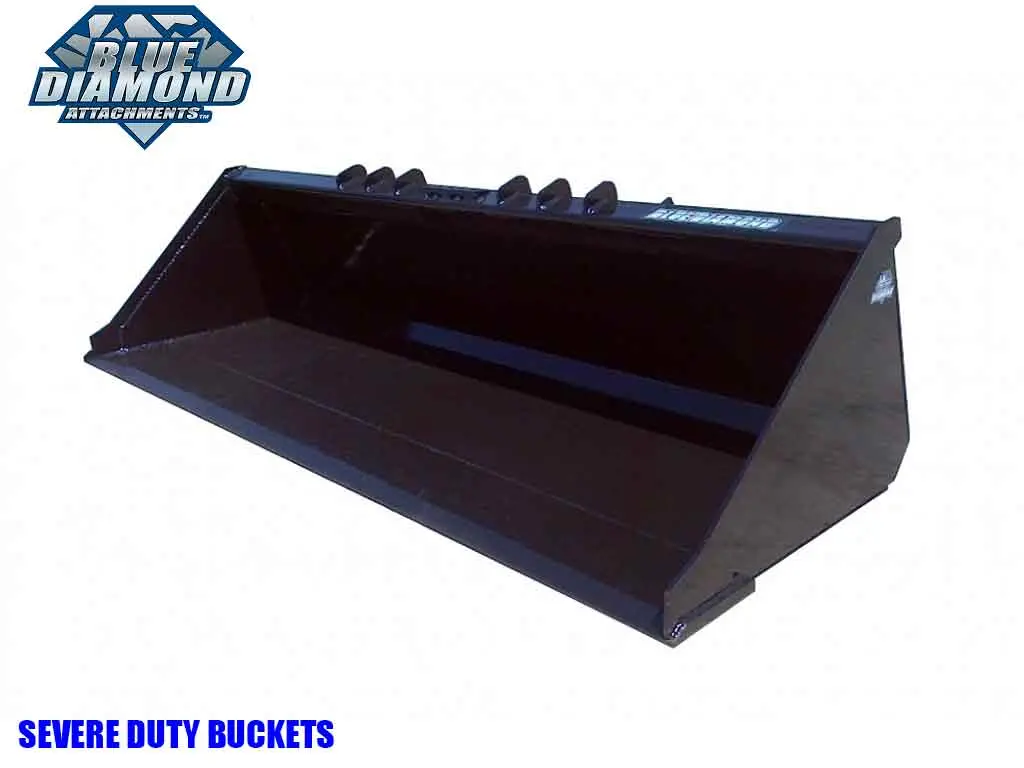

LOW PROFILE – SEVERE DUTY BUCKET

The Blue Diamond® Severe Duty Bucket is among the heaviest duty skid steer buckets on the market. It is available in 60”, 72”, 78”, 84”, or 90” widths, low profile, and/or, high capacity. It is constructed from heavy gauge steel consisting of a 1/2” bottom, double-layer 1/4” back, and a 1” x 8” cutting blade.

FEATURES INCLUDE :

  • 1/2″ floor
  • Double layer 1/4″ back
  • Heavily gusseted quick attach

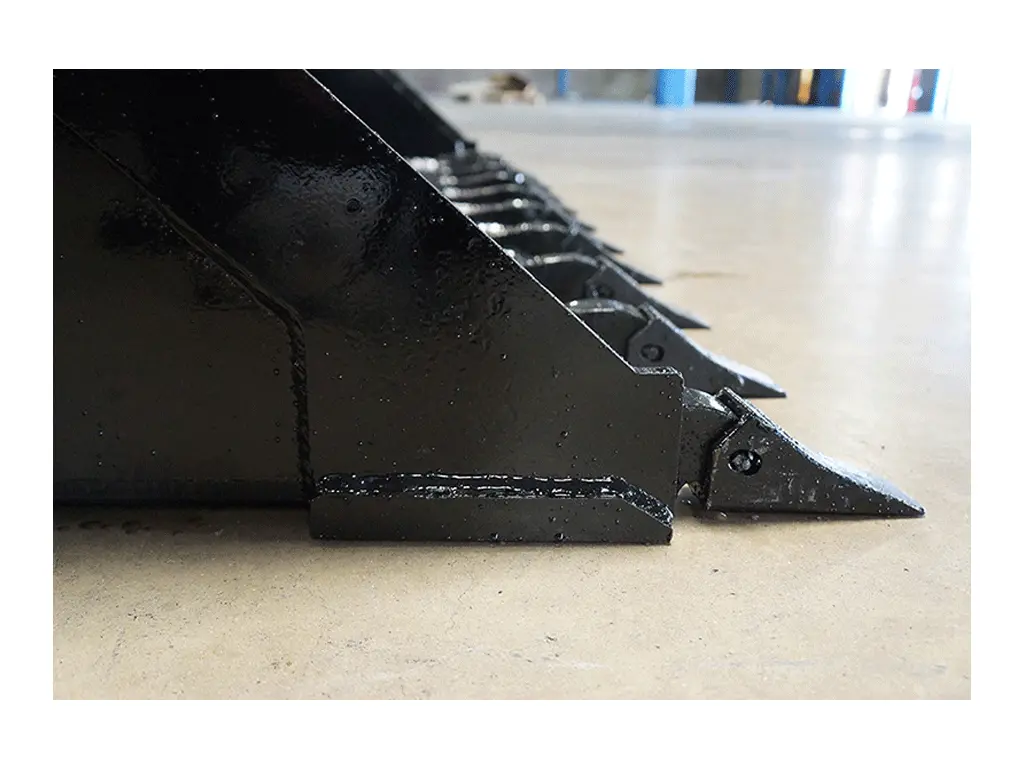

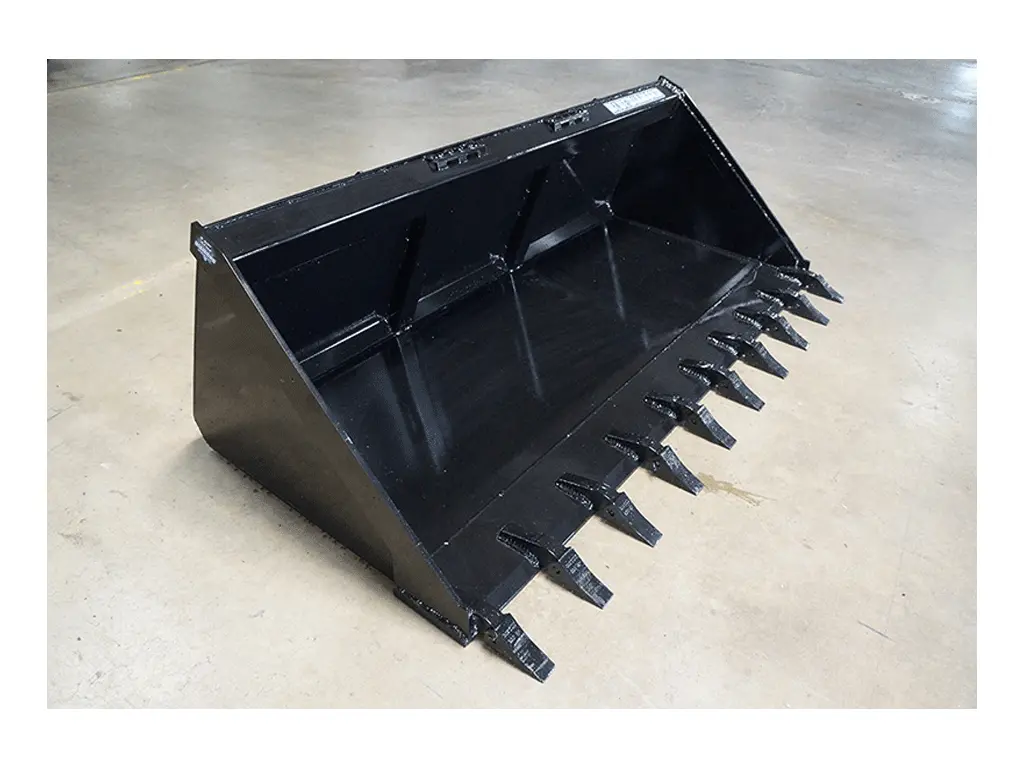

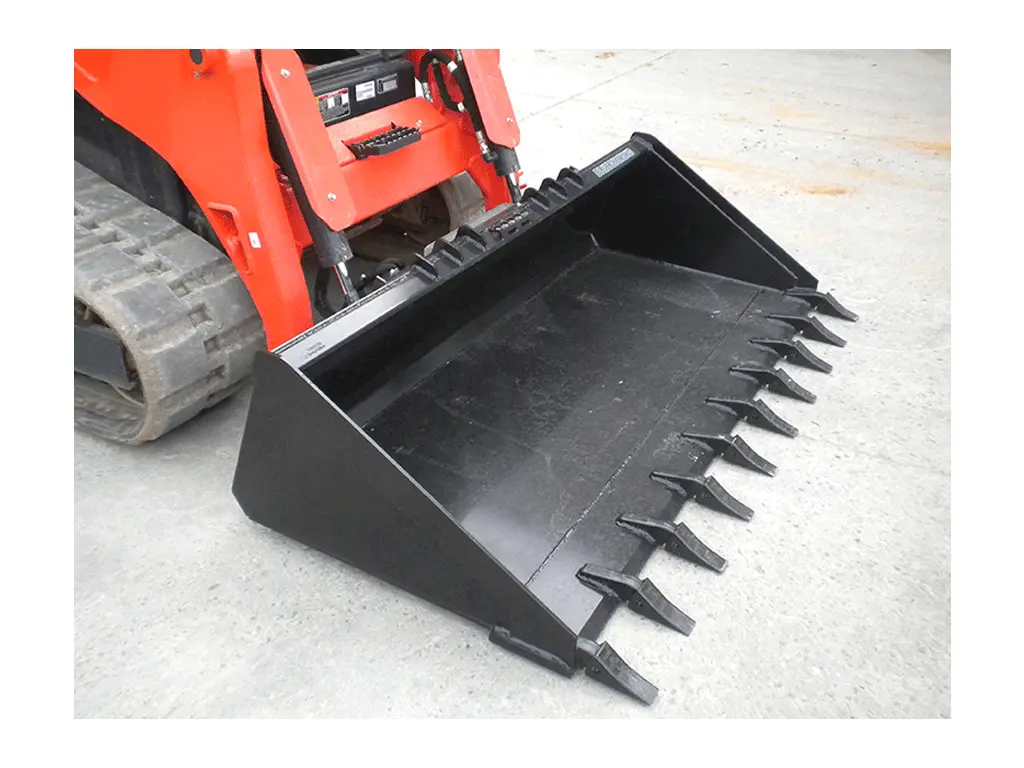

  • Tooth buckets use a 1″ x 8″ cutting edge
  • Available in low profile, long bottom, and high capacity
  • Low profile: 19” tall, 29” deep
  • Long bottom: 19” tall, 35” deep

    SPECIFICATIONS
    Part Number Model Struck Capacity Weight
    108260 66″ Low Profile, Severe Duty, Smooth 11.4 cu ft 650 lbs
    108263 66″ Low Profile, Severe Duty, Tooth 11.4 cu ft 675 lbs
    108270 72″ Low Profile, Severe Duty, Smooth 11 cu ft 710 lbs
    108273 72″ Low Profile, Severe Duty, Tooth 11 cu ft 724 lbs
    108275 78″ Low Profile, Severe Duty, Smooth 12 cu ft 690 lbs
    108277 78″ Low Profile, Severe Duty, Tooth 12 cu ft 757 lbs
    108280 84″ Low Profile, Severe Duty, Smooth 12.9 cu ft 738 lbs
    108282 84″ Low Profile, Severe Duty, Tooth 12.9 cu ft 813 lbs
    108283 90″ Low Profile, Severe Duty, Tooth 18.8 cu ft 925 lbs
    108284 72″ Low Profile, Severe Duty, Smooth-Long Bottom 23 cu ft 732 lbs
    108285 72″ Low Profile, Severe Duty, Tooth-Long Bottom 23 cu ft 774 lbs
    108286 78″ Low Profile, Severe Duty, Smooth-Long Bottom 25 cu ft 759 lbs
    108287 78″ Low Profile, Severe Duty, Tooth-Long Bottom 25 cu ft 826 lbs
    108290 84″ Low Profile, Severe Duty, Smooth-Long Bottom 27 cu ft 848 lbs
    108293 84″ Low Profile, Severe Duty, Tooth-Long Bottom 27 cu ft 965 lbs
    108296 90″ Low Profile, Severe Duty, Tooth-Long Bottom 18.8 cu ft 875 lbs

    Explore more from our collection.

    Additional information

    Style

    Low profile, Long bottom
    Size

    66", 72", 78", 84", 90"
    Edge

    WELD ON SMOOTH EDGE, WELD ON TEETH
