DESCRIPTION
Revised 11/24

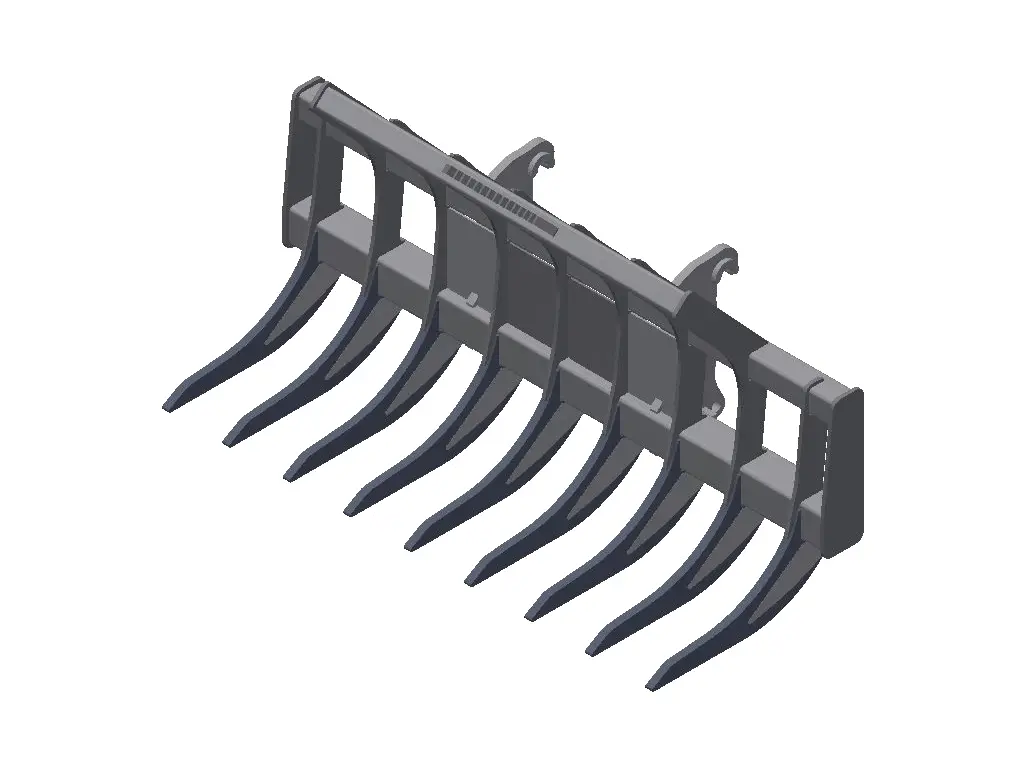

Rakes for Mini Excavators
TAG Heavy Duty Rakes Are Offered For Rubber Tire Backhoes As Well As Compact (MINI) And Full Sized Excavators. Various Widths And Tine Quantities Available Based On Machine Class. – Can Be Utilized As Grapple When Paired With A TAG Thumb – Can Be Custom Built To Match Thumb Length – Pin On And Quick Coupler Hook Up Configurations Available.
SIZE
- 24″
- Call for custom sizes
Mountings
- TAG Quick Couplers (QC) 1.25″ and 1.75″ T-pins
- John Deere / Hitachi Wedge Lock Couplers
- Kubota USA style couplers
- Bobcat exchange
- OEM pin on style (Will match your machine models pin on configuration)
SPECS
| Description | Class | Lbs. Class | Width |
APPROXIMATE LENGTH |
Tines | Lbs. |
| QC HD | CL25 | 8000-12000 | 24″ | 12″ | 5 | 300 |
| Wedge HD | CL25 | 8000-12000 | 24″ | 12″ | 5 | 300 |
| OEM Pin HD | CL25 | 8000-12000 | 24″ | 12″ | 5 | 300 |
| KUBOTA USA | CL25 | 8000-16000 | 24″ | 12″ | 5 | 300 |
FITS
| BRAND | MODELS (8000-12000 lbs) |
| BOBCAT | E42, E45, E50, E55, 337, 341, 435 |
| CASE | CX50B, CX50, CX47 |
| CAT | 304CCR, 305CCR, 304.5, 304CR, 305CR |
| DAEWOO | SOLAR50, SOLAR55 |
| DEERE | 50G, 50D, 50C, *60G |
| DOOSAN | SOLAR55-V, SOLAR55-W |
| GEHL | 503Z, 603, 502, 602, 652 |
| HITACHI | ZX50U-2, ZX60USB-5 |
| HYUNDAI | R55-7, R552-7 |
| IHI | 45V4, 55V4, 60V4, 45NX, 55NX |
| JCB | 8040, 8045, 8050, 8052, 48Z-1, 51R-1, 55Z-1 |
| KOBELCO | 50SR-3, SK045, SK050 |
| KOMATSU |
PC40Mr-2, PC50Mr-2, PC58UU-3 PC45 |
| KUBOTA | KX161, (KX161-3, U45), *(U48,U55,KX057) |
| NAGANO | NS-45 |
| MUSTANG | 5002, 6002, 6003, 6502 |
| NEW HOLLAND | E50, EC45, EH45 |
| TEREX |
HR16/TC35, HR3.7/TC37, HR18 TC48, HR5.0/TC50, HR20/TC60 |
| THOMAS | T45 |
| VOLVO |
EC45Pro, EC55BPro |
| WACKER | 50Z3, 6003, 6503 |
| YANMAR |
Vio40-3, Vio-50-3 Vio45-6A, Vio55-6A |
* FOR RAKES THESE MACHINE WERE ADDED TO THIS SIZE
