DESCRIPTION

9/25

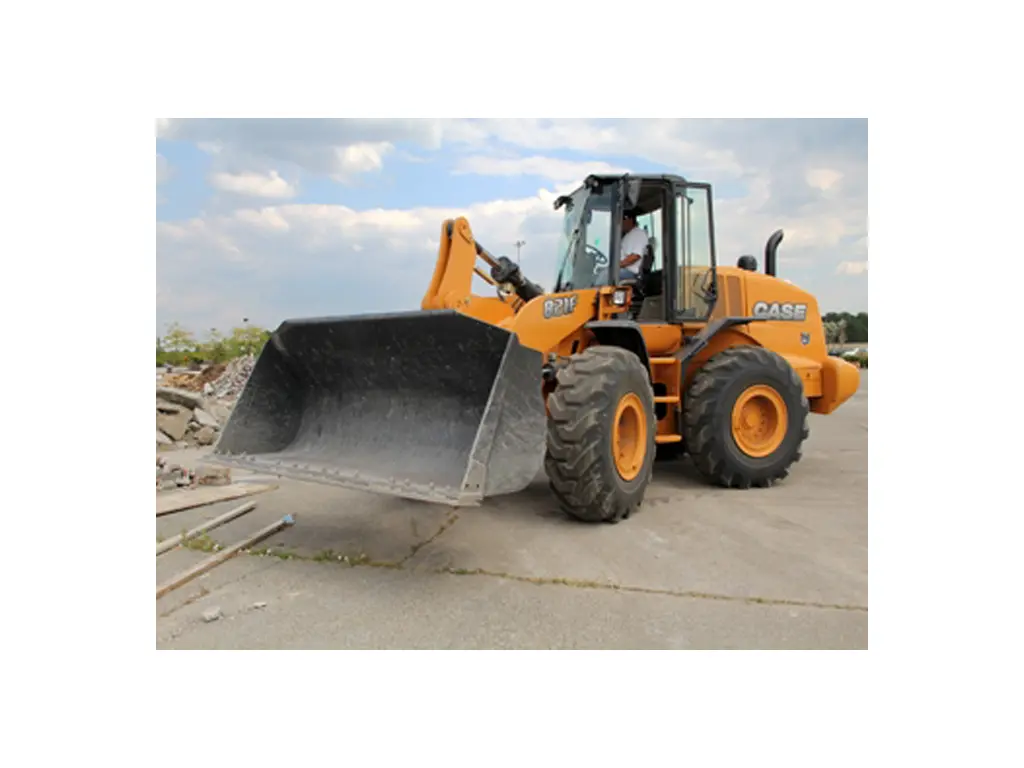

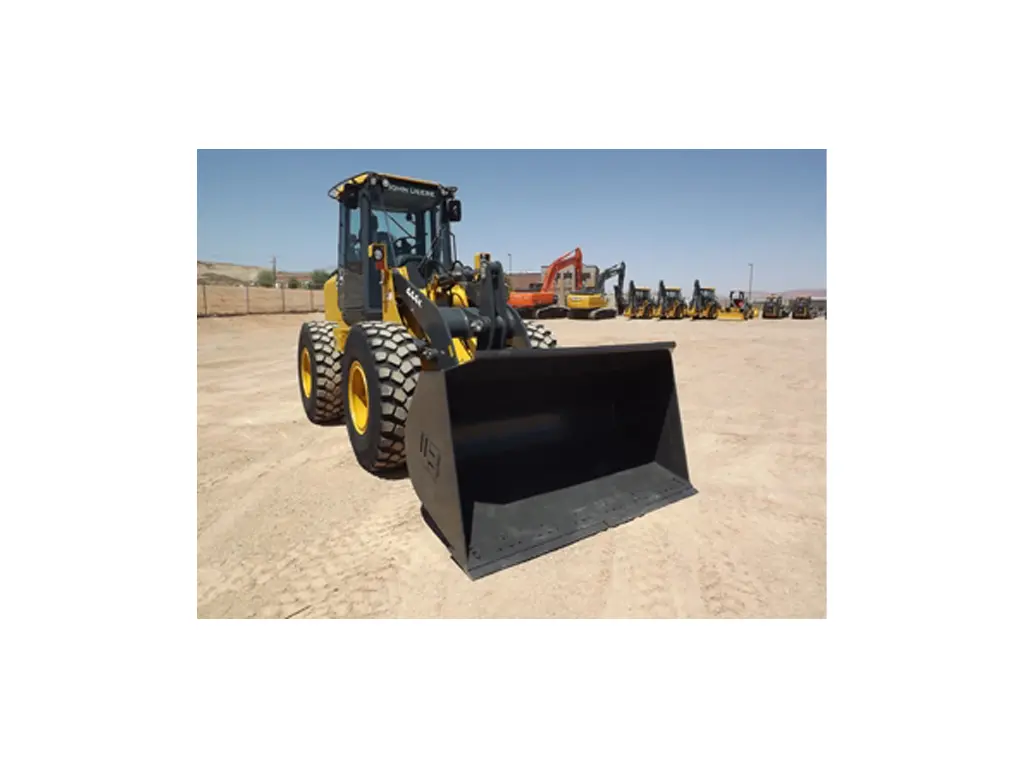

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.

Features

• Enhanced High performance Profile
• Designed for general purpose applications with material densities up to 3,200 lb/cy
• Performance side plates & increased roll back angle allow for greater material retention
• 5%+ greater material retention
• Tapered side plates to reduce wear & easier dumping
• integrated spill guard

SPECIFICATIONS

PART #	WIDTH	CAPACITY	WEIGHT
LHG6132650	134″	6.50	5950
LHG6132750	134″	7.50	6350
LHG6138750	138″	7.50	6600
LHG6132800	134″	8.00	6100

FITS

CLASS 6

CLASS 6 (51,000 – 68,000 LBS)	MODEL
CASE	1221
CAT	972, 980
DEVELON	DL480-7, DL550-5, DL550-7
HITACHI	ZW370
HYUNDAI	HL780
JCB
JOHN DEERE	844
KOMATSU	WA500
KUBOTA
LIEBHERR	L576X, L580X, L586X
LINK-BELT
NEW HOLLAND
SANY
TAKEUCHI
VOLVO	L180, L220
WACKER NEUSON
YANMAR
