DESCRIPTION

7/25

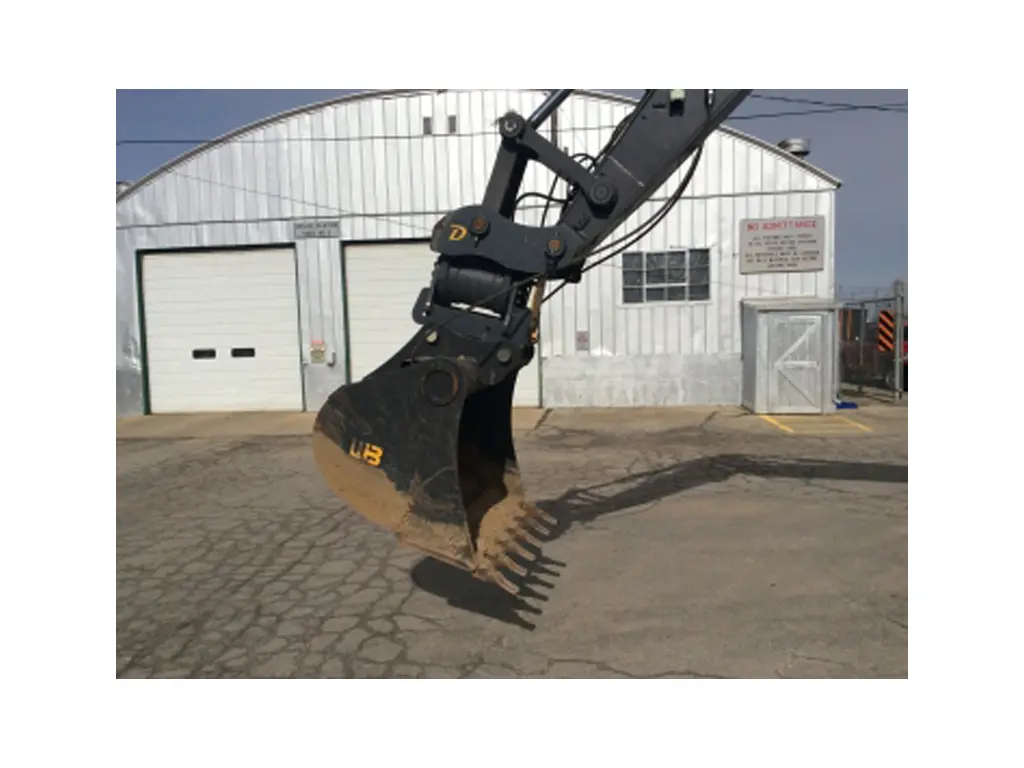

POWERGRIP BUCKET

Recommended Applications

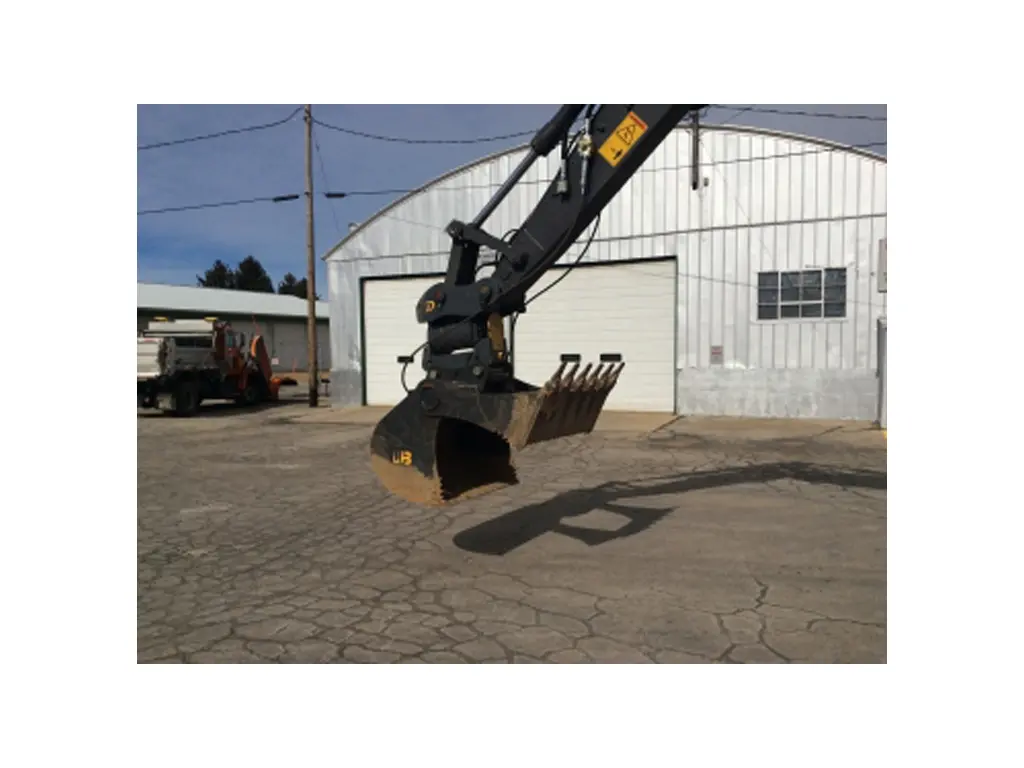

Specifically designed to enhance a machines grading, trenching, or clamshell capabilities with precise control. Capable of 120 degrees of jaw movement.

Quality Construction

High strength steel is used throughout the weldment. Hardened greasable bushings are utilized at all pivot points. High quality actuator used inside cross tube with no exposed cylinders. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. Includes a holding force of approximately 3x clamping force, while maintaining constant operating speed.

Standard Sizes

Widths range from 24″ and 60″ pending machine class. Capacities range from 0.46 cu yd up to 1.50 cu yd.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available.

Features

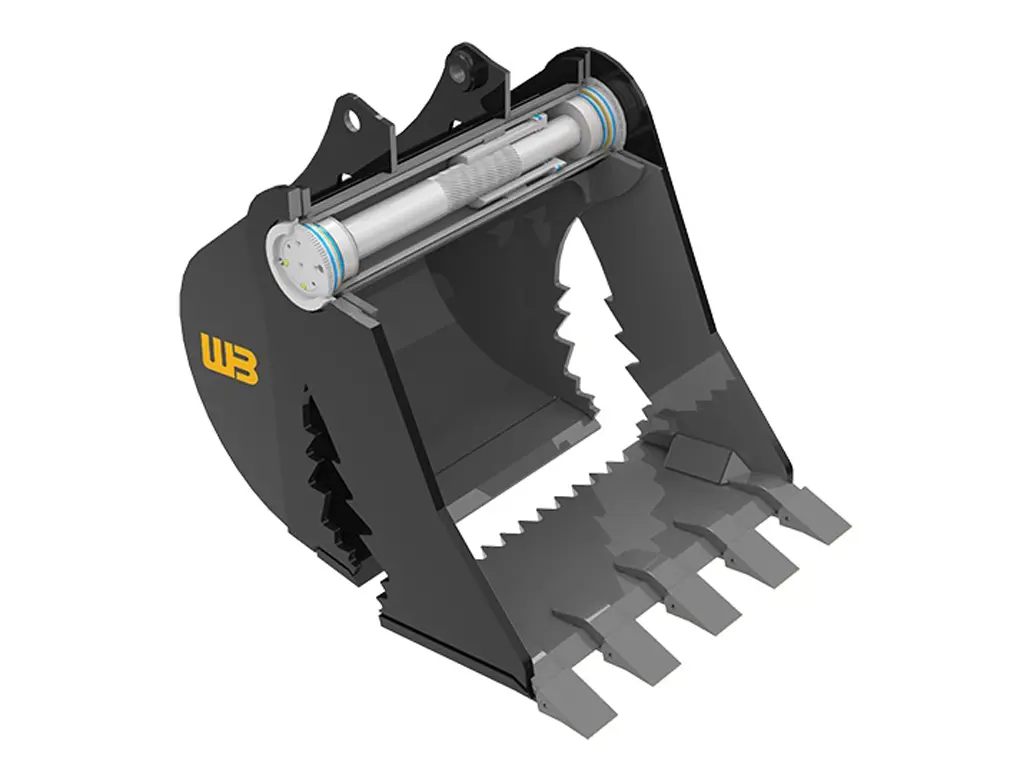

• Enclosed rotary actuator hinge in cross-tube
• No obstruction in jaw or bucket shell
• No exposed cylinders or other external moving parts
• 120° of jaw movement
• Consistent clamping force through jaw’s full range of motion
• Equal force exerted at both sides prevents jaw twisting
• Standard OEM lugging
• Quick-coupler compatible
• Uses existing auxiliary hydraulic circuit
• Clamping force approximately 3x of standard thumb

SPECIFICATIONS

PART #	WIDTH	CAPACITY	# OF TEETH	WEIGHT
PG08-36-21T	36″	0.95	5	2,000
PG08-48-21T	48″	1.18	6	2,750
PG07-48-21D	48″	1.18	BOCE	2,020
PG07-60-21D	60″	1.50	BOCE	2,330

 MACHINE FITS

 15 METRIC TONS

MAKE / WEIGHT CLASS	15MT (33,000 – 42,000 LBS.)
CASE	CX160, CX170E, CX190E
CAT	315D, 316F, 318F, M318F
DOOSAN	DX180LC-5, DX190W-5
HITACHI	ZX160
HYUNDAI	HX160, HX180
JOHN DEERE	160G, 160P
KOBELCO	ED195, SK170
KOMATSU	PC170
LIEBHERR
LINK BELT	160X4
SANY
TAKEUCHI
VOLVO	EW160, EW180, EC160, EC180

20MT

MAKE / WEIGHT CLASS	20MT (42,000 – 50,000 LBS.)
CASE	CX210, CX220E, CX235, CX245
CAT	320, 321, M322F, 323 (B-Linkage)
DOOSAN	DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5
HITACHI	ZX180, ZX200, ZX210, ZX245
HYUNDAI	HX220, HX235
JOHN DEERE	210G, 245G, 180P, 210P, 190GW, 230GW
KOBELCO	SK210, SK230SR, SK260, SK270SR
KOMATSU	PC210-11, PC228, PC238
LIEBHERR	R 920 L, 922 L
LINK BELT	210X4, 234X4, 245X4
SANY	SY215
TAKEUCHI
VOLVO	EC200, EW210, EC210, EC220, ECR235
