Description
DESCRIPTION

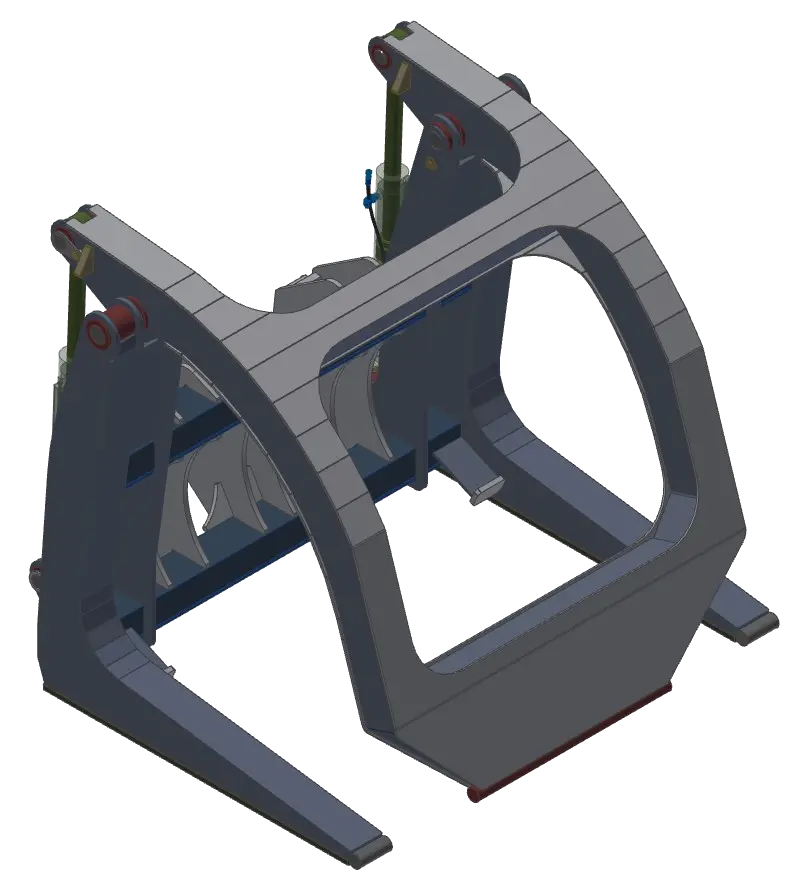

Mill Yard Forks
TAG Mill Yard Forks Offers A Robust Boxed Tine Integrated Carriage With A Paddle Style Clamp.
- Boxed Tines Fabricated From High Strength Steel
- Single Piece High Strength Steel Clamp Plates & Skins
- Adjustable Cross-Over Relief Valve To Protect Cylinders
- Oversized Heat-Treated Hinge & Cylinder Pins
- Standard Weld On Bottom Wear Strips For Additional Tine Wear Protection
- Carriages: 80″ – 110″
- Tines: 48″ – 90″
- Required 3Rd Function Hydraulics
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the “FITS” tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
SPECIFICATIONS
Pin On
| Size | SKU # | Carr Width | Tine Width | Tine Length | Min-Max Clamp Opening | Weight |
| 200 | P200MY8048 | 80″ | 5″ | 48″ | 11″-101″ | 3050 LBS |
| 300 | P300MY8460 | 84″ | 6″ | 60″ | 12″-104″ | 3250 LBS |
| 500 | P500MY8460 | 84″ | 6″ | 60″ | 12″-104″ | 3450 LBS |
| 600 | P600MY9066 | 90″ | 7″ | 66″ | 13″-110″ | 4830 LBS |
| 700 | P700MY10472 | 104″ | 8″ | 72″ | 16″-116″ | 5500 LBS |
| 800 | P800MY11090 | 110″ | 8″ | 90″ | 14″-160″ | 6740 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Width | Tine Length | Min-Max Clamp Opening | Weight |
| 200 | QC200MY8048 | 80″ | 5″ | 48″ | 11″-101″ | 3050 LBS |
| 300 | QC300MY8460 | 84″ | 6″ | 60″ | 12″-104″ | 3250 LBS |
| 500 | QC500MY8460 | 84″ | 6″ | 60″ | 12″-104″ | 3450 LBS |
| 600 | QC600MY9066 | 90″ | 7″ | 66″ | 13″-110″ | 4830 LBS |
| 700 | P700MY10472 | 104″ | 8″ | 72″ | 16″-116″ | 5500 LBS |
| 800 | QC800MY11090 | 110″ | 8″ | 90″ | 14″-160″ | 6740 LBS |
