Thinking of stepping up to 22.5″ wheels? Upgrade your Chevy/GMC 4500/5500 stock 19.5″ x 6.75″ wheels up to the 22.5″ x 7.5″ for an extra 12,000 lbs of towing capacity. Going with these bigger wheels get your truck up to dock height. The 8×275 bolt pattern also fits most class A motorhomes.
The Hercules Strong Guard H-RA tires feature a wide solid shoulder design for even wear and lateral stability, zig-zag groove design for outstanding handling, and multi-point edged grooves for improved dry and wet traction. They also come with a Limited Protection Policy covering defects for 84 months from purchase, offering a free replacement during the first 50% of tread life, and allow for 3 retreads.

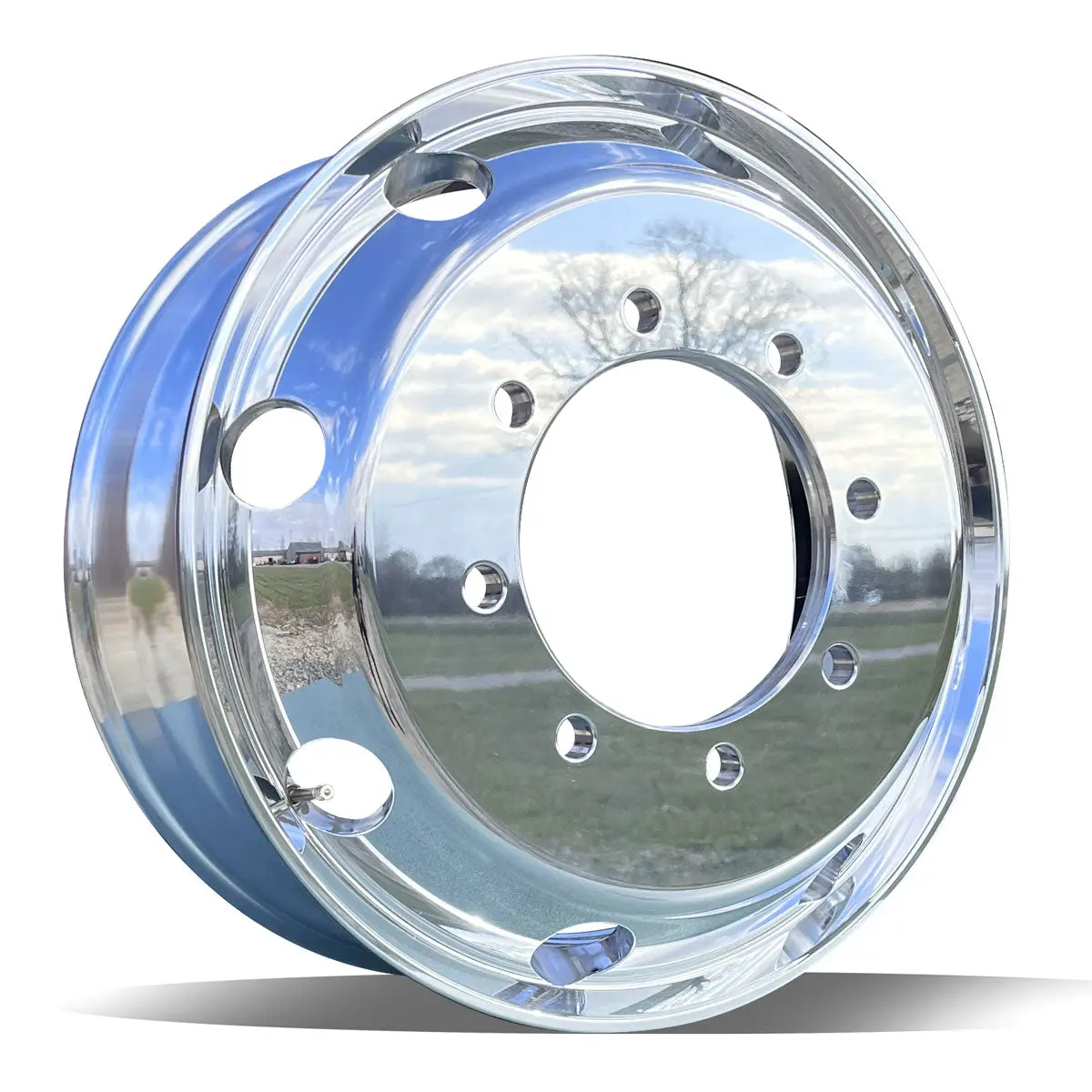

Northstar manufactures quality heavy duty wheels for the commercial trucking industry. Their fully forged rugged style strikes the balance between grit and grandeur. They have a selective focus on aluminum wheels that allows them to deliver a safe, tested and durable product at an honest price. Northstar is leading the way in pursuit of reliability and resilience, polished to perfection.
Kit Includes:
Tire Specs:
Aluminum Specs:
Steel Specs:
Additional Information:
Want a different tread pattern?
6 – Hercules Highway Tires (HRA 255/70R22.5) 4 – Northstar Aluminum Wheels Mirror Polished Both Sides (225750) 2 – Jantsa Black Steel Inner Dual Wheels (750279) 2 – Front Alcoa Hub & Lug Cover Kit 2 – Rear Alcoa Hub & Lug Cover Kit Tire Size: 255/70R22.5 (36.61″) Ply & Load Range: 16 / H Max Load Single: 5510 lbs @ 120 psi Max Load Dual: 5070 lbs @ 120 psi Tread Depth: 17/32″ Weight: 92lbs Material: 6061 Fully Forged Aluminum Finish: High Polished Both Sides Mounting Set Up: Hub Pilot Dual-Mounting Wheel Size: 22.5″ x 7.50″ Bolt Pattern: 8×275 Hub Bore Diameter: 221.1mm Hand/Vent Holes: 8 x 2.00″ Wheel Offset: 6.28″ Backspacing: N/A Disc Thickness: .84″ Weight: 53 lbs Max Load & Inflation: 7300 lbs @ 130 psi Installed Valve Stem: TR555D Material: Steel Finish: Painted Black Mounting Set Up: Hub Pilot Dual-Mounting Wheel Size: 22.5″ x 7.50″ Bolt Pattern: 8×275 Hub Bore Diameter: 221.1mm Hand/Vent Holes: 4 Wheel Offset: 6.02″ Backspacing: N/A Disc Thickness: .43″ Weight: 76 lbs Max Load & Inflation: 7100 lbs @ 120 psi Installed Valve Stem: TR-573-E17 Fits These Applications: Motorhome & RV Workhorse Chassis Chevrolet 4500/5500 Kodiak GMC 4500/5500 Topkick Freightliner M2 (some models) International 4300 (some models) Ford F650 (some models) Replaces Parts: 873401 873402 225750 29028 90614
Warranty Info: Click Here to Read the Warranty for Alcoa Wheels To File a Claim: Call 800-242-9898 Option #1 or Click Here
