Hiniker V-Plow Compatible with Skid Steer Loaders

Description

DESCRIPTION

1/26

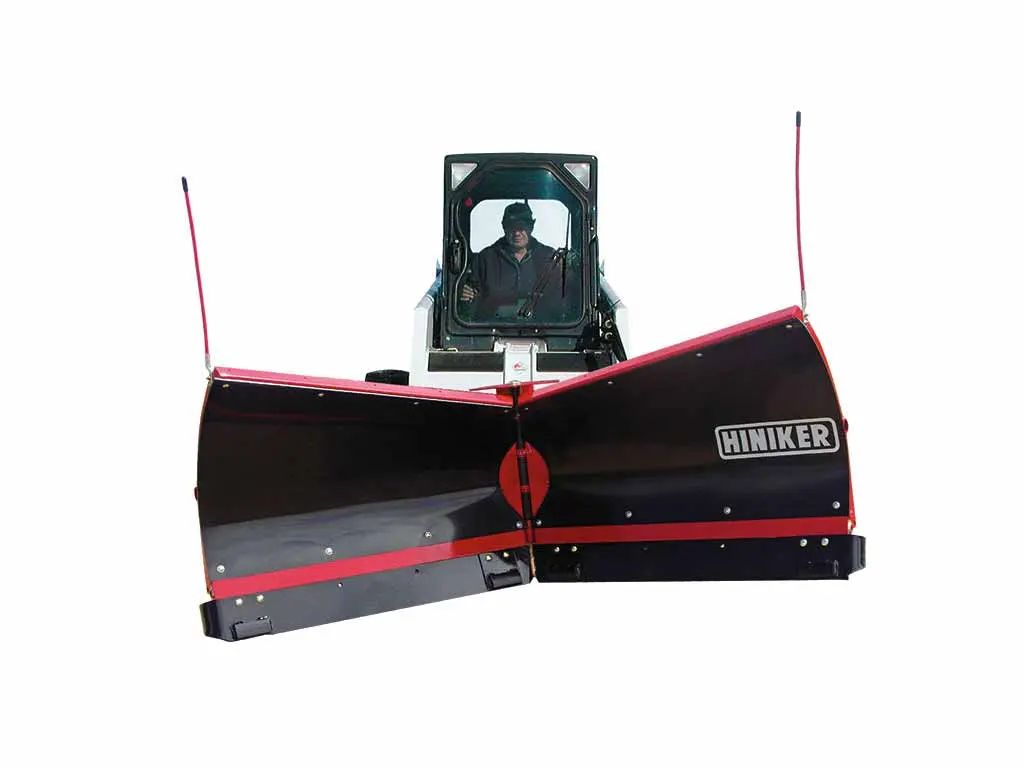

Hiniker Skid Steer V-Plow

Series 29285 / 29295 Snowplow

The Hiniker Skid Steer V-Plow Series 29285/29295 delivers unmatched versatility and performance for commercial snow removal. Designed for skid steers with universal mount plates, this heavy-duty V-plow operates in V-plow, scoop, angle, or straight blade positions, allowing operators to adapt instantly to changing snow conditions.

Built with a box-section steel tubular frame, the Hiniker V-Plow is engineered for long-term strength and reliability in demanding winter environments. Two-way hydraulics provide full moldboard control, while torsion spring trip-edge protection helps prevent damage when encountering curbs, obstacles, or uneven surfaces.

---

Key Features & Benefits

• Operates in V, scoop, left angle, right angle, or straight blade modes

• Torsion spring trip-edge for superior impact protection

• Two-way hydraulic control for full moldboard positioning

• Free-floating blade with 15° horizontal oscillation for cleaner scraping on uneven surfaces

• Box-section tubular steel frame for maximum durability

• Abrasion-resistant hose sheathing protects hydraulic lines from wear

• Universal mount plate for fast, easy skid steer hookup

• Replaceable cutting edges for extended service life

• Slick HMW poly moldboard surface promotes efficient snow rolling and reduced sticking

---

Included Components

• Complete blade assembly

• Replaceable cutting edges

• Electrical wiring harness

• Hydraulic hoses

• Electro-hydraulic valve (included with V-Plow and C-Plow models)

(Electro-hydraulic valve not required for conventional or scoop plows)

---

Operating Requirements

• Skid steer with universal mounting plate

• Auxiliary hydraulic outlets (one pair)

• 2100 PSI pressure relief setting

• Appropriate hydraulic couplers (supplied by dealer or user)

---

Moldboard Design

The floating, oscillating moldboard maintains consistent ground contact across uneven surfaces, improving scrape quality and reducing operator fatigue.

---

Ideal Applications

• Commercial snow removal

• Parking lots and roadways

• Sidewalks and drive lanes

• Industrial and municipal properties

• Property maintenance contractors

SPECS

Specification	8½’ Plow	9½’ Plow
Blade Height	30″ – 37″	30″ – 38″
Weight	689 lbs	726 lbs
Plow Width (Straight)	8′ 6″	9′ 6″
Plow Width – V Position	7′ 9″	8′ 8″
Plow Width – Scoop Position	6′ 11″	7′ 10″
Plow Width – Angled 30°	7′ 4″	8′ 3″
Cutting Edge (Optional)	3/8″ × 6″ 1084 Steel	1/2″ × 6″ 1084 Steel
Wiring Harness Fuse	10 amp	10 amp

Skid Steer V-Plow Specifications
MODEL	29285	29295
BLADE WIDTH	8 1/2′	9 1/2′
BLADE HEIGHT	30″
BLADE THICKNESS	1/4″ HMW Poly
TORSION TRIP SPRINGS	6
WEIGHT	677 lbs.	716 lbs.
